Okwu mmalite
Thank you for choosing the VASAGLE UKKS124K03 Bakers Rack with Power Outlet. This manual provides essential information for the safe assembly, operation, and maintenance of your new kitchen storage unit. Please read these instructions carefully before beginning assembly and retain them for future reference.
Ozi nchekwa
- Ngwa mgbochi ndụmọdụ: Always secure the unit to the wall using the included anti-tip kit to prevent tipping. This is crucial for stability and safety, especially in households with children or pets.
- Ike ibu: Do not overload shelves beyond their specified weight capacity. The maximum weight capacity for this unit is 85 pounds. Distribute weight evenly.
- Mgbakọ: Follow all assembly instructions carefully. Ensure all screws and fasteners are tightened securely before use.
- Nchekwa Eletriki: The integrated power outlet features 3 AC outlets (125V/15A) with a maximum power of 1875 Watts. Do not exceed these electrical ratings. Ensure the power cord is not pinched or damaged.
- Nkwanye: Place the unit on a flat, stable, and level surface. Use the adjustable feet to compensate for uneven floors.
- Nhicha: Disconnect from power before cleaning. Wipe with a dry cloth only.
Image: Anti-tip kit installation for enhanced stability.
Ihe ngwugwu
Tupu mgbakọ, chọpụta na ihe niile e depụtara n'okpuru dị ugbu a na adịghị emebi emebi. Ọ bụrụ na akụkụ ọ bụla na-efu ma ọ bụ mebie, biko kpọtụrụ nkwado ndị ahịa.
- 1 x Kitchen Baker's Rack (Disassembled)
- 1 x Assembly Kit (Hardware and Tools)
- 1 x Ngwa mgbochi ndụmọdụ
- 6 x S-Hooks
- 1 x Akwụkwọ ntuziaka
Ntuziaka na Nhazi na Mgbakọ
Assembly is required for this product. It is recommended to have two people for assembly, though it can be completed by one person. Follow the step-by-step instructions provided in the included assembly kit. Ensure you have a clear, spacious area for assembly.
- Wepu akụrụngwa: Jiri nlezianya wepụ akụkụ niile na nkwakọ ngwaahịa. Debe ha n'elu ala dị nro, dị ọcha iji gbochie ncha.
- Chọpụta akụkụ: Refer to the parts list in your assembly kit to identify each component (e.g., frame pieces, shelves, screws, etc.).
- Mkpọkọta Frame: Begin by assembling the main metal frame structure according to the diagrams. Do not fully tighten screws until all parts are loosely connected.
- Tinye akwa akwa: Secure the particleboard shelves to the frame. Note the adjustable middle lower shelf; choose your desired height during this step.
- Wụnye ebe a na-ere ọkụ eletrik: Attach the power outlet unit to the designated area on the rack. Ensure the wiring is routed safely and not pinched.
- Attach S-Hooks: Install the 6 S-hooks onto the side bars for hanging utensils or towels.
- Mmechi ikpeazụ: Once all components are in place, systematically tighten all screws and fasteners.
- Wụnye ngwa mgbochi ndụmọdụ: Secure the rack to the wall using the provided anti-tip kit. This step is critical for safety.
- Hazie Ụkwụ: Use the adjustable feet at the bottom of the rack to level the unit on uneven floors.

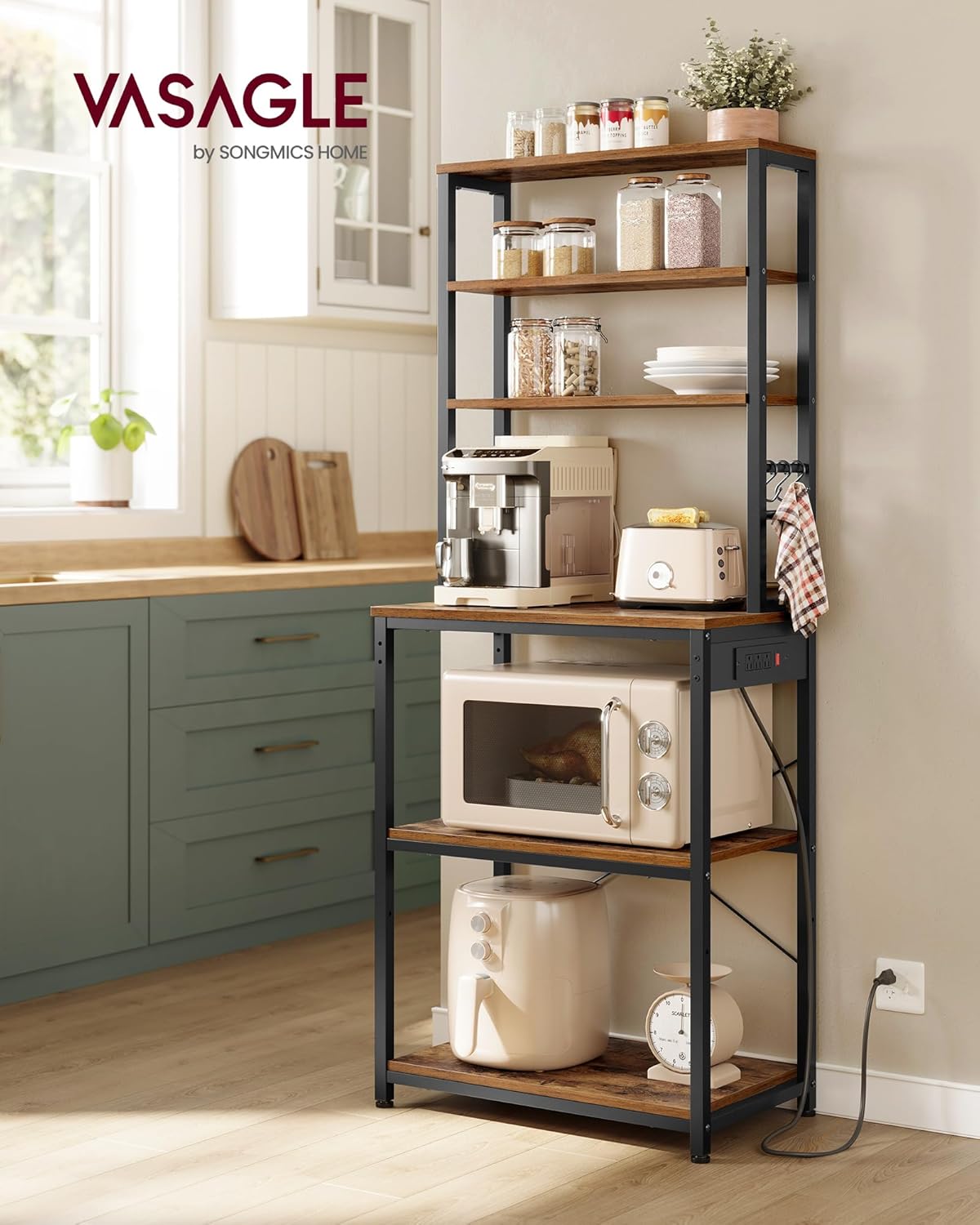

Image: Fully assembled VASAGLE Bakers Rack with Power Outlet.
Image: Detachable and adjustable shelves for versatile storage.
Image: Integrated power outlet with 3 AC sockets and an on/off switch.
Image: S-hooks for hanging accessories.
Image: Bakers rack used as a coffee bar.
Ntuziaka ọrụ
- Ojiji nke ebe a na-ere ọkụ eletrik: Plug the rack's power cord into a standard wall outlet. Use the red on/off switch on the power strip to control power to the 3 AC outlets. Ensure total wattage of connected appliances does not exceed 1875 Watts.
- Shelves nwere ike idozi: The middle shelf in the lower section can be adjusted to two different heights. To adjust, remove items from the shelf, detach the shelf, and re-position it to the desired height using the available mounting holes.
- S-Hooks: Utilize the six included S-hooks to hang kitchen utensils, towels, or other lightweight accessories on the side bars.
Video: Demonstration of product features and usage.
Nlekọta
- Nhicha: For general cleaning, wipe the surfaces with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Nchara Na-egweri ihe na shelf na fremu mgbe niile iji mee ka ọ dị mma.
- Lelee ngwa ngwa: Na-elele skru na ngwa ngwa niile kwa oge iji hụ na ha kwụgidere. Tinyegharịa ma ọ bụrụ na ọ dị mkpa.
- Nyocha eriri ike: Inspect the power cord and plug for any signs of damage. If damaged, discontinue use and contact customer support.
Nchọpụta nsogbu
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Rack ahụ na-ama jijiji ma ọ bụ na-adịghị agbanwe agbanwe. | Uneven floor; loose fasteners; anti-tip kit not installed. | Adjust the leveling feet. Tighten all assembly screws. Install the anti-tip kit to the wall. |
| Igwe ọkụ anaghị arụ ọrụ. | Power switch off; rack not plugged in; circuit overload. | Ensure the red on/off switch is in the 'on' position. Verify the rack's power cord is securely plugged into a functional wall outlet. Reduce the number of appliances or total wattage jikọtara. |
| Shelf does not fit correctly. | Incorrect orientation; wrong shelf used; assembly error. | Refer to the assembly instructions to ensure the correct shelf is used and oriented properly. Disassemble and reassemble the section if necessary. |
Nkọwapụta
- Ụdị: UKKS124K03
- Akara: VASAGLE
- Akụkụ (n'ozuzu): 15.7"D x 23.6"W x 65.7"H (40 cm D x 60 cm W x 167 cm H)
- Ihe: Alloy Steel, Engineered Wood (Particleboard)
- Ọnụọgụ nke shelf: 6
- Ike ibu: 85 lbs (38.5 n'arọ)
- Ọkụ ọkụ: 3 AC Outlets, 125V/15A, Max. 1875 Watts
- Ogologo eriri ike: 4.9 ft (1.5 m)
- Agba: Rustic Brown + Ink Black
- Atụmatụ pụrụ iche: Adjustable Middle Lower Shelf, Anti-Tip Kit, 6 S-Hooks

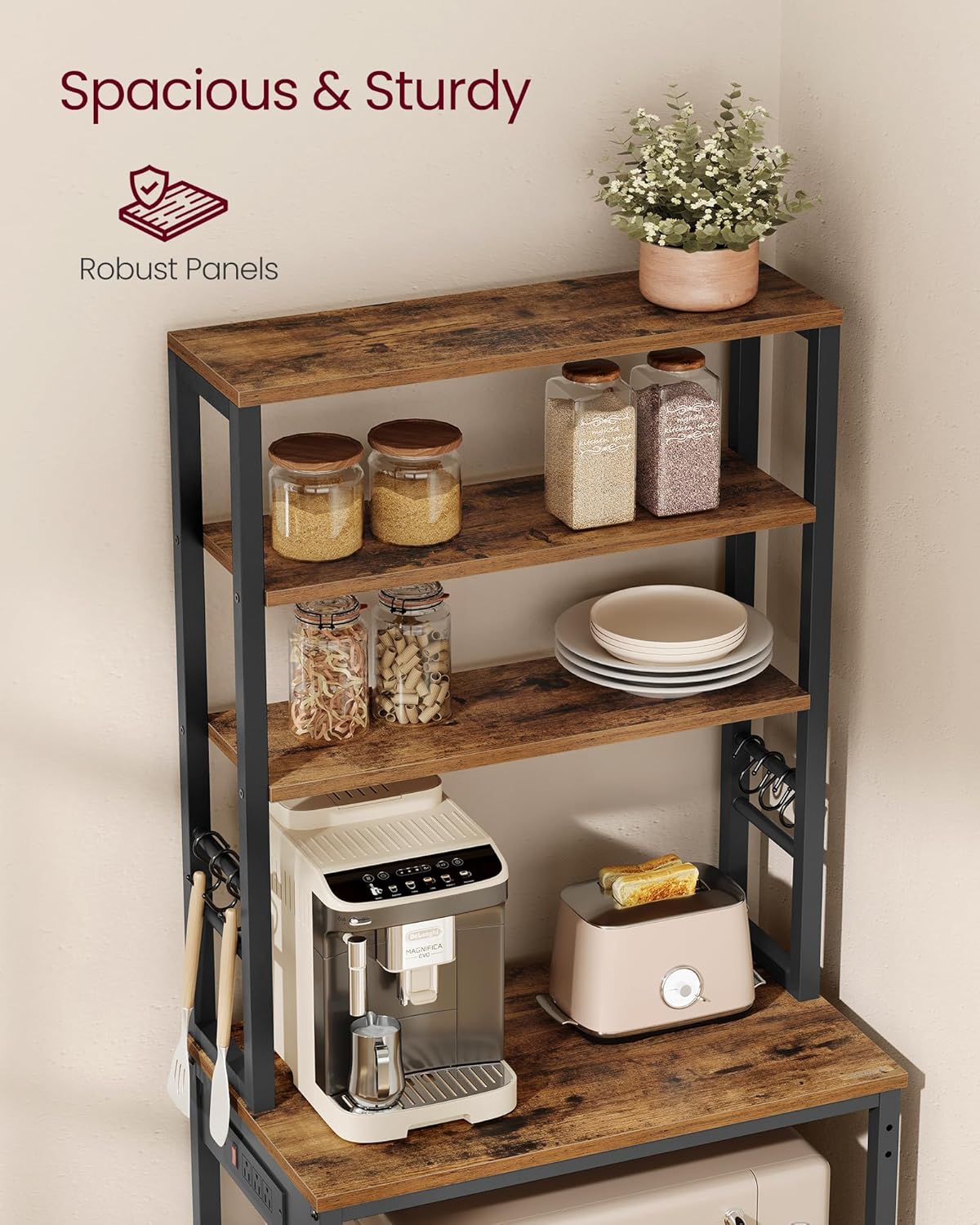

Image: Product dimensions and weight limits.
Akwụkwọ ikike na nkwado
For warranty information, missing parts, or technical support, please contact VASAGLE customer service through your purchase platform or the official VASAGLE website. Please have your model number (UKKS124K03) and purchase date ready when contacting support.
Nkwado n'ịntanetị: Gaa leta VASAGLE Store on Amazon maka ozi ndị ọzọ na kọntaktị nhọrọ.
