Eyoyo EY-016Z 3-in-1 Wearable Finger Ring Barcode Scanner User Manual

1. Okwu mmalite

The Eyoyo EY-016Z is a versatile 3-in-1 wearable finger ring barcode scanner designed to enhance efficiency in various scanning tasks. It supports multiple connection modes and is compatible with a wide range of devices and operating systems. This manual provides detailed instructions for setting up, operating, and maintaining your scanner.

2. Atụmatụ igodo

• Wearable Ring Design: Ergonomic finger-worn design with 330° flexible adjustment for left or right-hand use, allowing hands-free operation.
• Njikọ 3-na-1: Supports 2.4G wireless, Bluetooth 4.1, and USB wired connections for broad compatibility with various devices.
• Ndakọrịta sara mbara: Works with Windows XP/7/8/10, Mac OS, Linux, Android, and iOS operating systems.
• 1D & 2D Barcode Scanning: Capable of scanning most 1D and 2D barcodes from both paper and digital screens, including QR, DataMatrix, PDF417, EAN, UPC, Code 39, Code 128, and more.
• Kọmpat ma dị fechaa: Mini size and ultralight design (approximately 30g/1.05oz) for comfortable, extended use.
• Ogologo ndụ batrị: Equipped with a 450mAh rechargeable battery, providing up to 8 hours of continuous operation on a full charge.
• Multiple Configuration Options: Features instant upload and storage modes, with customizable settings for sound, vibration, and adding keyboard keys (e.g., TAB, CR&LF).

3. Ihe ngwugwu

Chọpụta na ihe niile dị na ngwugwu gị:

• Eyoyo Ring 2D Scanner
• 2.4G USB Dongle
• eriri USB
• Akwụkwọ ntuziaka onye ọrụ

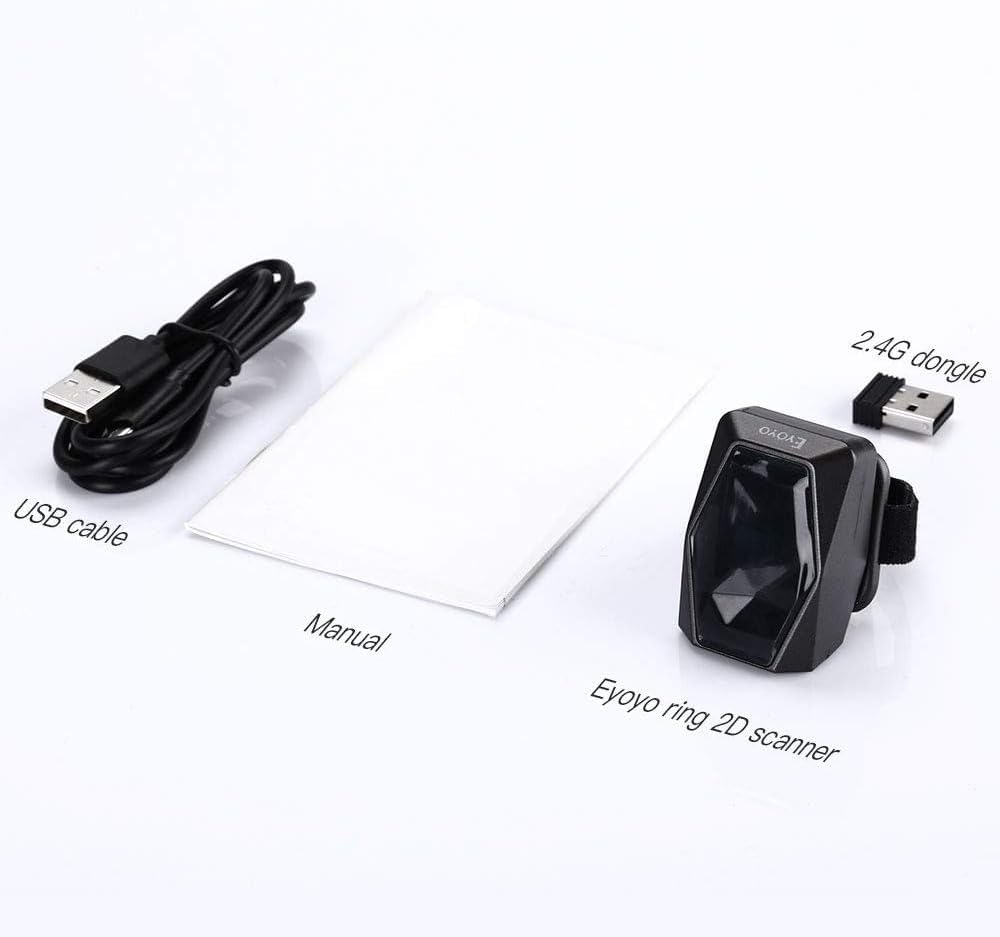

Image: Contents of the Eyoyo EY-016Z package, including the scanner, 2.4G dongle, USB cable, and manual.

4. Ntọala na Njikọ

4.1 Ịchaji ihe nyocha ahụ

Before first use, fully charge the scanner using the provided USB cable. Connect the USB cable to the scanner's charging port and a power source (e.g., computer USB port or USB wall adapter). The indicator light will show charging status.

4.2 Wearing the Scanner

The scanner is designed to be worn on your finger. Adjust the strap for a comfortable and secure fit. The scanner head can rotate 330 degrees to accommodate both left and right-hand users.

Image: The Eyoyo EY-016Z scanner worn on a finger, demonstrating its 330-degree rotation capability for flexible use.

4.3 Ụdị njikọ

The scanner supports three connection methods:

Image: Diagram illustrating the three connection modes: Bluetooth (Wireless Mode - BT 4.1), 2.4G Wireless (Wireless Mode - 2.4G Connection), and USB Wired (Wired Mode - USB Connection).

4.3.1 2.4G Njikọ ikuku

1. Insert the 2.4G USB dongle into an available USB port on your computer or device.
2. The scanner will automatically attempt to pair with the dongle. A successful connection is indicated by a specific sound or light pattern (refer to scanner's indicator guide).

4.3.2 Njikọ Bluetooth

1. Ensure Bluetooth is enabled on your host device (PC, smartphone, tablet).
2. Scan the Bluetooth pairing barcode (usually found in the full manual or on a setup card).
3. On your host device, search for available Bluetooth devices and select "Eyoyo Scanner" (or similar name) to pair.
4. A successful connection is indicated by a specific sound or light pattern.

4.3.3 Njikọ eriri USB

1. Jikọọ nyocha na kọmputa gị site na iji eriri USB enyere.
2. The scanner will function as a plug-and-play device, typically requiring no additional driver installation.

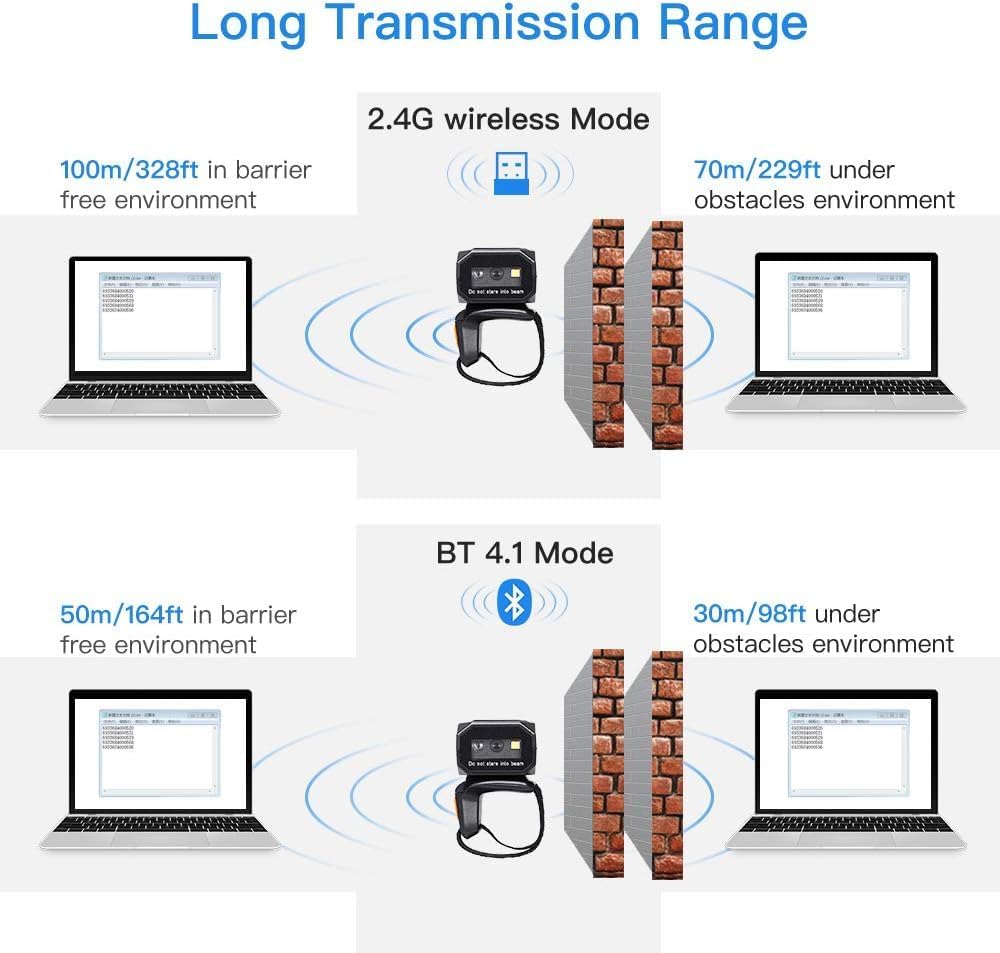

Image: Illustration of transmission ranges for 2.4G wireless mode (up to 100m/328ft in barrier-free environment, 70m/229ft with obstacles) and Bluetooth 4.1 mode (up to 50m/164ft in barrier-free environment, 30m/98ft with obstacles).

5. Ntuziaka ọrụ

5.1 Usoro nyocha nke barcodes

To scan a barcode, point the scanner's window at the barcode and press the scan button. The scanner will emit a light beam to read the code. A successful scan is typically indicated by a beep and/or a green light.

Image: The Eyoyo EY-016Z scanner demonstrating its ability to capture various 1D and 2D barcodes, including QR Code, Data Matrix, Maxicode, Aztec code, UPC/EAN, and PDF417.

5.2 Upload Modes

The scanner supports two data upload modes:

• Ụdị nbudata ngwa ngwa: Scanned data is immediately transmitted to the connected device.
• Ụdị Nchekwa: Scanned data is stored in the scanner's internal memory and can be uploaded later. This is useful when out of range of a host device. To upload stored data, scan the 'Upload Data' barcode (refer to the full manual for specific configuration barcodes).

Image: Visual representation of the two upload modes: Instant Upload Mode (data sent immediately) and Storage Mode (data saved internally for later upload).

5.3 Nhazi Ntọala

The scanner can be configured by scanning specific setup barcodes (provided in the full user manual). These settings include:

• Enabling/disabling sound.
• Enabling/disabling vibration.
• Adding keyboard keys (e.g., TAB, CR&LF) after each scan.

5.4 ndakọrịta

The Eyoyo EY-016Z scanner is compatible with a wide range of devices and operating systems, including:

• Laptops and PCs running Windows (XP/7/8/10), Mac OS, and Linux.
• Smartphones and tablets running Android and iOS.
• POS systems.

Image: The Eyoyo EY-016Z scanner shown with various compatible devices like laptops, PCs, smartphones, and tablets, highlighting compatibility with Windows, Android, iOS/MacOS, and Linux.

6. Nlekọta

6.1 Nhicha

To clean the scanner, use a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaning solution. Do not use harsh chemicals or immerse the scanner in liquid.

6.2 Nchekwa

Store the scanner in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, ensure the battery is partially charged (around 50%) to prolong its lifespan.

7. Nchọpụta nsogbu

7.1 Scanner Not Connecting

• Lelee batrị: Ensure the scanner is sufficiently charged.
• Nyochaa Ụdị: Confirm the scanner is in the correct connection mode (2.4G, Bluetooth, or Wired) for your setup.
• Tinyegharịa ụzọ: For wireless connections, try re-pairing the scanner with your device.
• Njikọ USB: If wireless fails, try connecting via USB cable to rule out wireless issues.

7.2 Unable to Scan Barcodes

• Ụdị Barcode: Ensure the scanner supports the type of barcode you are trying to scan (1D, 2D, specific symbology).
• Ogo koodu barcode: Check if the barcode is damaged, smudged, or poorly printed.
• Ogologo/ Akụkụ: Hazie anya na akụkụ dị n'etiti ihe nyocha na barcode.
• Ọkụ: Ensure adequate lighting, but avoid direct glare on the barcode.

7.3 Incorrect Data Transmission

• Ntọala mmepụta: Review the scanner's configuration settings for prefix/suffix, carriage return, or other data formatting options.
• Ndakọrịta Software: Ensure the application receiving the data is correctly configured to accept input from a keyboard wedge device.

8. Ozi nchekwa

• Do not expose the scanner to extreme temperatures, humidity, or corrosive substances.
• Avoid dropping or subjecting the scanner to severe impact.
• Do not attempt to disassemble or modify the scanner. This will void the warranty.
• Do not stare directly into the scanner's light beam, as it may cause eye discomfort.

Image: Visual warnings against improper handling of the scanner, specifically advising not to twist the scanner head in certain directions or drag it incorrectly, to prevent damage.

9. Nkọwapụta

10. Akwụkwọ ikike na nkwado

Eyoyo products typically come with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Eyoyo website for detailed warranty terms and conditions. For technical support, troubleshooting assistance, or service inquiries, please contact Eyoyo customer support through their official channels.
