HiTauing Aquarium Heater AP05 Series User Manual

1. Okwu mmalite

This manual provides essential instructions for the safe and effective use of your HiTauing Aquarium Heater AP05 series. Please read this manual thoroughly before installation and operation, and retain it for future reference. This heater is designed to maintain a stable water temperature in freshwater and saltwater aquariums.

2. Ozi nchekwa

• Hụ na ihe na-ekpo ọkụ ahụ na-adị mgbe niile fully submerged in water before connecting it to a power source. Operating the heater out of water will cause damage and poses a fire hazard.
• The power plug should be positioned higher than the feeding container to prevent water from dripping along the cord and reaching the electrical outlet (drip loop).
• Before performing any maintenance, water changes, or removing the heater from the aquarium, wepụ eriri ike and allow the heater to cool for at least 15 minutes. The glass tube can be very hot.
• Do not touch the glass tube with bare hands immediately after unplugging or during operation.
• Inspect the heater and power cord regularly for any signs of damage. Do not use if damaged.
• Ezubere ngwa a maka iji ndị mmadụ (gụnyere ụmụaka) nwere ike anụ ahụ, mmetụta uche ma ọ bụ nke uche, ma ọ bụ enweghị ahụmịhe na ihe ọmụma, ma ọ bụrụ na enyereghị ha nlekọta ma ọ bụ ntụziaka gbasara iji ngwa ahụ site n'aka onye na-ahụ maka nchekwa ha.

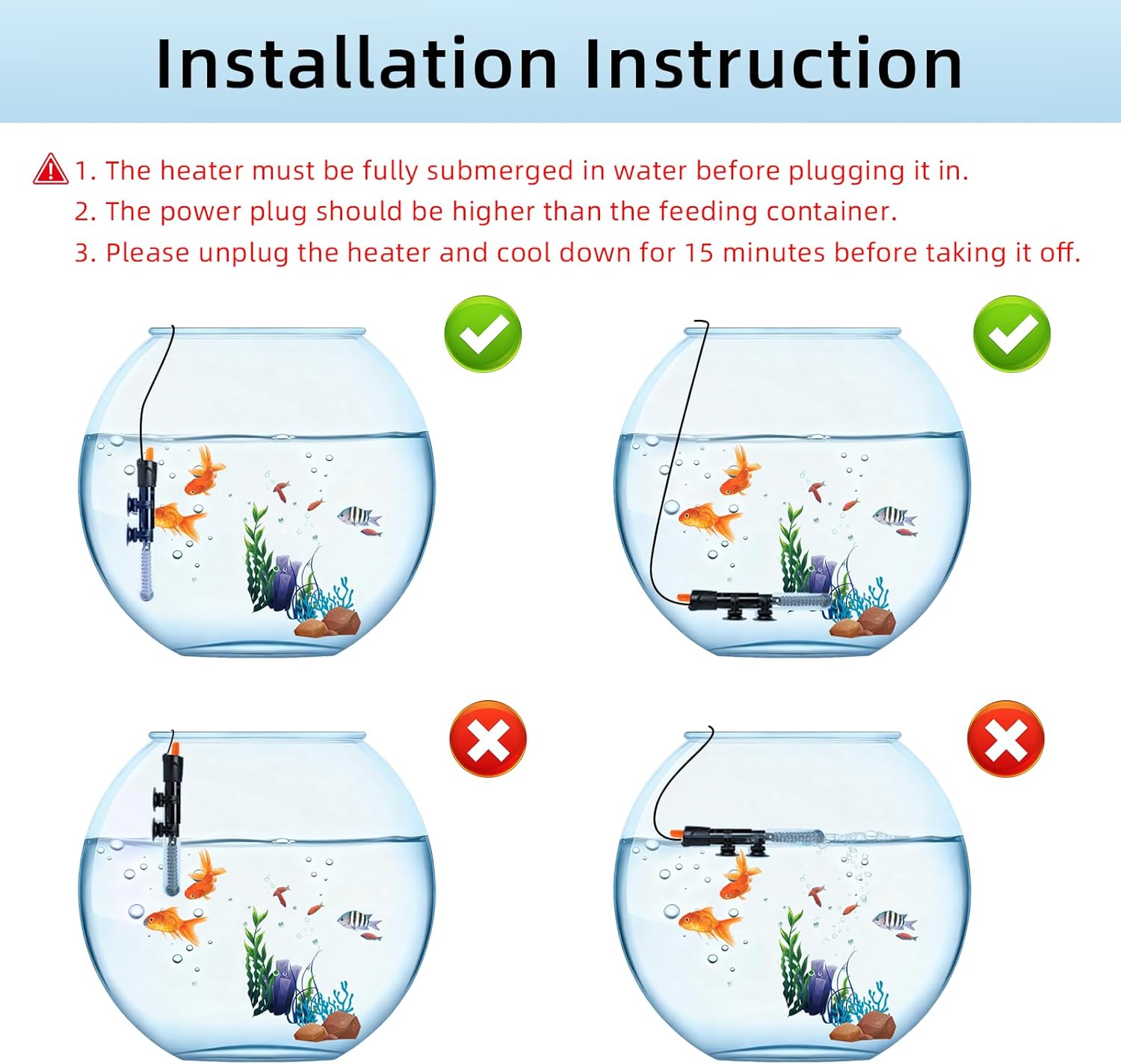

Image: Correct and incorrect heater installation. The heater must be fully submerged, and the power cord should form a drip loop.

3. Ngwaahịa gafereview

The HiTauing Aquarium Heater AP05 series features an adjustable knob for temperature control and includes a separate digital thermometer for accurate water temperature monitoring. It is designed for full submersion in both freshwater and saltwater environments.

Ngwa:

• Aquarium Heater Unit (with adjustable knob and power cord)
• Suction Cups (for mounting)
• Digital Thermometer (with probe and suction cup)

Akụrụngwa:

The heater is constructed with a premium nickel-chromium heating wire for efficient heat transfer. The outer layer features a thickened, explosion-proof glass tube for durability and safety. The power plug is CE-certified.

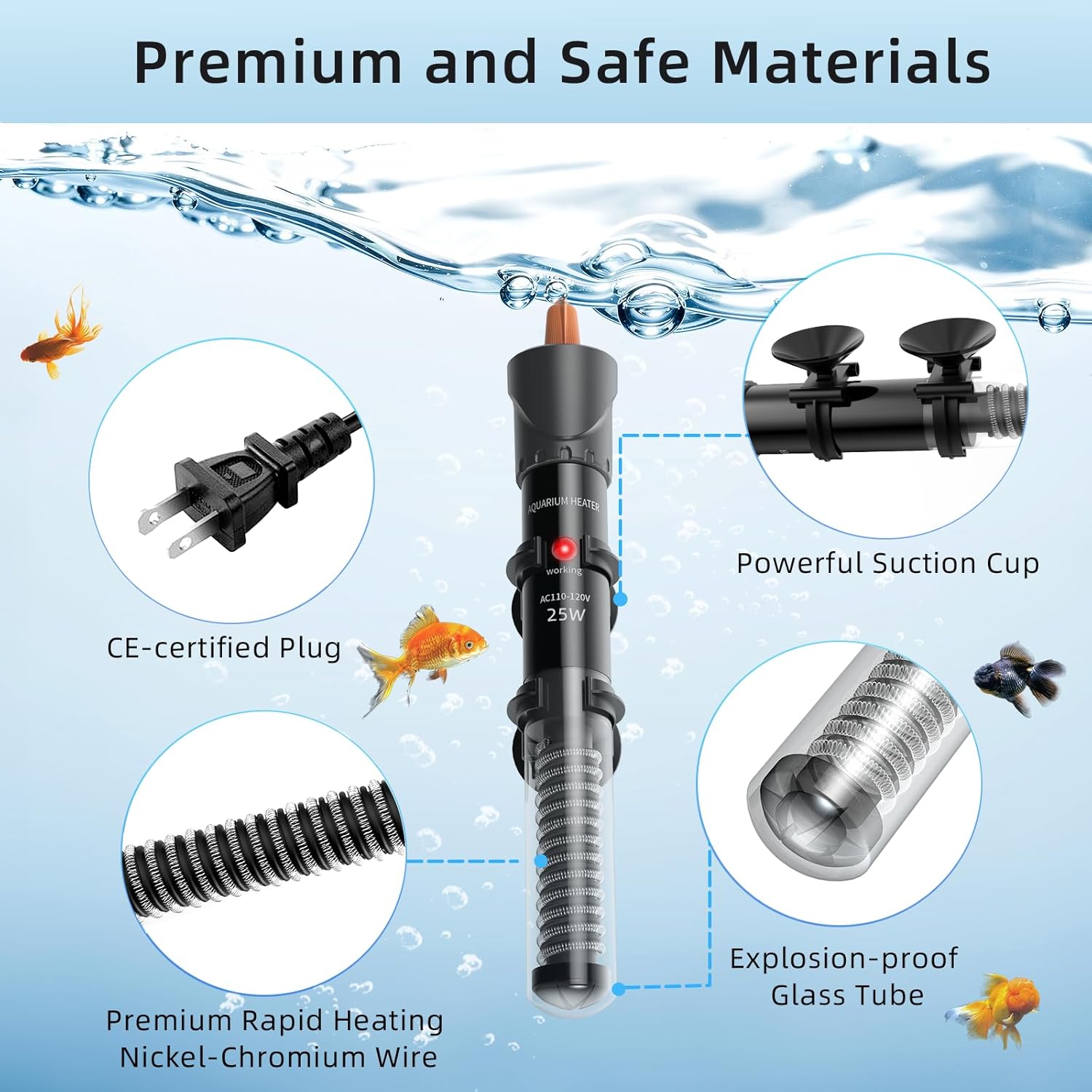

Image: Breakdown of heater components including CE-certified plug, powerful suction cup, rapid heating nickel-chromium wire, and explosion-proof glass tube.

4. Nhazi

1. Wepu akụrụngwa: Carefully remove the heater unit and digital thermometer from the packaging.
2. Tinye iko mmiri ara: Securely attach the provided suction cups to the heater unit.
3. Ọnọdụ okpomọkụ: Place the heater inside your aquarium, ensuring it is imikpu mmiri nke ọma in the water. Use the suction cups to firmly attach it to the aquarium wall. Ensure there is adequate water circulation around the heater.
4. Position Digital Thermometer: Attach the digital thermometer probe to the aquarium wall using its suction cup, ensuring it is also submerged and positioned away from the heater for accurate readings.
5. Create Drip Loop: Arrange the power cord so that it hangs below the electrical outlet, forming a drip loop. This prevents water from flowing along the cord into the outlet.
6. Do Not Plug In Yet: Do not plug the heater into the power outlet until the desired temperature is set.

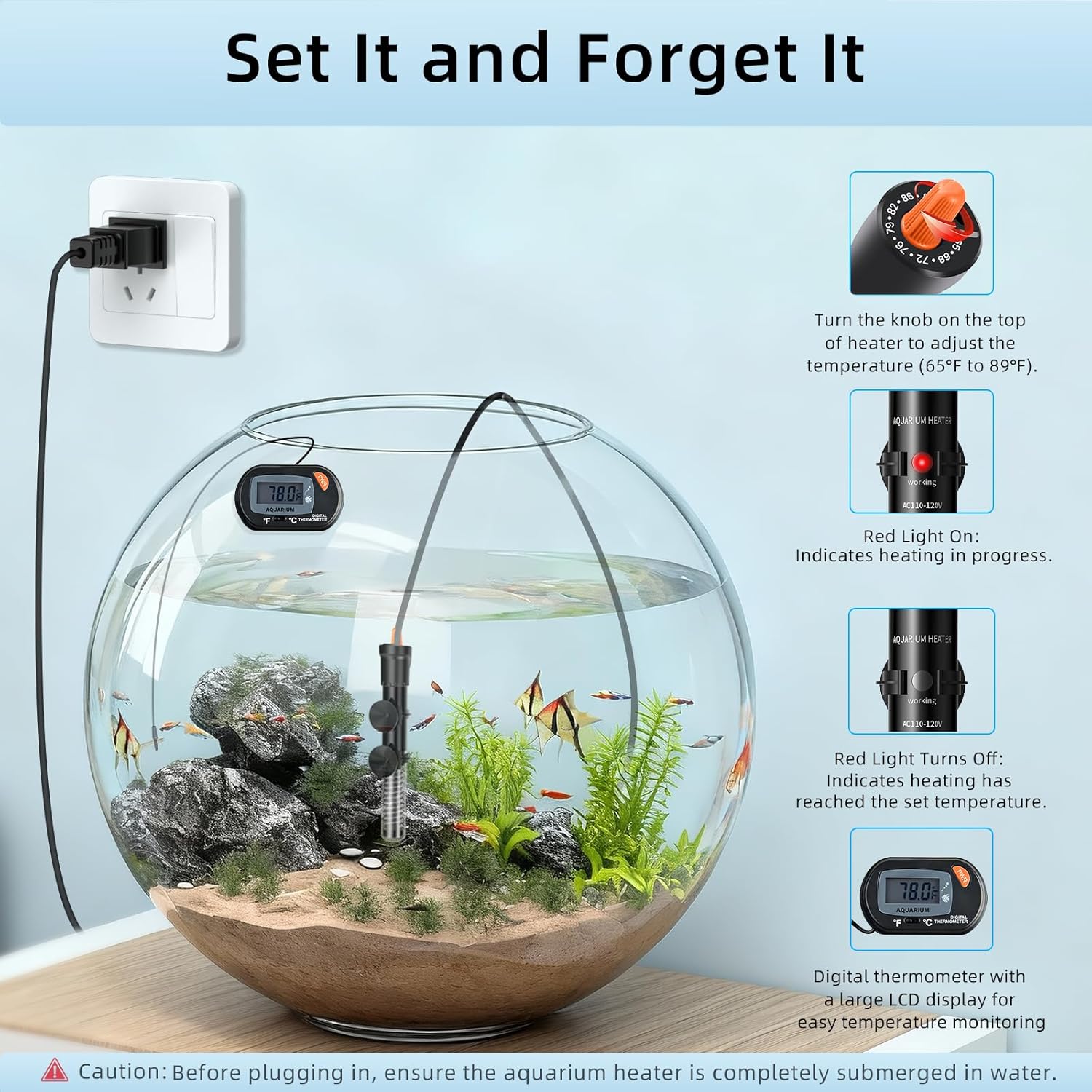

Image: A HiTauing aquarium heater and digital thermometer correctly installed in a fish tank, showing the adjustable knob and indicator light.

5. Ntuziaka ọrụ

1. Tọọ okpomọkụ achọrọ: Locate the adjustable knob on the top of the heater. Rotate the knob to select your desired water temperature within the range of 65°F to 89°F (18°C to 32°C).
2. Jikọọ na Ike: Once the temperature is set and the heater is fully submerged, plug the power cord into a suitable electrical outlet.
3. Nyochaa ikpo oku: A red indicator light on the heater will illuminate, indicating that the heater is actively heating the water.
4. Temperature Reached: When the aquarium water reaches the set temperature, the red indicator light will turn off. The heater will cycle on and off to maintain the set temperature.
5. Verify with Thermometer: Always refer to the separate digital thermometer for real-time monitoring of the aquarium water temperature to ensure accuracy.

Image: Step-by-step guide for operating the heater, showing knob adjustment, heating indicator light, and thermometer placement.

6. Nlekọta

• Nhicha: Over time, algae or mineral deposits may accumulate on the heater. To clean, unplug the heater and allow it to cool for 15 minutes. Gently wipe the glass tube with a soft cloth or sponge. Do not use abrasive cleaners or harsh chemicals.
• Mgbanwe mmiri: Always unplug the heater before performing any water changes to prevent exposure to air while hot, which can cause damage. Allow it to cool before removing it from the tank.
• Nyocha oge niile: Periodically check the heater and its power cord for any signs of wear, cracks, or damage. Replace the unit if any damage is observed.

7. Nchọpụta nsogbu

• Ihe na-ekpo ọkụ anaghị akpọ ọkụ:
  • Ensure the heater is fully submerged and plugged into a working power outlet.
  • Check if the set temperature on the knob is higher than the current water temperature. The heater will only activate if the water is below the set point.
  • Nyochaa na ntinye ọkụ na-arụ ọrụ site na nkwụnye na ngwaọrụ ọzọ.
  • If the red indicator light does not turn on when the water temperature is below the set point, the unit may be faulty.
• ezughị oke okpomọkụ:
  • The heater's knob setting may not perfectly match the actual water temperature. Always rely on the separate digital thermometer for precise temperature readings.
  • Ensure the digital thermometer probe is placed in an area with good water circulation, away from the heater, to get an accurate reading of the overall tank temperature.
• Heater Overheating:
  • Immediately unplug the heater.
  • Ensure the heater is fully submerged and not exposed to air.
  • Verify the set temperature is appropriate for your aquatic life.
  • Check if the heater wattage is appropriate for your tank size (refer to specifications). An oversized heater can lead to rapid temperature fluctuations.

8. Nkọwapụta

The HiTauing Aquarium Heater AP05 series is available in various wattages to suit different aquarium sizes.

Image: Detailed product parameters for various wattage models of the HiTauing Aquarium Heater.

Nkọwa ndị ọzọ:

• Nọmba Nlereanya ihe: AP05
• Ibu ihe: Approximately 6.7 ounces (for 25W model)
• Akụkụ ngwugwu ihe: 7.87 x 3.19 x 1.77 inches (for 25W model)
• Ụbọchị mbụ dị: Ọktoba 20, 2025
• Ndị na-ege ntị ebumnuche: Fish, aquatic pets

Ngwa:

This aquarium heater is suitable for a variety of aquatic environments:

• Freshwater Tanks
• Saltwater Tanks
• Ụgbọ mmiri Turtle
• Betta Tanks

Foto: Examples of the heater's application in freshwater, saltwater, turtle, and betta tanks.

9. Akwụkwọ ikike na nkwado

HiTauing provides a Akwụkwọ ikike nke otu afọ for this product, which includes a 12-month replacement policy. For warranty claims, technical assistance, or any product-related inquiries, please contact HiTauing customer service through the retailer's platform or the official HiTauing websaịtị.

Please have your purchase details and product model number (AP05) available when contacting support.
