Mayer 35L Electric Oven MMO3501 Instruction Manual

1. Okwu mmalite na gafereview

This manual provides essential information for the safe and efficient operation of your Mayer 35L Electric Oven, model MMO3501. Please read these instructions thoroughly before first use and retain for future reference. This appliance is designed for household use only.

The Mayer 35L Electric Oven MMO3501 is a versatile kitchen appliance featuring a 35-liter capacity, ideal for baking, grilling, and roasting. It includes convection and rotisserie functions, adjustable temperature control from 100°C to 230°C, and dual heating elements with independent upper and lower temperature control. A 60-minute timer, dual tempered glass door, non-stick cavity, interior cooking light, and three rack positions enhance its functionality. A removable crumb tray simplifies cleaning.

2. Ntuziaka nchekwa dị mkpa

Mgbe ị na-eji ngwa eletriki, ekwesịrị ịgbaso usoro nchekwa nchekwa bụ isi mgbe niile iji belata ihe egwu ọkụ, ujo eletrik na mmerụ ahụ n'ahụ mmadụ, gụnyere ihe ndị a:

• Gụọ ntuziaka niile tupu ị rụọ oven ahụ.
• Do not touch hot surfaces. Always use oven mitts or gloves when handling hot materials.
• Nleba anya dị mkpa mgbe ụmụaka na-eji ngwa ọ bụla ma ọ bụ nso.
• To protect against electric shock, do not immerse the cord, plug, or any part of the oven in water or other liquid.
• Unplug from the outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts, and before cleaning the appliance.
• Ejikwala ngwa ọ bụla nwere eriri ma ọ bụ plọg mebiri emebi arụ ọrụ, ma ọ bụ ka emechara ngwa ahụ ma ọ bụ mebie ya n'ụzọ ọ bụla. Kpọtụrụ nkwado ndị ahịa maka enyemaka.
• Ojiji nke mgbakwunye ngwa nke onye nrụpụta ngwa anaghị atụ aro nwere ike bute ihe egwu ma ọ bụ mmerụ ahụ.
• Ejila n'èzí.
• Ekwela ka eriri ahụ kwụgidere na nsọtụ tebụl ma ọ bụ counter, ma ọ bụ metụ ebe dị ọkụ aka.
• Do not place the oven on or near a hot gas or electric burner, or in a heated oven.
• Ekwesịrị iji nlezianya mee ihe mgbe ị na-ebugharị ngwa nwere mmanụ ọkụ ma ọ bụ ihe ọ bụla na-ekpo ọkụ.
• Ejila ígwè foil kpuchie traị ahụ ma ọ bụ akụkụ ọ bụla nke oven. Nke a ga-eme ka oven dị ọkụ.
• Echekwala ihe ọ bụla, karịa ngwa ndị nrụpụta akwadoro, na oven a mgbe anaghị eji ya.
• Etinyekwala nri buru ibu ma ọ bụ arịa ọla n'ime oven n'ihi na ha nwere ike ịmepụta ọkụ ma ọ bụ ihe egwu nke ujo eletrik.
• A fire may occur if the oven is covered or touching flammable material, including curtains, drapes, walls, and the like, when in operation.
• Always ensure proper ventilation around the oven during use.

3. Ngwa ngwaahịa na ngwa

Familiarize yourself with the various parts of your Mayer 35L Electric Oven:

Foto 3.1: N'ihu view of the oven, showcasing the main door, control knobs on the right, and an interior cooking light illuminating a roasted chicken.

Foto 3.2: N'akuku view of the oven, highlighting the control panel with temperature, function, and timer knobs, and the interior with a baking rack and baking tray.

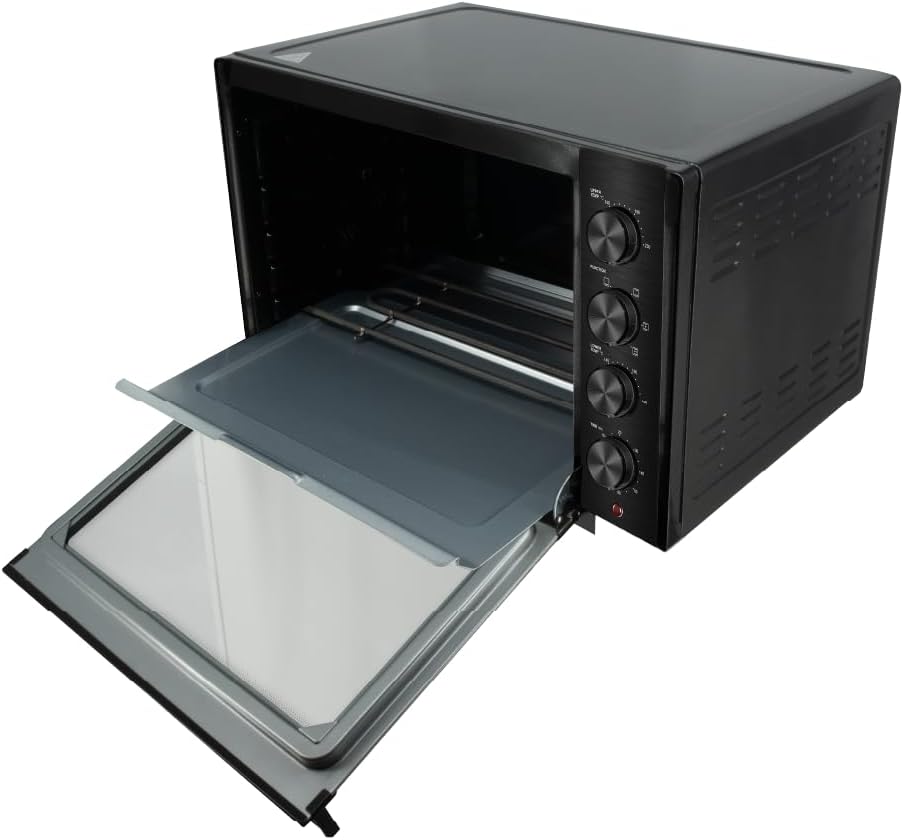

Foto 3.3: The oven with its door open, providing a clear view of the non-stick interior cavity, upper and lower heating elements, and the removable crumb tray at the bottom.

Ngwa gụnyere:

• Akwa akwa: For supporting food items during baking or grilling.
• Ebe a na-esi achịcha: For collecting drips or baking various foods.
• Eji tray: For safely inserting and removing hot baking trays and racks.
• Ngwa Rotisserie: Includes spit, forks, and handle for rotisserie cooking.

4. Ntọala na ojiji mbụ

Iwepu:

1. Jiri nlezianya wepụ oven na ihe niile dị na ngwugwu ahụ.
2. Wepụ ihe ọ bụla e ji ekpuchi ihe, ihe mmado, ma ọ bụ akara ọ bụla n'ime oven na ihe ndị ọzọ dị na ya.
3. Inspect the oven for any damage. Do not operate if damaged.

Nkwanye:

• Debe oven ahụ n'elu ebe kwụsiri ike, dị larịị na nke na-eguzogide okpomọkụ.
• Ensure there is adequate space (at least 10-15 cm) on all sides and above the oven for proper ventilation. Do not place it directly against a wall or under cabinets.
• Keep the oven away from flammable materials such as curtains, drapes, and paper.
• Tinye eriri ọkụ n'ime oghere eletrik gbadoro ụkwụ.

Tupu ojiji mbụ:

1. Wash the baking rack, baking tray, and rotisserie kit in warm, soapy water. Rinse and dry thoroughly.
2. Jiri mgbasa ozi hichaa ime na mputa ovenamp akwa .
3. To eliminate any manufacturing oils or odors, operate the oven empty for approximately 15 minutes at 230°C on the 'Bake' function. A slight odor or smoke may be present; this is normal and will dissipate. Ensure the room is well-ventilated during this process.

5. Ntuziaka ọrụ

Ogwe njikwa gafereview:

• Upper Temperature Control Knob: Adjusts the temperature for the upper heating elements (100°C - 230°C).
• Knob ọrụ: Selects the cooking mode (e.g., Bake, Grill, Convection, Rotisserie).
• Lower Temperature Control Knob: Adjusts the temperature for the lower heating elements (100°C - 230°C).
• Igwe ngụ oge: Sets the cooking duration (up to 60 minutes) or to 'Stay On'.

Ọrụ izugbe:

1. Kwadebe nri: Place food on the baking tray or rack. For rotisserie, secure food onto the rotisserie spit.
2. Fanye Ngwa: Slide the baking rack or tray into one of the three rack positions. For rotisserie, insert the rotisserie spit into the designated slots.
3. Tọọ okpomọkụ: Turn the Upper and/or Lower Temperature Control Knobs to the desired temperature (100°C - 230°C). For most baking, both upper and lower elements are used.
4. Họrọ Ọrụ: Turn the Function Knob to select the desired cooking mode. Options typically include:
   • Ime: Uses both upper and lower heating elements for general baking.
   • Grill: Primarily uses the upper heating elements for grilling.
   • Convection: Activates the fan for even heat distribution, ideal for faster and more uniform cooking.
   • Rotisserie: Rotates the spit for even roasting of larger items.
5. Nịm Oge: Turn the Timer Knob to the desired cooking time (up to 60 minutes). The oven will automatically turn off when the timer reaches zero. To cook for longer periods, turn the timer to the 'Stay On' position. Remember to manually turn off the oven when using 'Stay On'.
6. Tupu ikpo ọkụ: For best results, pre-heat the oven for 10-15 minutes before placing food inside. Set the desired temperature and function, then set the timer. Once the pre-heating time is complete, insert your food.
7. Interior Cooking Light: The oven is equipped with an interior light to monitor cooking progress without opening the door.
8. Mmecha: When cooking is complete, the timer will chime (if set). Carefully remove food using oven mitts and the tray handle. Unplug the oven when not in use.

6. Nlekọta na nhicha

Nhicha na mmezi mgbe niile ga-eme ka ọ dị ogologo ndụ na arụmọrụ kachasị mma nke oven gị.

1. Gbanyụọ oven mgbe niile site na ebe a na-esi na ọkụ eletrik ma hapụ ya ka ọ jụọ oyi kpamkpam tupu e hichaa ya.
2. Nchacha mpụta: Jiri mgbasa ozi hichaa elu mpụtaamp cloth and mild detergent. Do not use abrasive cleaners or scouring pads, as they may damage the finish.
3. Ime nhicha: The oven features a non-stick cavity. Wipe the interior walls with a damp cloth and mild, non-abrasive cleaning solution. For stubborn stains, a paste of baking soda and water can be applied, left for a few minutes, then wiped clean.
4. Tray Crumb nke mbughari: Pull out the crumb tray from the bottom of the oven. Discard crumbs and wash the tray in warm, soapy water. Rinse and dry thoroughly before replacing. Clean regularly to prevent grease buildup and potential fire hazards.
5. Ngwa: Wash the baking rack, baking tray, and rotisserie kit in warm, soapy water. Rinse and dry thoroughly. These accessories may also be dishwasher safe (check manufacturer's recommendations if available).
6. Do NOT immerse the oven body, cord, or plug in water or any other liquid.

7. Nchọpụta nsogbu

Ọ bụrụ na ị hụ nsogbu na oven gị, lee nsogbu na ngwọta ndị a na-ahụkarị:

Ọ bụrụ na nsogbu ahụ na-aga n'ihu ka ịlele isi ihe ndị a, biko kpọtụrụ nkwado ndị ahịa.

8. Nkọwapụta

9. Akwụkwọ ikike na nkwado

Ozi akwụkwọ ikike:

This Mayer 35L Electric Oven MMO3501 comes with a 1-afọ akwụkwọ ikike from the date of purchase. This warranty covers manufacturing defects under normal household use. Please retain your proof of purchase for warranty claims.

Nkwado ndị ahịa:

For technical assistance, warranty claims, or inquiries regarding your Mayer oven, please contact Mayer customer support. Contact details can typically be found on the manufacturer's official websaịtị ma ọ bụ akwụkwọ ịzụrụ ihe.

Please note: Do not attempt to repair the appliance yourself. Unauthorized repairs will void the warranty.
