SMUG Drafting Chair User Manual

Ngwaahịa gafereview

The SMUG Drafting Chair is designed for comfort and versatility in various workspaces, including standing desks, drafting tables, and bar-height surfaces. It features a height-adjustable design, flip-up armrests, an upgraded seat cushion, an ergonomic mesh backrest, and a sturdy foot-ring.

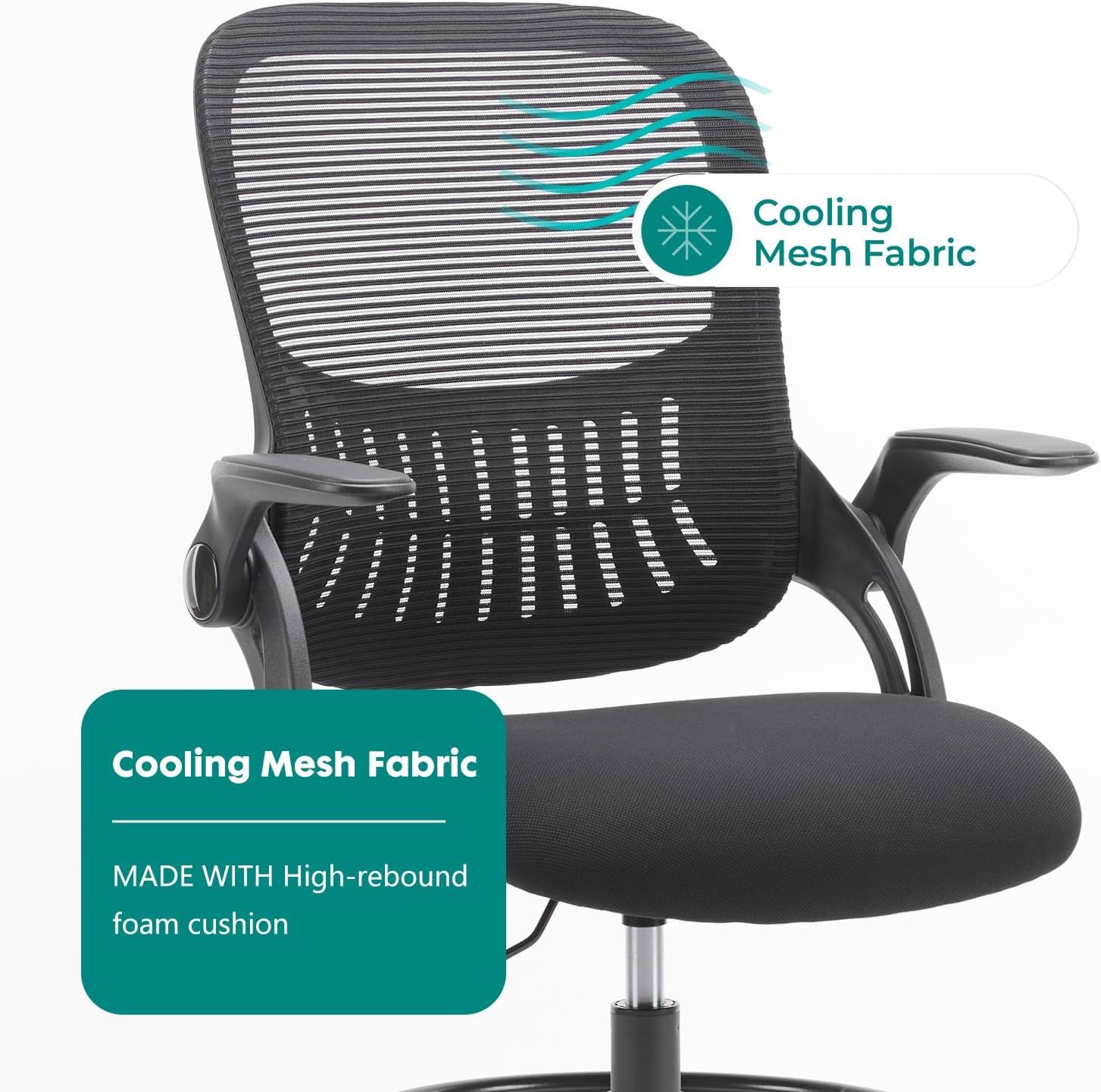

Foto 1: N'ihu view of the SMUG Drafting Chair, showcasing its black mesh back, padded seat, and foot ring.

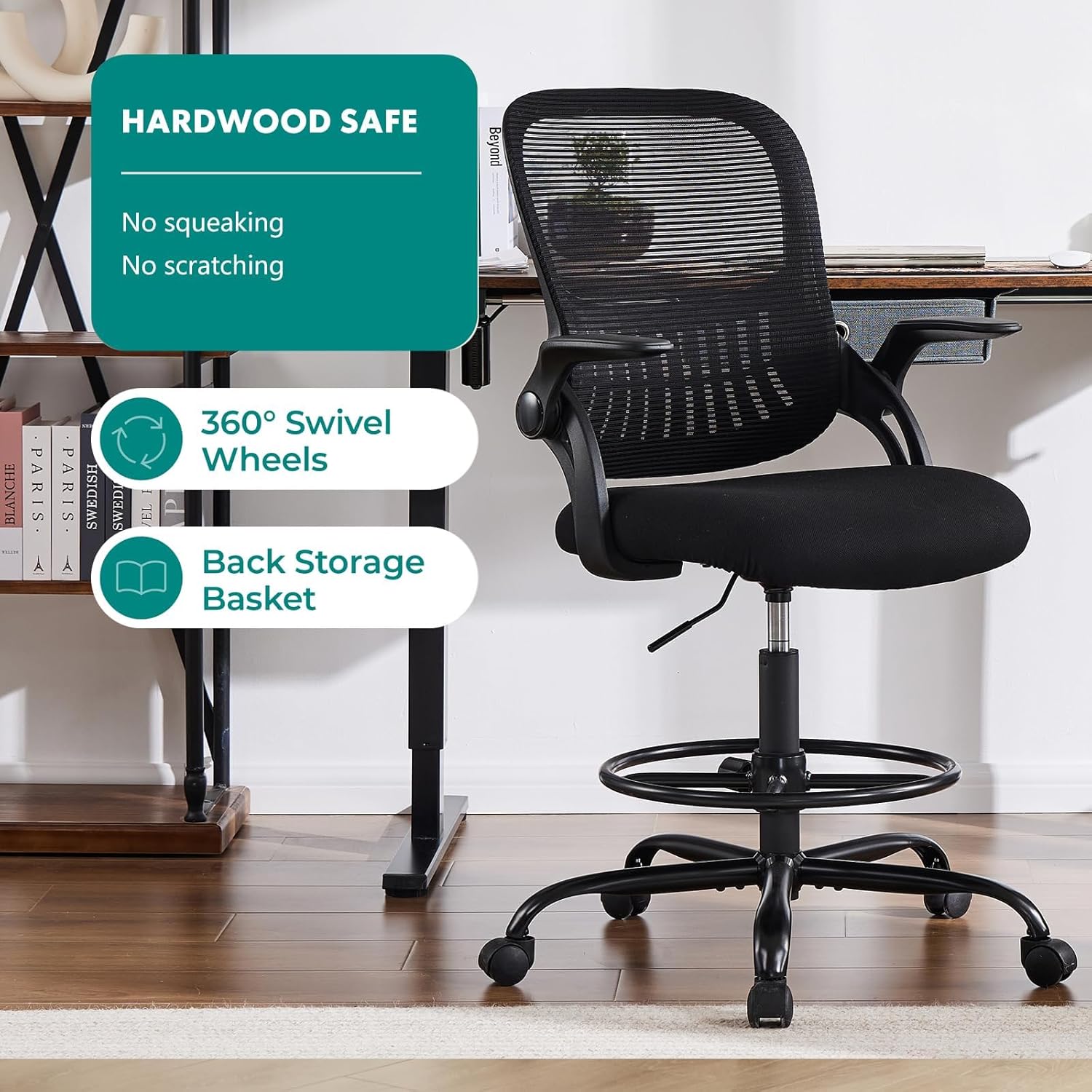

Foto 2: Ihu ọzọ view of the SMUG Drafting Chair, highlighting its overall design and proportions.

Foto 3: Akụkụ view of the SMUG Drafting Chair, showing the ergonomic curve of the backrest and the adjustable foot ring.

Ọgụgụ 4: Azụ view of the SMUG Drafting Chair, illustrating the mesh back design and the sturdy frame.

Ozi nchekwa

Always use the chair as intended. Do not exceed the maximum weight capacity. Be cautious when adjusting the height and using the flip-up arms to avoid injury.

Ensure all components are securely fastened before use. Regularly inspect the chair for any signs of wear or damage. Do not stand on the chair or use it as a ladder.

Ntọala na Mgbakọ

The SMUG Drafting Chair is designed for straightforward assembly. It is recommended to assemble the chair on a soft, clean surface to prevent scratches.

Ọdịnaya ngwugwu:

• Nkwadebe oche
• Azụ azụ
• Ogwe aka (2)
• Silinda ebuli gas
• Mgbanaka ụkwụ
• Isi kpakpando ise
• Ndị na -akpụ akpụ (5)
• Ngwa Mgbakọ (skru, washers, Allen wrench)

Figure 5: All components of the SMUG Drafting Chair laid out, including the seat, backrest, base, and hardware, ready for assembly.

Nzọụkwụ Mgbakọ:

1. Tinye ihe nkedo na ntọala: Insert the five casters into the holes at the end of each leg of the five-star base until they click securely into place.
2. Tinye Gas ebuli: Tinye silinda mmanụ ụgbọala n'ime oghere etiti nke ntọala kpakpando ise ahụ.
3. Attach Foot Ring: Slide the foot ring over the gas lift cylinder and secure it at your desired height using the knob.
4. Tinye ihe nkwado aka na oche: Align the armrests with the pre-drilled holes on the underside of the seat cushion. Secure them using the provided screws and Allen wrench. Ensure the flip-up mechanism is facing the correct direction.
5. Tinye ihe mkpuchi azụ na oche: Connect the backrest to the seat cushion using the designated screws. Ensure a firm connection for stability.
6. Jikọọ Mgbakọ Oche na Igwe Ọkwa Gas: Jiri nlezianya tinye oche na ihe mkpuchi azụ a chịkọtara n'elu silinda ebuli gas, hụ na ọ dị n'etiti ma kwụsie ike.

Figure 6: An illustration demonstrating the ease of assembly for the SMUG Drafting Chair, highlighting key connection points.

Ntuziaka ọrụ

Ndozi elu:

To adjust the seat height, locate the lever under the right side of the seat cushion. While seated, pull the lever up to lower the chair. To raise the chair, stand up slightly and pull the lever up. Release the lever at the desired height. The seat height adjusts from 18.5 inches to 22.2 inches from the floor.

Ọgụgụ 7: nso nso view of the air lift mechanism for seat height adjustment, showing the lever and gas cylinder.

Foot Ring Adjustment:

The 17.7-inch diameter metal foot ring can be adjusted to your most comfortable height. Loosen the knob on the side of the foot ring, slide the ring up or down along the gas lift, and then tighten the knob firmly to secure it in place.

Figure 8: Illustration of the height-adjustable foot ring, showing the knob used for securing its position.

Ogwe aka na-atụgharị:

The armrests can be flipped up to allow the chair to be pushed closer to a desk or for activities requiring more arm movement, such as playing guitar or drawing. Simply lift the armrests upwards until they lock into the vertical position. To lower them, gently pull them down.

Figure 9: Diagram illustrating the flip-up armrests, seat air lift, and adjustable foot-ring features for enhanced adjustability.

360° Swivel and Rolling Wheels:

The chair features a 360-degree swivel function for easy rotation and smooth-rolling casters for mobility. These wheels are designed to be hardwood safe, preventing squeaking or scratching on various floor types.

Figure 10: Close-up of the 360-degree swivel wheels, designed for smooth movement and floor protection.

Figure 11: The chair's wheels on a hardwood floor, demonstrating their non-marking and quiet operation.

Nlekọta

Nhicha:

To clean the chair, simply wipe it with a clean, damp cloth. For stubborn stains, a mild soap solution can be used, followed by wiping with a clean, dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the mesh fabric or other components.

General Nlekọta:

• Na-elele skru na bolts niile iji hụ na ha siri ike. Tinyegharịa ma ọ bụrụ na ọ dị mkpa.
• Keep the chair away from direct sunlight and extreme temperatures to prevent material degradation.
• Avoid placing heavy or sharp objects on the chair that could cause damage.

Nchọpụta nsogbu

Nkọwapụta

• Akara: SMUG
• Aha nlereanya: SMUG Drafting Chair with Flip-up Arms
• Nọmba Nlereanya ihe: DC5A-FR3718
• Agba: Nwa
• Akụkụ ngwaahịa: 18.5"D x 20.8"W x 48.82"H
• Oke oche dị elu: 18.5'' - 22.2'' (from floor)
• Armrest Height Range: 26.6'' - 30.3'' (from floor)
• Foot Ring Diameter: 17.7''
• Seat Cushion Thickness: Up to 3.5''
• Ụdị azụ: Ntugharị azụ
• Atụmatụ pụrụ iche: Adjustable Height, Arm Rest, Ergonomic, Flip-up Arms, Foot Ring
• Ihe mejupụtara: ụfụfụ
• Ibu ihe: 25.9 pound
• Mgbakọ achọrọ: Ee
• Ntuziaka nlekọta ngwaahịa: Hichapụ Ọcha

Akwụkwọ ikike na nkwado

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official SMUG website. SMUG is committed to providing quality products and customer satisfaction.

Protection plans are available for extended coverage. Please check with your retailer for details on available protection plans.

For further assistance, you may contact SMUG customer service through their official channels.
