NEXPEAK 15A Battery Charger User Manual

1. Okwu mmalite na gafereview

The NEXPEAK 15A Battery Charger (Model: bc02-1a) is an advanced 9-stage smart battery charger and maintainer designed for a wide range of 12V and 24V batteries. It is compatible with both LiFePO4 and lead-acid battery types, including AGM, GEL, SLA, and Flooded batteries. This charger provides efficient and safe charging for vehicles such as cars, trucks, SUVs, motorcycles, lawnmowers, and marine vessels. Its intelligent design incorporates multiple protection features and a pulse repair function to optimize battery performance and extend lifespan.

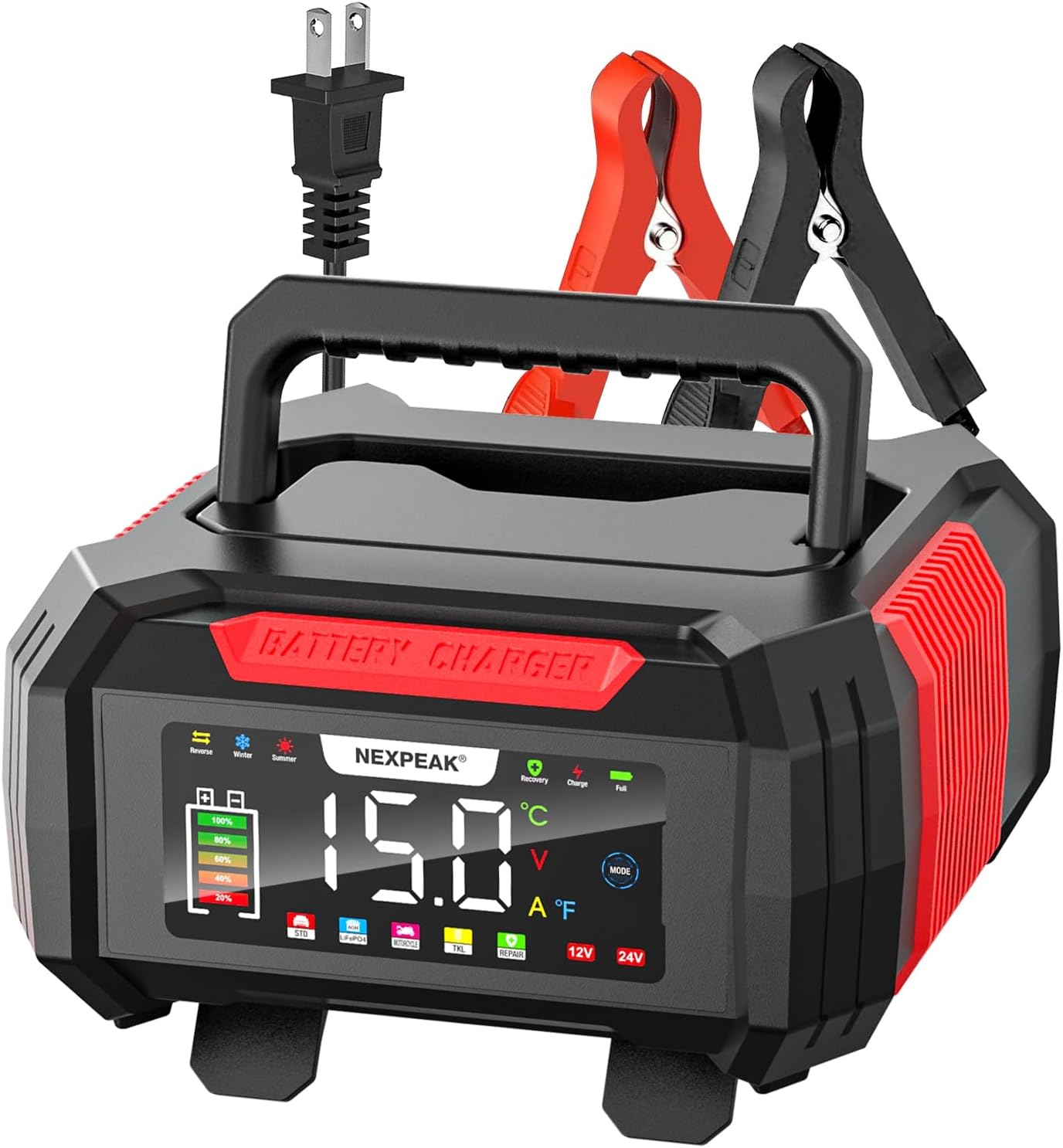

Figure 1: NEXPEAK 15A Battery Charger, front view with display and clamps.

2. Ozi nchekwa

Always prioritize safety when operating electrical equipment and handling batteries.

• Gụọ akwụkwọ ntuziaka a: Before use, thoroughly read and understand all instructions and safety warnings in this manual.
• Igwe ikuku: Ensure adequate ventilation when charging batteries, as they can produce explosive gases. Do not charge in an enclosed area.
• Nchekwa anya na akpụkpọ: Always wear appropriate eye protection (safety glasses) and protective gloves when working with batteries. Battery acid is corrosive.
• No Smoking/Sparks: Do not smoke or allow sparks or flames in the vicinity of the battery or charger during operation.
• Njikọ kwesịrị ekwesị: Jikọọ batrị clamps to the battery terminals correctly before plugging the charger into an AC power outlet. Ensure the charger is unplugged from the AC outlet before disconnecting the clamps.
• Zenarị mkpirisi okirikiri: Prevent the positive and negative clamps from touching each other or touching the same metal surface simultaneously.
• Ngwa mebiri emebi: Do not operate the charger if it has been dropped, damaged, or if the cables or clamps are compromised. Contact customer support for assistance.
• Ụmụaka na anụ ụlọ: Debe chaja na batrị ebe ụmụaka na anụ ụlọ na-apụghị iru.
• Ezubere iji: Use the charger only for its intended purpose as described in this manual.

3. Akụrụngwa Ngwaahịa

The NEXPEAK 15A Battery Charger offers a range of features designed for efficient and safe battery maintenance:

• Ndakọrịta Batrị dị iche iche: Supports both 12V and 24V LiFePO4 and lead-acid batteries (AGM, GEL, SLA, Flooded).
• High-Speed Quick Charge: Provides 15-Amp (12V) and 8-Amp (24V) charging, significantly faster than lower-amperage chargers.
• 9-StagNchaji Smart: An advanced charging process that optimizes battery health and extends cycle life. This includes stages like Battery Detection, Desulphation, Soft Start, Bulk Charging, Absorption Charging, Battery Test, Recondition Charging, Float & Maintenance Charging, and Monitoring.
• 1.75A Trickle Charger Mode (TKL): Automatically enters a trickle/float charging mode after full charge, maintaining battery levels over extended periods without overcharging. Ideal for stored vehicles or seasonal equipment.
• Bright LCD Color Screen: An extra-large display provides clear visibility of charging status, voltage, current, temperature (℉), charge percentage, and selected modes (Summer/Winter).
• Pulse Repair Function: Automatically detects battery sulfation and acid stratification, utilizing pulse technology to restore lost battery performance and improve starting power. Note: This function cannot activate or charge completely dead batteries (below 1V).
• Nchekwa nchekwa zuru oke: Features smart control, temperature compensation, reverse polarity protection, cooling system, overcurrent protection, fireproof material, overcharge protection, and short circuit protection.
• Nkwụghachi okpomọkụ: Automatically adjusts charging parameters based on ambient temperature, ensuring optimal charging in both hot (Summer Mode, above 82°F) and cold (Winter Mode, below 50°F) climates.
• Nhazi dị mma: Features a removable cover for cable storage and a lengthened 10ft charging cable for ease of use.

Figure 2: High-speed quick charge capability for Lead-Acid and LiFePO4 batteries.

Ọgụgụ 3: Nke 1.75Amp trickle charger mode for maintaining stored batteries.

Figure 4: Ultra-clear large color screen and mode selection.

Figure 5: Illustration of the 9-stage smart charging process.

Figure 6: The pulse repair function for restoring battery performance.

Nyocha 7: N'eluview of the comprehensive safety protections.

Figure 8: Temperature compensation for optimized charging in different climates.

4. Nhazi

Follow these steps to set up your NEXPEAK battery charger:

1. Kwadebe batrị: Gbaa mbọ hụ na ọdụ batrị dị ọcha na enweghị mmebi. Ọ bụrụ na ọ dị mkpa, jiri ahịhịa waya hichaa ha.
2. Jikọọ Clamps:
   • Jikọọ ihe na-acha uhie uhie (+) clamp ka nti (+) ọnụ nke batrị.
   • Jikọọ oji adịghị mma (-) clamp ka adịghị mma (-) ọnụ nke batrị.

   Important: Ensure the charger is NOT plugged into an AC power outlet before connecting the clamps na batrị.

3. Plug in Charger: Ozugbo clamps are securely connected to the battery, plug the charger's AC power cord into a standard 120V AC wall outlet.
4. Initial Display: The charger's LCD screen will illuminate and display the current battery voltage and other information.

5. Ntuziaka ọrụ

The NEXPEAK charger operates largely automatically, but you can select specific modes as needed.

5.1 Nchaji akpaka

After connecting the charger to the battery and power outlet, the charger will automatically detect the battery type (12V or 24V) and begin the appropriate 9-stage charging process. The LCD screen will show real-time charging voltage, current, temperature, and charge percentage.

5.2 Nhọrọ ọnọdụ

Pịa MODE button on the charger's display to cycle through available charging modes. The charger offers 5 modes:

• Ụgwọ ọkọlọtọ: Default mode for general charging.
• LiFePO4: Specific mode for Lithium Iron Phosphate batteries.
• Pulse Repair (PUL): For desulfation and repair of lead-acid batteries. Select this mode if your battery is showing signs of sulfation or reduced performance. The charger will attempt to restore the battery.
• Ụdị okpomọkụ: Automatically activated when ambient temperature is above 82°F (28°C). Adjusts charging parameters for hot climates.
• Ụdị oyi: Automatically activated when ambient temperature is below 50°F (10°C). Adjusts charging parameters for cold climates.
• Trickle Charge (TKL): Automatically engaged after a full charge to maintain the battery. This mode is ideal for long-term storage.

5.3 Ịkwụsị chaja

1. Unplug the charger's AC power cord from the wall outlet.
2. Kwupu ihe ọjọọ ojii (-) clamp from the battery's negative (-) terminal.
3. Kwụpụ ihe ziri ezi na-acha uhie uhie (+) clamp from the battery's positive (+) terminal.

6. Nlekọta

Proper maintenance ensures the longevity and optimal performance of your NEXPEAK battery charger.

• Nhicha: Disconnect the charger from all power sources and batteries before cleaning. Wipe the exterior with a soft, damp akwa . Ejila kemịkalụ siri ike ma ọ bụ ihe mkpocha abrasive.
• USB na Clamp Nyocha: Na-enyocha eriri ndị na-akwụ ụgwọ na clamps for any signs of damage, fraying, or corrosion. Replace if damaged.
• Nchekwa: Store the charger in a cool, dry place when not in use. Utilize the removable cover to neatly store the cables and clamps within the unit.
• Igwe ikuku: Ensure the cooling vents on the charger are not blocked during operation to prevent overheating.

Figure 9: What's in the box, showing the charger and its accessories.

7. Nchọpụta nsogbu

If you encounter issues with your NEXPEAK battery charger, refer to the following common problems and solutions:

8. Nkọwapụta

9. Akwụkwọ ikike na nkwado

NEXPEAK stands behind the quality of its products. A replacement is available for any quality issue. For technical support, warranty claims, or any questions regarding your NEXPEAK 15A Battery Charger, please contact NEXPEAK customer service.

Please refer to the contact information provided on the product packaging or the official NEXPEAK websaịtị maka nkọwa nkwado kachasị ọhụrụ.
