UGREEN USB AXE5400 WiFi 6E Adapter Instruction Manual

1. Ngwaahịa gafereview

The UGREEN USB AXE5400 WiFi 6E Adapter is designed to provide high-speed, stable wireless connectivity for your PC. Featuring tri-band technology (6GHz, 5GHz, and 2.4GHz), it ensures optimal performance for various online activities, from 8K streaming to gaming. Its high-gain adjustable antennas and included extension cable enhance signal penetration and coverage, while WPA3-SAE encryption offers robust network security. This adapter is compatible with Windows 10 and Windows 11 operating systems.

Image: UGREEN USB AXE5400 WiFi 6E Adapter with its dual antennas extended, showcasing ya kọmpat imewe.

2. Ntuziaka Nhazi

Follow these steps to install and set up your UGREEN USB AXE5400 WiFi 6E Adapter:

2.1 Ntinye ngwaike

1. Jikọọ ihe nkwụnye ahụ: Insert the UGREEN USB AXE5400 WiFi 6E adapter into an available USB 3.0 port on your computer. For optimal signal reception, use the included 1-meter extension cable to position the adapter in an area with better signal strength. Adjust the antennas to a vertical position or angle them for best performance.


   Image: The UGREEN USB AXE5400 WiFi 6E Adapter connected to a laptop via its extension cable, with antennas adjusted for optimal signal.

2.2 Driver Installation (Windows 10/11)

The driver software for Windows 10/11 is preloaded on the Wi-Fi 6E USB adapter, eliminating the need for a CD-ROM drive or manual download from a websaịtị. Soro usoro ndị a:

1. Nwụnye ọkwọ ụgbọ ala akpaaka: Once the adapter is connected, a pop-up notification should appear in the bottom right corner of your screen. Click on this notification to initiate the driver installation. The system will automatically install the necessary drivers.
2. Manual Driver Installation (if pop-up doesn't appear): If the pop-up does not appear, open "This PC" or "My Computer" and locate the drive associated with the adapter (it may appear as a CD Drive). Double-click the executable file (e.g., "WiFiAutoInstallSetupU353.exe" or similar) to run the driver installer.
3. Nwụnye zuru ezu: Follow the on-screen prompts to complete the driver installation. This process typically takes a few minutes.
4. Malitegharịa ekwentị gị na kọmputa: After the driver is successfully installed, restart your computer to ensure all changes take effect.

2.3 Jikọọ na netwọk Wi-Fi

After restarting your computer, you can connect to your Wi-Fi network:

1. Nweta Ntọala netwọkụ: Click the network icon (usually a Wi-Fi symbol) in the lower right corner of your desktop (taskbar).
2. Họrọ netwọk: From the list of available networks, select the Wi-Fi network you wish to connect to.
3. Tinye okwuntughe: Enter the network security key (Wi-Fi password) when prompted, then click "Next" or "Connect".
4. Ejikọtara: Your computer should now connect to the Wi-Fi network. The network status will update to "Connected".

2.4 Setup Videos

3. Ọrụ

The UGREEN USB AXE5400 WiFi 6E Adapter provides advanced features for an enhanced wireless experience:

3.1 Tri-Band Connectivity

This adapter supports three distinct frequency bands:

• 6GHz band: Offers ultra-low latency and superior anti-interference with a massive 160MHz bandwidth, ideal for VR, 8K streaming, and high-performance gaming.
• 5GHz band: Provides high speeds up to 2402Mbps, suitable for demanding tasks like HD video streaming and online gaming.
• 2.4GHz band: Delivers speeds up to 574Mbps, excellent for general internet use, web browsing, and connecting devices over longer distances.

The adapter intelligently switches between these bands to maintain a consistently high-speed and stable connection based on network conditions and device requirements.

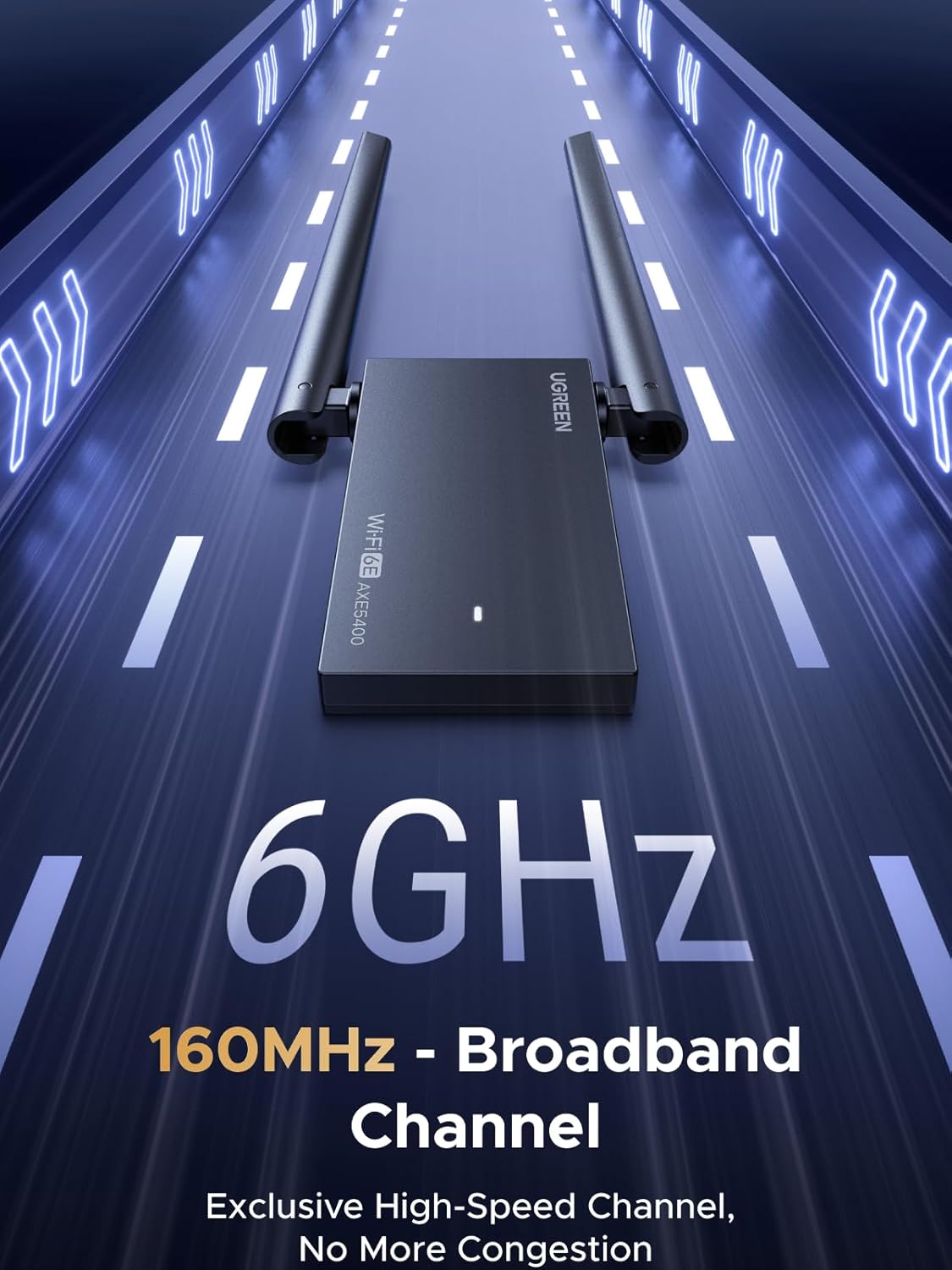

Image: The UGREEN USB AXE5400 WiFi 6E Adapter emphasizing its 6GHz 160MHz broadband channel for high-speed, low-congestion connectivity.

Image: Visual representation of the adapter's performance, showing smooth 8K streaming and low-latency gaming experiences.

3.2 USB 3.0 interface

The adapter utilizes a USB 3.0 interface, supporting 5Gbps high-speed transmission. This ensures efficient handling of large file downloads and instant connections, maximizing your network's potential.

3.3 Enhanced Signal and Coverage

Equipped with high-gain adjustable Wi-Fi antennas and a 1-meter extension cable, the adapter allows for flexible placement to achieve the best signal. You can freely adjust the antenna angles to optimize signal strength and improve penetration through walls, ensuring comprehensive coverage throughout your home or office.

Image: A diagram illustrating how the high-gain dual antennas improve signal penetration and coverage across different rooms.

3.4 WPA3 Security

The UGREEN AXE5400 supports advanced WPA3-SAE encryption technology. This provides secure network connectivity, effectively resisting network threats and ensuring the absolute safety of your sensitive data and privacy.

Image: A graphic depicting the WPA3-SAE "Super Shield" feature, highlighting its role in protecting Wi-Fi security, preventing file transfer leakage, and ensuring payment security.

3.5 ndakọrịta

This USB Wi-Fi adapter is exclusively compatible with Windows 10 and Windows 11 operating systems. It does not support macOS, Linux, or older Windows versions (Windows 8/8.1/7/XP).

Image: A visual representation confirming the adapter's compatibility with Windows 11 and Windows 10, while explicitly stating non-compatibility with other operating systems.

4. Nlekọta

To ensure the longevity and optimal performance of your UGREEN USB AXE5400 WiFi 6E Adapter, consider the following maintenance tips:

• Debe ndị ọkwọ ụgbọala emelitere: Lelee onye ọrụ UGREEN oge ụfọdụ website for the latest driver updates to ensure compatibility and performance improvements.
• Ndokwa kwesịrị ekwesị: Avoid placing the adapter in enclosed spaces or near heat sources to prevent overheating. Ensure adequate airflow around the device.
• Jiri nwayọọ dị ọcha: Jiri akwa dị nro dị nro hichaa ihe nkwụnye ọkụ. Zere iji ihe nhicha mmiri ma ọ bụ ihe na-ekpo ọkụ.
• Chebe pụọ na mmebi anụ ahụ: Handle the adapter with care. Avoid dropping it or subjecting it to excessive force, which could damage the internal components or antennas.
• Njikọ echekwara Ensure the USB connection is secure and free from dust or debris.

5. Nchọpụta nsogbu

If you encounter issues with your UGREEN USB AXE5400 WiFi 6E Adapter, try the following troubleshooting steps:

• Enweghị njikọ Wi-Fi:
  • Gbaa mbọ hụ na etinyere nkwụnye ahụ n'ọdụ ụgbọ mmiri USB 3.0 nke ọma.
  • Verify that the drivers are correctly installed (check Device Manager). Reinstall if necessary.
  • Check if Wi-Fi is enabled in your computer's network settings.
  • Malitegharịa ekwentị gị na kọmputa na rawụta.
• Ọsọ nwayọ:
  • Ensure you are connected to the 6GHz or 5GHz band for optimal speed, if your router supports it.
  • Adjust the adapter's antennas and reposition the adapter using the extension cable to improve signal strength.
  • Lelee maka ndabichi sitere na ngwaọrụ eletrọnịkị ndị ọzọ.
  • Update your router's firmware and adapter drivers to the latest versions.
  • Perform a speed test to confirm actual speeds.
• Ịkwụsị njikọ ugboro ugboro:
  • Ensure the adapter is not too far from your Wi-Fi router.
  • Check for physical obstructions that might be blocking the signal.
  • Verify that your router's channels are not congested (you might need to change channels in your router settings).
  • Disable any power-saving features for the USB port in Device Manager.
• Amataghị ihe nkwụnye:
  • Gbalịa itinye nkwụnye ọkụ n'ọdụ ụgbọ mmiri USB dị iche.
  • Lelee njikwa ngwaọrụ maka ngwaọrụ ma ọ bụ ngwaọrụ ọ bụla amabeghị nwere akara mperi.
  • Reinstall the drivers as described in the Setup Guide.

6. Nkọwapụta

7. Akwụkwọ ikike & Nkwado

For detailed warranty information and technical support, please refer to the official UGREEN websaịtị ma ọ bụ kpọtụrụ ndị ahịa ha ozugbo. Debe akwụkwọ nnata ịzụrụ maka akwụkwọ ikike.
