1. Okwu mmalite

The LD Systems DAVE 15 G4X is a powered compact PA system designed for various live sound applications, including DJs, live bands, and solo entertainers. This system comprises a 15-inch subwoofer and two 8-inch satellites, delivering a total peak power of 2060 Watts. It features an integrated 6-channel mixer, versatile input options, Bluetooth connectivity, and advanced DSP technology for clear and powerful sound reproduction.

This manual provides essential information for the safe and efficient setup, operation, and maintenance of your DAVE 15 G4X PA system. Please read it thoroughly before initial use and keep it for future reference.

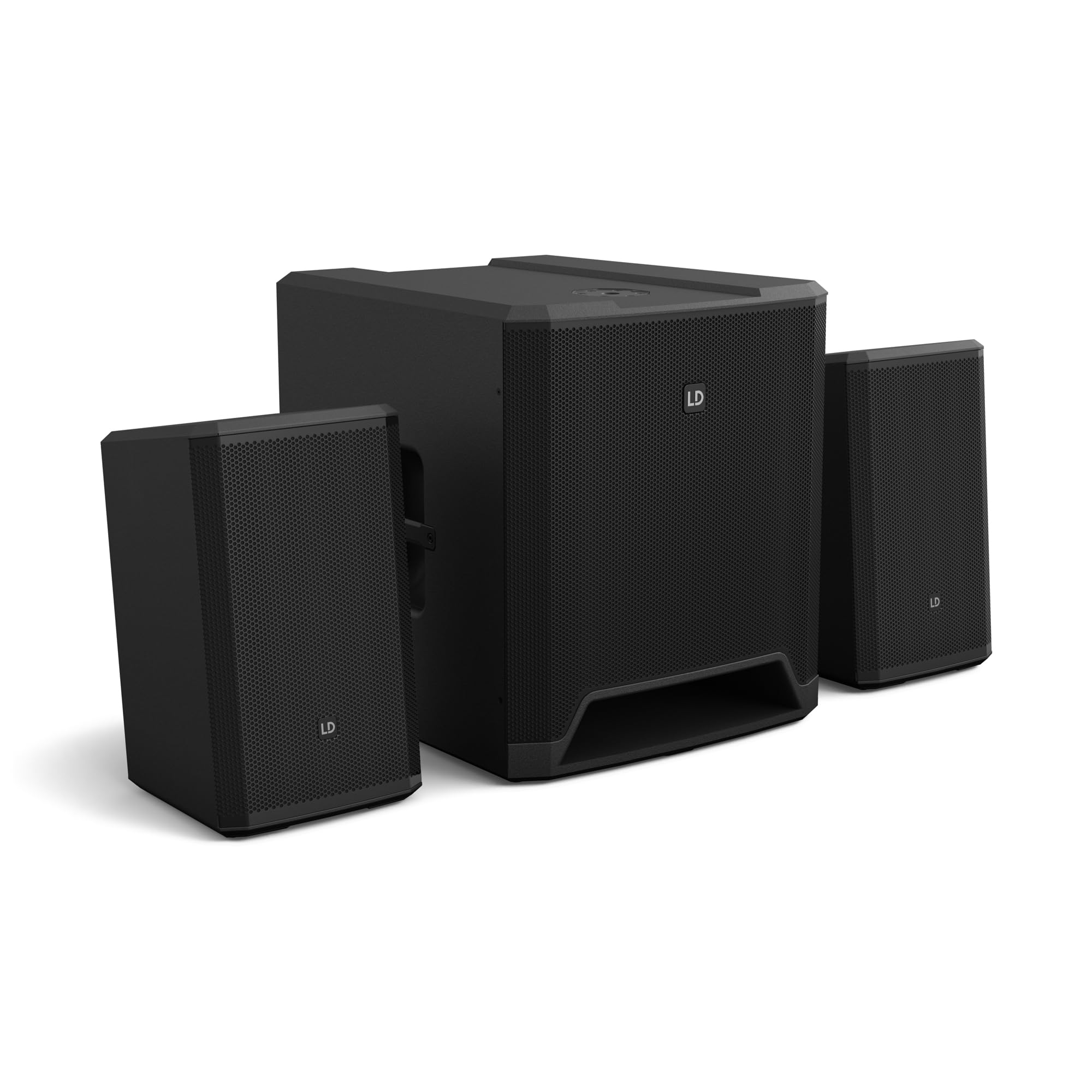

Nyocha 1: N'eluview of the LD Systems DAVE 15 G4X PA System components.

2. Ntuziaka nchekwa

Na-edebe ihe nchekwa nchekwa ndị a mgbe niile iji gbochie ujo eletrik, ọkụ, ma ọ bụ mmerụ ahụ:

• Gbaa mbọ hụ na ọkọnọ ọkụ voltage dakọtara na ọkwa dị na nkeji ahụ.
• Ewepụla unit ahụ na mmiri ozuzo ma ọ bụ mmiri.
• Emeghela casing; zigara ndị ọrụ ruru eru ọrụ niile.
• Debe unit ahụ n'elu elu kwụsiri ike.
• Gbaa mbọ hụ na ikuku ikuku zuru oke gburugburu unit ahụ.
• Zere idobe ihe n'elu unit ahụ.
• Disconnect power before cleaning or moving the unit.

3. Nhazi

Proper setup is crucial for optimal performance and safety. Follow these steps to assemble your DAVE 15 G4X system:

3.1 Mwepu na ntinye

• Carefully unpack all components: one 15-inch subwoofer and two 8-inch satellite speakers.
• Place the subwoofer on a stable, flat surface.
• Position the satellite speakers. They can be placed on speaker stands (not included) or mounted on a T-stand above the subwoofer (accessories sold separately).

Ọgụgụ 2: Ọpụample of a stereo setup with one satellite speaker mounted on a pole above the subwoofer. Speaker pole not included.

Ọgụgụ 3: Ọpụample of a stereo setup with both satellite speakers on separate poles. Speaker poles not included.

Ọgụgụ 4: Ọpụample of a cluster mode setup with both satellite speakers mounted on a T-stand above the subwoofer. Speaker pole not included.

3.2 Ijikọ Ndị Ọkà Okwu

• Connect the two satellite speakers to the "SAT LEFT" and "SAT RIGHT" outputs on the rear panel of the subwoofer using appropriate speaker cables.
• Ensure secure connections.

Figure 5: Rear panel connections of the DAVE 15 G4X subwoofer, including power input, satellite outputs, and various audio inputs.

3.3 Njikọ ike

• Connect the supplied power cable to the "POWER INPUT" on the subwoofer's rear panel.
• Plug the other end into a suitable AC power outlet.
• Ensure the power switch is in the "OFF" position before connecting to power.

4. Na-arụ ọrụ igwekota

The DAVE 15 G4X features an integrated 6-channel mixer for connecting various audio sources. Familiarize yourself with the control panel:

Ọgụgụ 6: Zuru ezu view of the DAVE 15 G4X mixer control panel, showing input controls, EQ, reverb, and mode selection.

4.1 Input Channels 1 & 2 (Mono)

• Input Type Selection: Use the "SELECT" button to toggle between Microphone (MIC), High-Impedance Instrument (HI-Z), or Line-level (LINE) input.
• Nweta njikwa: Adjust the "HIGH" knob for input sensitivity.
• 2-Band EQ: Use the "LOW" and "HIGH" knobs to adjust bass and treble frequencies for each channel.
• Nkwughachi: Select one of three reverb presets (SMALL, LARGE, PLATE) and adjust the "REVERB" knob for the desired effect level.

4.2 Input Channels 3 & 4 (Stereo Line)

• These inputs are designed for stereo line-level sources such as keyboards, synthesizers, or drum machines.
• Adjust the "INPUT 3/4" knob for the overall volume of these channels.

4.3 Input Channels 5 & 6 (Digital/Bluetooth)

• Ntinye SPDIF: Connect a digital audio source via the SPDIF TOSLINK input on the rear panel.
• Njikọ Bluetooth: Press and hold the "HOLD TO LINK" button to activate Bluetooth pairing mode. Chọọ maka "LD Systems DAVE 15 G4X" on your device and connect.
• Nhọrọ isi mmalite: Use the "SOURCE" button to switch between SPDIF and Bluetooth inputs.
• Adjust the "INPUT 5/6" knob for the overall volume of these channels.

4.4 Master Controls

• MAIN Volume: The large "MAIN" knob controls the overall output volume of the system.
• SUB Volume: Adjust the "SUB" knob to control the volume level of the subwoofer.
• Oke olu: Adjust the "HIGH" knob to control the volume level of the satellite speakers.
• Usoro atọrọ: Use the "SELECT" button under "MODE" to choose between different setup presets (e.g., Stereo, Cluster Mode) for optimized sound dispersion.

5. Nlekọta

Regular maintenance ensures the longevity and optimal performance of your DAVE 15 G4X PA system.

• Nhicha: Use a soft, dry cloth to wipe down the surfaces. For stubborn dirt, a slightly damp cloth can be used, followed by a dry cloth. Avoid abrasive cleaners or solvents, as they may damage the polyurea coating.
• Igwe ikuku: Ensure that all ventilation openings remain clear of dust and debris to prevent overheating.
• Nchekwa: When not in use for extended periods, store the system in a dry, dust-free environment. Consider using protective covers or bags (accessories sold separately) to prevent damage.
• Njikwa USB: Regularly check all cables for signs of wear or damage. Replace any damaged cables immediately.

6. Nchọpụta nsogbu

If you encounter issues with your DAVE 15 G4X system, refer to the following common problems and solutions:

6.1 Enweghị mpụta ụda

• Lelee Ike: Ensure the system is powered on and the power cable is securely connected. Verify the "POWER" indicator light is illuminated.
• Ọkwa olu: Confirm that the "MAIN," "SUB," and "HIGH" volume knobs are turned up. Check individual channel gain controls.
• Nhọrọ ntinye: Ensure the correct input source is selected for the active channel (e.g., MIC, HI-Z, LINE, SPDIF, Bluetooth).
• Njikọ eriri: Verify all audio cables (input sources, satellite speakers) are correctly and securely connected.
• Ngwaọrụ isi mmalite: Check if your audio source device (microphone, instrument, media player) is functioning correctly and outputting sound.

6.2 Distorted or Unclear Sound

• Ntinye ntinye: Reduce the input gain for the affected channel if the "SIGNAL" or "LIMIT" indicator lights are constantly red.
• Nke ukwu: Lower the "MAIN" volume if the overall sound is distorted.
• Ntọala EQ: Adjust the EQ (LOW, HIGH) settings on individual channels to improve clarity.
• Ogo USB: Ensure you are using high-quality, shielded audio cables.

6.3 Okwu Njikọ Bluetooth

• Mmakọ Mmakọ: Ensure the DAVE 15 G4X is in Bluetooth pairing mode (press and hold "HOLD TO LINK").
• Device Visibility: Make sure Bluetooth is enabled on your source device and it is discoverable.
• Ogologo: Keep your Bluetooth device within the effective range of the PA system.
• Ntinye aka: Wepụ na ngwaọrụ ikuku ndị ọzọ nwere ike ịkpata ndabichi.
• Echefu Ngwaọrụ: If previously paired, try "forgetting" the DAVE 15 G4X on your device and re-pairing.

7. Nkọwapụta

Detailed technical specifications for the LD Systems DAVE 15 G4X PA System:

8. Akwụkwọ ikike Ozi

Warranty terms and conditions for the LD Systems DAVE 15 G4X PA System are typically provided with your purchase documentation or can be found on the official LD Systems websaịtị. Biko dowe akwụkwọ ikike ịzụrụ ihe ọ bụla.

Maka ozi akwụkwọ ikike zuru ezu, biko gaa na LD Systems official websaịtị or contact your authorized dealer.

9. Nkwado ndị ahịa

Should you require technical assistance, service, or have questions regarding your LD Systems DAVE 15 G4X PA System, please contact LD Systems customer support or your local authorized dealer.

For further support and resources, please visit the LD Systems official websaịtị.
