1. Okwu mmalite
Thank you for choosing the Togo POWER A2000 Portable Power Station. This device is designed to provide reliable power for various applications, including emergency backup, outdoor activities, and home use. Please read this manual thoroughly before operating the unit to ensure safe and optimal performance. Keep this manual for future reference.
2. Ntuziaka nchekwa
Debe ihe nchekwa nchekwa ndị a iji gbochie mmerụ ahụ ma ọ bụ mebie akụkụ ahụ:
- Azụkwala, rụkwaa, ma ọ bụ gbanwee otu.
- Do not expose the unit to fire or extreme temperatures.
- Zere ịkpọtụrụ mmiri ma ọ bụ mmiri mmiri ndị ọzọ.
- Debe ebe ụmụaka na anụ ụlọ na-apụghị iru.
- Jiri naanị ihe ndị a kwadoro na eriri chaja.
- Gbaa mbọ hụ na ikuku ikuku dị mma n'oge eji na ịchaji.
- Akwụsịla oghere ikuku.
- If the unit emits smoke, odor, or unusual noise, discontinue use immediately and contact customer support.
3. Ihe ngwugwu
Chọpụta na etinyere ihe niile na ngwugwu gị:
- 1x Togo POWER ADVANCE2000 Portable Power Station
- 1 x AC eriri chaja
- 1x Anderson to Car Charger Cable
- 1x Akwụkwọ ntuziaka onye ọrụ
4. Ngwaahịa gafereview
The Togo POWER A2000 features a robust design with multiple input and output options. It includes a clear LCD display for monitoring status and integrated safety features.
Foto 4.1: N'ihu view of the Togo POWER A2000 Portable Power Station, showing the LCD display, AC outlets, USB ports, and control buttons.
4.1 Atụmatụ
- Ike dị elu: 1799Wh LiFePO4 battery (44.4V/40.5Ah).
- Mmepụta dị ike: 2000W AC output (4000W surge).
- Ọdụ ụgbọ mmiri mmepụta ọtụtụ: 3 AC outlets, 2 USB-C (Max 120W), 2 USB-A (Max 36W), 2 DC ports, 1 Cigarette Lighter Output.
- Nchaji ikuku: Built-in 10W wireless charging pad.
- Igwe ọkụ ọkụ LED: Integrated LED light with SOS mode.
- EPS Function: Uninterruptible Power Supply (EPS) mode with 10ms switchover time.
- Ọnọdụ ECO: Automatic power cut-off after 1 hour of no load to save energy.
- Advanced Battery Management System (BMS): Nyochaa voltage, current, and temperature for protection.
- Njikọ njikọ: Supports connecting two units for increased capacity and output.
Foto 4.2: The Togo POWER A2000 powering various electronic devices simultaneously.
Foto 4.3: Zuru ezu view of the wireless charging pad, fast charging capability, SOS flashlight, and cooling vents.
5. Nhazi
5.1 Nchaji izizi
Before first use, fully charge the Togo POWER A2000. Connect the provided AC charging cable to the AC input port on the power station and then to a wall outlet. The LCD display will show the charging status. A full charge typically takes approximately 1.5 hours.
5.2 Ịghọta Ngosipụta LCD
Ihuenyo LCD na-enye ozi ozugbo:
- Ihe ngosi ọkwa batrị
- Oge Njikere echere
- Mmiri ntinye/mpụtatage
- Remaining Runtime
- Mkpu okpomọkụ
- Low-Battery Warnings
6. Ntuziaka ọrụ
6.1 Gbanyụọ/ gbanyụọ
Press and hold the main power button for a few seconds to turn the unit on or off. The LCD display will illuminate upon activation.
6.2 Using AC Outlets
Press the AC power button to activate the AC outlets. Plug your devices into the 120V/60Hz AC ports. Ensure the total wattage of connected devices does not exceed 2000W (4000W surge).
6.3 Using DC and USB Ports
Press the DC power button to activate the DC and USB ports. Connect your devices to the appropriate USB-A, USB-C, DC, or Cigarette Lighter ports. The wireless charging pad is also activated with the DC power button.
6.4 LED Flashlight and SOS Mode
Press the LED light button to turn on the flashlight. Press again to cycle through brightness levels. To activate SOS mode, press and hold the LED light button for more than 3 seconds.
6.5 EPS (Emergency Power Supply) Mode
When the power station is connected to a main power supply and has devices plugged into its AC outlets, it can function as an EPS. In the event of a power outage, the unit will automatically switch to battery power within 10 milliseconds, providing an uninterrupted power supply to connected devices.
Foto 6.1: The EPS feature provides seamless power backup for essential appliances.
6.6 Ụdị ECO
The ECO mode is designed to conserve energy. When activated, the unit will automatically shut down after 1 hour of no load (no devices drawing power). This prevents unnecessary battery drain. To disable ECO mode for continuous power to sensitive devices (e.g., CPAP machines, refrigerators), press the ECO button.
Foto 6.2: Explanation of ECO mode functionality.
6.7 Njikọ njikọ
The Togo POWER A2000 supports parallel connection, allowing two units to be linked together to double the capacity and output. Refer to the separate parallel connection cable manual for detailed instructions on how to set up this configuration.

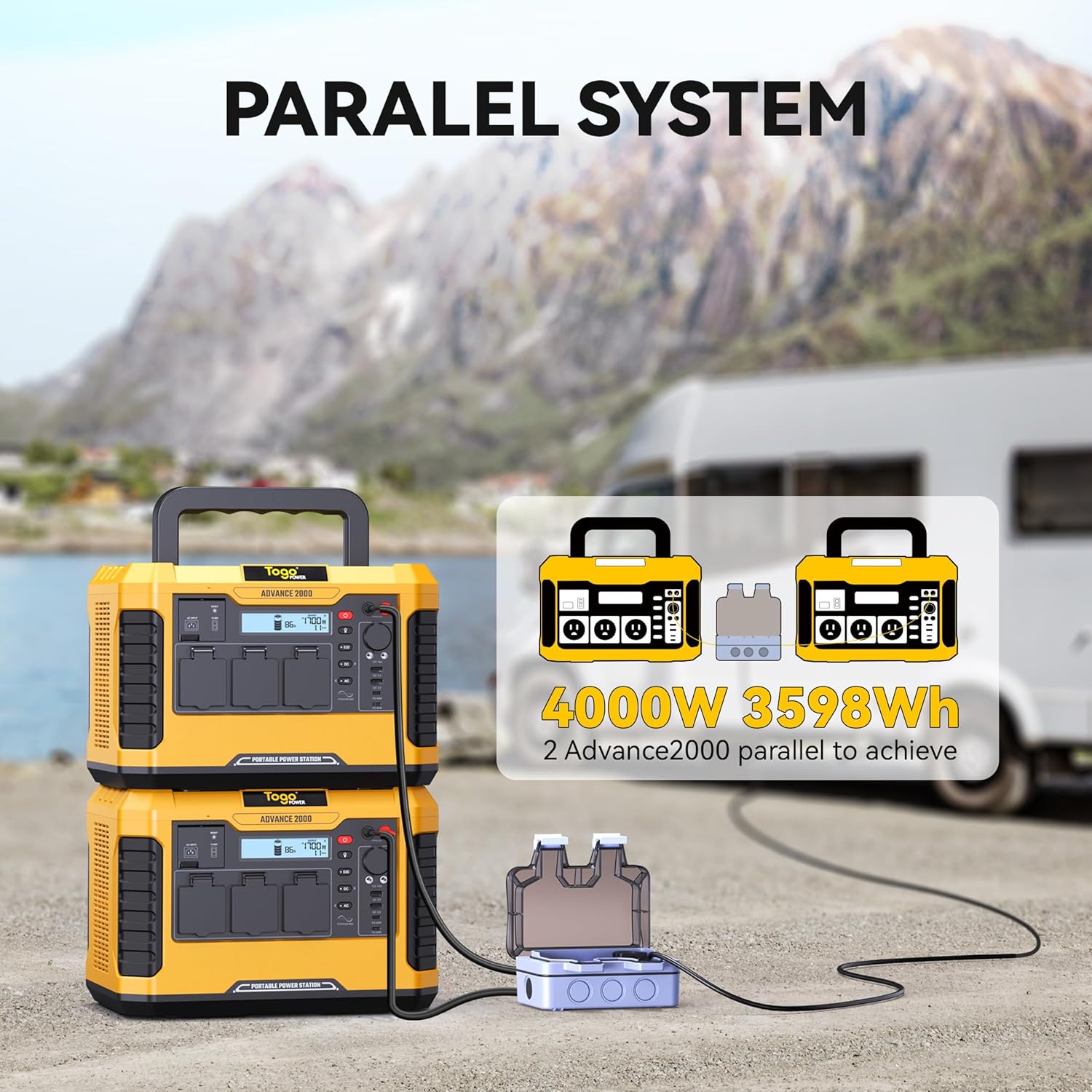

Foto 6.3: Two Togo POWER A2000 units connected in parallel.
7. Ụzọ Nchaji
The Togo POWER A2000 can be charged using three primary methods:
- Chaja mgbidi AC: Connect the provided AC cable to a standard wall outlet. This method offers fast charging, reaching 100% in approximately 1.5 hours.
- chaja ụgbọ ala: Use the Anderson to Car Charger Cable to charge the unit from your vehicle's 12V car port.
- Ogwe anyanwụ: Connect compatible solar panels (12-60V, 800W max) to the solar input port. The built-in MPPT controller optimizes solar charging efficiency.
Foto 7.1: Illustration of the three available charging methods: Car Charger, AC Charger, and Solar Charger.
8. Nlekọta
8.1 Nchekwa
- Store the unit in a cool, dry place, away from direct sunlight and heat sources.
- For long-term storage, charge the unit to 50-80% every 3-6 months to prolong battery life.
8.2 Nhicha
- Use a dry, soft cloth to clean the exterior of the unit.
- Ejila ihe nchacha abrasive ma ọ bụ ihe mgbaze.
- Keep the ventilation openings free of dust and debris.
8.3 Nlekọta batrị
The Togo POWER A2000 uses a LiFePO4 battery, known for its long cycle life. To maximize battery longevity, avoid fully discharging the unit frequently. Recharge promptly after use.
9. Nchọpụta nsogbu
If you encounter issues with your Togo POWER A2000, refer to the following common problems and solutions:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Unit anaghị agbanwuo | Battery is completely discharged; Power button not pressed correctly. | Chajie ngwaọrụ ahụ; Pịa ma jide bọtịnụ ike maka sekọnd ole na ole. |
| Igwe ọkụ AC anaghị arụ ọrụ | AC output not enabled; Overload protection activated; Device wattage exceeds limit. | Press the AC power button; Reduce the load; Check device wattage. |
| Unit anaghị akwụ ụgwọ | Charging cable not connected properly; Charger malfunction; Input source issue. | Ensure cables are securely connected; Try a different charging method/outlet; Contact support if charger is faulty. |
| LCD display shows error code/warning | Over-temperature, low battery, or other system alerts. | Refer to the specific error code in the full manual (if available) or contact customer support. Allow unit to cool down if temperature warning. |
If the problem persists after attempting these solutions, please contact Togo POWER customer support.
10. Nkọwapụta
| Nkọwapụta | Nkọwa |
|---|---|
| Ụdị | Ike Togo |
| Nlereanya | ADVANCE2000 |
| Ụdị batrị | LiFePO4 |
| Ike | 1799Wh |
| Mmepụta AC | 2000W (4000W Peak), 120V/60Hz |
| USB-C mmepụta | 2 ports, Max 120W total |
| USB-A mmepụta | 2 ports, Max 36W total |
| Mmepụta DC | 2 ọdụ ụgbọ mmiri |
| Sịga Mkpa ọkụ mmepụta | 1 ọdụ ụgbọ mmiri |
| Nchaji ikuku | 10W |
| Ntinye AC | 100-240V |
| Ntinye anyanwụ | 12-60V, 800W Max |
| Akụkụ (L x W x H) | 13.78" x 10.43" x 9.45" |
| Ibu | 31.1 lbs (14.1 n'arọ) |
| Atụmatụ pụrụ iche | Digital Display, Lightweight, Overload Protection, Portable, Super Quiet, EPS, ECO Mode |
11. Akwụkwọ ikike na nkwado
Togo POWER offers a 24-month worry-free assurance for the ADVANCE2000 Portable Power Station, along with friendly lifetime customer support.
11.1 Ozi kọntaktị
For technical assistance, warranty claims, or general inquiries, please contact Togo POWER customer support through the official website or your purchase platform. Please have your model number (ADVANCE2000) and purchase date available when contacting support.
