1. Okwu mmalite
This manual provides essential information for the safe and efficient operation of your Keystone 8,000 BTU Wall Mounted Air Conditioner and Dehumidifier. Please read these instructions thoroughly before installation and use, and retain them for future reference. This unit is designed to provide consistent cooling and dehumidification for small to medium-sized rooms up to 350 square feet.
2. Ozi nchekwa
Your safety and the safety of others are very important. Please read all safety messages in this manual and on the appliance. Failure to follow these instructions may result in property damage, personal injury, or death.
- Always connect to a grounded power outlet.
- Ejila eriri ma ọ bụ plọg mebiri emebi rụọ ọrụ ahụ.
- Akwụsịla ntinye ikuku ma ọ bụ ọnụ ụzọ.
- Ensure proper installation to prevent water leakage.
- Debe ụmụaka pụọ na ngalaba.
- Kwupu akụkụ ahụ tupu ihicha ma ọ bụ rụọ ọrụ.
3. Ntọala & nwụnye
This air conditioner is designed for through-the-wall installation. A standard universal interior trim kit is included for ease of installation. A wall sleeve (sold separately) is required for proper installation.
3.1. Nlebanya mbụ etinyere
- Verify the wall opening dimensions are suitable for the unit (minimum height 16 inches, minimum width 24 inches).
- Ensure the electrical outlet is a NEMA 5-15P, 115V/15A standard. The unit has a 7 ft. LCDI cable.
3.2. Nzọụkwụ Nwụnye
- Install the wall sleeve (if not already present) according to its manufacturer's instructions.
- Carefully slide the air conditioner unit into the installed wall sleeve.
- Secure the unit within the sleeve using the provided hardware.
- Install the interior trim kit around the unit for a finished appearance.
- Plug the unit into a grounded 115V/15A electrical outlet.
Image: The unit is designed for easy installation into a wall sleeve, freeing up window space.

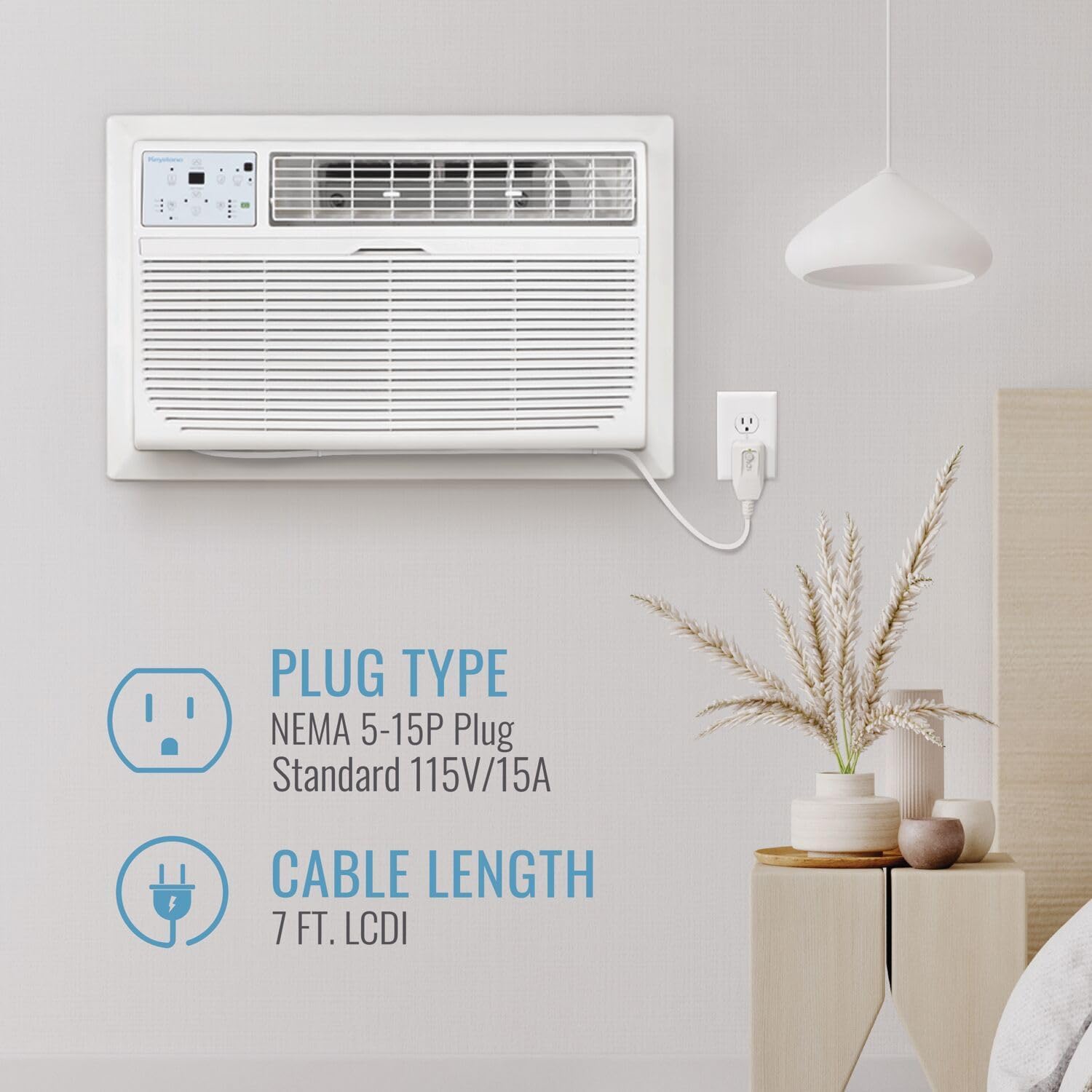

Image: Details on the NEMA 5-15P plug type and 7 ft LCDI cable length for the unit.
4. Ntuziaka ọrụ
Your Keystone air conditioner offers multiple modes and features for personalized comfort.
4.1. Ogwe njikwa na ebe dịpụrụ adịpụ
The unit can be controlled via the integrated control panel or the included remote control. The remote features a built-in thermostat that senses the temperature at your location and adjusts the unit for consistent comfort.
Image: The remote control allows you to adjust settings from anywhere in the room, with its built-in thermostat ensuring accurate temperature readings.
4.2. Ụdị na Ntọala
- Ụdị oyi: Select from multiple cooling modes to suit your preference.
- Ọsọ ndị fan: Adjust the fan speed (3 options) for optimal airflow.
- Air Louvers: Manually adjust the 4-way air louvers to direct airflow.
- Mbibi: The unit can remove up to 2.1 pints of moisture per hour, improving air quality.
- Ụdị Nchekwa Ike: Activates energy-saving operation to reduce power consumption.
- Modera Modera: Gradually increases the room temperature over time to save energy during sleep.
- Oge elekere 24: Program the unit to turn on or off automatically within a 24-hour cycle.
Image: The unit features 3-in-1 technology for powerful cooling, adjustable airflow, and effective dehumidification.
Image: Sleep mode gradually adjusts the temperature to save energy and enhance comfort during rest.
5. Nlekọta
Nlekọta anya mgbe niile na-eme ka arụmọrụ dị mma na ogologo ndụ nke ikuku ikuku gị.
5.1. Na-ehicha ihe nzacha ikuku
The unit is equipped with a washable mesh filter. A "Check Filter" alert will illuminate when it's time to clean the filter. To clean:
- Kwupu igwe ntụ oyi n'ofe ọkụ.
- Remove the front grille and carefully slide out the mesh filter.
- Jiri mmiri ọkụ, ncha sachaa nzacha. Sachaa nke ọma.
- Kwe ka nzacha ahụ kpochaa kpamkpam tupu etinyegharịa ya.
- Reinstall the filter and front grille, then plug the unit back in.
Image: The washable, removable filter should be cleaned regularly to maintain air quality and unit efficiency.
5.2. Nchacha izugbe
Jiri nwayọ hichaa mpụta nke otu ahụ, damp akwa . Ejila kemịkalụ siri ike ma ọ bụ ihe mkpocha abrasive.
6. Nchọpụta nsogbu
If your unit is not operating correctly, refer to the following common issues before contacting customer support.
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Unit anaghị agbanwuo | Enweghị ike, ihe mgbawa sekit gbajiri agbaji, plọg kwụ ọtọ. | Check power connection, reset breaker, ensure plug is secure. |
| Ezughi oke jụrụ oyi | Ihe nzacha ikuku ruru unyi, ikuku ikuku egbochiri, ọnụ ụlọ buru oke ibu, ọnọdụ okpomọkụ dị oke elu. | Clean filter, clear vents, ensure unit is appropriate for room size, lower temperature setting. |
| Unit na -eme mkpọtụ | Loose parts, unit not level, foreign object in fan. | Lelee maka ihe ndị na-adịghị arụ ọrụ nke ọma, hụ na nkeji ahụ dị larịị, lelee maka ihe mgbochi. |
| Mgbapu mmiri | Nkuku nrụnye na-adịghị mma, draịvụ kpọchiri akpọchi. | Verify unit is slightly tilted outwards for drainage, clear any drain obstructions. |
7. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Ụdị | Nkume isi |
| Nọmba nlereanya | KSTAT08-1E |
| Ike jụrụ oyi | 8,000 British Thermal Units (BTU) |
| Dehumidification ikike | 2.1 pints kwa elekere |
| Mpaghara mkpuchi | Ruo 350 Square Feet |
| Voltage | 115 volts |
| Wattage | 830 watt |
| Ọkwa mkpọtụ | 49.5 decibel |
| Akụkụ ngwaahịa (D x W x H) | 20.28"D x 24.21"W x 14.53"H |
| Ibu Ibu | 63 pound |
| Ụdị nwụnye | Site The Wall |
| Atụmatụ pụrụ iche | 24 Hour Timer, Energy Saver Mode, Fast Cooling, Remote Controlled, Sleep Mode |
| Ụdị nzacha | Ntupu Myọcha |
| Igwe nju oyi | R-32 |
| Usoro njikwa | Njikwa anya |
Image: Detailed dimensions and weight of the air conditioner unit.
Image: Guide for selecting the appropriate BTU based on room size, indicating 8,000 BTU for up to 350 sq. ft.
8. Akwụkwọ ikike & Nkwado
This Keystone air conditioner comes with a Akwụkwọ ikike dị afọ 1. Biko rụtụ aka na kaadị akwụkwọ ikike gụnyere ngwaahịa gị maka usoro na ọnọdụ zuru ezu.
For technical support, service, or warranty claims, please contact Keystone customer service. Contact information can typically be found on the product packaging or the official Keystone websaịtị.
