Okwu mmalite
This manual provides detailed instructions for the proper use and maintenance of your XINFUTE RCS-8HVPULS4U remote control, designed for SANYO air conditioner models 30KS82, 36KS82, KS3082, and KS3682. Please read this manual thoroughly before operating the remote control to ensure optimal performance and longevity.
Ntọala: Ntinye Batrị
The remote control requires two AAA batteries (not included). Follow these steps to install or replace batteries:
- Chọta ebe batrị dị n'azụ nke njikwa anya.
- Madaa mkpuchi batrị ala ka imepe ya.
- Insert two fresh leak-proof AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
- Weghachite mkpuchi batrị n'ime ebe ruo mgbe ọ pịrị na nchekwa.
- After replacing batteries, press the Tọgharia button (often labeled "ACL" or with a small hole) using a thin, pointed object like a pen tip. This resets the remote's internal clock and settings.

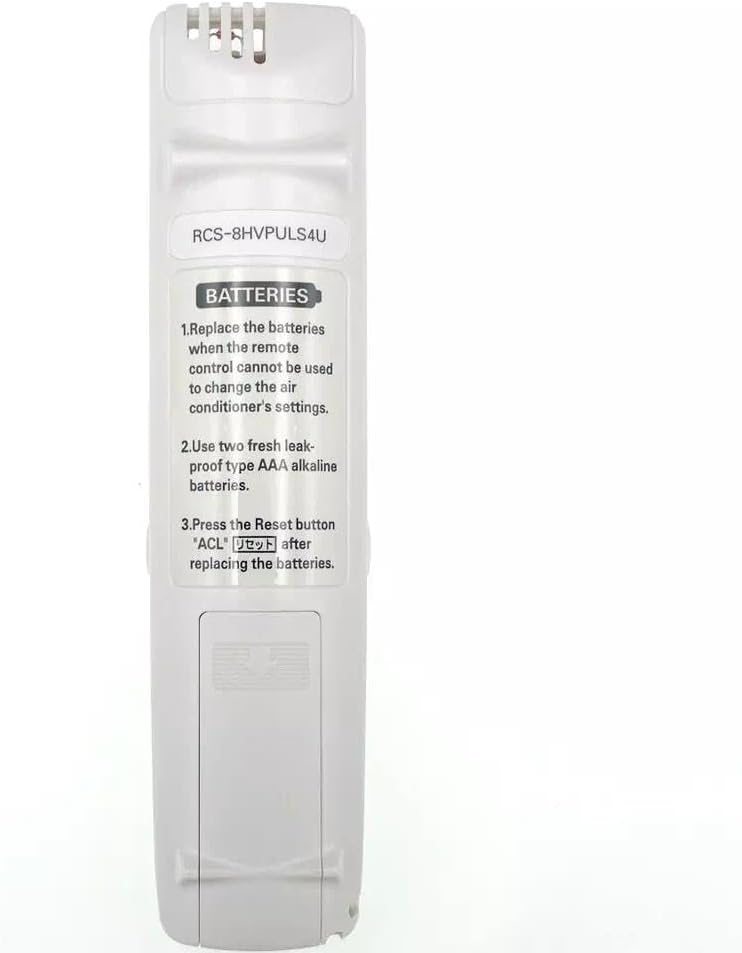

Image: Back of the remote control, illustrating the battery compartment and battery replacement instructions.
Ntuziaka ọrụ
Familiarize yourself with the buttons on your remote control. The main display shows current settings such as temperature and operating mode.

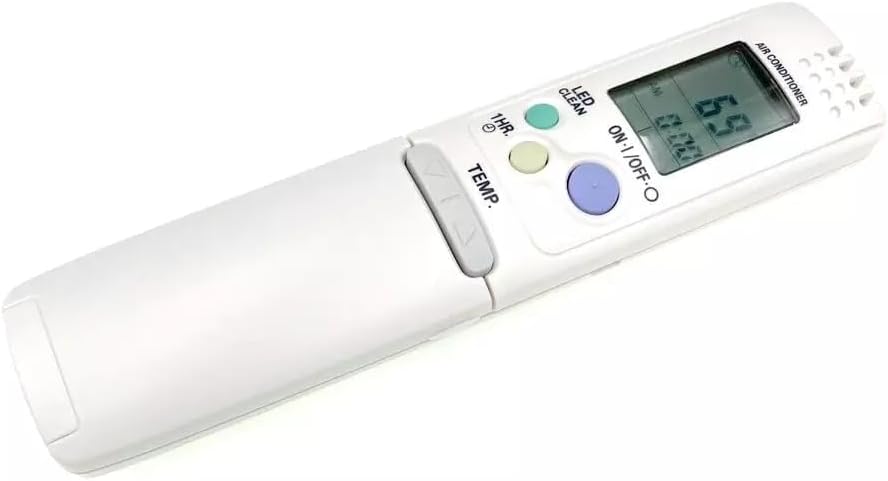

Foto: N'ihu view of the remote control, showing the display and primary control buttons.
Ọrụ ndị bụ isi
- ON-I/OFF-O Button: Pịa iji gbanye ma ọ bụ gbanyụọ ihe na-eme ka ikuku dị jụụ.
- TEMP. Buttons (Up/Down Arrows): Adjust the desired temperature setting. Press the up arrow to increase temperature, and the down arrow to decrease it.
- Bọtịnụ MODE: Cycle through available operating modes such as Cool, Heat, Fan, Dry, and Auto.
- Bọtịnụ Ọsọ Ọsọ: Hazie ọsọ fan (dịka ọmụmaatụ, Ala, Ọkara, Elu, Akpaaka).

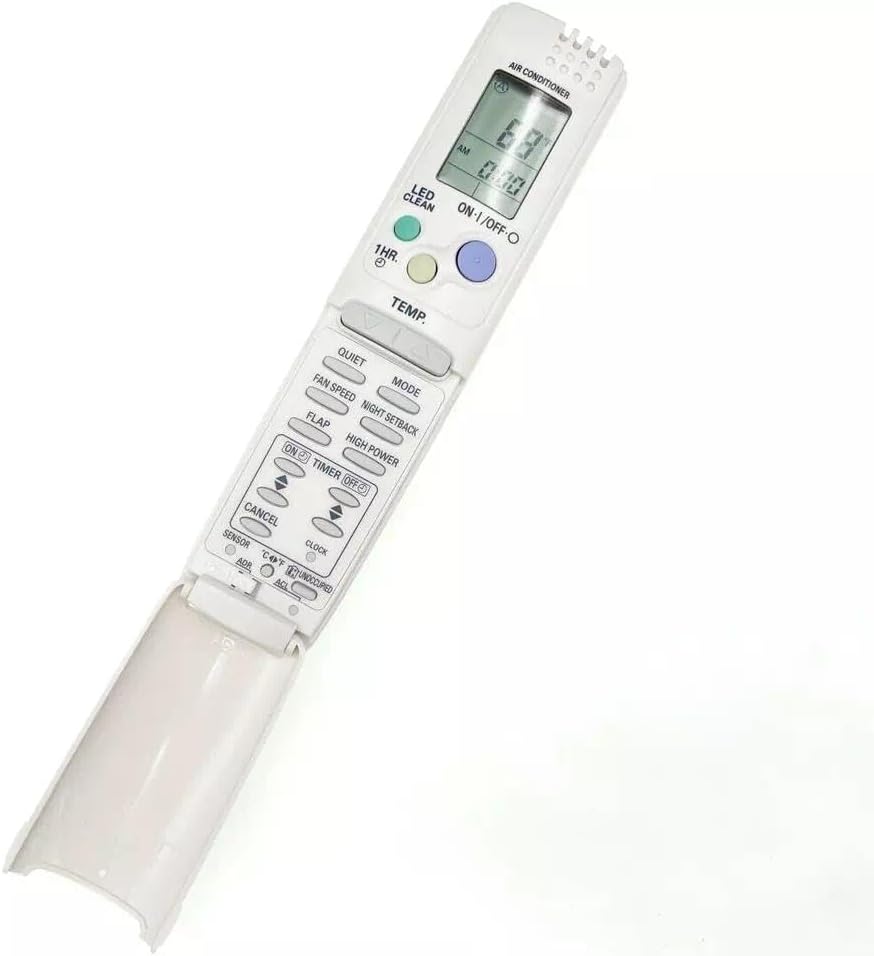

Image: Remote control with the lower flap open, revealing advanced function buttons.
Advanced Functions (Under Flap)
- Bọtịnụ KUIET: Activates a low-noise operation mode for quieter performance.
- NIGHT SETBACK Button: Engages a sleep mode that gradually adjusts temperature for comfortable sleep and energy saving.
- Bọtịnụ FLAP: Controls the louver direction or swing function of the air conditioner.
- HIGH POWER Button: Activates a powerful cooling/heating mode for rapid temperature changes.
- Bọtịnụ mgbanyụ/ Gbanyụọ TIMER: Set a specific time for the air conditioner to turn on or off automatically. Use the up/down arrows to adjust the time.
- Bọtịnụ kagbuo: Cancels any active timer settings.
- Bọtịnụ elekere: Sets the current time on the remote control's display.
- Bọtịnụ Ịdị ọcha nke LED: Activates a self-cleaning function for the indoor unit's LED display or internal components (refer to your air conditioner manual for specific function).
- 1HR. Button: Likely a quick timer setting for 1 hour of operation or a specific mode.
- Bọtịnụ SENSOR: Activates or deactivates a sensor function, possibly related to room temperature sensing from the remote itself.
Nlekọta
- Nhicha: Jiri ákwà dị nro ma kpọọ nkụ hichaa ihe njikwa remote. Ejila ihe nhicha mmiri ma ọ bụ ihe ndị na-eme ka ihe dị nro, n'ihi na ha nwere ike imebi elu ma ọ bụ ihe dị n'ime.
- Ngbanwe batrị: Replace batteries when the remote control's display becomes dim or the remote no longer responds to commands. Always use fresh, leak-proof AAA alkaline batteries. Remove batteries if the remote will not be used for an extended period to prevent leakage.
- Nchekwa: Chekwaa ebe dịpụrụ adịpụ n'ebe dị jụụ, kpọrọ nkụ na-adịghị na ìhè anyanwụ kpọmkwem na oke okpomọkụ.
Nchọpụta nsogbu
- Remote anaghị aza:
- Lelee ma ọ bụrụ na etinyere batrị ndị ahụ nke ọma na polarity ziri ezi.
- Jiri ndị ọhụrụ dochie batrị ochie.
- Hụ na enweghị ihe mgbochi ọ bụla n'etiti njikwa remote na onye na-anabata igwe oyi.
- Jide n'aka na ebe a na-echekwa ihe dị n'ime ya na-egosi kpọmkwem ebe a na-etinye ihe na-eme ka ikuku dị jụụ.
- Ngosipụta adịchaghị ma ọ bụ oghere:
- Batrị dị ala. Dochie ha.
- Igwe oyi anaghị arụ ọrụ ụfọdụ:
- Ensure the air conditioner unit supports the specific function (e.g., some older units may not have a "Quiet" mode).
- Refer to your air conditioner's own user manual for compatibility.
Nkọwapụta
- Nọmba nlereanya: RCS-8HVPULS4U
- Compatible SANYO Air Conditioner Models: 30KS82, 36KS82, KS3082, KS3682
- Isi mmalite ike: Batrị 2 x AAA (anaghị etinye ya)
- Ihe: ABS ihe
- Agba: Dị ka egosiri
- Akụkụ ngwaahịa: 4 x 3 x 1 sentimita asatọ
- Ibu ihe: 2.82 ounces
Ozi akwụkwọ ikike
This XINFUTE remote control comes with a one-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or battery leakage.
Nkwado ndị ahịa
If you encounter any issues or have questions regarding your XINFUTE RCS-8HVPULS4U remote control, please contact customer support. All goods are inspected before shipment. If you are not satisfied with your purchase, you may contact us within 24 hours of receipt. For further assistance, please refer to the seller's contact information provided at the time of purchase.
