Kalamera 15-Inch 29-Bottle Single Zone Wine Cooler Refrigerator

Okwu mmalite

Thank you for choosing the Kalamera 15-Inch 29-Bottle Single Zone Wine Cooler Refrigerator. This manual provides essential information for the proper installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and retain it for future reference.

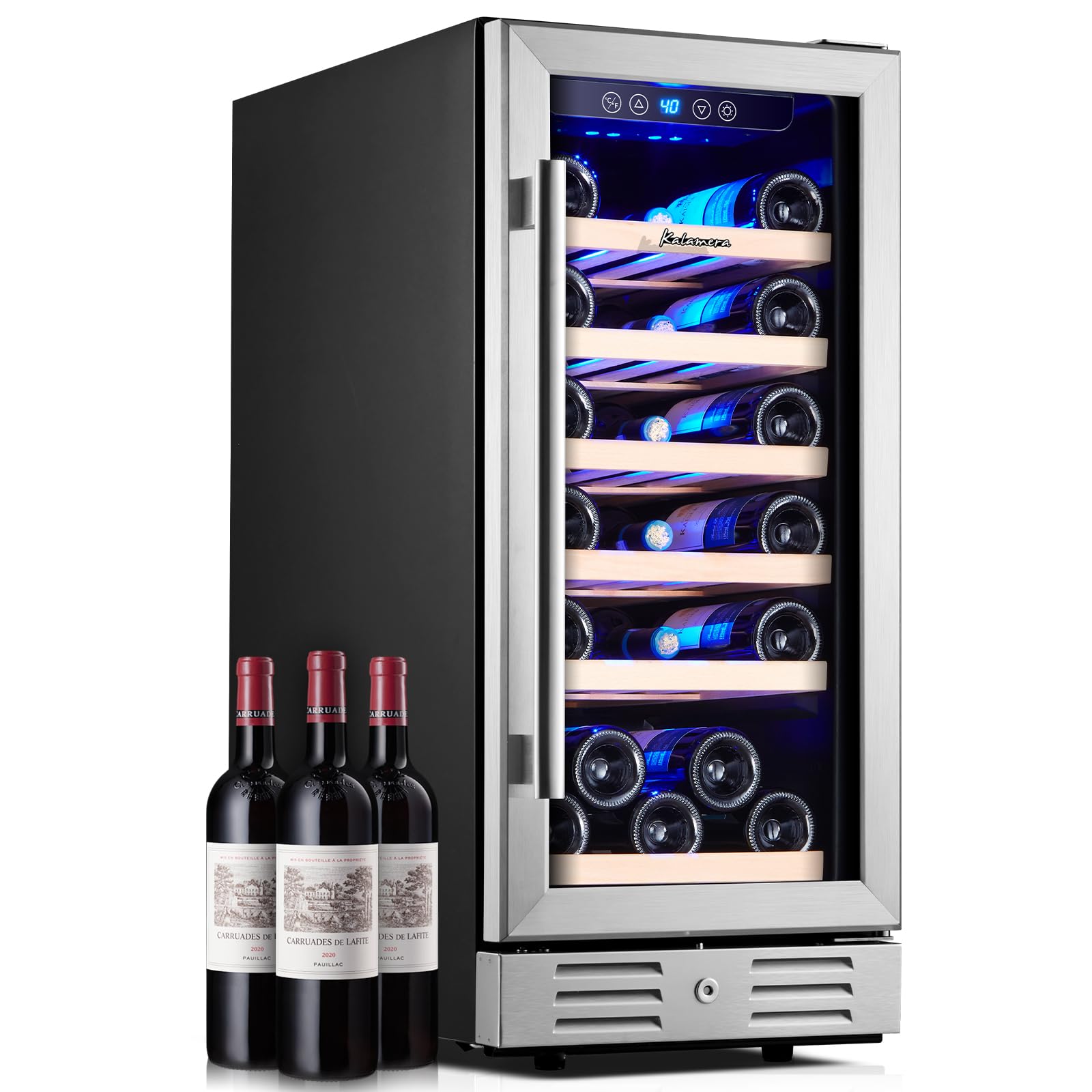

Figure 1: Kalamera 15-inch Wine Cooler in a modern kitchen setting.

Ozi nchekwa

Iji belata ihe ize ndụ nke ọkụ, ujo eletrik, ma ọ bụ mmerụ ahụ mgbe ị na-eji ngwa gị, soro usoro nlezianya ndị a:

• Gụọ ntụziaka niile tupu ị na-eji ihe ọlerụ theụ mmanya.
• Emetụla ebe oyi na-atụ ozugbo etinyere ngwaọrụ ahụ.
• Hụ na e tinyere ntọala kwesịrị ekwesị. Jikọọ naanị na ebe ndị e tinyere ntọala kwesịrị ekwesị.
• Ejila eriri ndọtị.
• Unplug the wine cooler before cleaning or making any repairs.
• Debe oghere ikuku ka ọ ghara igbochi ya.
• Do not allow children to climb, stand, or hang on the shelves or on the wine cooler.
• Dispose of the appliance according to local regulations, as it contains flammable refrigerant and gas.

Ngwaahịa gafereview

The Kalamera KRC-90A-VC is a 15-inch wide, single-zone wine cooler designed for both built-in and freestanding installation. It features a digital temperature control, temperature memory function, and eco-friendly wooden shelves.

Akụkụ ndị bụ isi:

• Ike: Stores up to 29 standard wine bottles.
• Oke okpomọkụ: Single zone control from 40℉ to 66℉ (4℃ to 18℃).
• Njikwa dijitalụ: Intuitive touch panel for temperature adjustment and light control.
• Ebe nchekwa okpomọkụ: Restores set temperature after power interruptions.
• Shelves: FSC-certified wooden shelves on tracks for smooth access and vibration reduction.
• Ọnụ ụzọ: Dual-layer tempered glass door for UV protection and insulation.
• Ọkụ: Soft blue LED interior lighting.
• Nchekwa: Child safety lock on the base.
• Nwụnye: Suitable for built-in or freestanding use.

Ọgụgụ 2: Ime view of the wine cooler showcasing blue LED lights and wooden shelves.

Melite

Iwepu:

• Remove all packaging materials, including the foam base and any adhesive tape.
• Inspect the appliance for any damage. Report any damage to your retailer immediately.
• Allow the appliance to stand upright for at least 24 hours before plugging it in to allow refrigerants to settle.

Ebe na ntinye:

This wine cooler can be installed as a freestanding unit or built into cabinetry. Ensure adequate ventilation around the unit, especially for built-in installations where the front air vent is crucial.

• Place the unit on a flat, solid surface capable of supporting its weight when fully loaded.
• Ensure there is sufficient space for the door to open completely (at least 90 degrees).
• For built-in installation, ensure the dimensions of the cabinet opening are appropriate: 14.9" (W) x 22.4" (D) x 33.9" (H). The front air vent must not be obstructed.
• Adjust the leveling feet at the bottom of the unit to ensure it is stable and level.

Figure 3: Dimensions for built-in or freestanding installation.

Njikọ eletrik:

Connect the appliance to a dedicated, grounded 110V/60Hz electrical outlet. Do not use multi-plugs or extension cords.

Ntuziaka ọrụ

Ogwe njikwa:

The control panel is located at the top interior of the unit. It features touch buttons for power, temperature adjustment, and light control.

Figure 4: Digital control panel.

• Bọtịnụ Ike (⏻): Pịa ka ịgbanwuo ma ọ bụ gbanyụọ unit ahụ.
• Temperature Up (▲) / Down (▼): Use these buttons to adjust the desired temperature. The temperature range is 40℉-66℉.
• Light Button (💡): Press to turn the interior blue LED light ON or OFF.
• Gbanwee ℉/℃: Press to toggle between Fahrenheit and Celsius display.

Ọrụ ebe nchekwa okpomọkụ:

The wine cooler is equipped with a temperature memory function. In the event of a power failure, the unit will automatically restore to the last set temperature once power is re-established, preventing wine deterioration due to temperature fluctuations.

Na-ebunye karama mmanya:

The wooden shelves are designed to accommodate standard 750ml wine bottles. For larger or irregularly shaped bottles, you may need to adjust or remove shelves. The shelves slide out smoothly for easy loading and retrieval.

Figure 5: Wooden movable shelves for customized storage.

Nlekọta

Nhicha:

• Kwupuo unit ahụ mgbe niile tupu ihicha ya.
• Jiri akwa dị nro hichaa ime ime ahụ yana ncha dị nro na-adịghị emebi emebi.
• Jiri nwayọ hichaa mpụta, damp akwa . Maka elu igwe anaghị agba nchara, jiri igwe anaghị agba nchara.
• Na-ehicha gasket ọnụ ụzọ mgbe niile iji hụ na e nwere akara kwesịrị ekwesị.

Na-ekpochapu:

This appliance features an automatic defrost function. Frost will melt and drain into a drip tray at the back of the unit, where it evaporates. No manual defrosting is typically required.

Wooden Shelf Care:

The wooden shelves are made of FSC-certified wood. Clean them with a damp cloth and dry thoroughly. Avoid harsh chemicals that could damage the wood finish.

Nchọpụta nsogbu

Review the following table for common issues and their solutions before contacting customer service.

Nkọwapụta

Akwụkwọ ikike na nkwado

Kalamera products are manufactured to the highest quality standards. For specific warranty details and customer support, please refer to the warranty card included with your product or visit the official Kalamera websaịtị. Debe nnata nzụta gị dị ka ihe akaebe nke ịzụrụ maka nkwupụta ikike.

For assistance, please contact Kalamera Customer Service.
