ZEBRONICS Astra 40 Portable Bluetooth Speaker User Manual

1. Okwu mmalite

Daalụ maka ịzụrụasing the ZEBRONICS Astra 40 Portable Bluetooth Speaker. This manual provides essential information for setting up, operating, and maintaining your speaker. Please read it carefully to ensure optimal performance and longevity of your device.

The ZEB-Astra 40 is a portable speaker designed to enhance your audio experience. It features Bluetooth v5.3 for seamless wireless connectivity, True Wireless Stereo (TWS) function for pairing two speakers, and multiple media options including USB, mSD, AUX, and FM Radio. With dual 5.2cm drivers and passive radiators, it delivers an impressive 20W RMS output. The speaker also includes vibrant RGB LED lights, an LED display, call functionality, and a splash-proof design for versatile use.

2. Ihe ngwugwu

• ZEBRONICS Astra 40 Speaker - 1 unit
• Eriri Nchaji (Ụdị-C) - 1 nkeji
• Input Cable (AUX) - 1 unit
• Ntuziaka Koodu QR - otu nkeji

3. Ngwaahịa gafereview

Njikwa na ọdụ ụgbọ mmiri

Familiarize yourself with the various controls and connection ports on your ZEB-Astra 40 speaker.

Foto: N'azụ view of the ZEB-Astra 40 speaker highlighting the OFF/ON switch, AUX input, USB port, Micro SD card slot, and Type-C charging port.

• Gbanyụọ/gbanwuo: Na-agbanyụ ma ọ bụ gbanyụọ ọkà okwu.
• Ntinye AUX: Maka ijikọ ngwaọrụ ọdịyo mpụga site na eriri ọdịyo 3.5mm.
• Ọdụ ụgbọ mmiri USB: Maka ịkpọ egwu ọdịyo site na draịvụ flash USB.
• Oghere Micro SD: For playing audio from Micro SD cards.
• Ụdị-C Port: Maka ịchaji ọkà okwu.

Foto: Top view of the ZEB-Astra 40 speaker displaying the media control buttons (Play/Pause, Volume Down/Previous, Volume Up/Next, Mode/RGB), and illustrations for TWS and Call functions.

• Bọtịnụ Kwụsị/Kwụsị: Na-akpọ ma ọ bụ na-akwụsịtụ ọdịyo.
• Mpịakọta nke ala / bọtịnụ egwu gara aga: Na-ebelata olu ma ọ bụ na-awụli elu gaa na egwu gara aga.
• Bọtịnụ egwu na-esote: Na-eme ka olu dịkwuo elu ma ọ bụ na-awụlikwa elu gaa na egwu ọzọ.
• Mode / RGB Button: Switches between input modes (Bluetooth, USB, mSD, AUX, FM) and controls RGB lighting.

4. Nhazi

4.1 Ịchaji ọkà okwu

Before first use, fully charge the speaker. Use the provided Type-C charging cable.

1. Connect the Type-C end of the charging cable to the speaker's Type-C port.
2. Connect the USB-A end of the charging cable to a 5V DC power adapter (not included) or a computer's USB port.
3. Ngosipụta LED ga-egosi ọnọdụ chajị. Ozugbo chajịchara ya nke ọma, ihe ngosi ahụ ga-agbanwe.

Image: The ZEB-Astra 40 speaker, highlighting its built-in rechargeable battery and up to 8 hours of playback time (at 50% volume with LED off).

A full charge provides up to 8 hours of playback at 50% volume with the LED lights off.

4.2 Gbanyụọ/ gbanyụọ

Locate the OFF/ON switch on the speaker's rear panel. Slide the switch to the 'ON' position to power on the speaker. Slide it to the 'OFF' position to power off.

5. Ntuziaka ọrụ

5.1 Njikọ Bluetooth

1. Ike na ọkà okwu. Ọ ga-abanye na ọnọdụ njikọta Bluetooth na-akpaghị aka, nke ọkụ ọkụ na-egbuke egbuke gosipụtara.
2. Na ekwentị mkpanaaka gị, gbanye Bluetooth wee chọọ ngwaọrụ dị.
3. Select "ZEB-Astra 40" from the list of devices.
4. Once paired, the speaker will emit a confirmation sound, and the LED will stop flashing.

5.2 Ezi Ikuku Stereo (TWS) Ọrụ

The TWS function allows you to connect two ZEB-Astra 40 speakers for a stereo audio experience.

Image: Illustration depicting two ZEB-Astra 40 speakers wirelessly connected via TWS for enhanced sound.

1. Ensure both ZEB-Astra 40 speakers are powered on and in Bluetooth mode, but not connected to any device.
2. On one of the speakers (this will be the primary speaker), long-press the Play/Pause button until you hear a TWS pairing prompt.
3. Igwe okwu abụọ ahụ ga-ejikọta onwe ha na-akpaghị aka. Ozugbo ejikọrọ, ị ga-anụ ụda nkwenye.
4. Ugbua, jikọọ ekwentị mkpanaaka gị na ọkà okwu bụ isi site na Bluetooth dịka akọwara na ngalaba 5.1.

5.3 Multi-Connectivity Options

Ọkà okwu ahụ na-akwado ọtụtụ isi mmalite ntinye:

• USB playback: Insert a USB flash drive into the USB port. The speaker will automatically switch to USB mode and begin playing audio files.
• Mkpọghachi Micro SD: Insert a Micro SD card into the mSD slot. The speaker will automatically switch to mSD mode and begin playing audio files.
• Ntinye AUX: Connect an external audio device (e.g., MP3 player, laptop) to the AUX port using the provided 3.5mm audio cable. Press the Mode button to switch to AUX mode.
• Igwe Redio: Press the Mode button to switch to FM Radio mode. Long-press the Play/Pause button to auto-scan and save available FM stations. Use the Volume Up/Down buttons to navigate between stations.

5.4 Njikwa Mgbasa Ozi na Olu

Use the control buttons on the top panel of the speaker:

• Gwuo/kwụsịtụ: Pịa obere oge iji kpọọ ma ọ bụ kwụsịtụ ọdịyo.
• Elu elu/Egwu na-esote: Short press to increase volume. Long press to skip to the next track.
• Egwu ala/Oge gara aga: Short press to decrease volume. Long press to skip to the previous track.

5.5 Ọrụ oku

When connected via Bluetooth to a smartphone, the speaker supports hands-free calling.

Image: Illustration showing a smartphone connected to the ZEB-Astra 40 speaker for hands-free calling.

• Oku azaa: Pịa obere bọtịnụ Play/Pause mgbe oku na-abata na-ada.
• Oku ngwụcha: Short press the Play/Pause button during a call to hang up.
• Jụ oku: Pịa bọtịnụ Play/Pause ruo ogologo oge mgbe oku na-abata na-ada.

5.6 RGB ọkụ ọkụ

The speaker features colorful RGB LED lights to enhance your listening experience.

Image: Close-up of the ZEB-Astra 40 speaker displaying its vibrant RGB LED lights on the side panels.

Short press the Mode button to cycle through different RGB lighting modes or to turn the lights off.

5.7 Ikanam Display

The integrated LED display provides useful information.

Image: Close-up of the ZEB-Astra 40 speaker's LED display showing 'BLUE' indicating Bluetooth mode.

The LED display shows the current mode (e.g., "BLUE" for Bluetooth, "FM" for radio), volume level, and battery status.

6. Nlekọta

6.1 Nhicha

To clean the speaker, use a soft, dry cloth. Do not use harsh chemicals, cleaning solvents, or strong detergents, as these may damage the surface or internal components.

6.2 Njirimara Mgbapụta Mkpọsa

The ZEB-Astra 40 features a splash-proof design, offering protection against light splashes of water.

Image: The ZEB-Astra 40 speaker with water droplets on its surface, illustrating its splash-proof capability.

Important: This speaker is splash-proof, not waterproof. Do not immerse it in water or expose it to heavy rain or direct water jets, as this will cause damage and void the warranty.

6.3 Nchekwa

When not in use for extended periods, store the speaker in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the battery is partially charged before storing to maintain battery health.

7. Nchọpụta nsogbu

8. Nkọwapụta

Image: The ZEB-Astra 40 speaker highlighting its 20W RMS output, dual 5.2cm drivers, and dual passive radiators for powerful audio.

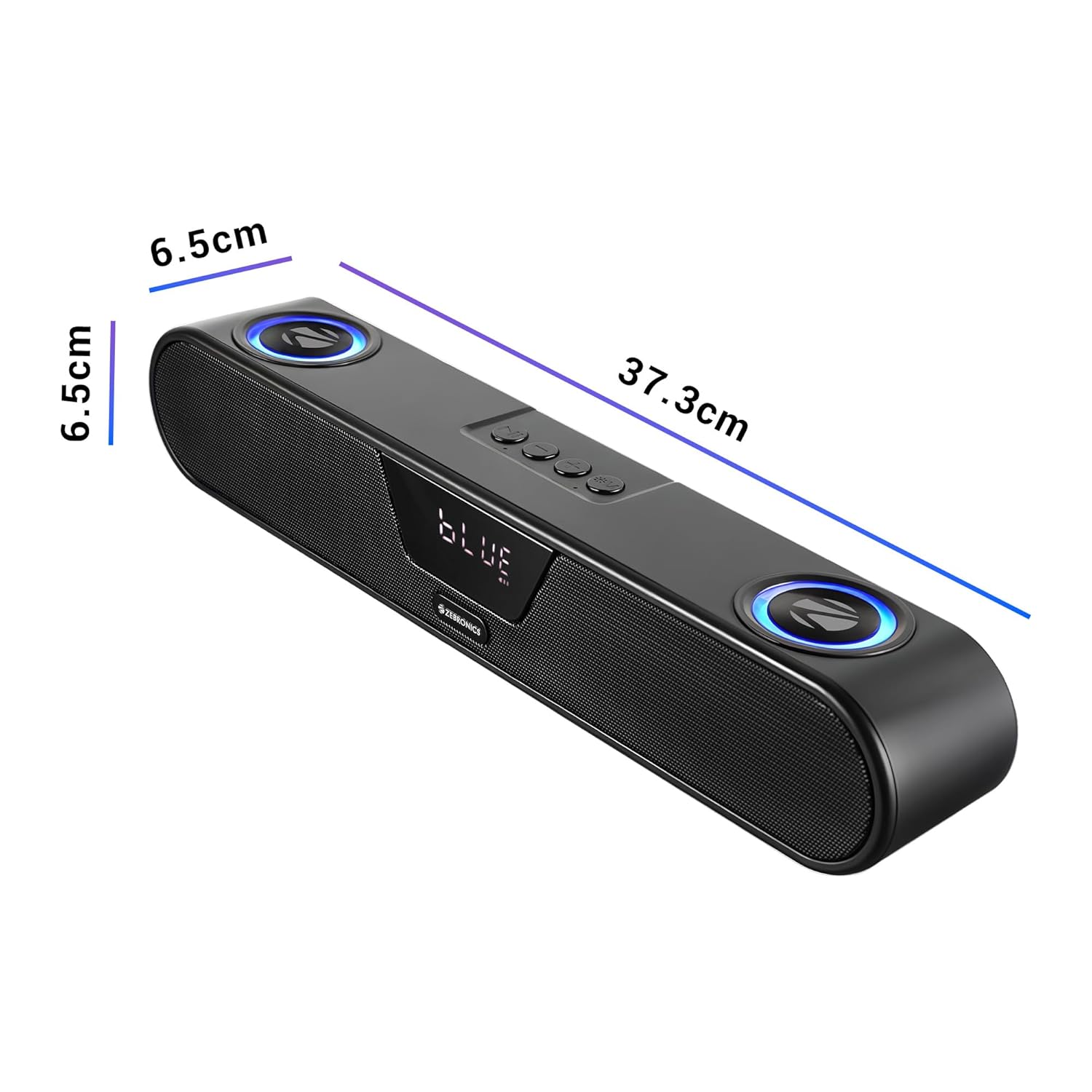

Image: The ZEB-Astra 40 speaker with its approximate dimensions: 37.3cm length, 6.5cm width, and 6.5cm height.

9. Akwụkwọ ikike na nkwado

9.1 Ozi akwụkwọ ikike

The ZEBRONICS Astra 40 Portable Bluetooth Speaker comes with a Akwụkwọ ikike afọ 1 from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your purchase receipt as proof of purchase for warranty claims.

The warranty does not cover damage caused by misuse, accident, unauthorized modification, or exposure to conditions beyond the product's specifications (e.g., immersion in water despite being splash-proof).

9.2 Nkwado ndị ahịa

For any technical assistance, warranty claims, or product-related inquiries, please contact ZEBRONICS customer support through their official website or the contact details provided in your product packaging. Please have your model number (ZEB-ASTRA 40) and purchase details ready when contacting support.

You can visit the official ZEBRONICS websaịtị maka ozi ndị ọzọ na akụrụngwa nkwado: www.zebronics.com
