1. Ntuziaka nchekwa dị mkpa
Gụọ ịdọ aka ná ntị nchekwa niile, ntuziaka, nkọwa na nkọwapụta enyere na ngwa ike a. Ọdịda ịgbaso ntuziaka niile edepụtara n'okpuru nwere ike bute ujo ọkụ eletrik, ọkụ na/ma ọ bụ mmerụ ahụ dị egwu. Chekwaa ịdọ aka ná ntị na ntụziaka niile maka ntụnye aka n'ọdịnihu.
- Nchekwa mpaghara ọrụ: Debe ebe ọrụ gị ọcha na ọkụ nke ọma. Ebe mgbagwoju anya ma ọ bụ ọchịchịrị na-akpọ ihe mberede.
- Nchekwa Eletriki: Plọg ngwá ọrụ ike ga-adakọrịrịrịrị. Agbanwela plọg ahụ n'ụzọ ọ bụla. Ejila ụdọ mee ihe n'ụzọ na-ezighị ezi. Debe eriri ka ọ ghara ikpo ọkụ, mmanụ, akụkụ dị nkọ ma ọ bụ akụkụ na-akpụ akpụ.
- Nchekwa nkeonwe: Always wear eye protection. Use appropriate dust masks when operating in dusty conditions. Stay alert, watch what you are doing, and use common sense when operating a power tool.
- Iji na Nlekọta Ngwa: Amanyela ngwá ọrụ ike. Jiri ngwa ike ziri ezi maka ngwa gị. Kwụpụ plọg na isi iyi ọkụ tupu ime mgbanwe ọ bụla, ịgbanwe ngwa ma ọ bụ ichekwa ngwa ike.
2. Ngwaahịa gafereview
The Total TB2086 is a versatile 800W electric tool designed for both blowing and vacuuming tasks. It is ideal for clearing dust, debris, and leaves from various surfaces.

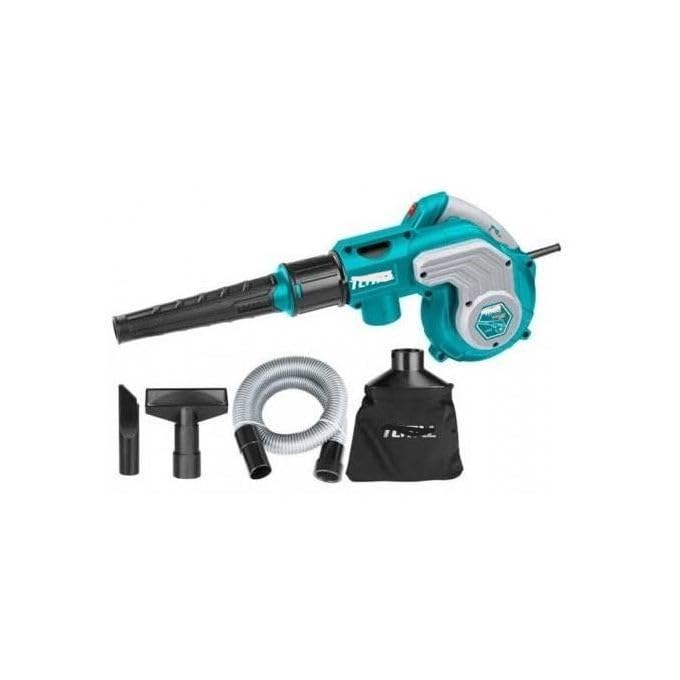

Foto 2.1: Total TB2086 Electric Blower and Vacuum Cleaner shown with its main components and accessories, including the main unit, blowing nozzle, vacuum hose, and dust collection bag.
Ngwa:
- Main Unit (Motor Housing and Handle)
- Nozzle na-afụ
- Agụụ sooks
- Akpa nchịkọta uzuzu
- Ụdọ ọkụ
3. Nhazi
Before operating the tool, ensure all components are correctly assembled.
3.1 Ịtinye Nozulu Na-efe Efu
- Gbaa mbọ hụ na akpọpụla ngwaọrụ ahụ na isi iyi ike.
- Align the blowing nozzle with the air outlet port on the front of the main unit.
- Push and twist the nozzle until it locks securely into place.
3.2 Attaching for Vacuuming (Dust Collection)
- Gbaa mbọ hụ na akpọpụla ngwaọrụ ahụ na isi iyi ike.
- Attach the vacuum hose to the air inlet port (usually on the side or bottom of the main unit). Secure it firmly.
- Attach the dust collection bag to the air outlet port (where the blowing nozzle would attach). Ensure it is securely fastened to prevent dust leakage.
Foto 3.1: Agara nso view of the main unit's handle, showing the trigger switch and the red lock-on button for continuous operation.
4. Ntuziaka ọrụ
Always wear appropriate personal protective equipment (PPE) such as safety glasses and a dust mask during operation.
4.1 Blower Mode
- Ensure the blowing nozzle is securely attached.
- Tinye eriri ọkụ n'ime ebe eletrik kwesịrị ekwesị.
- Hold the tool firmly by the handle.
- Press the trigger switch to start the motor. For continuous operation, press the lock-on button while the trigger is pressed, then release the trigger.
- Direct the nozzle towards the area to be cleared. Move the blower in a sweeping motion to effectively clear debris.
- To stop, release the trigger switch. If locked on, press the trigger again to release the lock-on button, then release the trigger.
4.2 Vacuum Mode (Dust Collector)
- Ensure the vacuum hose and dust collection bag are securely attached.
- Tinye eriri ọkụ n'ime ebe eletrik kwesịrị ekwesị.
- Hold the tool firmly by the handle.
- Press the trigger switch to start the motor.
- Direct the end of the vacuum hose towards the debris to be collected. The tool will draw air and debris into the dust collection bag.
- Monitor the dust bag and empty it when it is approximately two-thirds full to maintain optimal suction.
- Iji kwụsị, hapụ ihe mgba ọkụ ahụ.
Foto 4.1: Akụkụ view of the Total TB2086, illustrating the air intake area for vacuuming operations.
5. Nlekọta
Regular maintenance ensures the longevity and optimal performance of your tool. Always unplug the tool before performing any maintenance.
5.1 Nhicha
- Jiri nwayọ hichaa mpụta nke ngwaọrụ ahụ, damp akwa . Ejila kemịkalụ siri ike ma ọ bụ ihe mkpocha abrasive.
- Periodically clean the air vents to prevent overheating. Use a soft brush or compressed air.
- Empty and clean the dust collection bag regularly. Wash if necessary and ensure it is completely dry before reattaching.
5.2 Nchekwa
- Store the tool in a clean, dry place, out of reach of children.
- Zere ịchekwa ya n'anwụ kpọmkwem ma ọ bụ n'ebe okpomọkụ dị oke njọ.
- Coil the power cord neatly to prevent damage.
6. Nchọpụta nsogbu
If you encounter issues with your Total TB2086, refer to the following common problems and solutions:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Ngwá ọrụ anaghị ebido | Enweghị ọkụ Eriri ike/plọg adịghị mma Mmejọ nke ime | Lelee oghere ọkụ na ihe nbibi sekit Lelee eriri ahụ maka mmebi; dochie ya ma ọ bụrụ na ọ dị mkpa Kpọtụrụ nkwado ndị ahịa |
| Ike ịfụ/ịmịpụta obere | Blocked nozzle/hose Full dust bag Akpọchiela ikuku ikuku | Kpochapụ ihe mgbochi ọ bụla Empty and clean dust bag Igwe ikuku dị ọcha |
| Nnukwu ịma jijiji/mkpọtụ | Ngwa ndị rụrụ arụ Debris in fan/motor | Check all attachments are secure Unplug and carefully inspect for debris; remove if safe to do so. If problem persists, contact support. |
| ekpo oke ọkụ | Ọkụ ikuku akpọchiri Ojiji dị arọ ruo ogologo oge | Igwe ikuku dị ọcha Allow tool to cool down; reduce load or operating time |
7. Nkọwapụta
Detailed technical specifications for the Total TB2086 Electric Blower and Vacuum Cleaner:
- Nọmba nlereanya: TB2086
- Akara: Mkpokọta
- Ike: 800W
- Olu ikuku: 0-4.5 m³/min
- Isi mmalite ike: Igwe ọkụ eletrik
- Ihe kpatara ụdị: Ejidere
- Ibu ihe: 300 g
- Akụkụ ngwaahịa: 25 x 17 x 10 cm
- Atụmatụ pụrụ iche: Switchable nozzle connection
- Batrị achọrọ: Mba
- Ụbọchị mbụ dị: Nọvemba 18, 2024
8. Akwụkwọ ikike na nkwado
For warranty information or technical support, please refer to the documentation included with your purchase or contact Total customer service. Keep your proof of purchase for any warranty claims.
