Bebesit Neo Travel System Stroller User Manual

1. Okwu mmalite

The Bebesit Neo Travel System Stroller is designed to accompany you through every stage of your baby's growth, combining practicality, style, and safety. With a lightweight and compact structure, this model is ideal for modern parents seeking a versatile and functional product for their daily outings. Its design considers every detail, from a canopy with a visor to an ergonomic handlebar that adjusts to the height of the user.

This manual provides essential information for the safe and correct assembly, operation, and maintenance of your Bebesit Neo Travel System. Please read all instructions carefully before use and keep this manual for future reference.

2. Akụrụngwa Ngwaahịa

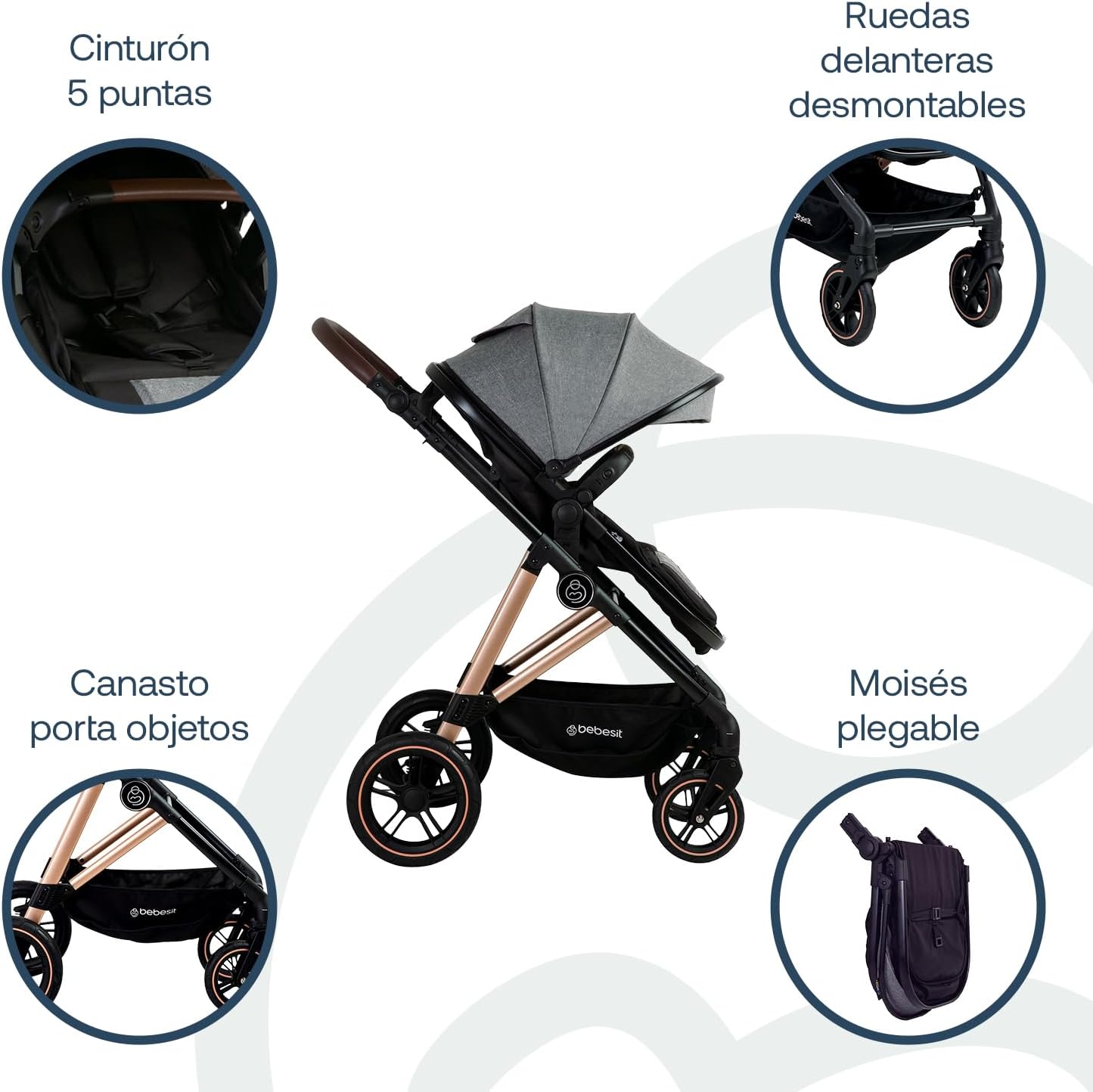

• Compact and Robust Structure: Features a durable frame, a spacious lower storage basket, and wheels with a safety button for comfortable and secure rides on various terrains.
• Adjustable Multi-Position Recline: Offers various recline positions, allowing the stroller seat to be adjusted for your baby's maximum comfort.
• Reversible and Detachable Car Seat: Includes a baby car seat with a capacity of 0 to 13 kg, designed for installation in both forward and rear-facing directions, facilitating its use in the car and on the stroller frame.
• Convertible Bassinet: The stroller seat can be converted into a practical bassinet for newborns.
• Maximum Safety and Comfort: Equipped with a 5-point safety harness, a centralized brake system, and an adjustable ergonomic handlebar.
• 3-Panel Removable Canopy: Provides protection for your baby from the elements.

3. Ntọala na Mgbakọ

Follow these steps for initial setup and assembly of your Bebesit Neo Travel System.

3.1 Unboxing na nlele mbụ

Carefully remove all components from the packaging. Inspect all parts for any damage or missing items. Refer to the packing list to ensure all components are present.

3.2 Stroller Frame Assembly

1. Na-ekpughe stroller: Place the folded stroller on a flat surface. Release the folding latch (if present) and lift the handlebar until the frame locks into place with an audible click.
2. Ụkwụ na-agbakwunye: Insert the rear wheels into their designated slots on the frame until they click securely. Attach the front wheels in the same manner. Ensure all wheels are firmly attached by pulling on them.
3. Attaching the Storage Basket: Secure the lower storage basket to the designated attachment points on the stroller frame.

3.3 Car Seat Installation on Stroller

The car seat can be easily attached to the stroller frame for a complete travel system.

1. Ensure the stroller seat is removed or converted to bassinet mode if applicable.
2. Align the car seat connectors with the corresponding slots on the stroller frame.
3. Press down firmly until the car seat clicks securely into place. Verify the car seat is locked by gently pulling upwards.

Image 1: Bebesit Neo Travel System Stroller with the car seat securely attached to the frame.

Image 2: The 3-in-1 functionality of the Bebesit Neo Travel System, illustrating the stroller, car seat on stroller, and bassinet configurations.

4. Ntuziaka ọrụ

4.1 Adjusting the Stroller Seat and Bassinet Conversion

The stroller seat offers multiple recline positions for your child's comfort and can be converted into a bassinet for newborns.

1. Ndozigharị nọdụ ala: Locate the recline mechanism (usually a lever or strap at the back of the seat). Adjust to the desired position, ensuring it locks securely.
2. Bassinet Conversion: To convert the seat to a bassinet, fully recline the seat and adjust the footrest to create a flat sleeping surface. Ensure all side supports are properly extended and secured.

Image 3: The stroller seat shown in its bassinet configuration, adaptable for newborns.

4.2 Using the Car Seat

The included car seat is designed for infants from 0 to 13 kg and can be used in the car or on the stroller frame.

1. Ntinye ụgbọala: Follow the specific instructions provided with the car seat for proper installation in your vehicle, ensuring it is secured with the vehicle's seat belt system. The car seat can be installed in both rear-facing and forward-facing positions.
2. Detaching from Stroller: To remove the car seat from the stroller, locate the release buttons on either side of the car seat or stroller adapters, press them, and lift the car seat.

Image 4: Close-up of the car seat, highlighting its reversible and detachable design, suitable for infants from 0 to 13 kg.

4.3 Eriri nchekwa

The 5-point safety harness ensures your child is securely fastened in the stroller or car seat.

1. Debe nwa gị n'oche ahụ.
2. Bring the shoulder straps over your child's shoulders and the waist straps around their hips.
3. Connect the two buckle clips into the central buckle until they click.
4. Adjust the straps to ensure a snug fit, leaving enough room for one finger between the strap and your child.
5. To release, press the red button on the central buckle.

Foto 5: Zuru ezu view of the 5-point safety harness, ensuring maximum security for your child.

4.4 Centralized Brake System

The centralized brake system on the rear wheels provides secure stopping power.

1. To engage the brake, press down firmly on the brake pedal located between the rear wheels.
2. To release the brake, lift the pedal upwards.
3. Always ensure the brake is engaged when parking the stroller.

Image 6: Illustration of the centralized brake system on the rear wheels for easy and secure stopping.

4.5 Mpịakọta Stroller

The stroller features a compact folding mechanism for easy storage and transport.

1. Ensure the stroller seat is in the upright position or removed.
2. Locate the folding triggers or buttons on the handlebar or frame.
3. Simultaneously activate the triggers and push the handlebar forward or downward until the stroller folds compactly.
4. Jide ihe mkpuchi mpịachi ahụ ka o wee nwee ike idobe ihe mkpuchi ahụ n'ọnọdụ ya a kpọchiri akpọchi.

Image 7: The Bebesit Neo Travel System in its compact folded state, ideal for storage and transport.

5. Nlekọta

Regular maintenance will prolong the life of your Bebesit Neo Travel System.

• Akụkụ ákwà nhicha: Use a mild soap and warm water solution to spot clean fabric components. Allow to air dry completely. Do not use bleach or harsh detergents.
• Cleaning Frame and Wheels: Jiri mgbasa ozi hichapụ etiti ahụamp cloth. Clean wheels regularly to remove dirt and debris. Lubricate moving parts (e.g., wheel axles) periodically with a silicone-based lubricant.
• Nchekwa: Store the stroller in a dry, cool place away from direct sunlight to prevent fading and material degradation.
• Nyocha: Periodically check all fasteners, buckles, and straps to ensure they are secure and in good working order. Replace any worn or damaged parts immediately.

6. Nchọpụta nsogbu

If you encounter any issues with your Bebesit Neo Travel System, refer to the following common solutions:

• Stroller anaghị apịaji/na-atụgharị nke ọma: Ensure all locks and latches are disengaged. Check for any obstructions in the folding mechanism.
• Ụkwụ anaghị atụgharị n'efu: Inspect wheels for debris (hair, dirt) and remove any obstructions. Lubricate axles if necessary.
• Harness not buckling: Ensure the buckle clips are correctly aligned before inserting them into the central buckle. Check for any foreign objects preventing proper engagement.
• Car seat not attaching securely: Verify that the car seat connectors are correctly aligned with the stroller frame slots and push down firmly until an audible click is heard. Ensure no fabric or other items are obstructing the connection.

For issues not covered here, please contact Bebesit customer support.

7. Nkọwapụta

Image 8: Unfolded dimensions of the Bebesit Neo Travel System Stroller.

8. Akwụkwọ ikike na nkwado

Bebesit products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Bebesit websaịtị. Debe ihe akaebe nke ịzụrụ ihe maka akwụkwọ ikike ọ bụla.

For customer support, technical assistance, or to order replacement parts, please contact Bebesit customer service through their official channels. Contact information can typically be found on the product packaging or the brand's websaịtị.
