1. Okwu mmalite
Thank you for choosing the OKELI 4 Pack Hallway Light Flush Mount LED Ceiling Light Fixtures. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixtures. Please read these instructions thoroughly before installation and retain them for future reference.
Image 1.1: OKELI 4 Pack Hallway Light Flush Mount LED Ceiling Light Fixtures in a modern setting.
2. Ozi nchekwa
Iji hụ na nrụnye na ọrụ dị mma, biko debe ihe ndị a:
- Nchekwa Eletriki: Always turn off the power at the circuit breaker or fuse box before beginning installation or performing any maintenance.
- Eletrik tozuru oke: Ọ bụrụ na obi adịghị gị mma maka waya eletriki, gakwuru ọkachamara ọkụ eletrik ruru eru.
- Eji ime ụlọ naanị: These fixtures are designed for indoor use only. Do not expose to moisture or outdoor elements.
- Nkwalite nke ọma: Gbaa mbọ hụ na elu elu nwere ike ịkwado ịdị arọ nke ihe nrụnye.
- Wiring: Connect wiring according to local electrical codes. Ensure all connections are secure.
- Njirimara nwere ike imebi: Use only compatible dimmer switches for the dimmable function. Refer to the specifications for details.
3. Ihe ngwugwu
Gbaa mbọ hụ na ihe niile dị tupu echichi ya:
- 4 x OKELI LED Ceiling Light Fixtures
- Akụrụngwa arịọnụ (skru, akụ waya, wdg)
- Akwụkwọ ntuziaka
4. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Ụdị | OKELI |
| Nọmba nlereanya | c2fde2c4-436a-4c18-890c-3b93a3c390eb |
| Ihe onwunwe | Aluminom |
| Agba | Nwa |
| Ụdị isi iyi ọkụ | Ikanam |
| Wattage | 20 Watts per fixture |
| Icha ọkụ | 2100 Lumens per fixture |
| Okpomọkụ agba | 4000K (Natural Light) |
| Enwere ike ibelata | Yes (10%-100% with compatible dimmer) |
| Angle Beam | 100° |
| CRI | 80+ |
| Ogologo ndụ | Ruo awa iri abụọ |
| Akụkụ | 4.6" W x 4.3" H (Cylindrical) |
| Ụdị nwụnye | Oke ugwu |
| Isi Iyi Ike | Hardwired |
Image 4.1: Technical details and dimensions of the light fixture.
5. Ntọala na nwụnye
Soro usoro ndị a maka nrụnye nchekwa na nke ọma:
- Kwadebe maka nwụnye:
- Gbanyụọ ike na ihe mgbawa sekit tupu ịmalite.
- Gather necessary tools (screwdriver, wire strippers, electrical tape, etc.).
- Nwụnye bracket:
- Jiri skru ndị enyere tinye ihe nkwado ahụ n'ime igbe njikọ dị n'uko ụlọ. Hụ na e ji skru ndị a sie ike.
- Njikọ waya:
- Connect the fixture's wires to the corresponding house wires: black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground).
- Secure connections with wire nuts and electrical tape.
- Tinye ihe eji etinye ihe:
- Carefully push the wired fixture up to the mounting bracket, aligning the screw holes.
- Secure the fixture to the mounting bracket with the provided screws.
- Weghachi ike:
- Ozugbo etinyere ihe nrụnye ahụ nke ọma, gbanye ọkụ azụ na igwe mgbawa sekit.
- Nwalee ihe ọkụ ahụ iji hụ na ọ na-arụ ọrụ nke ọma.
Foto 5.1: Ọpụample installation of the ceiling lights in a hallway.
6. Ntuziaka ọrụ
These LED ceiling lights are designed for simple operation and offer dimmable functionality.
- Agbanye/ Gbanyụọ: Use your standard wall switch to turn the lights on or off.
- Ọrụ mmechi: If a compatible dimmer switch is installed, you can adjust the brightness from 10% to 100%. Ensure your dimmer switch is designed for LED lighting.

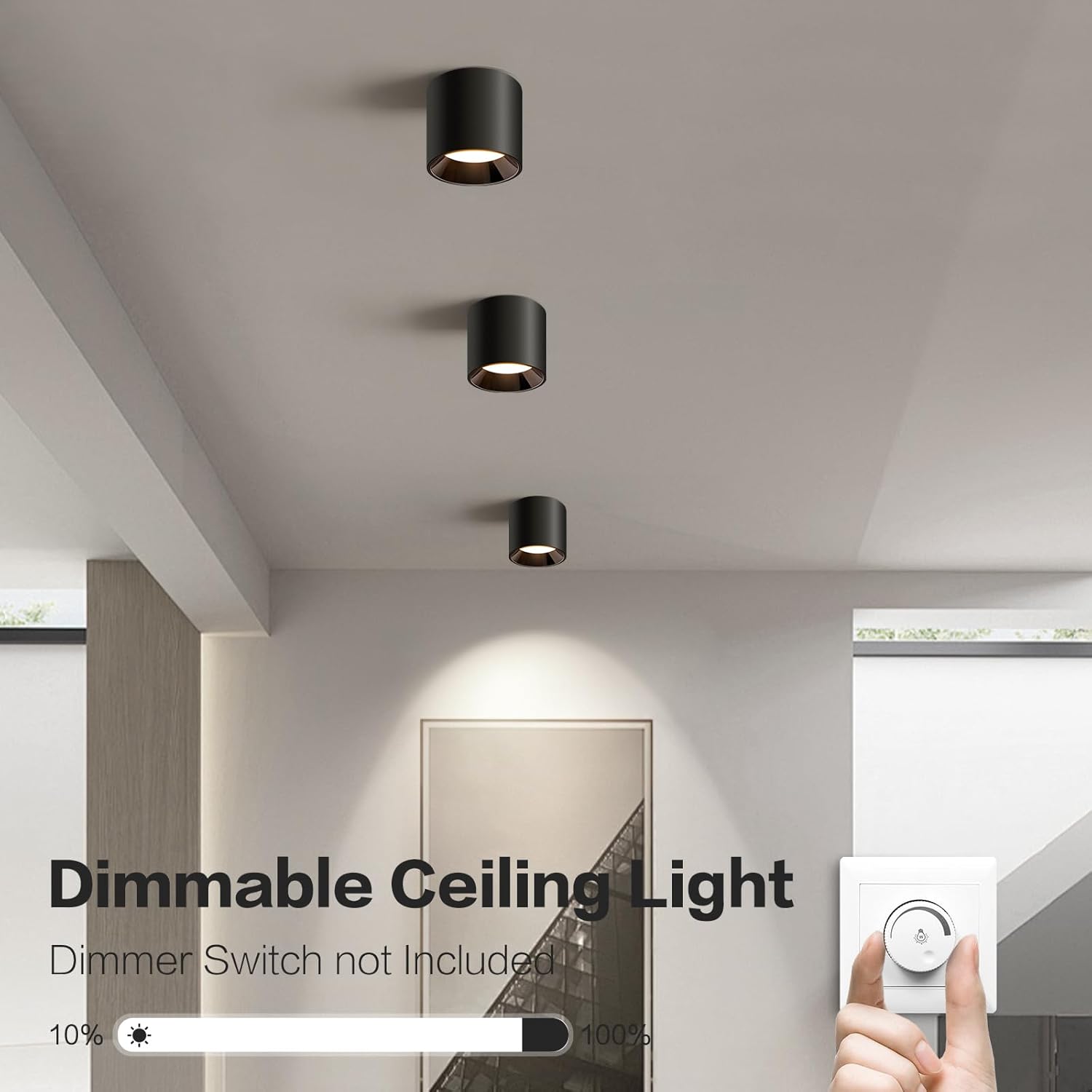

Image 6.1: Demonstrating the dimmable functionality with a dimmer switch (not included).
Dimmers dakọtara
For optimal dimming performance, use one of the following compatible dimmer switches:

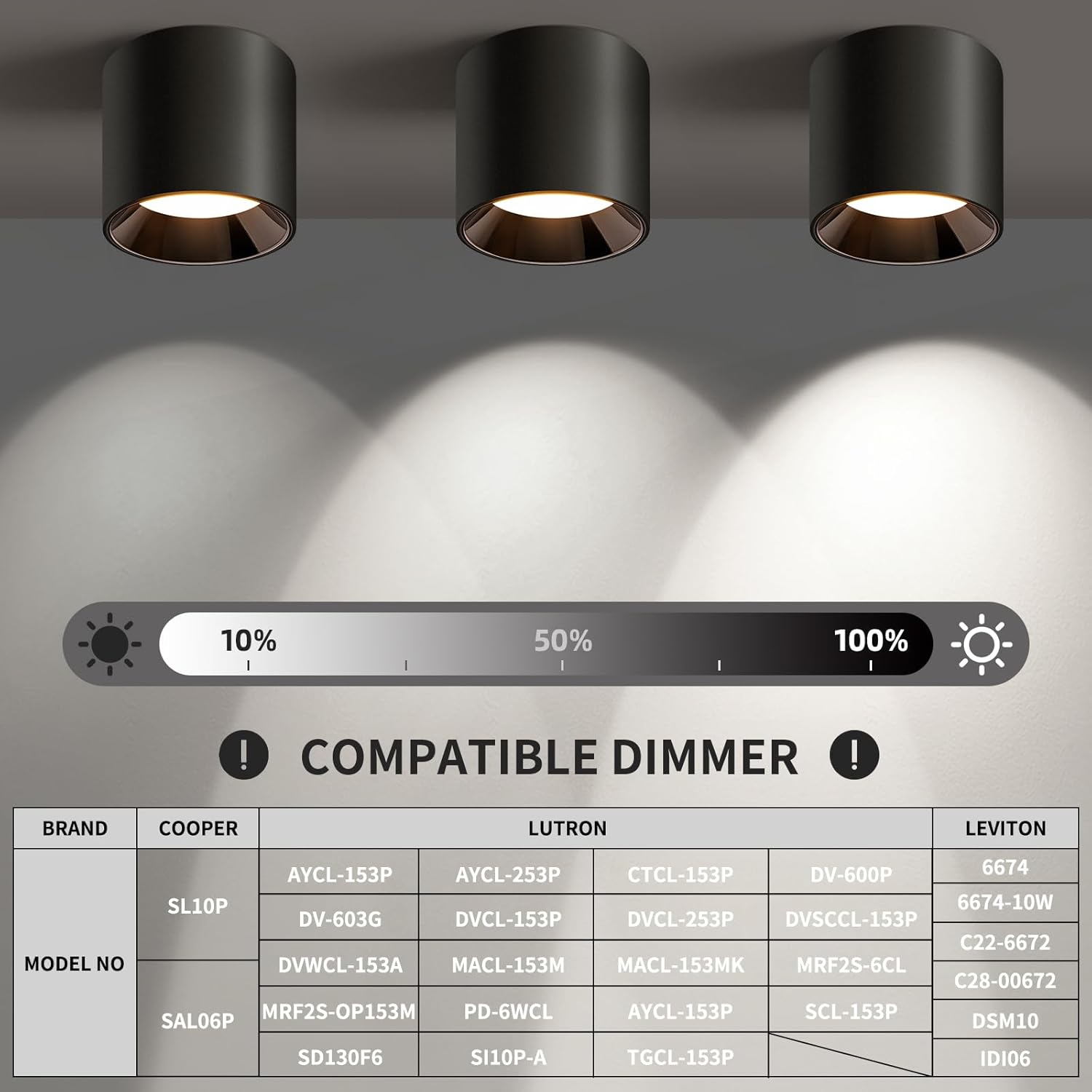

Image 6.2: Recommended compatible dimmer switches.
7. Nlekọta
These LED fixtures require minimal maintenance.
- Nhicha: Ensure power is off before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Enweghị nnọchi bọlbụ: The integrated LED chips have a long lifespan and do not require bulb replacement.
8. Nchọpụta nsogbu
Ọ bụrụ na ị na-enwe nsogbu, rụtụ aka na nsogbu ndị a na-ahụkarị na ngwọta ndị a:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Ìhè anaghị agbanwuo | No power, loose wiring, faulty switch. | Check circuit breaker. Verify all wire connections are secure. Test the wall switch. |
| Ìhè flickers | Incompatible dimmer, loose wiring, power fluctuations. | Ensure a compatible LED dimmer is used. Check wiring connections. Consult an electrician if power fluctuations are suspected. |
| Dimming not working correctly | Incompatible dimmer, dimmer not properly installed. | Verify the dimmer is compatible with LED fixtures (refer to Section 6). Ensure the dimmer is correctly wired. |
Image 8.1: Visual representation of flicker-free lighting.
9. Akwụkwọ ikike na nkwado
OKELI products are manufactured with quality and reliability in mind. For warranty information or technical support, please contact OKELI customer service through the retailer where the product was purchased or visit the official OKELI website. Please have your model number (c2fde2c4-436a-4c18-890c-3b93a3c390eb) and purchase details ready.
