1. Okwu mmalite
The LAUNCH CRP123I V3.0 Elite OBD2 Scanner is a professional diagnostic tool designed for comprehensive vehicle system analysis. This upgraded version features enhanced hardware and software, offering extensive diagnostic capabilities and special reset functions for various vehicle makes and models. It provides accurate and real-time data to assist in identifying and resolving vehicle issues efficiently.
Foto nke 1: Launch CRP123I V3.0 Elite OBD2 Scanner
2. Kedu ihe dị na Igbe ahụ
The LAUNCH CRP123I V3.0 Elite package includes the following items:
- LAUNCH CRP123I V3.0 Elite Main Unit
- OBDII Diagnostic Cable
- -Dị-C Nchaji USB
- Akwụkwọ ntuziaka onye ọrụ
- Ntuziaka mmalite ngwa ngwa
- Buru akpa
Ọgụgụ 2: Ihe ngwugwu
Video 1: Unboxing the CRP129I V2.0 (similar model, contents may vary slightly)
3. Nhazi
To begin using your LAUNCH CRP123I V3.0 Elite scanner, follow these steps:
- Ike Na: The device is battery-powered. Press the power button to turn it on.
- Jikọọ na ụgbọala: Locate your vehicle's OBDII port, typically under the dashboard on the driver's side. Connect the OBDII diagnostic cable from the scanner to the vehicle's OBDII port.
- Mgbanye ụgbọ ala: Turn your vehicle's ignition to the 'ON' position (engine off) or start the engine if required for specific tests.
- Ntọala izizi: The scanner will automatically detect the vehicle's VIN or prompt you to select the vehicle make/model. Follow the on-screen instructions to confirm vehicle information.
- Njikọ Wi-Fi: For software updates and online features, connect the device to a stable Wi-Fi network via the 'Settings' menu.
Video 2: Introduction to Launch 123I V2.0 (similar model, setup process is comparable)
4. Ntuziaka ọrụ
4.1 Automatic VIN Detection
The scanner features automatic VIN technology to quickly identify the vehicle without manual input. Once connected to the vehicle, select 'AutoDetect' from the main menu. The device will read the VIN and display vehicle information for confirmation.
Figure 3: Auto VIN & Scan
Video 3: AutoVIN Technology in CRP123 V2.0 PLUS (similar model)
4.2 Nchọpụta Sistemụ Ọtụtụ
The CRP123I V3.0 supports diagnostics for four major systems: Engine, Transmission, ABS (Anti-lock Braking System), and SRS (Supplemental Restraint System). This allows for a quick and deep scan to precisely read and retrieve Diagnostic Trouble Codes (DTCs) and display live data.
Figure 4: Multi-System Diagnostics
Video 4: Launch CRP129X Diagnostic Video (similar model, demonstrates diagnostic process)
4.3 Ọrụ OBDII zuru ezu
The scanner supports all 10 OBDII functions, enabling comprehensive troubleshooting for engine-related malfunctions. These functions include reading codes, clearing codes, viewing freeze frame data, O2 sensor tests, I/M readiness status, and more.
Figure 5: Full OBD2 Mode Functions
4.4 Ọrụ Ntọgharị Pụrụ Iche
The CRP123I V3.0 includes 7 newly added reset functions to maintain your vehicle system safely and efficiently:
- Mgbanwe trotul: Resets the throttle actuator to learn new values.
- Ntọghari mmanụ: Na-emegharị usoro ndụ mmanụ mmanụ mgbe mgbanwe mmanụ gasịrị.
- Tọgharịa SAS: Na-atọgharịa ihe mmetụta akụkụ steering.
- ABS ọbara: Performs ABS brake bleeding to restore ABS brake sensitivity.
- Ntọghari BMS: Na-edeba batrị ọhụrụ ahụ ma dochie ya.
- Tọgharia EPB: Resets the electronic parking brake after replacement.
- Mmeghari DPF: Clears particulate matter from the DPF filter.
Figure 6: 7 Special Reset Functions
Video 5: Reset E46 BMW ABS Warning Symbols by Launch CRP123 (demonstrates ABS reset)

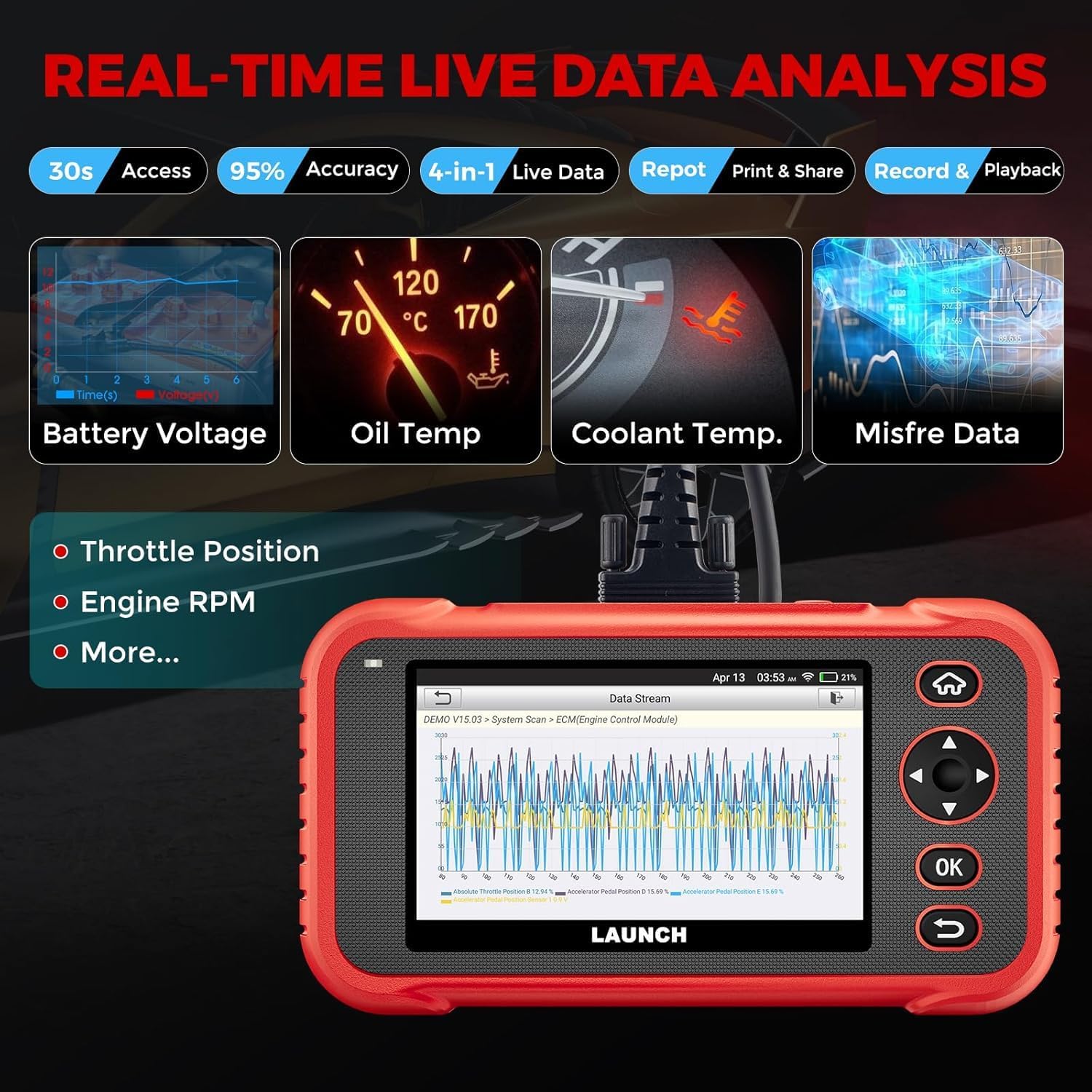

4.5 Nyocha nke Stream Data Live
View real-time live data in text or 4-in-1 merged waveform graphs. This feature allows for detailed analysis of various sensor readings, helping to pinpoint intermittent issues. Data can be saved, shared, printed, or emailed for further review.
Figure 7: Real-Time Live Data Analysis
4.6 Batrị Voltage Nnwale
Monitor the real-time battery voltage to check the health and performance of your vehicle's battery system. This provides an intuitive way to assess battery status.
Nwelite ngwanrọ
The device supports one-touch lifetime free updates via 2.4GHz & 5GHz dual WiFi. This ensures your scanner always has the latest bug fixes, new vehicle coverage, newly added parameters, and functionality. No registration is required, making updates fast and easy.
Figure 8: Lifetime Free Update via WiFi
5. Nchọpụta nsogbu
The CRP123I V3.0 includes several features to assist with troubleshooting:
- Ọbá akwụkwọ nyocha DTC: A built-in library provides definitions for Diagnostic Trouble Codes.
- DTC Google Search: Allows online searching for code definitions, repair videos, and analysis.
- Feedback Module: Provides customized repair suggestions from professionals.
- Repair Case & How-to Videos: Access to a database of repair cases and instructional videos.
Figure 9: Car Repair Game Changer - Troubleshooting Tools
6. Nkọwapụta
| Njirimara | Nkọwapụta |
|---|---|
| Sistemụ nrụọrụ | Android 8.1 |
| Nha ihuenyo | 5 Inches (720P Touchscreen) |
| Ebe nchekwa | 2GB Ram + 32GB ROM |
| Batrị | 6100mAh Lithium Ion (enwere ike ịchaji, gụnyere) |
| Isi Iyi Ike | Akwanyere batrị |
| Njikọta | 2.4 & 5GHz Dual WiFi, OBDII Cable, Type-C Charging Port |
| Protocol akwadoro | CANFD & DOIP |
| Mkpuchi ụgbọ ala | 99% of vehicles from 1996 to 2026 (12V Diesel/Gasoline, Passenger Cars, Pickups, Light-Duty Trucks, SUVs, Minivans) |
| Ọrụ Pụrụ Iche | 7 Reset Functions (Throttle, Oil, SAS, ABS Bleeding, BMS, EPB, DPF) |
| Modul ndọtị | Supports BST360 Battery Tester & i-TPMS Tire Pressure Detector Tool |
| Asụsụ | Asụsụ iri na otu a na-akwado |
| Ibu Ibu | 1.09 n'arọ |
| Nọmba nke onye nrụpụta | LAUNCH CRP123I V3.0 ELITE NEW |
| UPC | 884508000546 |
7. Akwụkwọ ikike na nkwado
The LAUNCH CRP123I V3.0 Elite comes with a 5-year warranty. Additionally, a 60-day no-reason-asked return policy for refunds is provided. Technical support is available 24/7/365. For any compatibility issues or technical assistance, please contact the manufacturer's support team.
