Fafrees F20 ULTRA Electric Fatbike User Manual

1. Ozi nchekwa dị mkpa

Before operating your Fafrees F20 ULTRA Electric Fatbike, please read this manual thoroughly. Failure to follow these instructions can result in serious injury or damage to the product. Always prioritize your safety and the safety of others.

• Iwu mpaghara: Electric bicycle regulations vary by region. It is the user's responsibility to understand and comply with all local laws regarding electric bicycle use, including speed limits, licensing, registration, and helmet requirements. In some regions, this type of electric bicycle may be classified differently (e.g., as a moped or motorcycle) and require specific permits or licenses.
• Eji okpu agha: Na-eyi okpu agha ịnyịnya ígwè akwadoro mgbe ọ bụla mgbe ị na-agba ịnyịnya.
• Lelee tupu ịnya igwe: Before each ride, inspect the brakes, tires, battery, and all fasteners to ensure they are in proper working order.
• Ọnọdụ ihu igwe: Exercise caution when riding in wet or slippery conditions. Reduce speed and allow for longer braking distances.
• Oke ibu: Agafela ikike ibu kacha nke 130kg (286 lbs).
• Nkwanye afọ: This electric fatbike is recommended for adults.

2. Ihe ngwugwu

Your Fafrees F20 ULTRA Electric Fatbike package includes the following items:

• 1 FAFREES Electric Bicycle
• 1 chaja
• 1 Akwụkwọ ntuziaka onye ọrụ
• Ngwa Ngwa

Image: All components included in the Fafrees F20 ULTRA package, such as the bicycle, charger, user manual, and tool kit.

3. Mgbakọ na Ntọala

The Fafrees F20 ULTRA Electric Fatbike arrives 90% pre-assembled. Follow these steps to complete the assembly and prepare for your first ride.

1. Iwepu: Carefully remove the bicycle and all components from the packaging. Retain packaging for future transport or storage.
2. Nwụnye ogwe aka: Tinye aka n'osisi ahụ, hụ na ha gbadoro ụkwụ ma gbasie ike.
3. Nwụnye pedal: Identify the left (L) and right (R) pedals. Thread the pedals into the crank arms by hand, then tighten firmly with a wrench from the tool kit. Note that the left pedal has a reverse thread.
4. Ndozi oche: Adjust the seat post height to a comfortable riding position, ensuring your feet can touch the ground when stopped. Secure the quick-release lever or bolt.
5. Ọnụ ego taya Inflate the 20x5.0 inch fat tires to the recommended pressure, typically found on the tire sidewall.
6. Battery Installation and Initial Charge: Insert the battery securely into its compartment. Connect the charger to the battery and a power outlet. Charge the battery fully before your first ride (approximately 8 hours for a full charge).
7. Nyocha ikpeazụ: Double-check all bolts, quick releases, and connections to ensure they are tight and secure. Test the brakes before riding.

4. Ngwaahịa gafereview

The Fafrees F20 ULTRA is an electric fatbike designed for versatile riding. It features a robust aluminum frame, powerful motor, long-range battery, and dual suspension for a comfortable experience across various terrains.

Image: A rider on the Fafrees F20 ULTRA Electric Fatbike, showcasing its overall design and robust fat tires.

5. Ntuziaka ọrụ

5.1 Ọrụ batrị na Nchaji

The F20 ULTRA is equipped with a 48V 25Ah battery featuring advanced 21700 cells. This battery provides an impressive range of 80-140 km on a single charge, depending on riding conditions and assist level. The 3A fast charging function allows for a full charge in approximately 8 hours.

• Ịchaji: Always use the provided charger. Connect the charger to the battery charging port, then plug it into a standard wall outlet. The indicator light on the charger will show the charging status.
• Nlekọta batrị: Avoid completely draining the battery. Store the battery in a cool, dry place when not in use. Charge the battery at least once every two months if stored for extended periods.

Foto: nso nso view of the integrated 48V 25Ah battery, highlighting its placement within the frame.

5.2 Motor and Power Assist

The powerful hub motor delivers 79 N·m of torque, providing robust assistance for climbing hills and accelerating. The continuous power output ensures efficient performance and contributes to the motor's longevity.

Image: A detailed illustration of the powerful hub motor integrated into the rear wheel of the F20 ULTRA.

5.3 LCD Ngosipụta na njikwa

The high-resolution LCD display provides essential riding information at a glance. It offers various functions, including speed measurement, battery level, assist level, and trip distance. Use the handlebar-mounted controls to navigate through the display options and adjust the power assist level.

• Gbanyụọ/ Gbanyụọ: Pịa ma jide bọtịnụ ike ka ịgbanwuo ma ọ bụ gbanyụọ sistemụ.
• Ọkwa enyemaka: Use the '+' and '-' buttons to cycle through the 5 levels of pedal assist.
• Ngosipụta ozi: Short press the 'M' button to switch between different data displays (e.g., Odometer, Trip Distance, Max Speed, Average Speed).
• Ụdị ije: Some models may feature a walk assist mode, typically activated by holding the '-' button.

Image: The high-resolution LCD display on the F20 ULTRA handlebars, showing real-time data such as speed, battery charge, and assist level.

5.4 Gears and Pedaling

The F20 ULTRA features a 7-speed gear system, allowing you to adapt to different terrains and riding preferences. Shift gears smoothly using the shifter located on the handlebars.

• Na-agbanwe: Shift to a lower gear for easier pedaling on inclines and a higher gear for faster speeds on flat terrain.
• Sistemụ Enyemaka Pedal (PAS): The motor provides assistance based on your pedaling input and the selected assist level.

5.5 Sistemụ breeki

The dual mechanical disc brake system provides reliable and responsive stopping power. The thick 180 mm x 2.3T discs ensure excellent braking performance in various conditions.

• Ọkpụkpụ breeki: The left lever typically controls the front brake, and the right lever controls the rear brake. Familiarize yourself with their operation.
• Usoro brek: Apply both brakes simultaneously for optimal stopping power and control. Avoid sudden, hard braking, especially on loose surfaces.

Image: A close-up of the mechanical disc brake system, showing the caliper and the 180mm rotor for effective stopping power.

5.6 Ndozi Nkwụsịtụ

The F20 ULTRA features a dual suspension system with both hydraulic front suspension (100mm travel) and a rear shock absorber (100mm travel). This system works in harmony to absorb shocks and provide a comfortable, controlled ride.

• Nkwusioru n'ihu: The front suspension fork may have a lockout feature, allowing you to stiffen the fork for efficient pedaling on smooth surfaces or unlock it for absorbing bumps on rough terrain.
• Nkwụsị azụ: The rear shock absorber helps smooth out the ride. Adjustments may be possible to fine-tune the damping to your preference.

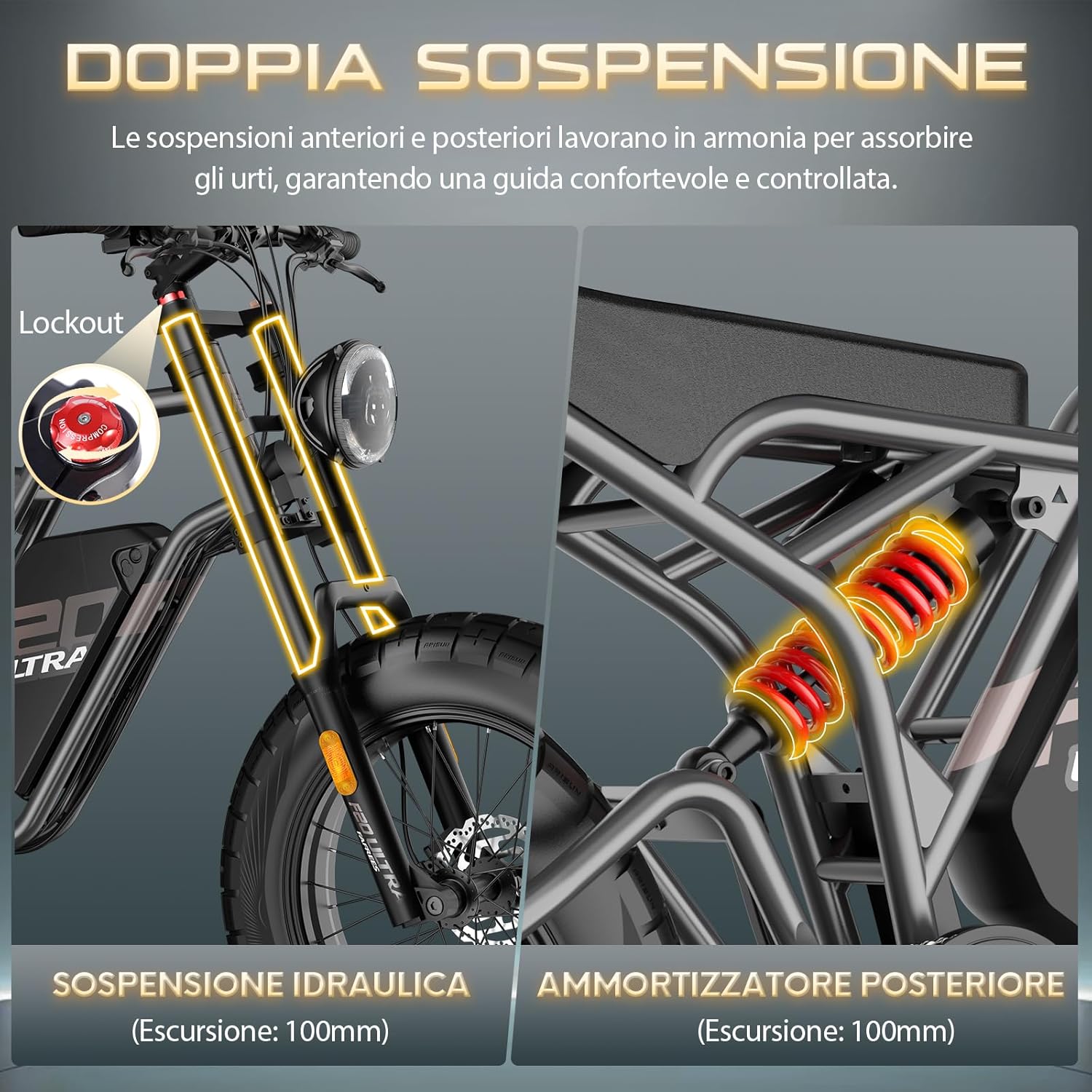

Image: Illustration of the F20 ULTRA's dual suspension system, highlighting both the hydraulic front fork and the rear shock absorber for enhanced comfort.

5.7 Fat Tires

The 20x5.0 inch fat tires are designed for exceptional performance across all seasons and various terrains. Their extra-wide design allows for effortless overcoming of obstacles and superior shock absorption, providing stability and grip.

• Nrụgide taya: Maintain appropriate tire pressure for optimal performance and comfort. Lower pressures offer more grip and cushioning on soft surfaces, while higher pressures reduce rolling resistance on hard surfaces.
• Nguzogide Puncture: The durable rubber compound and tread design contribute to puncture resistance.

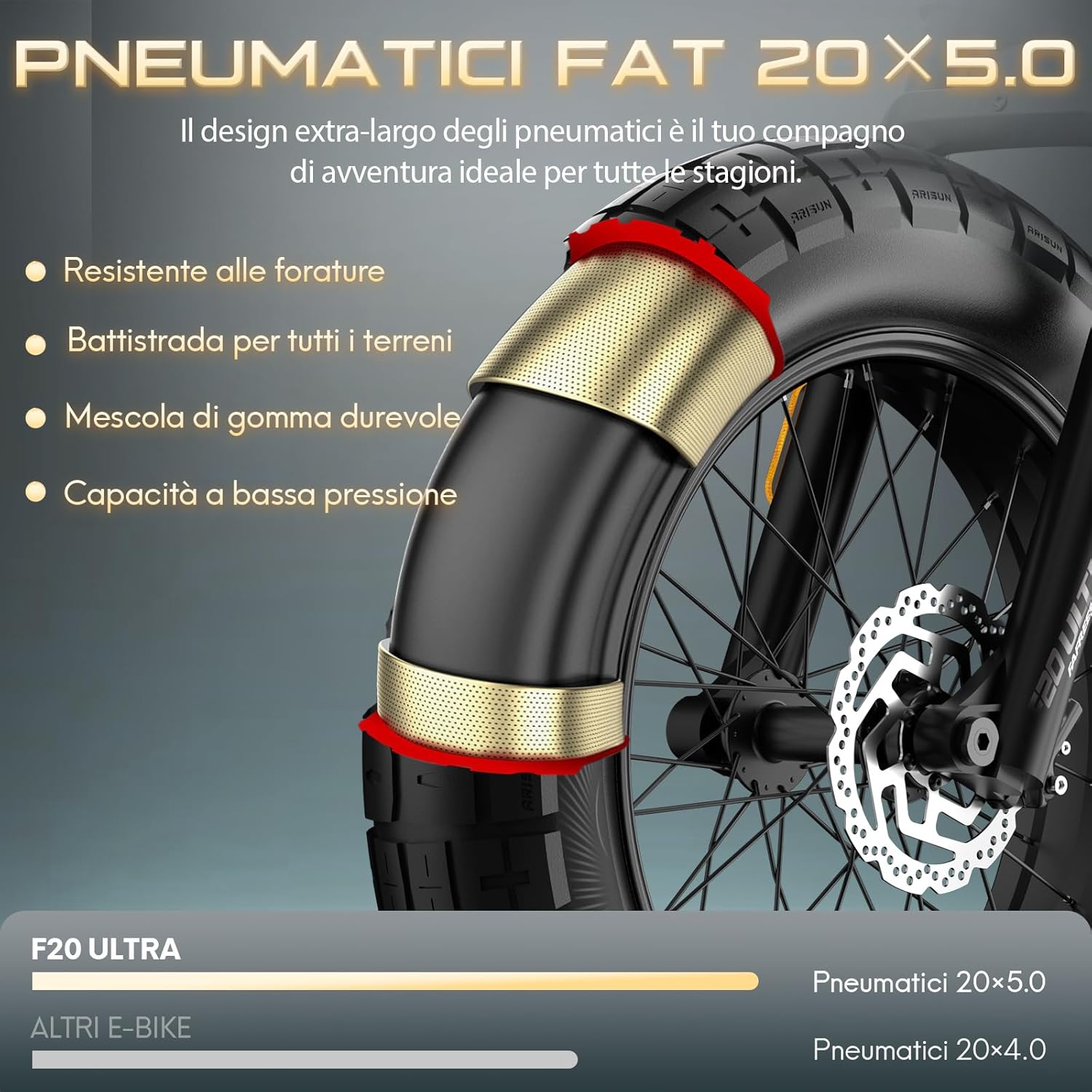

Image: A close-up of the 20x5.0 inch fat tire, illustrating its robust construction, all-terrain tread, and puncture-resistant features.

6. Nlekọta

Regular maintenance ensures the longevity and safe operation of your Fafrees F20 ULTRA Electric Fatbike.

• Nhicha: Jiri mgbasa ozi na-ehicha igwe kwụ otu ebe mgbe niileamp akwa . Zere iji igwe nrụgide nrụgide ozugbo na akụrụngwa eletrik.
• Brake Checks: Periodically check brake pads for wear and brake cables for tension. Adjust or replace as needed.
• Nrụgide taya: Check tire pressure before each ride and inflate to the recommended PSI.
• Mmanu yinye: Debe agbụ ígwè ahụ ọcha ma tinye mmanụ n'ime ya iji hụ na ọ na-agbanwe nwayọ nwayọ ma gbochie iyi.
• Nyochaa ngwa ngwa: Regularly inspect and tighten all bolts and fasteners, especially on critical components like the handlebars, seat post, and wheels.
• Nlekọta batrị: Follow the battery care guidelines in Section 5.1.

7. Nchọpụta nsogbu

This section addresses common issues you might encounter with your Fafrees F20 ULTRA Electric Fatbike.

If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, please contact customer support.

8. Nkọwapụta

Detailed technical specifications for the Fafrees F20 ULTRA Electric Fatbike.

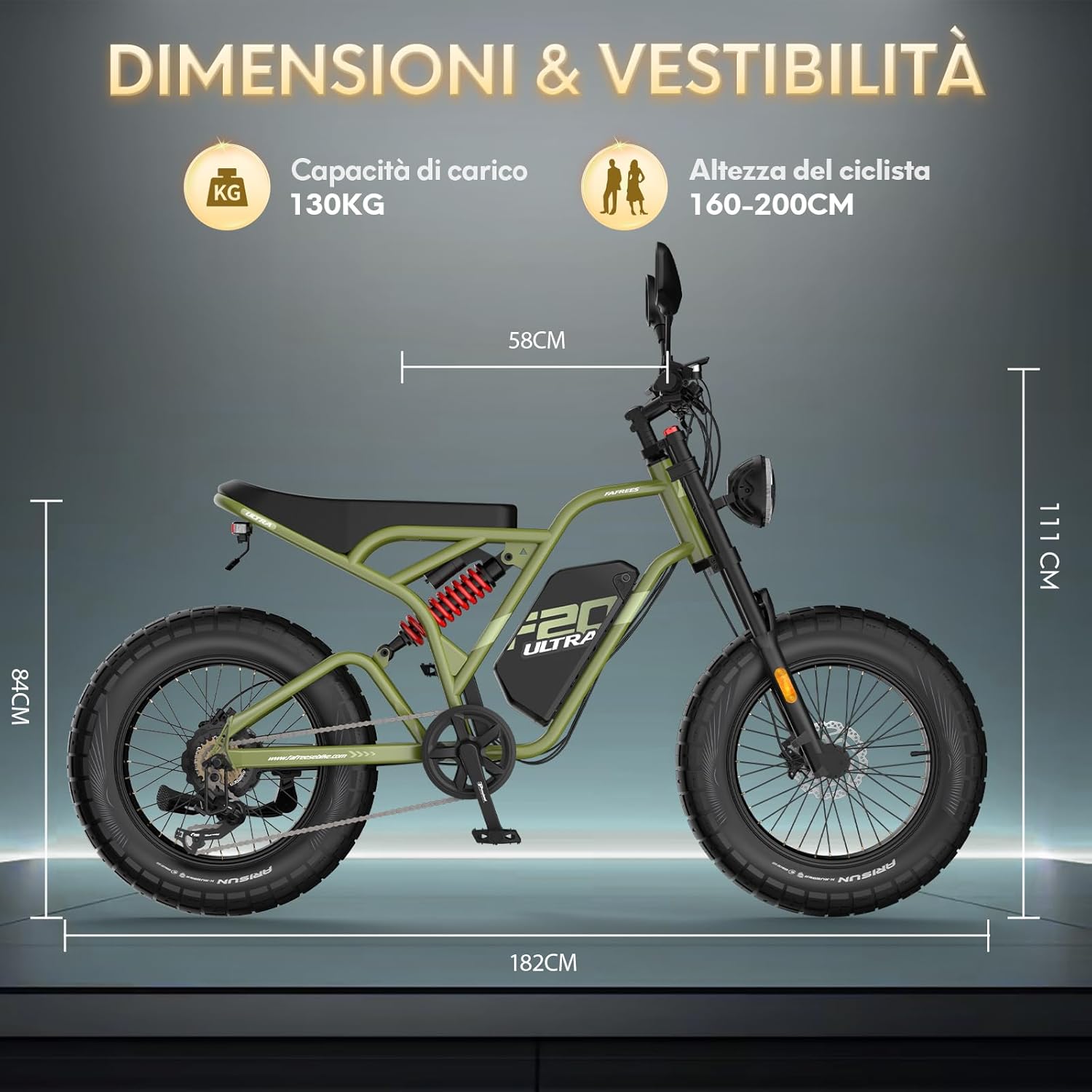

Image: Diagram illustrating the dimensions of the Fafrees F20 ULTRA and recommended rider height range.

9. Akwụkwọ ikike na nkwado

Fafrees is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, please refer to your purchase documentation or the official Fafrees websaịtị maka ozi akwụkwọ ikike zuru oke.

If you have any questions, concerns, or require technical assistance with your Fafrees F20 ULTRA Electric Fatbike, please do not hesitate to contact our customer service team. Contact information can typically be found on the seller's page or the official Fafrees websaịtị.
