1. Okwu mmalite
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Arwibon Q06Pro Electric Scooter. Please read this manual thoroughly before operating the scooter to ensure proper use and to prevent damage or injury.
The Arwibon Q06Pro is a high-performance electric scooter designed for adult use, featuring a powerful 5600W dual motor system, long-range battery, and robust off-road capabilities.
2. Ozi nchekwa
ỊDỌ AKA NA NTỊ: Ịghara ịgbaso ntuziaka nchekwa ndị a nwere ike ịkpata mmerụ ahụ dị egwu ma ọ bụ ọnwụ.
- Always wear a helmet and appropriate safety gear (knee pads, elbow pads, gloves) when riding.
- Anọla n'ụgbọala n'ebe mmiri dị, oke mmiri ozuzo, ma ọ bụ n'ime ọdọ mmiri.
- Agafela oke oke ịdị arọ nke 550 lbs (kg 250).
- Hụ na e ji ihe niile e ji kpụọ blọt na mwepụta ngwa ngwa sie ike nke ọma tupu ị gaa njem ọ bụla.
- Mara iwu na ụkpụrụ obodo gbasara ojiji skuta eletrik.
- Avoid riding on steep slopes exceeding 35 degrees.
- Do not perform stunts or aggressive maneuvers.
- Keep fingers and hair away from moving parts.
- Charge the battery only with the provided chargers in a well-ventilated area.
3. Ihe ngwugwu
Chọpụta na ihe niile dị na ngwugwu:
- Arwibon Q06Pro Electric Scooter
- 2 x chaja
- 2 x Pairs of Spare Brake Pads
- Akwụkwọ ntuziaka (akwụkwọ a)
4. Ntọala na Mgbakọ
The Arwibon Q06Pro is designed for quick and easy assembly. Follow these steps:
- Ikpughe skooter: Carefully lift the handlebar stem until it locks into the upright position. Ensure the folding mechanism is securely latched.
- Nwụnye ogwe aka: Attach the handlebars to the stem, ensuring they are aligned and tightened securely.
- Ebube mbụ: Before first use, fully charge the scooter's battery. Connect the chargers to the charging ports and then to a power outlet. The charging time is approximately 7 hours for a full charge.
Image 4.1: The Arwibon Q06Pro Electric Scooter in its fully assembled and unfolded state.
Image 4.2: The Arwibon Q06Pro Electric Scooter in its folded configuration, highlighting its compact design for storage and transport.
5. Ntuziaka ọrụ
5.1 Gbanyụọ/ gbanyụọ
To power on the scooter, press and hold the power button on the display. To power off, press and hold the power button again until the display turns off.
5.2 Ịnya skuuta
- Malite: Place one foot on the deck and push off with the other foot to gain initial momentum. Once moving, gently press the accelerator lever.
- Ọsọ ọsọ: The Q06Pro features a responsive accelerator. Gradually increase pressure for smooth acceleration. The 5600W dual motor allows for speeds up to 40 MPH.
- breeki: The scooter is equipped with dual oil brakes. Apply both brake levers simultaneously for effective and safe stopping.
- Igwe ọkụ ihu: The scooter has dual ultra-bright front LED headlights for improved visibility, especially at night. Activate them via the control panel.
Image 5.1: A rider demonstrating the Arwibon Q06Pro Electric Scooter's powerful performance and off-road capabilities.
Image 5.2: Close-up of the Arwibon Q06Pro's dual front headlights, illustrating their brightness for night riding safety.
6. Nlekọta
6.1 Nlekọta batrị
- Chaji batrị ahụ mgbe niile, ọbụlagodi na scooter anaghị eji ya, iji hụ na batrị ahụ dị mma.
- Zere ka batrị ahụ wụpụ kpamkpam tupu ị chajie ya ọzọ.
- Debe skuuta ahụ n'ebe dị jụụ ma kpọọ nkụ mgbe a naghị eji ya.
- Use only the original chargers provided.
Image 6.1: The Arwibon Q06Pro's deck with vibrant lighting, indicating the location of the dual charging ports for efficient power replenishment.
6.2 Nlekọta Taya
The 11-inch heavy-duty vacuum off-road tires require regular inspection.
- Check tire pressure regularly and inflate to the recommended PSI (refer to tire sidewall for details).
- Inspect tires for wear, cuts, or punctures before each ride.
Sistemụ Brekị 6.3
The dual oil brake system is crucial for safety.
- Regularly check brake pad wear. Replace pads when they are worn down (spare pads are included).
- Ensure brake levers provide firm and consistent braking action. If braking feels spongy, professional service may be required.
6.4 Nhicha izugbe
Jiri mgbasa ozi hichaa skuutaamp akwa . Ejila ụgbọ elu mmiri dị elu ma ọ bụ tinye skuuta n'ime mmiri.
7. Nchọpụta nsogbu
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Scoota anaghị agba ọkụ. | Low battery; Loose connections. | Charge the battery fully; Check all cable connections. |
| Obere ala ma ọ bụ ike. | Battery degradation; Under-inflated tires. | Ensure full charge; Check and inflate tires to correct pressure. |
| brek na-enwe mmetụta adịghị ike. | Worn brake pads; Air in hydraulic system. | Replace brake pads; Seek professional service for brake bleeding. |
| Mkpọtụ na-adịghị ahụkebe n'oge arụ ọrụ. | Loose components; Debris in wheels/motor. | Inspect all fasteners; Clean wheels and motor area. |
Ọ bụrụ na ị hụ nsogbu ndị a na-edeghị ebe a ma ọ bụ ọ bụrụ na ngwọta anaghị edozi nsogbu ahụ, biko kpọtụrụ ndị ọrụ nkwado ndị ahịa.
8. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Aha Nlereanya | Q06 Pro |
| Ike moto | 5600W (2 x 2800W) |
| Batrị | 60V/27AH batrị lithium |
| Ọsọ kacha | Ruo 40 MPH |
| Max iche | Ruo 40 kilomita kwa ụgwọ |
| Oge Nchaji | Ihe dị ka awa 7 |
| Taya | 11-inch Heavy Duty Vacuum Off-Road Tires |
| Sistemụ breeki | Dual Oil Brakes |
| Oke Ibu Ibu | 550 lbs (250 n'arọ) |
| Akụkụ ịrị elu | Ruo ogo 35 |
| Frame Ihe | Aluminom Alloy Steel |
| Akụkụ ngwaahịa (LxWxH) | 49.21" x 24.41" x 43.7" |
| Ibu Ibu | 100 pound |
| Atụmatụ pụrụ iche | Accessory pockets, Digital Display, Foldable, Water-resistant, Dual Suspension |

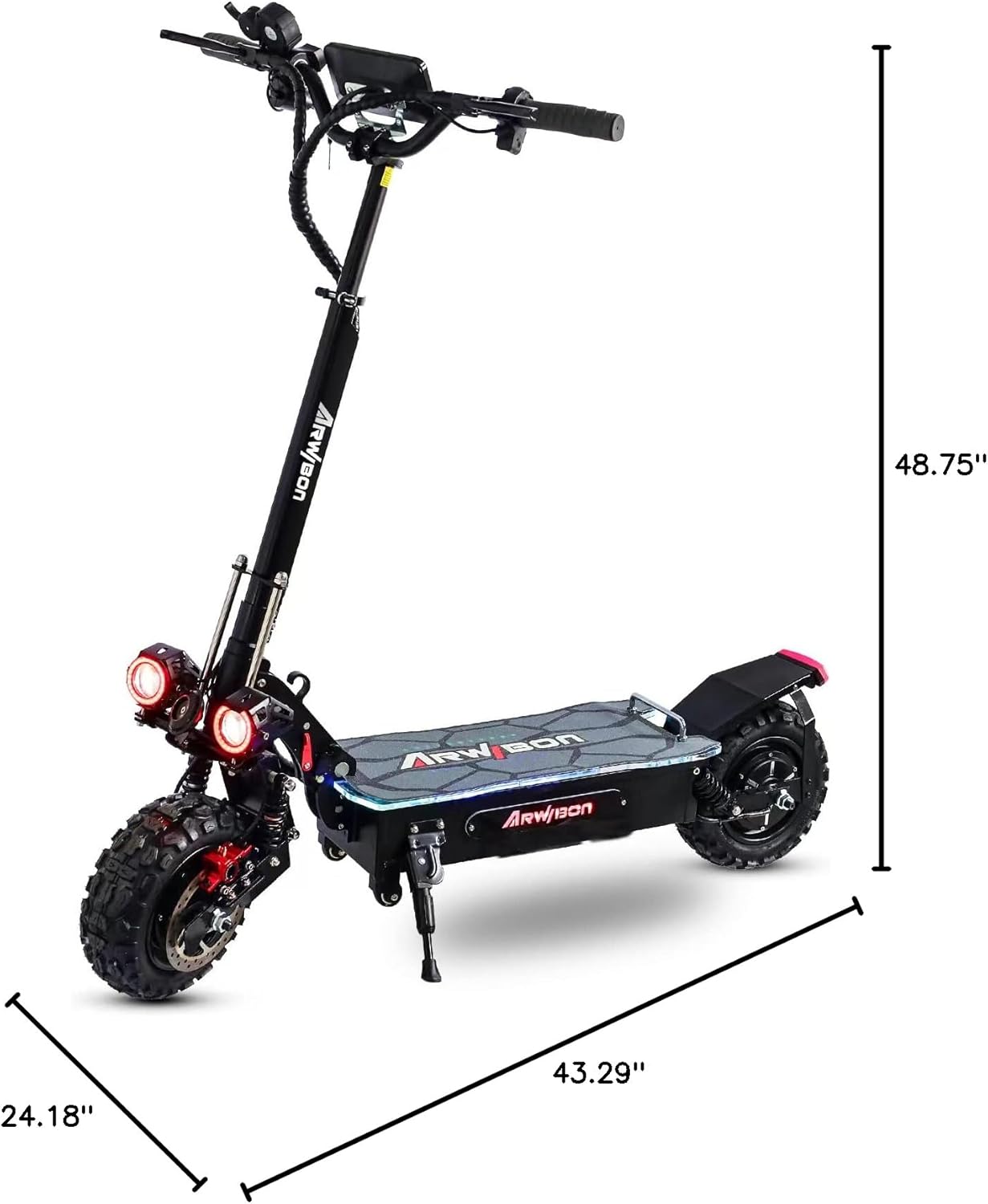

Onyonyo 8.1: Akụkụ n'ofeview of the Arwibon Q06Pro Electric Scooter, showing its length, width, and height.
9. Akwụkwọ ikike na nkwado
Your Arwibon Q06Pro Electric Scooter comes with a limited warranty.
- Oge ikike: Free replacement parts are provided within 180 days for product quality problems.
- Nkwado ndị ahịa: Professional technicians are available 24 hours for after-sales service. Please refer to your purchase documentation for contact information.
For further assistance or to inquire about replacement parts, please contact Arwibon customer service.
