Okwu mmalite
This manual provides detailed instructions for the safe and effective operation of your WOUXUN KG-R56 VHF Professional Radio. Please read this manual thoroughly before using the device to ensure proper function and to prevent damage.
Ngwaahịa gafereview
The WOUXUN KG-R56 is a compact and robust professional VHF transceiver designed for authorized users, operating within the 66-88 MHz frequency range. It features 256 memory channels, advanced menu functions, and integrated USB Type-C charging. The device is compliant with current R&TTE RED CE standards.

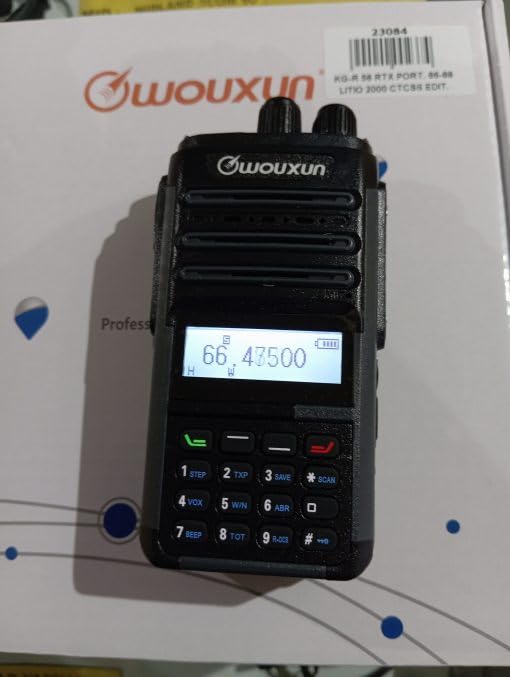

Image: WOUXUN KG-R56 VHF Professional Radio. This image shows the front view of the radio, highlighting its display, keypad, and antenna connection.
Ihe ngwugwu
Chọpụta na ihe niile edepụtara n'okpuru dị na ngwugwu gị:
- KG-R56 Transceiver
- 7.4V - 2000 mAh Lithium-Ion Battery Pack
- chaja
- 220V ike ọkọnọ
- Flexible Rubber Antenna
- Mpempe eriri eriri
- User Manual (in original language)
- Asambodo
Melite
1. Ntinye batrị
- Hazie ngwugwu batrị ahụ na oghere dị n'azụ redio.
- Slide the battery pack upwards until it clicks securely into place.
- Iji wepụ, pịa eriri ntọhapụ batrị (ọ bụrụ na ọ dị) wee sụọ batrị ahụ ala.
2. Ịchaji batrị
The KG-R56 features an integrated USB Type-C port for convenient charging.
- Connect a USB Type-C cable to the radio's USB-C port.
- Connect the other end of the cable to the provided charger or a compatible USB power source.
- The charging indicator light on the radio will show the charging status.
- A full charge typically takes several hours. Avoid overcharging the battery.
3. Ịtinye Antenna ahụ
- Screw the flexible rubber antenna clockwise onto the antenna connector on top of the radio until it is finger-tight.
- Do not overtighten the antenna.
4. achinggbakwunye Clip Belt
- Use the provided screws to attach the belt clip to the designated area on the back of the radio.
Ntuziaka ọrụ
1. Gbanyụọ / gbanyụọ
Rotate the Power/Volume knob clockwise to turn the radio on. Rotate it counter-clockwise until a click is heard to turn it off.
2. Na-agbanwe olu
After powering on, continue rotating the Power/Volume knob to adjust the audio output level to your preference.
3. Nhọrọ ọwa
Use the Up/Down arrow keys or the rotary encoder (if present) to select the desired channel or frequency. The display will show the selected channel number, frequency, or channel name.
4. Na-ebufe na ịnata
- Ka ịnyefe, pịa ma jide bọtịnụ Push-To-Talk (PTT) n'akụkụ redio. Kwuo nke ọma n'ime igwe okwu.
- Hapụ bọtịnụ PTT ka ị nweta.
- Always ensure the channel is clear before transmitting to avoid interference.
5. Ntugharị menu
The KG-R56 features an advanced menu system for managing various radio functions.
- Pịa MENU bọtịnụ iji tinye isi menu.
- Use the Up/Down arrow keys to scroll through the available menu options.
- Pịa MENU ọzọ ma ọ bụ OK (if available) to select an option.
- Use the Up/Down keys to change settings within a selected option.
- Pịa ỤZỌ ỌPỤPỤ or Azụ to return to the previous menu or exit the menu system.
Atụmatụ igodo
- DTMF Encoding/Decoding: Supports DTMF tones for advanced signaling capabilities.
- CTCSS/DCS: Includes 50 CTCSS groups and 105 DCS groups for selective calling. These can be customized via PC programming software.
- CTCSS/DCS Scanner: Automatically detects CTCSS/DCS tones on a received signal.
- Ntuziaka olu: Provides audible prompts for menu navigation and function selection, enhancing user experience.
- Channel Name Display: Allows for editing and displaying custom channel names for easier identification.
- Battery Capacity Inquiry: Check the current battery level directly from the radio.
- PC Programmable: Customize radio settings, frequencies, and channels using dedicated PC software.
- Selectable Bandwidth: Choose between various channel spacing options (5K/6.25K/10K/12.5K/25K).
- Reverse Frequency Function: Quickly switch between transmit and receive frequencies for specific operations.
- Multiple Scan Modes (TO/CO/SE): Offers various scanning options for monitoring channels efficiently.
- Ụdị ngosi: Switch between displaying Frequency, Channel Number, or Channel Name.
- TOT (Ngụ oge na-apụ): Prevents excessively long transmissions by limiting transmission duration.
- Busy Channel Lockout (BCLO): Prevents transmission on an occupied channel, avoiding interference.
- Keypad Lock (Automatic/Manual): Prevents accidental key presses and setting changes.
- Wired Clone Function: Copy settings and configurations from one radio to another using a cable.
- Nchaji USB Type-C: Conveniently charge the radio via a standard USB-C port.
Nlekọta
Nhicha
Jiri nwayọ hichaa elu redio, damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the casing. Ensure the USB-C port cover is closed when not charging to protect against dust and moisture.
Nlekọta batrị
- Chajịa batrị zuru oke tupu ojiji mbụ.
- Ewepụla batrị ahụ na oke okpomọkụ (ọkụ ma ọ bụ oyi).
- Ọ bụrụ na agaghị eji redio ahụ ruo ogologo oge, wepụ batrị ahụ ma chekwaa ya n'ebe dị jụụ na nkụ.
- Use only WOUXUN approved battery packs and chargers to ensure safety and optimal performance.
Nchọpụta nsogbu
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Redio anaghị agbanye ọkụ. | Batrị dị ala ma ọ bụ etinyeghị ya nke ọma. | Charge the battery or re-install it properly. |
| Enweghị ike ibunye. | Busy Channel Lockout (BCLO) active; incorrect frequency/channel; low battery. | Wait for the channel to clear; verify frequency/channel settings; charge battery. |
| No reception or weak signal. | Antenna not attached correctly; squelch level too high; out of range. | Check antenna connection; adjust squelch level; move closer to transmitting station. |
| Ahụigodo anaghị anabata. | Keypad lock is active. | Disable keypad lock (refer to operating instructions for specific key combination). |
| USB-C charging not working. | Cable or charger faulty; port dirty. | Try a different USB-C cable/charger; carefully clean the port if visibly dirty. |
| Audio output is distorted. | Volume too high; weak signal; speaker damage. | Adjust volume; check signal strength; contact support if speaker is damaged. |
Nkọwa nka nka
- Ụdị: KG-R56
- Oke ugboro: 66-88 MHz
- Ọnụọgụ ọwa: 256
- Oghere ọwa: 5K/6.25K/10K/12.5K/25K
- Mgbanwe: FM F3E
- Nrụ ọrụ Voltage: 7.4V DC
- Ike mmepụta RF: 5W/1W (selectable)
- Mmetụta nke nnata: 0.25 µV (12 dB SINAD)
- Mmetụta Squelch: <0.16 µV
- Ike mmepụta ọdịyo: 500 mW at 8 ohms
- Ụdị batrị: 7.4V - 2000 mAh Lithium-Ion Pack
- Njikere Ugbu a: 50 mA
- Okpomọkụ arụ ọrụ: -30°C ruo +60°C
- Akụkụ (H x W x D): 105 x 63 x 39 mm (without antenna and battery)
- Arọ: 250 g (with battery and antenna)
- Ogo nchekwa mba ụwa: IP54 (Protected from limited dust ingress and water spray from any direction)
- Ọkwa Nguzogide mmiri: Not designed for immersion in water.
- Atụmatụ pụrụ iche: Weather-resistant, USB rechargeable
Mara: Nkọwapụta ga-agbanwe na-enweghị ọkwa.
Ozi nchekwa
- Do not operate the radio in explosive atmospheres (e.g., near flammable gases, dust particles, or metallic powders).
- Do not modify the radio. Unauthorized modifications can void your warranty and violate regulatory compliance.
- Keep the radio away from medical devices (e.g., pacemakers) to avoid potential interference.
- Use only WOUXUN approved accessories, including batteries and chargers.
- Do not expose the radio to direct sunlight for extended periods or to extreme heat sources.
- Dispose of batteries properly according to local environmental regulations.
- While rated IP54 for weather resistance, this device is not designed for immersion in water. Avoid exposing it to heavy rain or submersion.
Akwụkwọ ikike na nkwado
For warranty information or technical support, please contact your authorized WOUXUN dealer or the point of purchase. Keep your purchase receipt as proof of purchase.
