Symcode Bluetooth 2D Barcode Scanner User Manual

Okwu mmalite

This manual provides detailed instructions for the Symcode Bluetooth 2D Barcode Scanner, Model 2D QR Black. This versatile device offers 3-in-1 connectivity (Bluetooth, 2.4G Wireless, and USB Wired) and is designed for efficient barcode scanning across various platforms.

Symcode Bluetooth 2D Barcode Scanner held in hand

Image: The Symcode Bluetooth 2D Barcode Scanner, a compact black device, held comfortably in a user's hand, demonstrating its portable design. USB cables and a 2.4G dongle are also visible, indicating its versatile connectivity options.

Ihe ngwugwu

Biko chọpụta na agụnyere ihe niile edepụtara n'okpuru na ngwugwu gị:

1x Symcode 2D barcode scanner
USB USB Nchaji USB 1x
1x 2.4G USB Dongle
1x akwụkwọ ntuziaka
1x Sling

Contents of the Symcode Barcode Scanner package

Image: A clear layout of the Symcode barcode scanner package contents, including the scanner unit, 2.4GHz wireless dongle, user manual, USB charging cable, and a sling for portability.

Atụmatụ igodo

Enwere ike ibugharị: Weighing only 35g (1.23oz), with a mini size for easy pocket storage and a retractable rope for convenient carrying.
3-in-1 Connection: Supports 2.4G wireless, Bluetooth wireless, and USB wired connection modes.
Ndakọrịta sara mbara: Compatible with Windows XP, Win7, Win8, Win10, Android, iOS devices, PC, POS, laptop, tablet, and smartphone.
Ogologo nnyefe ogologo: Up to 15m/49ft in obstacle environments for 2.4G transmission, and 20m/66ft for Bluetooth transmission. In barrier-free environments, 2.4G wireless offers up to 150m/492ft and Bluetooth up to 50m/164ft.
Ikike ime nhọpụta kacha mma: Capable of scanning common 1D and 2D barcodes, including QR Code, Data Matrix, PDF417, Aztec code, Maxicode, JAN/EAN-13, UPC-A, Code128, and many more, even if blurred or incomplete.
Ndụ batrị: Built-in 650mAh rechargeable battery provides up to 5 hours of continuous scanning time and 30 days of standby time. Full charge in approximately 2 hours.
Ụdị Nchekwa: 16MB large capacity storage, capable of storing over 100,000 barcodes in offline scanning mode.
Nhọrọ nhazi Sound and vibration can be turned off. Supports hiding/adding custom prefix/suffix digits, deleting characters, and adding keyboard keys (TAB, CR&LF) to scanning operations.
bọtịnụ mkpali: Adopts an imported trigger button for long life and comfortable use.

Melite

1. Charging the Scanner

Before first use, fully charge the scanner. Connect the provided USB charging cable to the scanner's charging port and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The charging indicator light will show the charging status.

Oge Nchaji: Ihe dị ka awa 2 maka ụgwọ zuru ezu.
Continuous Scanning Time: Up to 5 hours.
Oge Njikere: Ruo ụbọchị iri atọ.

Ime view of Symcode Barcode Scanner showing battery and circuit board

Foto: Ihe gbawara view of the Symcode barcode scanner, highlighting its internal components including the circuit board and battery. Note: The image indicates a 3000mAh battery, however, the product specifications state a 650mAh battery. Please refer to the text specifications for accurate battery capacity and usage times.

2. Ụdị njikọ

The scanner supports three connection modes: USB Wired, 2.4G Wireless, and Bluetooth Wireless. You can switch between these modes freely based on your needs.

Ụdị eriri USB

Connect the scanner directly to your computer using the provided USB cable. The scanner will be recognized as a keyboard device, and scanned data will be input directly into any active text field.

Ọnọdụ ikuku 2.4G

Insert the 2.4G USB dongle into an available USB port on your computer. The scanner will automatically pair with the dongle. This mode offers a transmission distance of up to 150m/492ft in barrier-free environments and 15m/49ft in obstacle environments.

Ọnọdụ ikuku Bluetooth

Gbanwuo nyocha.
Activate Bluetooth on your host device (smartphone, tablet, computer).
Chọọ maka available Bluetooth devices and select "Symcode Scanner" (or similar name) to pair.
Once paired, the scanner is ready for use. This mode offers a transmission distance of up to 50m/164ft in barrier-free environments and 20m/66ft in obstacle environments.

Diagram showing 3-in-1 connection options for Symcode Barcode Scanner

Image: A visual representation of the three connection modes: Wired (USB), 2.4G Wireless (via dongle), and Bluetooth Wireless, illustrating how the scanner connects to various devices like laptops and smartphones.

Diagram illustrating transmission distances for Symcode Barcode Scanner

Image: A diagram showing the long transmission distances for both 2.4GHz Wireless and Bluetooth Wireless modes, differentiating between barrier environments and barrier-free environments.

3. Usoro ndakọrịta

The Symcode scanner is highly compatible with a wide range of operating systems and devices:

Operating Systems: Windows XP, Win7, Win8, Win10, Mac OS, Linux.
Devices: PC, POS systems, Laptops, Tablets, Smartphones (Android, iOS).

Symcode Barcode Scanner compatible with multiple operating systems

Image: Icons representing various operating systems (iOS, Android, Windows, Mac OS, Linux) indicating the scanner's broad compatibility with different devices such as laptops and tablets.

Ntuziaka ọrụ

1. Basic Scanning Operation

To scan a barcode, point the scanner's window at the barcode and press the trigger button. A successful scan will typically be indicated by a beep and/or vibration (if enabled).

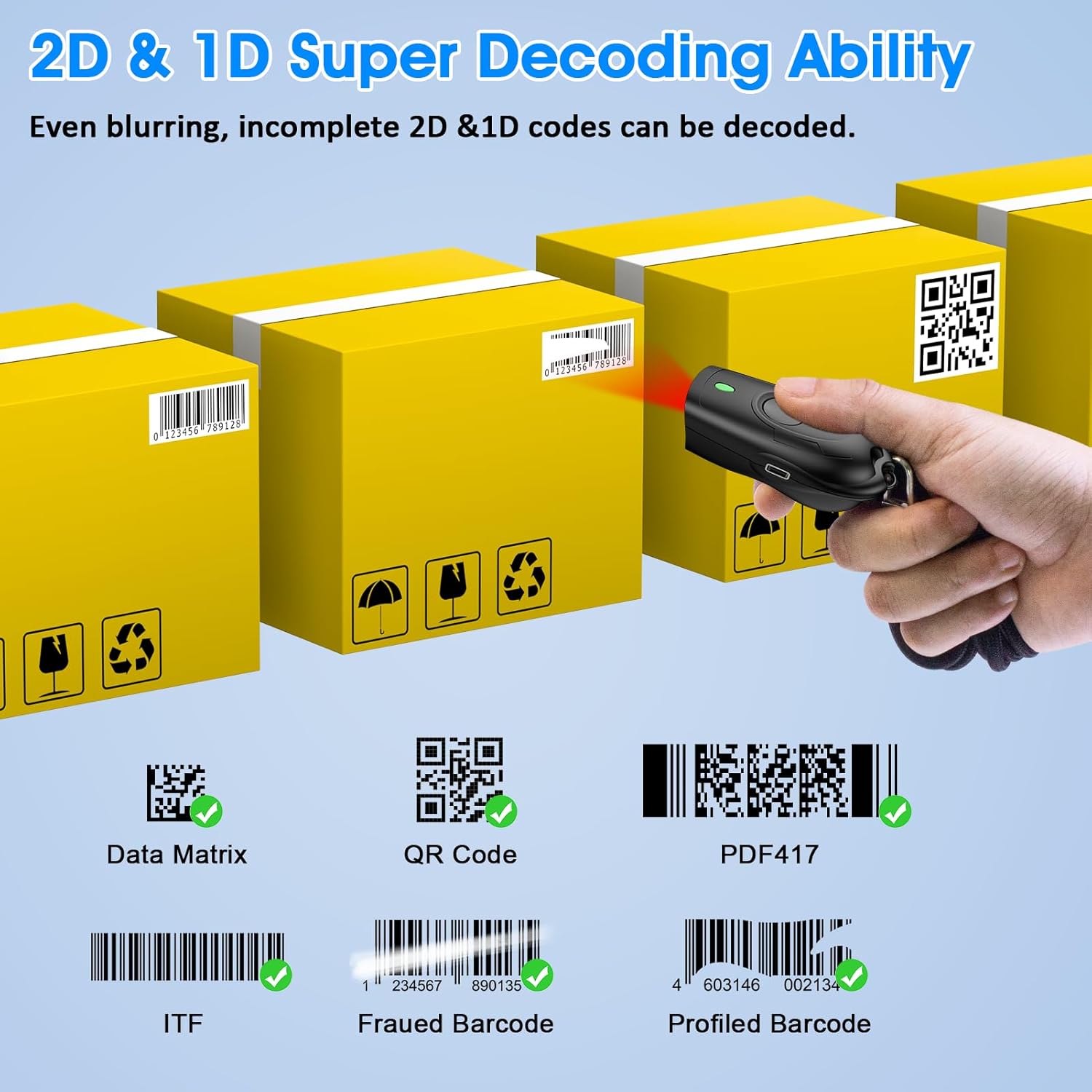

Symcode Barcode Scanner demonstrating 2D and 1D decoding ability

Image: The scanner positioned to scan various 2D and 1D barcodes, including QR Code, Data Matrix, PDF417, ITF, Frauded Barcode, and Profiled Barcode, illustrating its super decoding ability.

2. Operating Modes: Instant Upload vs. Storage Mode

The scanner supports two primary operating modes:

Ụdị nbudata ngwa ngwa: Scanned data is immediately transmitted to the connected device. This is the default mode and suitable for real-time data entry.
Storage Mode (Offline Scanning): Scanned data is stored in the scanner's internal 16MB memory. This mode is useful when out of range or not connected to a host device. The scanner can store over 100,000 barcodes. To upload stored data, connect the scanner to your device and follow the instructions in the full user manual (refer to the included manual for specific barcode commands to switch modes and upload data).

3. Nhọrọ nhazi

The scanner offers several customization features, typically configured by scanning specific setup barcodes found in the comprehensive user manual:

Ụda na ịma jijiji: Enable or disable the audible beep and tactile vibration feedback upon successful scans.
Mgbakwunye/Ntinye: Add custom characters before or after the scanned barcode data.
Character Deletion: Remove specific characters from the scanned data.
Igodo ahụigodo: Add special keyboard keys (e.g., TAB, Carriage Return & Line Feed - CR&LF) after each scan for automated data entry.

For detailed instructions on configuring these options, please refer to the dedicated section in the physical user manual included with your product.

Nlekọta

1. Nhicha

Iji nọgide na-arụ ọrụ nke ọma, debe windo nyocha nke ihe nyocha ahụ ọcha. Jiri ákwà dị nro, nke na-enweghị ihe e ji ajị anụ mee, dị ntakịrị.ampened with water or a mild, non-abrasive cleaner. Do not use harsh chemicals or abrasive materials.

2. Nlekọta batrị

Zere ịchaji batrị ugboro ugboro.
Charge the scanner regularly, even if not in constant use, to prolong battery life.
Store the scanner in a cool, dry place when not in use for extended periods.

Nchọpụta nsogbu

Nsogbu	Ihe kpatara/ Ngwọta nwere ike ime
Scanner not connecting via Bluetooth/2.4G.	Ensure the scanner is charged. Verify the correct connection mode is selected (refer to the full manual for mode switching barcodes). For Bluetooth, ensure your device's Bluetooth is on and the scanner is in pairing mode. For 2.4G, ensure the dongle is properly inserted and recognized by your computer. Try restarting both the scanner and the host device.
Nyocha anaghị agụ koodu barcode.	Hụ na koodu ahụ emebighị ma ọ bụ na ebipụghị ya nke ọma. Check if the barcode type is supported (refer to "Super Decoding Ability" in Key Features). Clean the scanning window. Gbaa mbọ hụ na ọkụ zuru oke. Try scanning a known good barcode.
Scanned data is incorrect or incomplete.	Check if any prefix/suffix or character deletion settings are active. Ensure the scanner is in the correct operating mode (Instant Upload vs. Storage). Verify the cursor is in the correct input field on your device.
Ndụ batrị dị mkpụmkpụ.	Ensure the scanner is fully charged before use. Battery performance can degrade over time; consider replacement if significantly reduced. Operating in extreme temperatures can affect battery life.

If you encounter issues not covered here, please refer to the comprehensive user manual or contact Symcode customer support.

Nkọwapụta

Ụdị: 2D QR Black
Akụkụ: Approximately 74mm (Length) x 39mm (Width) x 25.5mm (Thickness)
Arọ: 35g / 1.23oz
Njikọta: Bluetooth, Ikuku 2.4G, eriri USB
Batrị: 650mAh Lithium Polymer (rechargeable)
Oge nchaji: Ihe ruru. awa 2
Continuous Scanning Time: Ihe ruru. awa 5
Oge njikere: Ruo ụbọchị 30
Ikike Nchekwa: 16MB (stores over 100,000 barcodes in offline mode)
Transmission Distance (2.4G Wireless): 150m/492ft (barrier-free), 15m/49ft (obstacle environment)
Transmission Distance (Bluetooth): 50m/164ft (barrier-free), 20m/66ft (obstacle environment)
Decoding Capability (2D): QR Code, Data Matrix, PDF417, Aztec code, Maxicode
Decoding Capability (1D): JAN/EAN-13, JAN/EAN-8, UPC-A, UPC-E, Code11, Code32, Code39, Code 39 Full ASCII, Code93, Code128, Codabar (NW-7), Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, PLESSEY, MSI, ITF14, ISBN, ISSN, GS1 Databar, GS1-128 (UCC/EAN128), ISBT-128.
Ngwa dakọtara: Desktop, Laptop, Smartphone, POS systems, Tablets.
Sistemu eji arụ ọrụ: Windows XP/7/8/10, Mac OS, Linux, Android, iOS.

Dimensions and portability of Symcode Mini Barcode Scanner

Image: A visual representation of the scanner's compact dimensions (74mm length, 39mm width, 25.5mm thickness) and its portability, showing it easily fitting into a pocket.

Symcode Barcode Scanner demonstrating ultra mini pocket design

Image: A close-up showing the Symcode barcode scanner being placed into a shirt pocket, emphasizing its ultra-mini and lightweight design (stated weight 33.4g/1.2oz, actual product description states 35g/1.23oz).

Akwụkwọ ikike na nkwado

Symcode provides dedicated pre-sale and after-sales service for its products. If you experience any issues or have questions regarding your Symcode barcode scanner, please contact the seller directly for assistance.

For support, please refer to the contact information provided with your purchase or on the official Symcode websaịtị.
