1. Ozi nchekwa
Please read these instructions carefully before installation and use. Keep this manual for future reference.
- Nnyefe mmiri: Hụ na agbanyụrụ isi mmiri tupu ịmalite ọrụ nrụnye ma ọ bụ mmezi ọ bụla.
- Nrụgide: Recommended operating pressure is 1.0 - 5.0 bar. If pressure exceeds 5.0 bar, a pressure reducer must be installed.
- Okpomọkụ: The maximum hot water inlet temperature should not exceed 80°C (176°F).
- Nwụnye ọkachamara: Installation should be performed by a qualified professional in accordance with local plumbing and building codes.
- Nhicha: Use only mild soap and water for cleaning. Avoid abrasive cleaners, scouring pads, or solvents, as these can damage the chrome finish.
2. Ngwaahịa gafereview
The GROHE Start 30630000 is a single-lever kitchen faucet designed for convenient use, especially in front of windows. It features a high spout and a durable chrome finish.

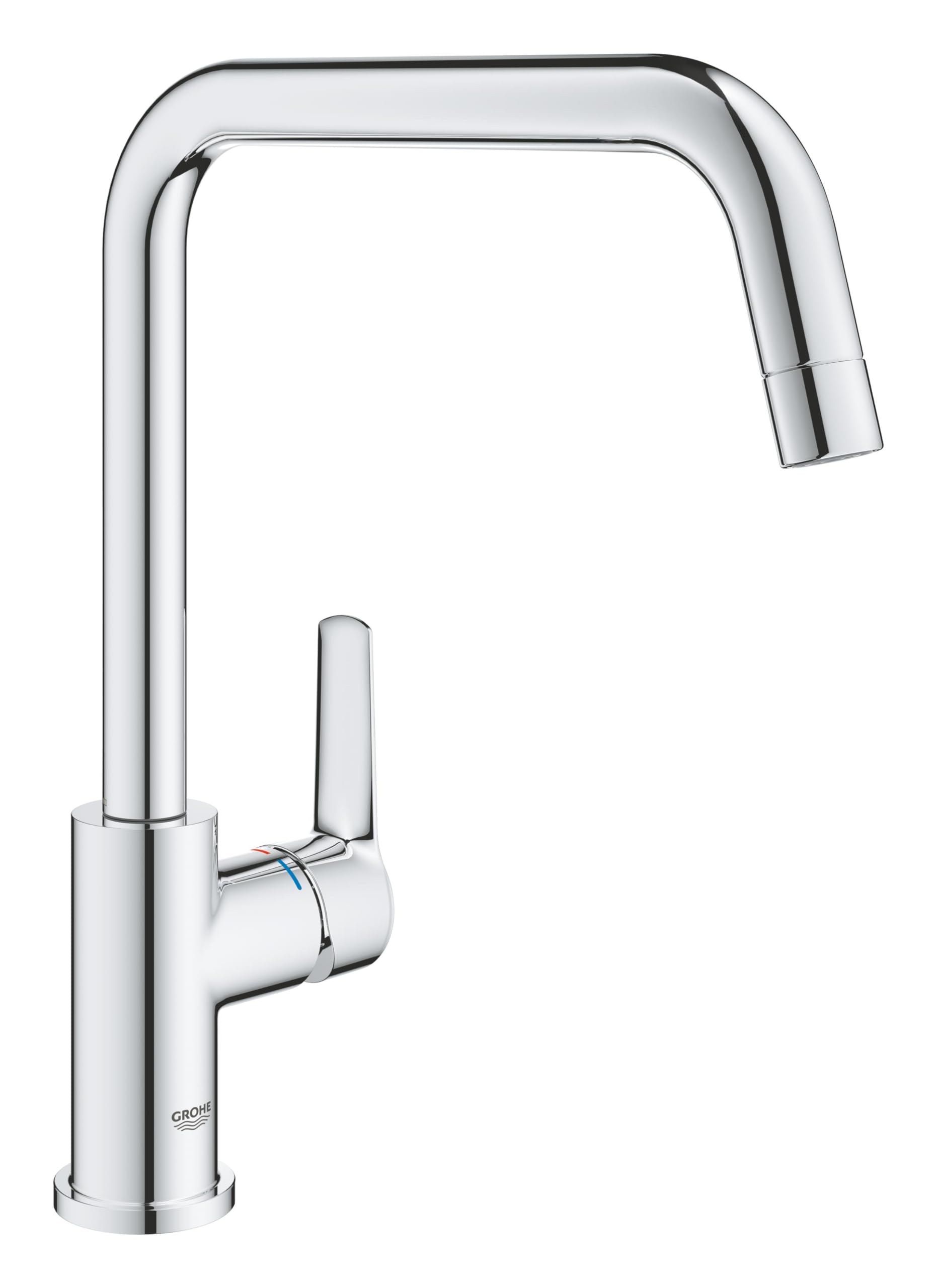

Foto: N'ihu view of the GROHE Start 30630000 single-lever kitchen faucet with a high, U-shaped spout and chrome finish.
Akụkụ ndị bụ isi:
- Nwụnye windo: Designed to be easily lifted and laid down to allow window opening.
- High Spout: Na-enye ample clearance maka ijuputa na ihicha nnukwu ite na arịa.
- Adjustable Swivel Range: The spout can be adjusted to swivel 0°, 150°, or 360° for flexible use.
- GROHE QuickFix: Ensures quick and straightforward installation.
- GROHE LongLife: Ceramic cartridge for precise control of water flow and temperature.
- GROHE StarLight: Durable chrome finish for easy cleaning and lasting shine.
3. Nwụnye
Before starting, ensure all necessary tools are available and the water supply is turned off. Refer to the technical drawing for precise measurements and connections.
Image: Technical drawing illustrating the dimensions and connection points of the GROHE Start 30630000 faucet, including spout height (311mm), spout reach (228mm), and hose length (895mm).
Nzọụkwụ nwụnye:
- Prepare the Sink/Countertop: Ensure a single mounting hole (diameter Ø34mm) is available and clean. The maximum countertop thickness should be 60mm.
- Ugwu Faucet: Insert the faucet base into the mounting hole.
- Secure with QuickMount: From underneath the sink, attach the GROHE QuickMount fastening system. Tighten the nut securely to fix the faucet in place.
- Jikọọ mmiri ọkpọkọ: Connect the hot and cold water supply lines to the corresponding flexible hoses of the faucet. Ensure a watertight seal using appropriate tools and sealing materials. The hose length is 895mm.
- Lelee maka leaks: Slowly turn on the main water supply and check all connections for leaks.
- Ọrụ nnwale: Mee ka ọwa mmiri ahụ rụọ ọrụ iji hụ na mmiri na-asọpụta nke ọma na njikwa okpomọkụ.
Foto: nso nso view of the GROHE QuickMount system, showing the blue plastic nut and threaded rod for easy and secure faucet installation from below the sink.
4. Ọrụ
The single-lever design allows for easy control of water flow and temperature.
- Usoro mmiri: Lift the lever to turn on the water. The higher the lever is lifted, the greater the water flow.
- Njikwa okpomọkụ: Move the lever to the left for hot water and to the right for cold water.
- Adjustable Swivel Spout: The high spout can be rotated to direct water where needed. The swivel range can be set to 0°, 150°, or 360° during installation or adjusted later if needed.
- Window Functionality: For sinks located in front of a window, the faucet can be easily lifted straight up and laid horizontally on the countertop to allow the window to open.
Image: A person filling a blue bucket with water from the high spout of the GROHE kitchen faucet, demonstrating its utility for larger containers.
Image: The GROHE kitchen faucet is shown in a horizontal position on the countertop, allowing a window directly above the sink to open freely. This highlights its specialized window installation feature.
5. Nlekọta
Regular cleaning and maintenance will ensure the longevity and optimal performance of your GROHE faucet.
Ntuziaka nhicha:
- Use only a soft cloth and mild soap solution for cleaning.
- Wipe the faucet dry after each use to prevent water spots and mineral buildup.
- Emela use abrasive cleaners, scouring pads, acid-based cleaners, or solvents, as these will damage the chrome finish and internal components.
- For stubborn mineral deposits, use a vinegar-based solution diluted with water, applied with a soft cloth, and rinsed thoroughly.
Nlekọta Cartridge:
If water flow or temperature control becomes inconsistent, the ceramic cartridge may need inspection or replacement. This should be performed by a qualified technician.
6. Nchọpụta nsogbu
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Mmiri dị ala |
|
|
| Na-agbapụta site na Spout |
|
|
| Okpomọkụ mmiri na-ekwekọghị ekwekọ |
|
|
If the problem persists after attempting these solutions, please contact GROHE customer support or a qualified plumber.
7. Nkọwapụta
| Nọmba nlereanya | 30630000 |
| Ụdị | GROHE |
| Akụkụ ngwaahịa (L x W x H) | 47.5 x 31 x 8 cm |
| Ibu | 1.88 kilogram |
| Agba | Chrome |
| Mechaa | Chromed |
| Ihe onwunwe | Brass (Faucet body), Metal (Handle/Lever) |
| Usoro ntinye | Single-hole, Deck Mounted |
| Number of Holes Required | 1 |
| Spout Height | 311 millimeters |
| Mgbapụta Spout | 228 millimeters |
| Ogologo eriri | 895 millimeters |
| Ọnụọgụ nke Aka | 1 |
| Ejikwa ọnọdụ | Aka ekpe |
| Atụmatụ pụrụ iche | Adjustable temperature limit, Window installation functionality (lift-up spout) |
| Ngwa gụnyere | Start OHM sink U-spout pre-window inst. (Faucet unit, mounting hardware, connection hoses) |
| Mba onye si | Germany |
8. Akwụkwọ ikike na nkwado
GROHE products are manufactured to the highest quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official GROHE websaịtị.
For technical support, spare parts, or service inquiries, please contact GROHE customer service. Contact details can typically be found on the GROHE websaịtị ma ọ bụ na nkwakọ ngwaahịa.
Akụrụngwa dị n'ịntanetị: www.grohe.com
