RCA RC-12A5 4-Burner Induction Cooktop Instruction Manual

1. Ozi nchekwa dị mkpa

Gụọ ntuziaka niile nke ọma tupu i jiri ngwa ahụ. Debe akwụkwọ ntuziaka a maka ntụnye aka n'ọdịnihu.

• Nchekwa Eletriki: Ensure the cooktop is connected to a properly grounded 120 Volt, 3600 Watt three-phase electrical supply. Do not use extension cords.
• Nchekwa ụmụaka: The cooktop features a safety lock button to prevent accidental activation, especially important in households with children. Always activate the lock when not in use.
• Heat and Burns: Although induction cooktops do not generate heat directly, residual heat may remain on the glass surface after cooking. Avoid touching the cooktop surface immediately after use.
• Igwe ikuku: Ensure proper ventilation around the built-in unit to prevent overheating. Do not block air vents.
• Cookware dakọtara: Use only cookware made of magnetic materials such as iron, steel, or enameled steel (peltre). Non-magnetic materials will not work.
• Nchekwa ekpo oke ọkụ: The cooktop is equipped with an automatic overheating protection system. If the cooktop becomes too hot, it will automatically shut off.

2. Ngwaahịa gafereview

The RCA RC-12A5 is a modern 4-burner induction cooktop designed for efficiency and safety. It features a sleek black glass surface and intuitive touch controls.

Akụkụ ndị bụ isi:

• 4 Induction Burners: Allows simultaneous cooking of multiple dishes.
• Ọkwa ike 9: Provides precise heat control for various cooking needs.
• Ọrụ nkwalite: Temporarily increases power for rapid heating, ideal for boiling water quickly.
• Oge ngbanwe: Set cooking times for precise results.
• Mkpọchi nchekwa: Na-egbochi ọrụ a na-atụghị anya ya.
• Njikwa mmetụ: Easy and precise control over all functions.
• Nhazi arụnyere: Seamless integration into modern kitchen countertops.

Nkọwa akụkụ:

Figure 2.1: Main components of the RCA RC-12A5 Induction Cooktop.

1. Mpaghara ntinye: Four cooking areas that heat compatible cookware.
2. Multifunction Panel: Touch-sensitive area for controlling power levels, timer, and other functions.
3. Bọtịnụ ngbanwu/ Gbanyụọ: Activates or deactivates the cooktop.
4. Igwe ikuku: Located on the sides and bottom to dissipate heat.

3. Nwụnye na Ntọala

The RCA RC-12A5 is designed for built-in installation. Professional installation is recommended to ensure proper electrical connection and ventilation.

Akụkụ maka nwụnye:

Figure 3.1: Product and cutout dimensions for built-in installation.

• N'ozuzu akụkụ: 63 cm (Length) x 40 cm (Width) x 10 cm (Height).
• Akụkụ mbelata: 55 cm (Length) x 48 cm (Width) x 8 cm (Height).
• Induction Zone Diameters: 17.5 cm na 20 cm.
• Maximum Weight per Zone: 5 n'arọ.

Njikọ eletrik:

Figure 3.2: Three-phase electrical connection details.

• The cooktop requires a 120 Volt, 3600 Watt electrical supply.
• It uses a three-phase connection: Ground (green), Line (white), and Neutral (black).
• Ensure the wiring is correctly installed by a qualified electrician.

4. Ntuziaka ọrụ

The cooktop features intuitive touch controls for easy operation.

Ogwe njikwa:

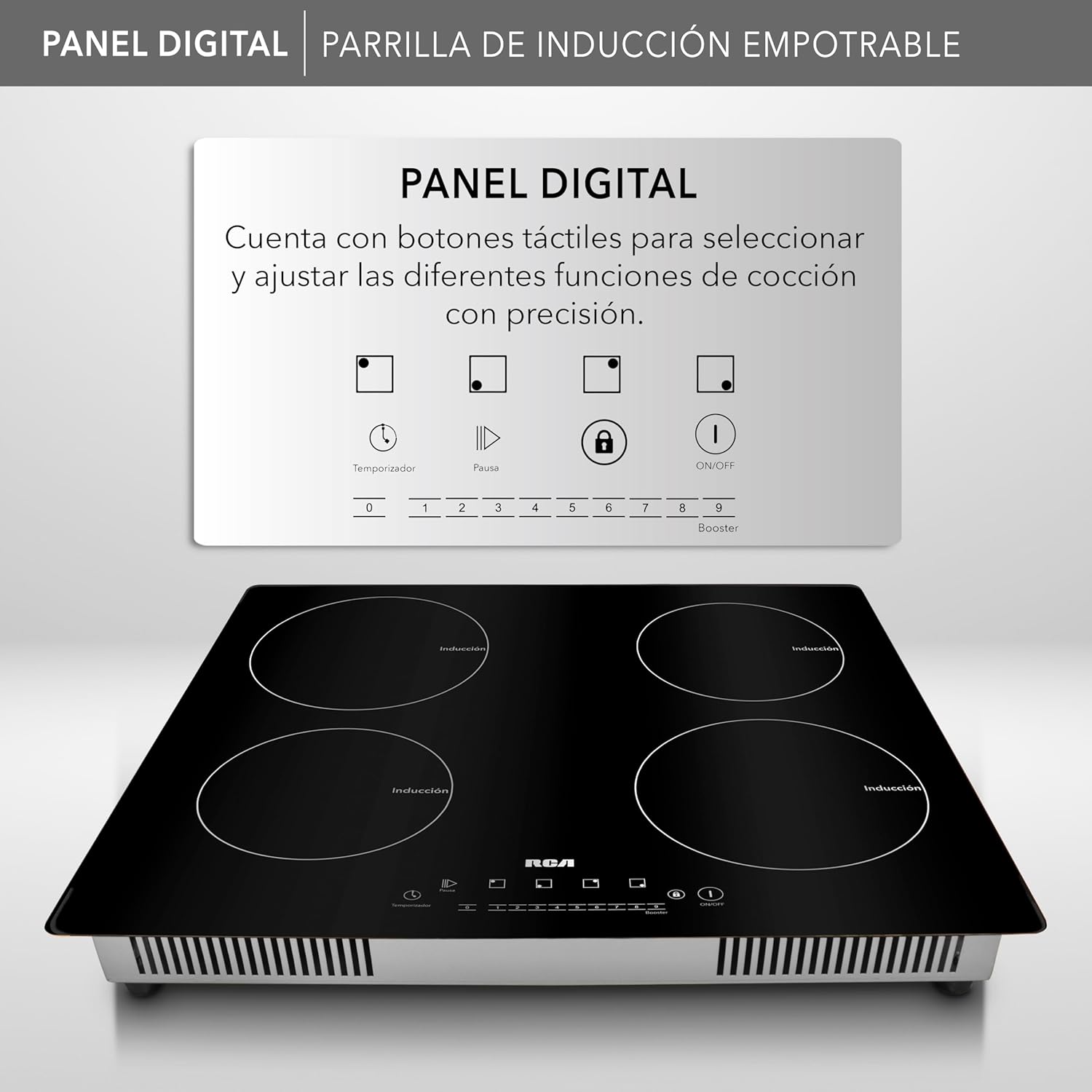

Figure 4.1: Digital control panel layout.

• Bọtịnụ ngbanwu/ Gbanyụọ: Press to turn the cooktop on or off.
• Nhọrọ Ọkwa Ike: Use the '+' and '-' buttons or slide control to select from 9 power levels (0-9).
• Ọrụ nkwalite: Activates maximum power for rapid heating. Press the 'Boost' button for the desired burner.
• Bọtịnụ ngụ oge: Press to set a cooking duration. Use '+' and '-' to adjust the time.
• Bọtịnụ mkpọchi: Press and hold to activate/deactivate the child safety lock. This prevents accidental changes to settings.

Cookware dakọtara:

Induction cooktops require specific cookware. Use the magnet test to check compatibility.

Figure 4.2: Compatible cookware materials.

• Akụrụngwa dakọtara: Iron, Steel, Enameled Steel (Peltre).
• Magnet Test: If a magnet sticks firmly to the bottom of your cookware, it is suitable for induction.
• Ngwa na-adabaghị adaba: Aluminum, copper, glass, ceramic, and non-magnetic stainless steel will not work.

Cooking without Flame:

Figure 4.3: Induction cooking in progress, demonstrating flameless operation.

The induction system heats the cookware directly, not the cooktop surface, resulting in faster cooking and no open flame. This design helps prevent accidents and burns, and includes overheating protection.

5. Nlekọta na nhicha

Ịsacha na mmezi mgbe niile ga-eme ka ebe esi nri gị dị ogologo ma rụọ ọrụ nke ọma.

• Nhicha kwa ụbọchị: After each use, allow the cooktop to cool completely. Wipe the glass surface with a damp cloth and mild detergent. Dry thoroughly with a soft cloth.
• Unyi isi ike: For burnt-on food or stubborn stains, use a ceramic cooktop cleaner and a non-abrasive pad. Follow the cleaner's instructions.
• Zere Abrasives: Ejila sponge abrasive, mpe mpe akwa, ma ọ bụ ihe nhicha kemịkalụ siri ike, n'ihi na ndị a nwere ike ịcha ma ọ bụ mebie elu ugegbe ahụ.
• Igwe ikuku ikuku: Periodically check and clean the ventilation grills to ensure proper airflow. Use a soft brush or vacuum cleaner to remove dust and debris.

6. Nchọpụta nsogbu

If you encounter issues with your cooktop, refer to the following common problems and solutions before contacting support.

7. Nkọwapụta

• Nọmba nlereanya: RC-12A5
• Akara: RCA
• Agba: Nwa
• Akụkụ (Ngwaahịa): 63 x 10 x 40 cm
• Arọ (Ngwaahịa): 5 n'arọ
• Ike: 3600 watt
• Voltage: 120 volts
• Ihe: Tempered Glass (Surface)
• Ihe ndị na-ekpo ọkụ: 4 Ihe ọkụ induction
• Atụmatụ pụrụ iche: Built-in, Programmable (Timer), Safety Lock, Boost Function, Touch Controls
• Ụdị mmanụ ụgbọala: Eletriki

8. Akwụkwọ ikike na nkwado

Figure 8.1: Warranty and invoicing details.

• Akwụkwọ ikike: This product comes with a 1-year warranty covering factory defects or damage incurred during shipping.
• Ịnye akwụkwọ ọnụahịa: For invoicing purposes, please send your details via message through your order platform.
• Nkwado ndị ahịa: For further assistance, technical support, or warranty claims, please refer to the contact information provided with your purchase or visit the official RCA websaịtị.

9. Educational Video: Compatible Cookware for Induction

Vidiyo a na-enye nkọwa zuru okeview of compatible materials for induction cooktops, which is essential for proper operation of your RCA RC-12A5.
