TIMEMORE Chestnut C3 ESP Pro Manual Coffee Grinder Instruction Manual

1. Okwu mmalite

This manual provides detailed instructions for the safe and efficient use of your TIMEMORE Chestnut C3 ESP Pro Manual Coffee Grinder. Please read this manual thoroughly before operating the device and retain it for future reference.

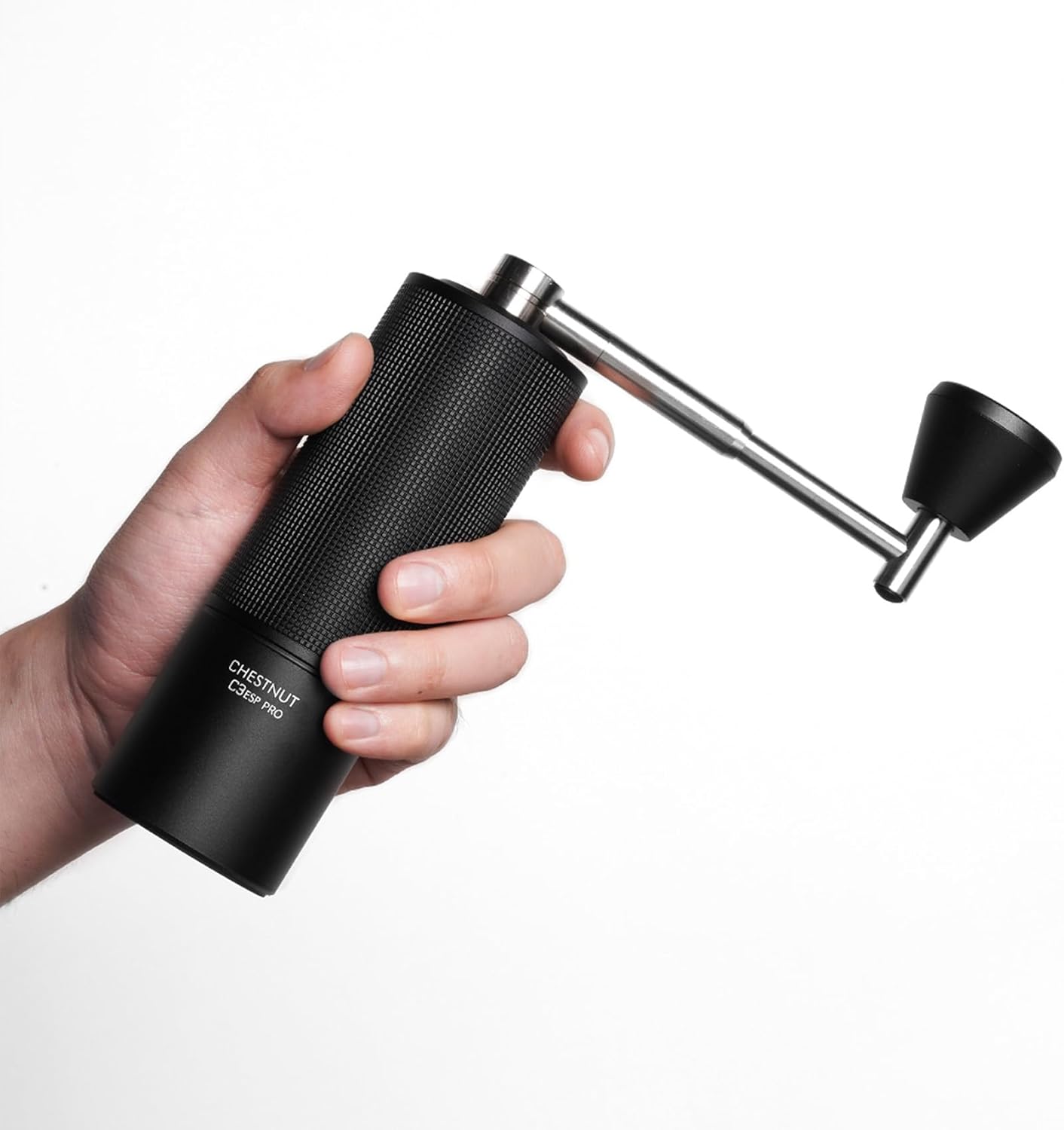

Figure 1: TIMEMORE Chestnut C3 ESP Pro Manual Coffee Grinder

2. Akụrụngwa Ngwaahịa

• S2C660 Stainless Steel Conical Burrs: Equipped with patented Spike-to-Cut (S2C) burrs for efficient and precise grinding, designed to retain coffee flavor.
• Precise Grind Adjustment: Features a fine adjustment mechanism with 0.0233mm per click, offering approximately 36 levels of coarseness suitable for various brewing methods from espresso to French press.
• All-Metal Integrated Body: Constructed with an all-metal body for enhanced durability and stability during grinding.
• Foldable Crank Handle: The handle folds for compact storage and portability, making it ideal for travel.
• Efficient Grinding: 38mm burr size combined with double bearing central axis positioning ensures uniform grinding particles.
• Nhazi Ergonomic: Compact 52mm body diameter for comfortable grip and reduced grinding effort.

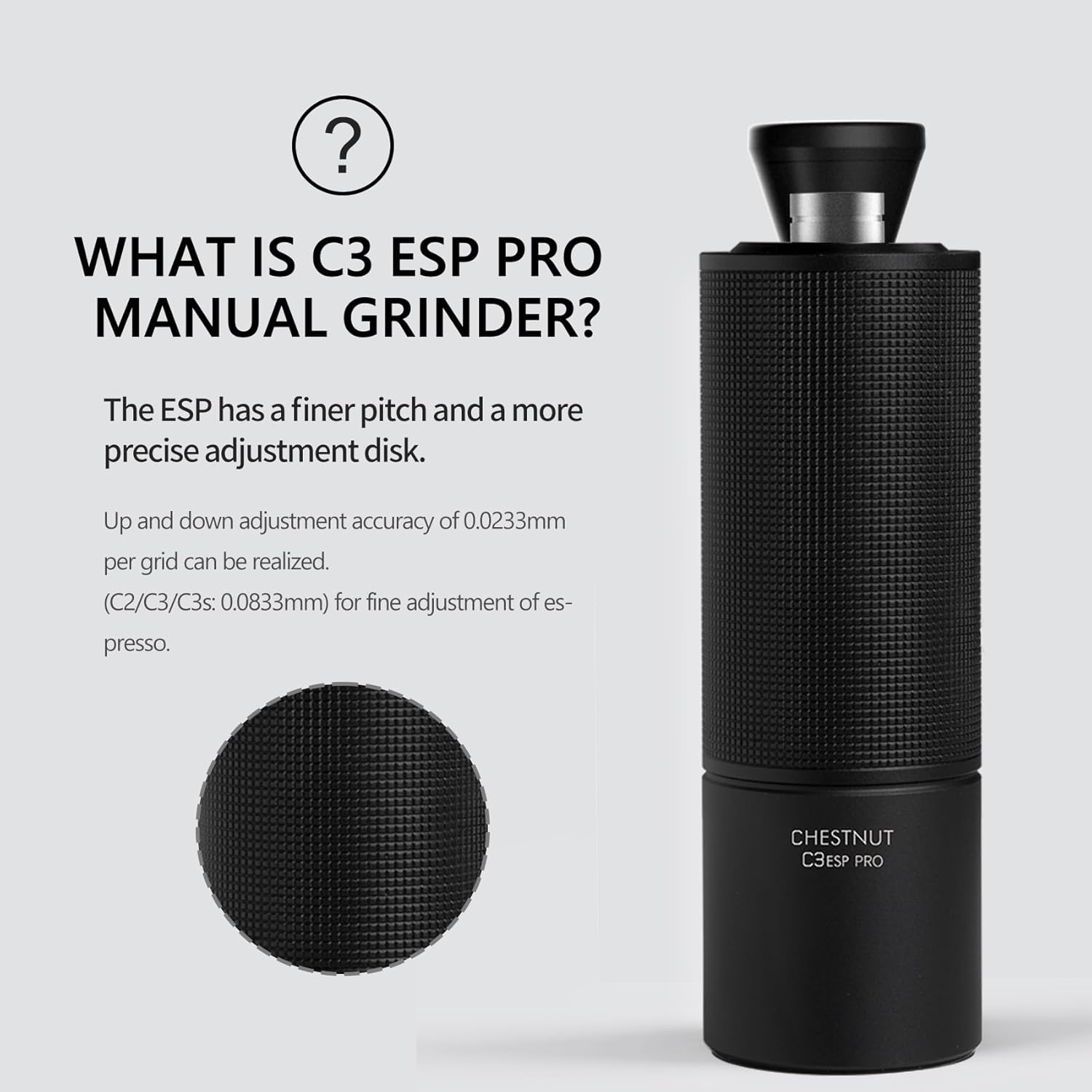

Figure 2: All-metal integrated body and S2C burr design

3. Nhazi

1. Unboxing: Carefully remove all components from the packaging. Verify that all items are present: grinder body, foldable handle, cleaning brush, and user manual.
2. Nhicha izizi: Before first use, disassemble the grinder (refer to Maintenance section for disassembly) and clean the burrs and internal components with the provided brush to remove any manufacturing residue. Do not wash with water.
3. Mgbakọ njikwa: The foldable handle is pre-assembled. To prepare for grinding, unfold the handle until it locks into the extended position.

Figure 3: Grinder components including the S2C conical burr

4. Ntuziaka ọrụ

4.1 Ịgbanwe Nha Ncha

1. Remove the bottom container and the top lid.
2. Locate the grind adjustment dial at the bottom of the burr assembly.
3. Turn the adjustment nut clockwise for a finer grind and anti-clockwise for a coarser grind. Each 'click' represents a precise adjustment of 0.0233mm.
4. Refer to the recommended settings below:
   • Espresso (Fine): 0.8-1.1 Circles
   • Pour Over (Medium): 1.4-2.0 Circles
   • French Press (Coarse): 2.0-2.3 Circles

Figure 4: Grind adjustment dial

Figure 5: Recommended grind settings for various brewing methods

4.2 Loading Coffee Beans

1. Ensure the handle is in the folded position or removed.
2. Remove the top lid of the grinder.
3. Pour the desired amount of whole coffee beans into the bean hopper. Do not overfill.
4. Replace the top lid and unfold the handle.

4.3 Usoro Ịkụcha

1. Hold the grinder body firmly with one hand.
2. With the other hand, turn the crank handle clockwise to begin grinding.
3. Continue turning until no resistance is felt, indicating all beans have been ground.

4.4 Collecting Ground Coffee

1. Once grinding is complete, remove the bottom container by twisting it counter-clockwise.
2. Wụsa kọfị a gwepịara egwepịa ọhụrụ n'ime ngwaọrụ ịme mmanya gị.

5. Nlekọta

5.1 Nhicha

Nhicha mgbe niile na-eme ka arụmọrụ dị mma na-agbatị ndụ nke grinder gị.

1. Mbupu: Unscrew the bottom container, then carefully remove the inner burr and spring assembly.
2. Cleaning Burrs: Use the provided cleaning brush to remove any residual coffee grounds from the burrs and internal components. An air blower can also be used.
3. Ihe dị mkpa: Do not wash the grinder components with water, as this can damage the burrs and internal mechanisms.
4. Nchikota: Reassemble the grinder by reversing the disassembly steps. Ensure all parts are securely in place.

Figure 6: Cleaning the grinder with the included brush (Do not wash with water)

5.2 Nchekwa

Store the grinder in a dry place. The foldable handle allows for compact storage, making it convenient for travel or small spaces.

Figure 7: Grinder with foldable handle for compact storage

6. Nchọpụta nsogbu

If you encounter issues with your grinder, consider the following general troubleshooting steps:

• Grinding Difficulty: Ensure the grind setting is not too fine for the beans being used. Very fine settings require more effort. Check for any obstructions in the burr assembly.
• Inconsistent Grind: Verify that the burr assembly is correctly reassembled and tightened. Ensure the central axis is stable.
• Handle Issues: Check that the foldable handle is securely locked into position during use.

For further assistance, please contact TIMEMORE customer support.

7. Nkọwapụta

Figure 8: Grinder dimensions

8. Official Product Video

9. Akwụkwọ ikike na nkwado

For warranty information or technical support, please refer to the official TIMEMORE websaịtị ma ọ bụ kpọtụrụ ndị ahịa ha ozugbo. Debe nnata nzụta gị ka ihe akaebe nke ịzụrụ.
