HBN Outdoor Light Timer with Photocell Sensor and Countdown Functions (1 Outlet) User Manual

Okwu mmalite

This manual provides instructions for the HBN Outdoor Light Timer, designed to automate your outdoor lighting. It features a photocell sensor for dusk-to-dawn operation and various countdown timer settings. This device is suitable for controlling outdoor equipment such as garden lights, holiday decorations, pool pumps, and fountains.

Ozi nchekwa dị mkpa

• Do not exceed the electrical ratings of 15A/1875W Resistive or 10A/1250W Tungsten or 1/2 Horsepower.
• Do not use this unit with any heating elements.
• Do not use near standing water. Ensure the timer is mounted vertically at least 2 feet above the ground to maintain waterproof performance.
• Na-etinye ihe na-egosi oge ahụ mgbe niile n'ime oghere e tinyere n'ala.

Ngwaahịa gafereview

The HBN Outdoor Light Timer is a robust and easy-to-use device for managing your outdoor lighting needs. It incorporates a built-in photocell sensor and multiple timer functions to provide flexible control.

Image: The HBN Outdoor Light Timer features a photocell sensor that automatically turns lights on at dusk and off at dawn.

Akụkụ ndị bụ isi:

• Ọrụ Ọtụtụ Oge: Includes ON at dusk, OFF after 2/4/6/8 hours countdown, Always ON, Always OFF, and Dusk-to-Dawn.
• Photocell Light Sensor: Automatically detects dusk and darkness to activate/deactivate connected devices.
• Space-saving & Durable: Features a flat plug design and a weather-resistant casing for outdoor use.
• Ọ dị mfe iji: Simple dial adjustment for selecting desired operating modes.

Image: The timer dial allows selection of various modes including countdowns and dusk-to-dawn operation.

Melite

1. Họrọ ebe: Select an outdoor location that is exposed to natural light and free from obstructions that might block the photocell sensor. Ensure the location is at least 2 feet above the ground and allows for vertical mounting.
2. Plug In the Timer: Insert the timer's plug into a grounded outdoor electrical outlet.
3. Jikọọ ngwaọrụ gị: Plug your outdoor lights or appliance into the grounded outlet on the timer.
4. Nkwanye echekwabara: Use the integrated loop to hang the timer on a nail or screw to keep it off the ground and ensure the photocell faces upwards for optimal light sensing.

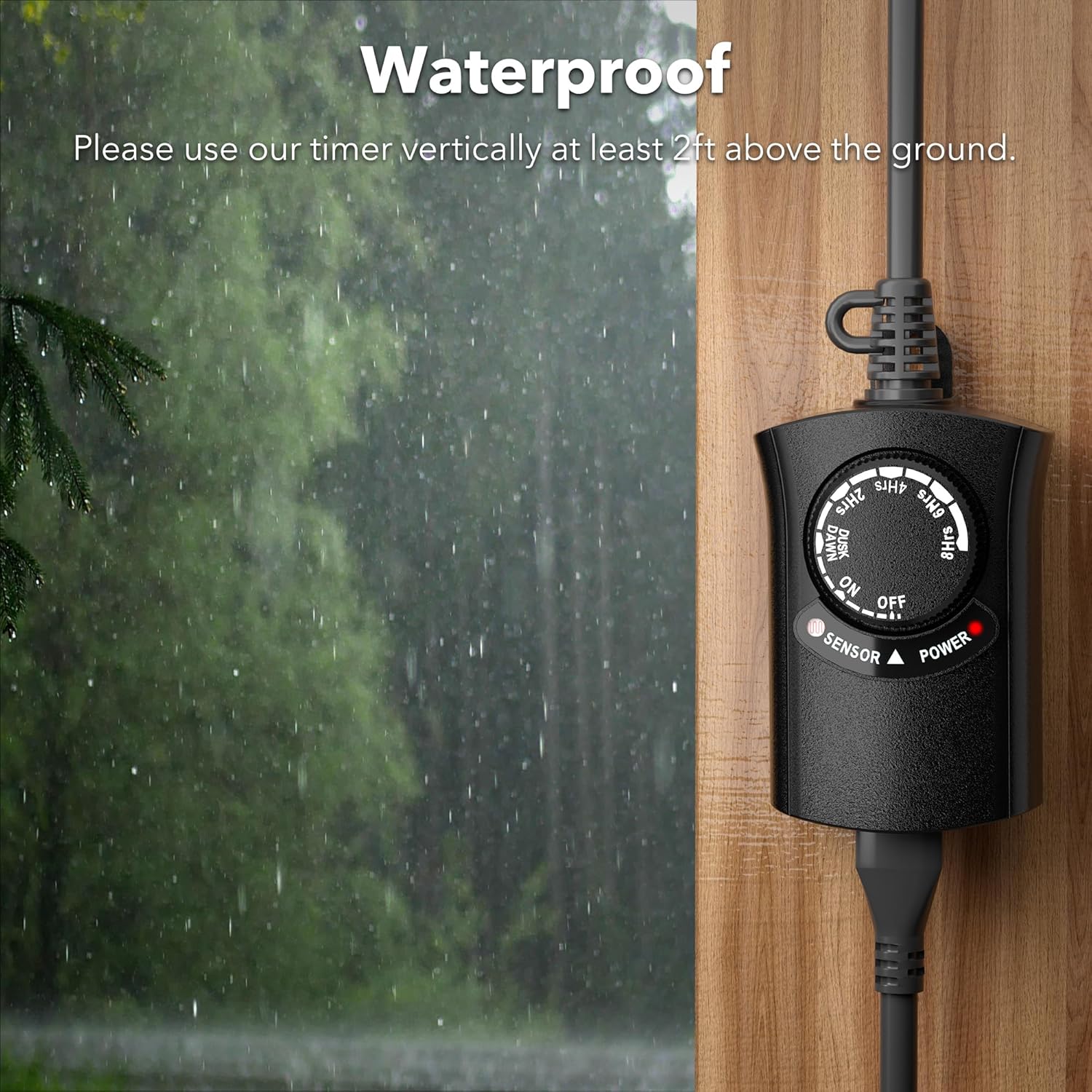

Image: For waterproof performance, mount the timer vertically at least 2 feet above the ground.

Ụdị arụ ọrụ

The timer features a rotating dial to select your desired operating mode. Align the arrow on the dial with the chosen setting.

• Gbanyụọ: Power is off to all connected devices.
• NA: Power is continuously supplied to all connected devices.
• ỤBỌCHỊ-DAWN: The timer will turn on at dusk and turn off at dawn automatically.
• 2HRS / 4HRS / 6HRS / 8HRS: The timer will turn on at dusk and remain on for the selected duration (2, 4, 6, or 8 hours), then turn off.

Nlekọta

To ensure optimal performance and longevity of your HBN Outdoor Light Timer:

• Regularly inspect the timer and connected cords for any signs of damage or wear.
• Keep the photocell sensor clean and free from dirt, debris, or obstructions to ensure accurate light detection.
• Store the timer in a dry, protected area when not in use for extended periods.

Nchọpụta nsogbu

If you encounter issues with your HBN Outdoor Light Timer, refer to the following common problems and solutions:

Issue 1: Devices fail to activate at dusk.

Ihe nwere ike ịkpata: The timer is placed in an area with excessive ambient light, preventing the photocell from detecting darkness.

Ngwọta: Relocate the timer to a darker area free from ambient light sources (e.g., streetlights, porch lights, car headlights).

Issue 2: Devices do not turn on even when the timer is set to the "ON" position.

Ihe nwere ike ịkpata: The connected devices may be turned off or malfunctioning. Light bulbs may need to be replaced.

Ngwọta: Test the connected devices by plugging them directly into a working outlet. Ensure each device is switched on, if it has its own power switch. Confirm that the outlet used by the timer is live – the LED indicator should illuminate when the timer is plugged in and set to "ON". Replace any faulty light bulbs as needed.

Issue 3: Lights are flickering (repeatedly turning on and off).

Ihe nwere ike ịkpata: The timer is set to Dusk-to-Dawn mode, and the light from the connected appliance is interfering with the photocell sensor.

Ngwọta: Relocate the lights further from the timer, or adjust the timer's position so that the lights do not shine directly on the photocell.

Issue 4: Power indicator light is not on.

Ihe nwere ike ịkpata: The timer is not fully plugged into the outlet, or the circuit breaker connected to the outlet has tripped.

Ngwọta: Ensure the timer is securely plugged into the outlet. Check the circuit breaker connected to the outlet and reset it if necessary.

Issue 5: Timer stays on after 2Hrs/4Hrs/6Hrs/8Hrs countdown.

Ihe nwere ike ịkpata: The photocell sensor may be obstructed or receiving ambient light, preventing it from accurately detecting darkness to initiate the countdown.

Ngwọta: Conduct a countdown test after covering the light sensor. Plug the timer into a wall outlet, cover the white photocell sensor on the front of the unit with a piece of black electrical tape. Set the timer to the 2-hour mode. (The unit should activate within 18 seconds of being in darkness.) After 2 hours, check if your appliance has turned off. If the appliance has turned off, relocate the timer to a darker area, as ambient light (e.g., car headlights, window light) may be interfering with the sensor.

Nkọwapụta

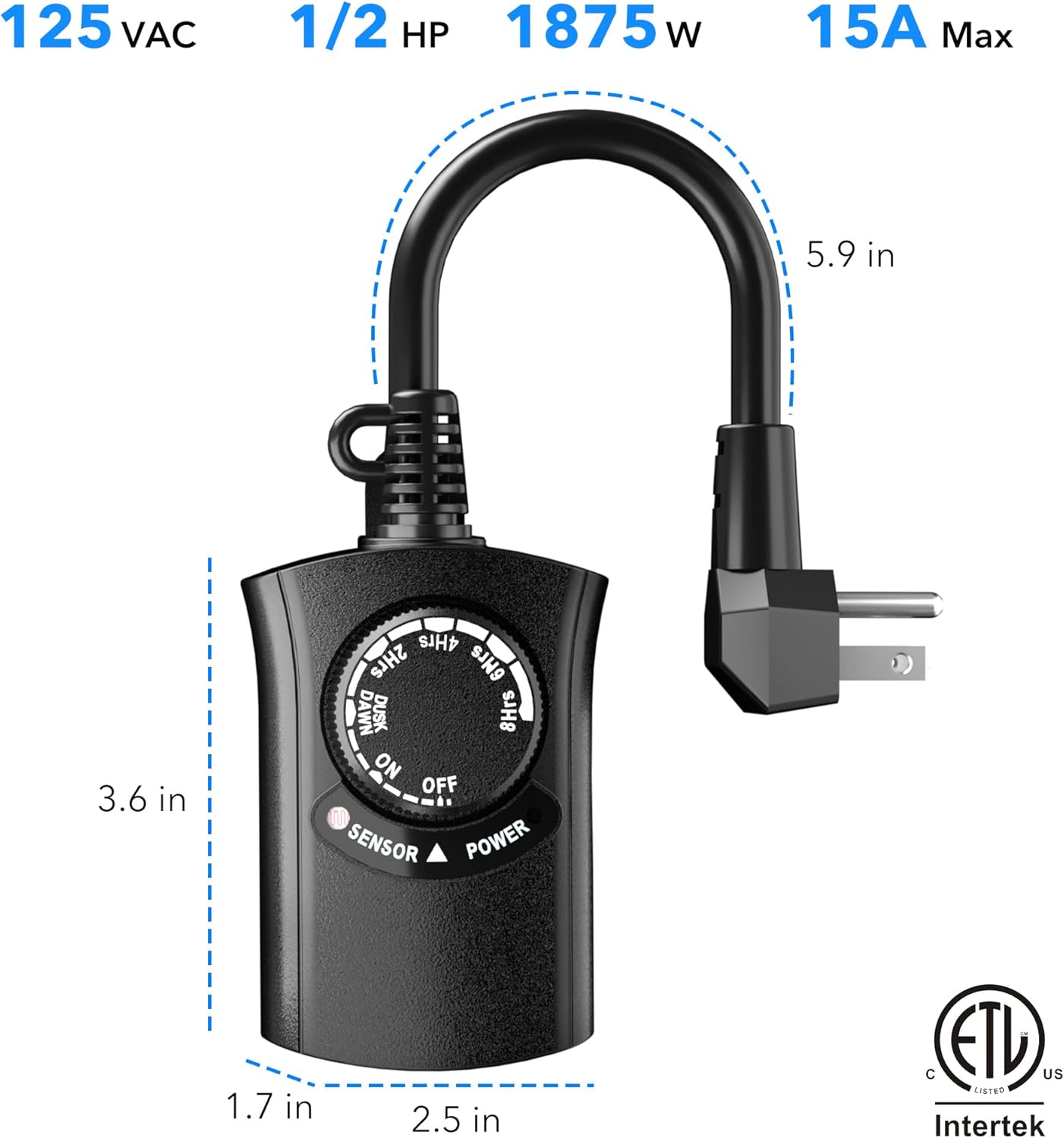

Image: Product dimensions and electrical ratings for the HBN Outdoor Light Timer.

Akwụkwọ ikike na nkwado

The HBN Outdoor Light Timer comes with a Akwụkwọ ikike nke ọnwa 12 and ongoing lifetime technical support.

For any assistance or inquiries, please contact our dedicated USA customer service team.

Email: support@bn-link.com
