1. Ngwaahịa gafereview
The Cata Bennu Slim 1200 X/A is a decorative island extractor hood designed for ceiling installation. It features a sleek stainless steel finish and advanced functionalities to ensure efficient air extraction and a quiet operation in your kitchen environment.
Key features include a touch control panel with an automatic disconnection timer and filter cleaning indicator, AUTO Cata connectivity for automatic control from a compatible hob, and six extraction levels (5 + 1 TURBO). It also boasts high-efficiency bicolor LED lighting (warm/natural) with adjustable intensity.
Foto 1.1: Elu view of the Cata Bennu Slim 1200 X/A island extractor hood, showcasing its minimalist design and integrated lighting strip.
2. Ozi nchekwa
Please read all instructions carefully before installation and use. Retain this manual for future reference. Always ensure the appliance is disconnected from the power supply before performing any maintenance or cleaning.
- Ensure proper ventilation in the room when the hood is used simultaneously with appliances burning gas or other fuels.
- Ejila flambé n'okpuru mkpuchi nso.
- Na-ehicha ihe nzacha griiz mgbe niile iji gbochie ihe egwu ọkụ.
- Ebubeghi ngwa a maka ndị mmadụ (gụnyere ụmụaka) nwere ike anụ ahụ, mmetụta uche ma ọ bụ nke uche, ma ọ bụ enweghị ahụmịhe na ihe ọmụma, ọ gwụla ma e nyere ha nlekọta ma ọ bụ ntụziaka.
- For information on recycling and cleaning of light bulbs, consult local regulations and guidelines.
3. Kedu ihe dị na Igbe ahụ
The product package for the Cata Bennu Slim 1200 X/A island extractor hood typically includes the following components:
- Cata Bennu Slim 1200 X/A Decorative Island Hood Unit
- Installation Kit (mounting brackets, screws, etc.)
- Njikwa anya
- Akwụkwọ ntuziaka onye ọrụ
Image 3.1: Diagram illustrating the main components and key features of the extractor hood, including the control panel, LED lighting, and filter system.
4. Nwụnye na Ntọala
The Cata Bennu Slim 1200 X/A is designed for ceiling installation. It features an innovative and exclusive system that simplifies the installation process, allowing for precise and easy mounting, even by a single person.
4.1. Nlebanya mbụ etinyere
- Ensure the ceiling structure can support the weight of the hood (approximately 30 kg).
- Verify that the minimum embedding height of 170mm is available in the ceiling.
- Confirm the power supply (240V) is accessible at the installation point.
- Prepare the ducting for air extraction (180x90mm flat discharge).
4.2. Ntụkwasị ụkwụ
- Mark the precise installation points on the ceiling according to the provided template or dimensions.
- Secure the mounting brackets firmly to the ceiling structure.
- Connect the electrical wiring, ensuring all connections are secure and insulated.
- Attach the hood unit to the secured brackets using the easy anchoring system.
- Connect the extraction ducting to the hood's outlet.
- Perform a functional test to ensure all features operate correctly.
Image 4.1: Detailed installation diagram showing the required dimensions and minimum embedding height of 170mm for the hood.
Image 4.2: Technical drawing providing precise measurements (in millimeters) for the hood unit, including length, width, and ducting dimensions.

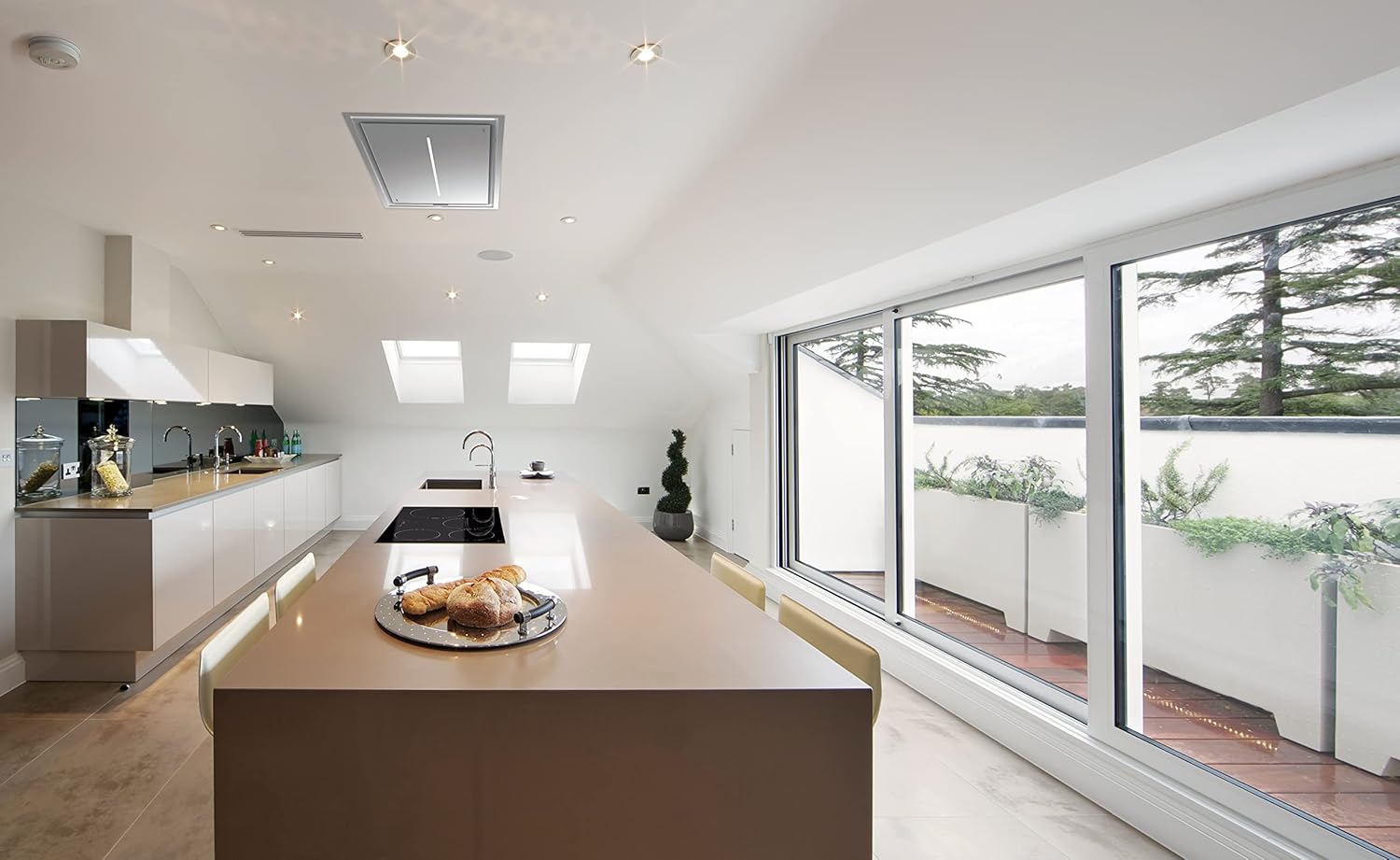

Image 4.3: The Cata Bennu Slim 1200 X/A hood seamlessly integrated into a contemporary kitchen ceiling, demonstrating its discreet design.
5. Ntuziaka ọrụ
The Cata Bennu Slim 1200 X/A features an intuitive touch control panel and can also be operated via a remote control.
5.1. Aka Control Panel
The touch control panel allows for easy management of the hood's functions. It includes:
- Gbanyụọ/ Gbanyụọ: Touch the power icon to turn the hood on or off.
- Extraction Levels: Select from 6 extraction levels (5 standard + 1 TURBO) to adjust suction power. Use the up/down arrows to cycle through levels.
- Njikwa ọkụ: Activate and adjust the intensity of the bicolor LED lighting.
- Ngụ oge: Set the automatic disconnection timer for convenient operation.
- Filter Cleaning Indicator: An indicator light will illuminate to remind you when the filters require cleaning.
5.2. Remote Control
The included remote control provides convenient operation from a distance, replicating the functions available on the touch panel.
5.3. AUTO Cata Connectivity
This feature allows the hood to automatically synchronize its operation with a compatible CATA induction hob. When the hob is turned on, the hood can automatically activate and adjust its extraction level based on the hob's activity, providing a seamless cooking experience.
Foto 5.1: Zuru ezu view of the hood's touch control panel, showing the power, speed adjustment, and light controls.
6. Nlekọta na nhicha
Regular maintenance ensures optimal performance and longevity of your extractor hood.
6.1. Grease Filter Cleaning
The hood is equipped with a filter cleaning indicator. When this indicator illuminates, it is time to clean the grease filters. These filters are typically made of mesh and can be washed by hand with warm soapy water or in a dishwasher (check manufacturer's guidelines for dishwasher compatibility). Ensure filters are completely dry before re-installing.
6.2. Mpụga ihicha
Clean the stainless steel exterior with a soft cloth and a non-abrasive cleaner specifically designed for stainless steel. Avoid using harsh chemicals, abrasive pads, or scouring agents, as these can damage the finish.
6.3. LED Lighting Maintenance
The high-efficiency LED lighting system is designed for long life. If replacement is ever needed, consult a qualified technician or refer to specific instructions for bulb replacement. For general information on cleaning and disposing of light bulbs, follow local recycling guidelines.
7. Nchọpụta nsogbu
If you encounter issues with your hood, refer to the following common troubleshooting steps:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Hood anaghị agba ọkụ | No power supply; loose connection; faulty control panel. | Check power outlet and circuit breaker. Ensure all connections are secure. Contact service if problem persists. |
| Low extraction power | Clogged grease filters; obstruction in ducting; incorrect speed setting. | Clean or replace grease filters. Check ducting for blockages. Increase extraction speed. |
| Oke mkpọtụ | Loose components; motor issue; improper installation; ducting issues. | Check for loose parts. Ensure proper installation. Verify ducting is correctly sized and installed. Contact service if motor noise is unusual. |
| Ọkụ anaghị arụ ọrụ | Faulty LED strip; electrical issue. | Check electrical connections to the lighting. If LED strip is faulty, contact service for replacement. |
8. Nkọwapụta
Technical specifications for the Cata Bennu Slim 1200 X/A island extractor hood:
- Nọmba nlereanya: 02111309
- Akụkụ (L x W x H): 126.6 x 76.1 x 26.6 cm
- Arọ ngwaahịa: 30 n'arọ
- Ihe: Igwe anaghị agba nchara
- Ụdị njikwa: Njikwa aka
- Extraction Levels: 6 (5 + 1 TURBO)
- Maximum Extraction Capacity: 560 m³/h (Reg.(UE)nº65/2014)
- Minimum Extraction Capacity: 334 m³/h (Reg.(UE)nº65/2014)
- Ọkwa mkpọtụ kacha: 65 dB(A) (Reg.(UE)nº65/2014)
- Minimum Noise Level: 50 dB(A) (Reg.(UE)nº65/2014)
- moto: S6 (Extra Silent)
- Maximum Energy Consumption: 85W
- Ọkụ: High-efficiency Bicolor LED (Warm/Natural), adjustable intensity
- Voltage: 240V
- Ụdị nzacha: Ntupu
- Ụdị ikuku ikuku: Ducted/Vented
- Minimum Embedding Height: 170mm
- Klas arụmọrụ ike: A+
9. Akwụkwọ ikike na nkwado
Maka ozi gbasara akwụkwọ ikike, biko lee kaadị akwụkwọ ikike dị na ngwaahịa gị ma ọ bụ gakwuru onye na-ere ahịa ị zụtara ngwa ahụ n'aka ya. Usoro na ọnọdụ akwụkwọ ikike nwere ike ịdị iche site na mpaghara na ụlọ ahịa.
For technical support, spare parts, or service inquiries, please contact Cata customer service or an authorized service center. Contact details can typically be found on the manufacturer's official websaịtị ma ọ bụ na akwụkwọ ịzụrụ ihe gị.
