Laserliner 082.262A Inspection Camera

1. Okwu mmalite

This manual provides essential information for the safe and effective use of your Laserliner 082.262A Inspection Camera. Please read these instructions carefully before operating the device and keep them for future reference. The Laserliner 082.262A is a robust inspection camera designed for visual inspection of inaccessible areas, featuring a 5mm diameter and 1m length probe.

2. Ozi nchekwa

Na-agbaso ihe ndị a dị mkpa mgbe niile iji gbochie mmerụ ahụ na mmebi nke ngwaọrụ ahụ:

• Do not immerse the main unit in water. The camera probe is water-resistant, but the display unit is not.
• Do not use the device in explosive atmospheres or near flammable gases or liquids.
• Debe ngwaọrụ ahụ ka ụmụaka ghara iru ya.
• Do not attempt to modify or disassemble the device. Refer all servicing to qualified personnel.
• Hụ na etinyere batrị n'ebe kwesịrị ekwesị. Wepụ batrị ma ọ bụrụ na a gaghị eji ngwaọrụ ahụ ruo ogologo oge.
• Avoid direct eye exposure to the camera's LED lights.

3. Ihe ngwugwu

Chọpụta na ihe niile dị mgbe ị na-ebupụ:

• Laserliner 082.262A Inspection Camera (main unit with display)
• Flexible camera probe (5mm diameter, 1m length)
• Batteries (Alkaline)
• Akwụkwọ ntuziaka onye ọrụ

4. Ngwaahịa gafereview

Familiarize yourself with the components of your inspection camera.

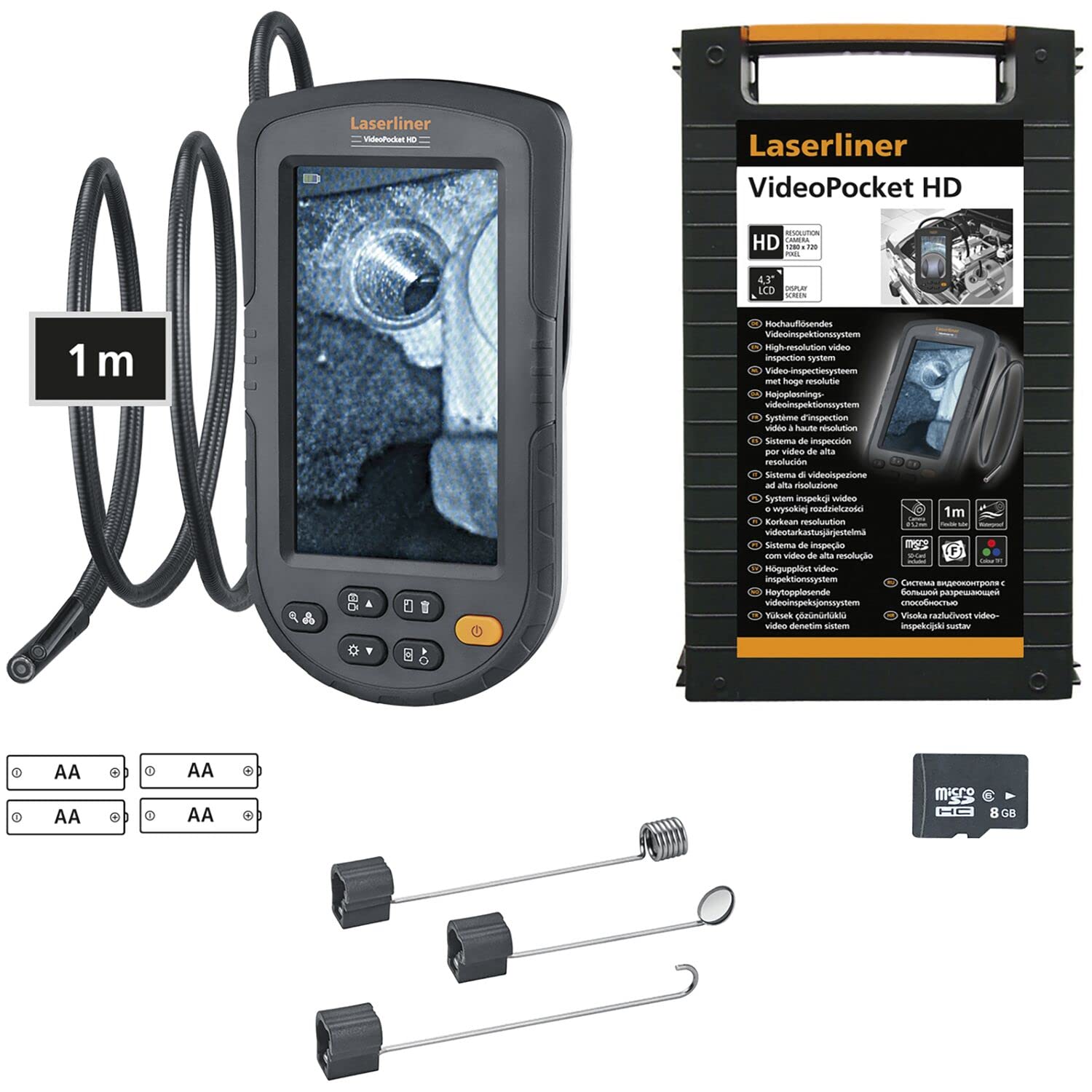

Figure 1: Laserliner 082.262A Inspection Camera. The image shows the handheld display unit connected to the flexible camera probe, ready for use.

The device consists of a main display unit with control buttons and a flexible probe with an integrated camera and LED lighting at its tip. The probe is designed to navigate tight spaces and transmit live video to the display.

5. Nhazi

Follow these steps to prepare your inspection camera for first use:

1. Nwụnye batrị: Open the battery compartment on the rear of the main unit. Insert the provided alkaline batteries, ensuring correct polarity (+/-). Close the compartment securely.
2. Njikọ nyocha: Connect the flexible camera probe to the designated port on the main unit. Ensure a firm connection.

Ọgụgụ 2: N'azụ view of the inspection camera. This image illustrates the back of the device, including the product label and the area where the flexible probe connects.

6. Ntuziaka ọrụ

This section details how to operate your Laserliner 082.262A Inspection Camera.

6.1 Gbanyụọ/ gbanyụọ

• To power on: Press and hold the power button (usually orange) until the display illuminates.
• Iji gbanyụọ ọkụ: Pịa ma jide bọtịnụ ike ahụ ọzọ ruo mgbe ngosipụta ahụ gbanyụrụ.

6.2 Njikwa ntọala

The main unit features several buttons for controlling the camera and display functions:

• Ikanam ihie: Adjust the intensity of the camera's LED lights for optimal visibility in dark environments.
• Ntụgharị onyonyo: Rotate the image on the display for correct orientation, especially when the probe is twisted.

Figure 3: Image Rotation. This diagram illustrates how the image can be rotated on the display, showing 0, 90, 180, and 270-degree orientations.

6.3 Optimal Focus Distance

The camera has a fixed focus. For clear images, position the camera tip within the optimal focus range, typically a few centimeters from the object.

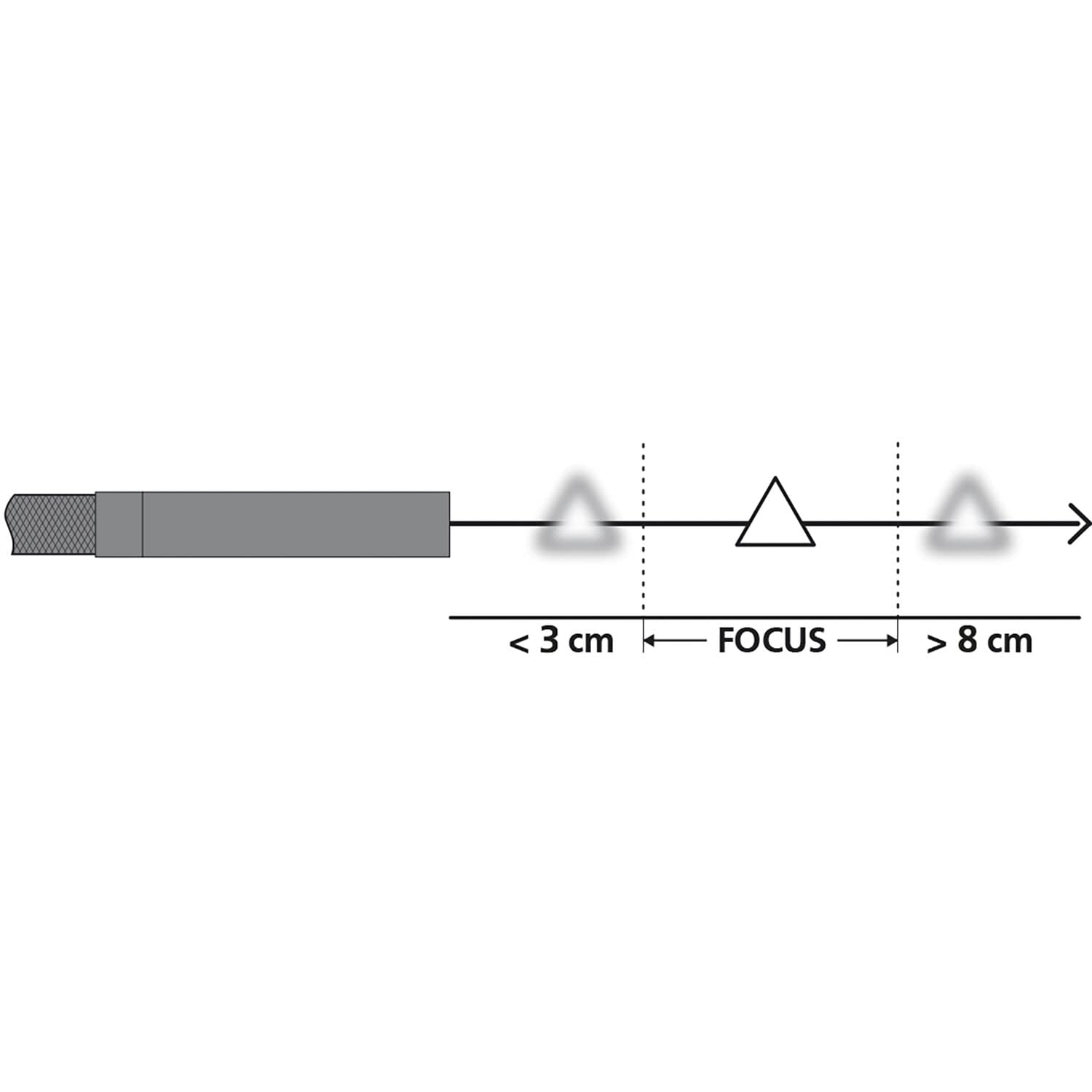

Figure 4: Focus Range. This diagram shows the recommended distance for clear imaging, indicating that objects too close (less than 3 cm) or too far (greater than 8 cm) may appear blurry, with an optimal focus zone in between.

6.4 Practical Applications

The inspection camera is versatile for various tasks:

• Nyocha ngwa: Examine internal components of dishwashers or other household appliances.

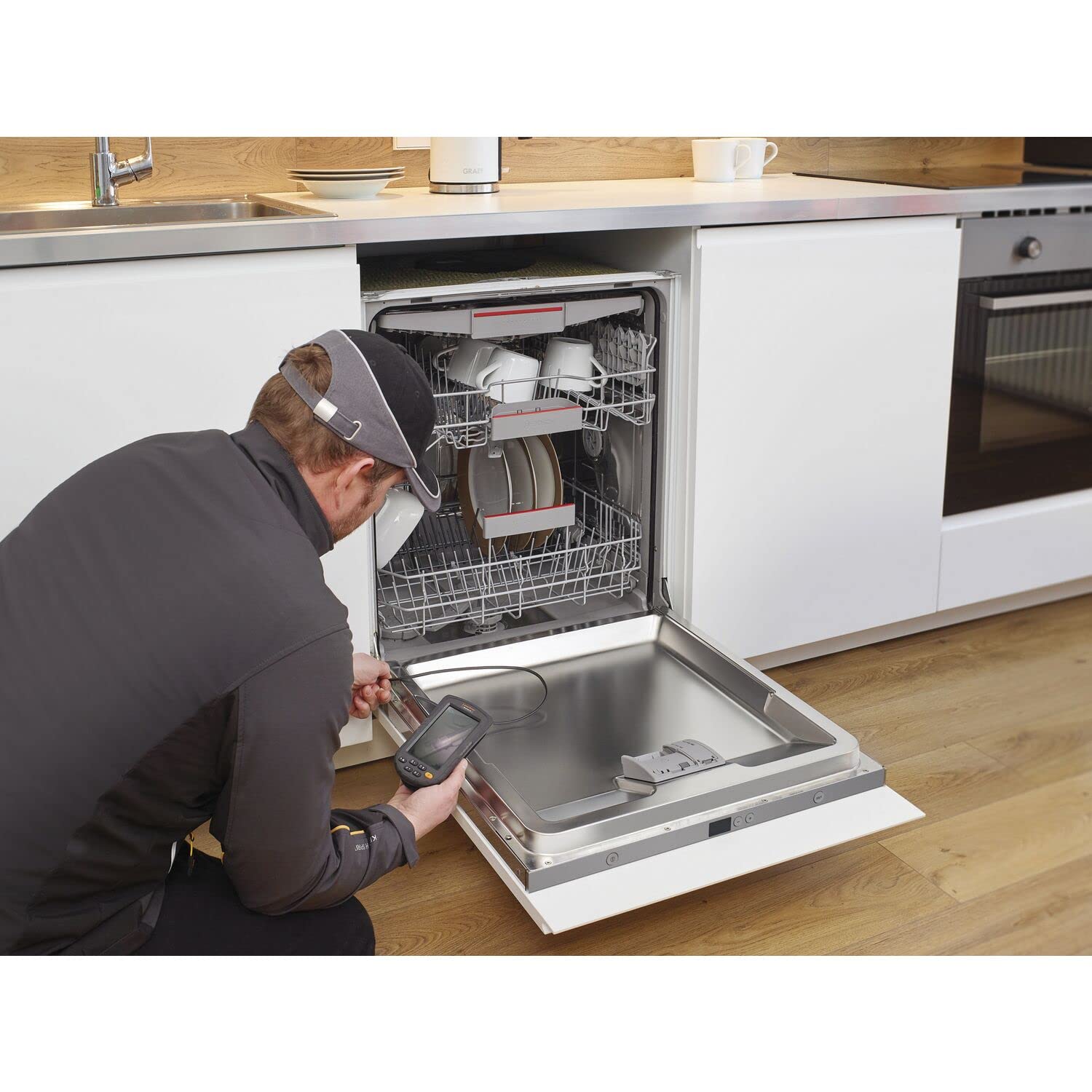

Figure 5: Dishwasher Inspection. A technician uses the inspection camera to view the internal workings of a dishwasher, checking for blockages or damage.

• Nchọpụta akpaaka: Inspect engine compartments, cylinders, or other vehicle parts.

Figure 6: Engine Inspection. The camera probe is inserted into an engine bay, allowing for visual inspection of internal components without extensive disassembly.

• Plumbing and Drainage: Check pipes, drains, and sewage systems for clogs or damage.

Figure 7: Drain Inspection. The camera is used to inspect a floor drain, providing a clear view of the pipe's interior.

• Cavity and Wall Inspections: Explore behind walls, ceilings, or other enclosed spaces.

Figure 8: Ceiling Cavity Inspection. The camera probe is inserted into a ceiling opening to inspect the hidden space above.

• Sink and Shower Drains: Nweta na view blockages or issues in bathroom plumbing.

Figure 9: Sink Drain Inspection. The camera is positioned to inspect the U-bend of a sink drain, revealing any obstructions.

Figure 10: Shower Drain Inspection. The camera probe is inserted into a shower drain to check for blockages or pipe conditions.

• Gutter and Downspout Inspection: Identify debris or damage in exterior drainage systems.

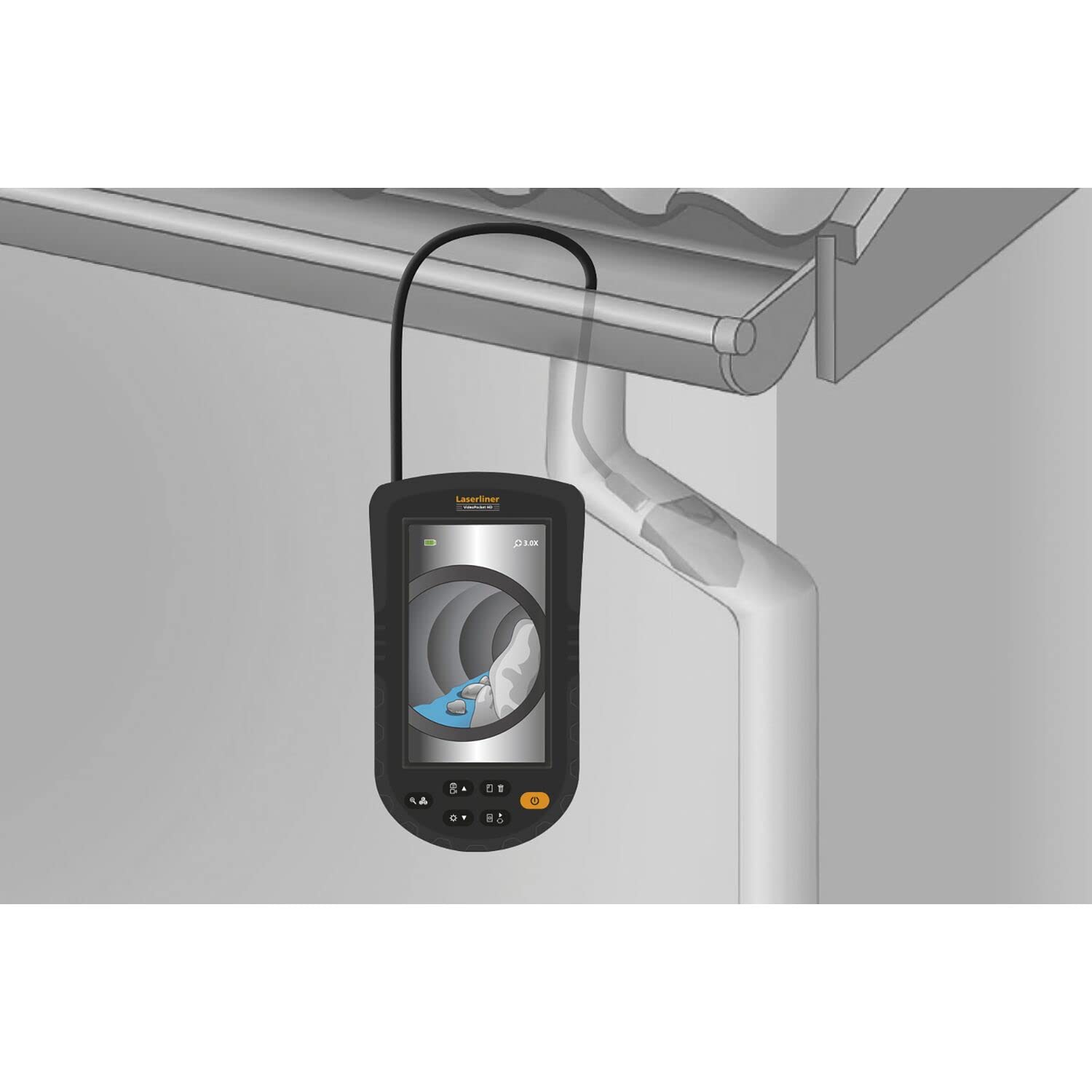

Figure 11: Gutter Inspection. The camera is used to inspect a gutter and downspout, showing the presence of leaves and debris.

7. Nlekọta

Proper maintenance ensures the longevity and performance of your device.

• Nhicha: Jiri ákwà dị nro ma kpọọ nkụ hichaa ihe dị n'ime ngwaọrụ ahụ. Enwere ike iji mgbasa ozi hichaa ihe nyocha igwefoto ahụ.amp cloth and mild detergent. Ensure no liquid enters the main unit.
• Nlekọta batrị: Replace batteries when the low battery indicator appears. Remove batteries if the device is not used for extended periods to prevent leakage.
• Nchekwa: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Coil the probe loosely to avoid kinking.

8. Nchọpụta nsogbu

Ọ bụrụ na ị na-enwe nsogbu, rụtụ aka na nsogbu ndị a na-ahụkarị na ngwọta ndị a:

If the problem persists after trying these solutions, please contact Laserliner customer support.

9. Nkọwapụta

Detailed technical specifications for the Laserliner 082.262A Inspection Camera:

10. Akwụkwọ ikike na nkwado

For warranty information, please refer to the documentation provided with your purchase or visit the official Laserliner website. For technical support or service inquiries, contact Laserliner customer service directly.

Spare parts availability: Information unavailable.

11. Ozi mkpofu

Electronic devices and batteries must not be disposed of with household waste. Please dispose of them according to local regulations at designated collection points for electronic waste and batteries. Proper disposal helps protect the environment and human health.
