1. Ngwaahịa gafereview
This manual provides instructions for the Tecnolite YS-100/N 1-meter black track lighting rail and the YS-I/N black straight connector. These components are designed to create flexible and customizable lighting solutions for various indoor spaces, allowing you to arrange spotlights to highlight specific areas or objects.
Foto nke 1.1: Jupụtara view of the Tecnolite YS-100/N 1-meter black track lighting rail, showcasing ya sleek imewe.
2. Atụmatụ igodo
- Ọkụ nwere ike ịhazi ya: The track rail system allows for creating personalized lighting layouts and extending the track to form larger circuits.
- Ihe owuwu na-adịgide adịgide: Ejiri ihe dị elu rụọ ya maka arụmọrụ na-adịgide adịgide.
- Ọkọlọtọ Akụkụ: 1 meter (approximately 99.4 cm) in length.
- Ndakọrịta ọkụ eletrik: Operates on 100 - 240 V with a 3-wire / 1-phase system.
- Sistemu enwere ike ịgbasa: Compatible with Tecnolite Y-200 2-meter track rails and YS-I (straight) and YS-L (L-shaped) connectors for versatile configurations.
- Spotlight Compatibility: Suitable for all Tecnolite track spotlights and most standard track spotlights available in the market. (Note: Spotlights are not included with this product.)
- Nwụnye dị mfe: Features pre-drilled holes for simple and secure ceiling mounting.
- Nhazi mma: Available in black (and white for other models) to complement various interior designs, adding visual rhythm and elegance.
Image 2.1: Infographic highlighting key features such as suitability for track systems, 99.4 cm length, indoor installation, 100-240V voltage, robust construction, and 1-year warranty.
3. Ihe ngwugwu
Ngwungwu ahụ gụnyere:
- 1 x Tecnolite YS-100/N Track Lighting Rail (1 meter, Black)
- 1 x Tecnolite YS-I/N Straight Connector (Black)
Note: Spotlights and additional connectors (e.g., L-shaped) are sold separately.
Image 3.1: The Tecnolite YS-I/N black straight connector, used to join two track rails.

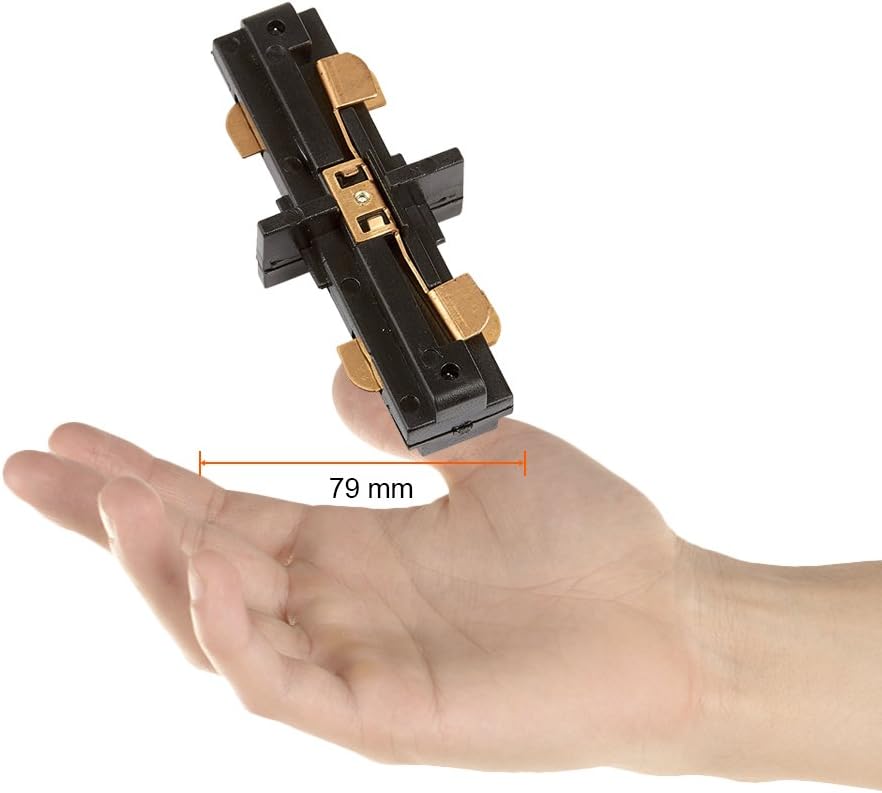

Image 3.2: A hand holding the YS-I/N straight connector, demonstrating its compact size of 79mm.
Image 3.3: Technical drawing providing precise dimensions of the YS-I/N straight connector.
4. Ntuziaka nwụnye
Nchekwa Mbụ: Before beginning any installation, ensure the power supply to the installation area is turned off at the circuit breaker. If you are unsure about electrical wiring, consult a qualified electrician.
4.1. Ịwụnye okporo ụzọ okporo ụzọ
- Nhazi atụmatụ: Determine the desired layout for your track lighting system on the ceiling. Mark the positions for the track rails and any connectors.
- Track ọnọdụ: Hold the YS-100/N track rail against the ceiling at the marked position.
- Kaa akara ebe a na-egwupụta ihe: Use the pre-drilled holes on the track rail as a template to mark the drilling points on the ceiling.
- Oghere egwu egwu: Drill appropriate holes in the ceiling for mounting screws. Insert wall anchors if necessary.
- Egwu echekwara Fasten the track rail to the ceiling using suitable screws. Ensure it is securely mounted and level.
- Njikọ eletrik: Connect the track rail to the main power supply. This typically involves connecting the live, neutral, and ground wires. Ensure all connections are secure and insulated.
4.2. Connecting Multiple Track Rails (Using YS-I/N Straight Connector)
If you are extending your track system or creating specific shapes, use the YS-I/N straight connector:
- Align Rails: Position two YS-100/N track rails end-to-end where they need to be joined.
- Insert Connector: Slide the YS-I/N straight connector into the ends of both track rails. Ensure the electrical contacts align properly.
- Njikọ echekwara The connector should fit snugly. Some connectors may have small screws to further secure them to the track. Tighten if applicable.
- Tinyegharịa: Continue this process for all additional track segments and connectors (e.g., YS-L for L-shapes) to complete your desired layout.
4.3. Installing Spotlights (Sold Separately)
Once the track system is installed and wired, you can attach compatible track spotlights:
- Align Spotlight: Align the spotlight's adapter with the track slot.
- Fanye na Twist: Insert the adapter into the track and twist it to lock it into place. Ensure it makes proper electrical contact.
- Hazie Ọkwa: Slide the spotlight along the track to its desired position and adjust its direction as needed.
Installation Video (Similar Product)
The following video demonstrates the unboxing and general installation process for a similar track lighting rail system. While the model number may differ, the principles of installation are largely the same.
Video 4.1: Unboxing and installation overview for a track lighting rail (model TL-5100), provided by Illux de México (Seller). This video illustrates how to handle and prepare a track rail for installation.
5. Ọrụ
Once the track lighting system is fully installed and spotlights are attached, restore power to the circuit. The lights can then be operated via the wall switch connected to the track system. Individual spotlights can often be adjusted in direction to illuminate specific areas.
6. Nlekọta na nlekọta
- Nhicha: To clean the track rails and connectors, wipe them with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
- Gbanyụọ tupu ihicha: Always turn off the power to the track lighting system before cleaning or performing any maintenance.
- Lelee njikọ: Periodically check that all track segments and spotlights are securely connected and that mounting screws are tight.
- Ndokwa bọlbụ: When replacing spotlights or bulbs (if applicable), ensure the power is off and use compatible replacements.
7. Nchọpụta nsogbu
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Ọkụ anaghị agbanwu. | Enweghị ike na sekit. Ejikọghị ọkụ eletrik. Faulty spotlight/bulb. | Lelee ihe nbibi sekit. Verify all wiring connections are secure (power off first). Test with a known working spotlight/bulb. |
| Ọkụ na-egbuke egbuke. | Loose connection at track or spotlight. Incompatible spotlight/bulb. | Ensure spotlights are properly seated and twisted into the track. Check electrical connections (power off first). Use recommended spotlights/bulbs. |
| Track segments do not connect properly. | Etinyeghị njikọ ahụ nke ọma. Debris in track slot. | Ensure connector is fully pushed into both track ends. Inspect track slots for any obstructions and clear them. |
8. Nkọwapụta ngwaahịa
| Njirimara | Nkọwa |
|---|---|
| Ụdị | Tecnolite |
| Model (Track Rail) | YS-100/N |
| Model (Straight Connector) | YS-I/N |
| Agba | Nwa |
| Ihe onwunwe | Plastic |
| Ụdị mmecha | Agba |
| Ụdị | Oge a |
| Ụkpụrụ | Track + Tecnolite Straight Connector |
| Ụdị | Round (referring to overall system flexibility) |
| Isi Iyi Ike | Igwe ọkụ eletrik |
| Bulb Type (Compatible) | Track spotlights |
| Nkwụnye Profile | Ugwu elu ụlọ |
| Batrị gụnyere | Mba |
| Mbụ Dị | Maachị 1, 2023 |
9. Akwụkwọ ikike na nkwado
9.1. Akwụkwọ ikike Ozi
This Tecnolite product comes with a 1-afọ akwụkwọ ikike against manufacturing defects. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.
9.2. Nkwado ndị ahịa
For technical assistance, troubleshooting, or warranty inquiries, please contact Tecnolite customer service through their official website or the retailer where the product was purchased. Have your product model number and purchase date ready when contacting support.
