TOOLPORT Garden Gazebo 3x3m Steel Roof, Dark Grey

Okwu mmalite

This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your TOOLPORT Garden Gazebo. This 3x3 meter gazebo features a durable steel roof, a robust aluminum frame, and four side walls, designed for all-season use. It offers optimal protection against various weather elements and UV radiation, ensuring a stable and reliable outdoor shelter for your garden or patio.

Image: The TOOLPORT Garden Gazebo, 3x3m, dark grey, with its steel roof and side walls.

Ozi nchekwa

• Gụọ ntuziaka niile: Before assembly and use, carefully read and understand all instructions in this manual.
• Two-person assembly: Assembly requires at least two adults. Some parts are heavy and require careful handling to prevent injury.
• Secure anchoring: Always ensure the gazebo is securely anchored to the ground using the provided ground anchors. In areas prone to strong winds, additional anchoring may be necessary.
• Clear area: Assemble the gazebo in a clear, level area, away from overhead power lines, trees, or other obstructions.
• Inspect regularly: Periodically check all connections, bolts, and anchors to ensure they remain tight and secure.
• Ọnọdụ ihu igwe: While designed for all seasons, extreme weather conditions (e.g., heavy snow accumulation, severe storms) may require temporary disassembly or additional precautions. Clear heavy snow from the roof promptly.

Ihe ngwugwu

Verify that all components are present and undamaged before beginning assembly. The package includes:

• Weather-resistant aluminum posts (approx. 9x9 cm square profiles)
• Galvanized steel roof panels (approx. 0.5 mm thick)
• 4 side walls with suspension hooks
• 8 ground anchors for secure fixation
• Ntuziaka mgbakọ
• Basic assembly tools (two 10mm pressed steel spanners)

While basic tools are provided, a 10mm socket wrench and a stepladder are recommended for easier and quicker assembly.

Image: Basic tools for assembly.

Ntuziaka na Nhazi na Mgbakọ

The assembly process is designed to be straightforward with pre-drilled profiles and a high-quality connection system. An estimated assembly time for two people is approximately 4 hours. Follow these general steps:

1. Nkwadebe: Unpack all components and sort them by their identification numbers. Ensure you have a clear, level assembly area.
2. Mgbakọ Frame: Begin by assembling the main aluminum frame structure. Connect the posts and horizontal beams according to the diagrams in the provided manual. Ensure all bolts are finger-tight initially.
3. Ihe owuwu ụlọ: Construct the roof support frame. This step will require a stepladder. The components are designed for a precise fit.
4. Ntinye Panel Ụlọ: Attach the galvanized steel roof panels to the roof structure. These panels provide optimal all-season protection and are 100% waterproof.
5. Mmechi ikpeazụ: Once the main structure and roof are in place, systematically tighten all bolts and connections. Ensure the structure is plumb and level.
6. Ịkwado: Secure the gazebo to the ground using the 8 provided ground anchors. This is crucial for stability and safety.
7. Side Wall Attachment: Hang the four side walls using the integrated suspension hooks.

Foto: Ime view of the steel roof structure.

Image: Detail of the roof corner and main support post.

Image: Base plate with anchoring points.

Image: Attaching a side wall to the frame.

Ntuziaka ọrụ

Your TOOLPORT Garden Gazebo is designed for versatile use throughout the year.

• Mgbidi akụkụ: The four included side walls can be easily opened or closed as needed. They attach via suspension hooks and can be tied back to the posts when not in use, or fully closed for privacy and protection from wind or sun.
• Nchekwa oge niile: The galvanized steel roof provides robust protection against rain, sun, and light snow, allowing the gazebo to remain a functional outdoor space year-round. The material offers UV protection.
• Igwe ikuku: When side walls are closed, ensure adequate ventilation, especially during hot weather, to prevent heat buildup.

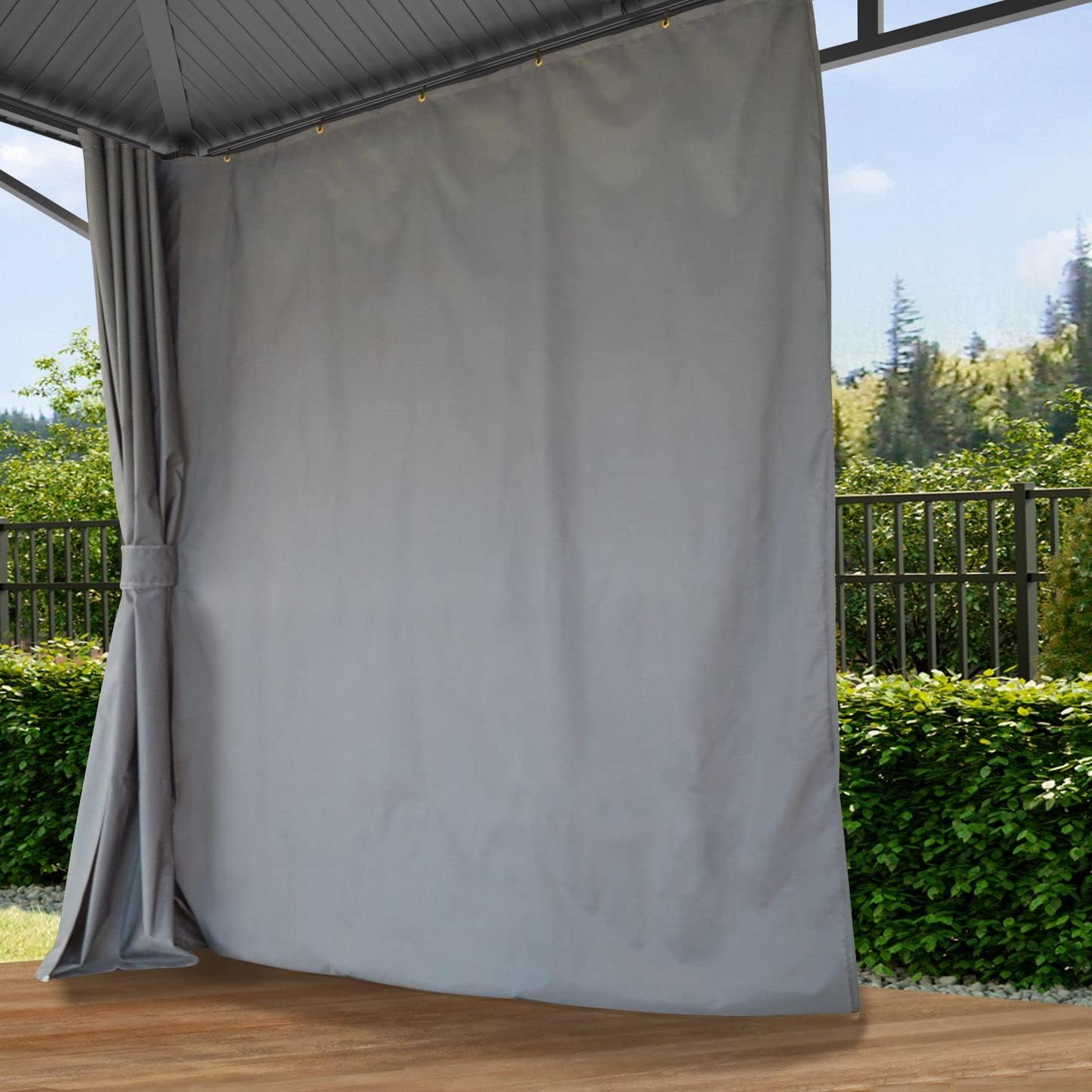

Image: Side wall fully extended.

Image: Side wall tied back.

Nlekọta

Regular maintenance will extend the lifespan and appearance of your gazebo.

• Ịsacha Ụlọ: Clean the steel roof panels periodically with mild soap and water. Avoid abrasive cleaners or harsh brushes that could damage the galvanized coating. Rinse thoroughly.
• Cleaning Side Walls: The fabric side walls can be cleaned with a soft brush or cloth and mild soapy water. Allow them to air dry completely before folding or storing to prevent mildew.
• Nlekọta Frame: The aluminum frame is resistant to UV and corrosion. Clean with a damp cloth as needed. Avoid scratching the finish.
• Lelee ngwa ngwa: Annually, or after severe weather, inspect all bolts, screws, and ground anchors. Tighten any loose fasteners to maintain structural integrity.
• Nlekọta oge oyi: While the gazebo is designed for all seasons, it is advisable to clear heavy snow accumulation from the roof to prevent excessive load. If extreme winter conditions are expected, consider disassembling and storing the fabric side walls.

Nchọpụta nsogbu

• Gazebo na-enwe mmetụta na-adịghị mma:
  Ngwọta: Ensure all frame bolts are securely tightened. Verify that the ground anchors are firmly installed and that the gazebo is on a level surface. Re-check the stability of the ground where anchors are placed.
• Water leakage from the roof:
  Ngwọta: Inspect the roof panels for any gaps or damage. Ensure all roof panel connections are properly sealed and tightened. While the roof is waterproof, extreme conditions or improper assembly can sometimes lead to minor leaks.
• Side walls do not slide smoothly:
  Ngwọta: Check the suspension hooks and the track for any obstructions or debris. Ensure the hooks are correctly seated in the track. Clean the track if necessary.
• Akụkụ na-efu ma ọ bụ mebiri emebi:
  Ngwọta: Refer to the package contents list. If parts are missing or damaged upon delivery, contact TOOLPORT customer service immediately.

Nkọwapụta

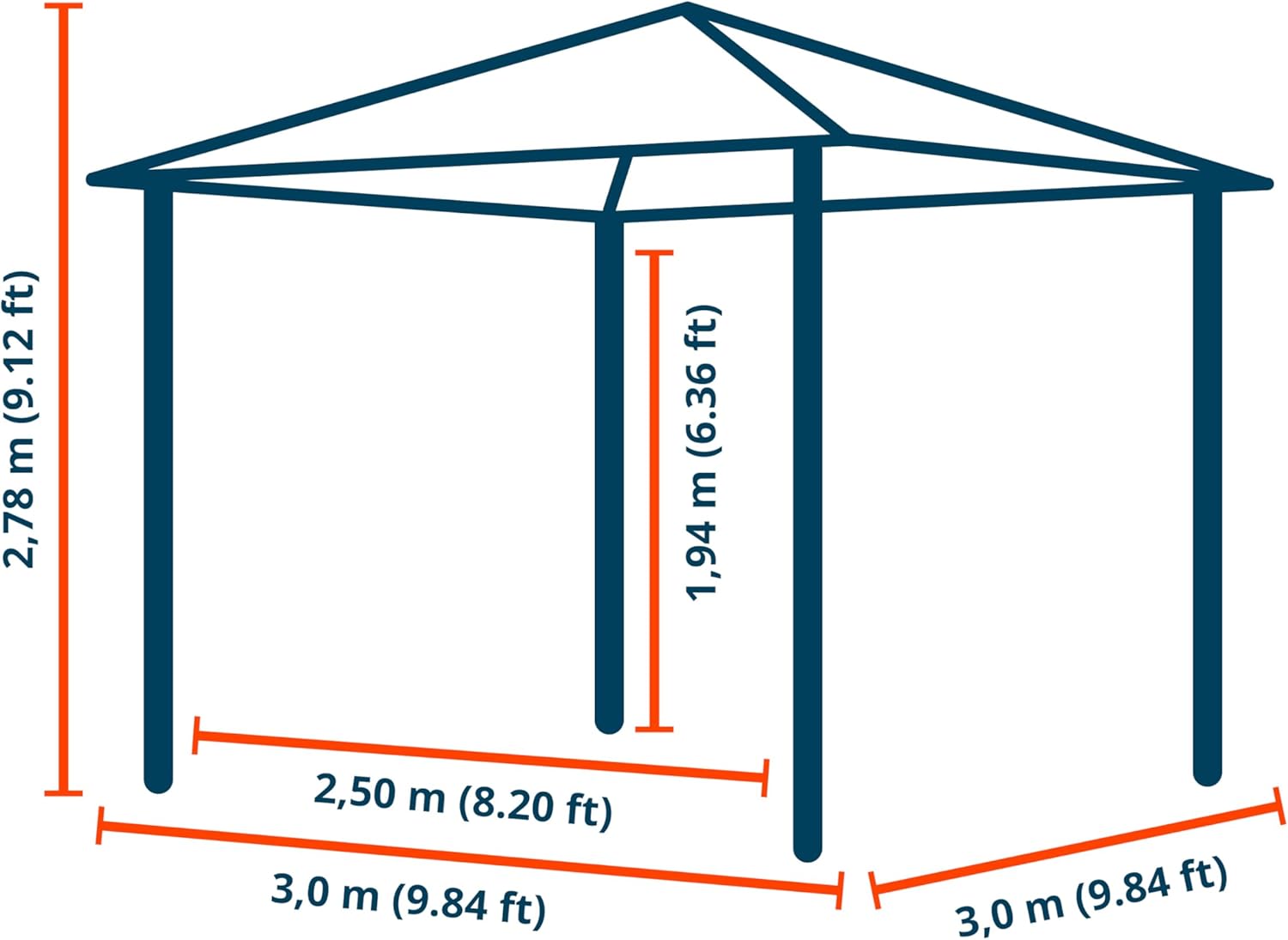

Image: Dimensional diagram of the 3x3m gazebo.

Akwụkwọ ikike na nkwado

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact TOOLPORT customer service directly. Spare parts availability information is currently unavailable through this manual. For any questions, concerns, or to report missing/damaged parts, please contact your retailer or TOOLPORT customer support.
