Philco PEF750P 70W Automatic Citrus Juicer User Manual

1. Ntuziaka nchekwa dị mkpa

Please read all instructions carefully before using the Philco PEF750P Automatic Citrus Juicer. Keep this manual for future reference.

• Nchekwa Eletriki: Gbaa mbọ hụ na voltage of your electrical outlet matches the voltage specified on the appliance (127 Volts). Do not use the appliance if the power cord or plug is damaged.
• Mmiri na mmiri: To protect against electrical shock, do not immerse the motor unit, cord, or plug in water or other liquids.
• Ụmụaka: This appliance is not intended for use by children. Close supervision is necessary when any appliance is used near children.
• Ọrụ: Always operate the juicer on a stable, flat, and dry surface. Do not operate the appliance continuously for extended periods to prevent overheating.
• Nhicha: Always unplug the appliance from the power outlet before cleaning or when not in use. Refer to the 'Cleaning and Maintenance' section for detailed instructions.
• Ndozi: Anwala ịrụzi ngwaọrụ ahụ n'onwe gị. Kpọtụrụ ndị ọrụ nlekọta ruru eru maka ndozi ọ bụla.

2. Ngwa ngwaahịa

Familiarize yourself with the parts of your Philco PEF750P Automatic Citrus Juicer:

• Ngalaba moto: The base of the juicer containing the motor and power cord.
• Sieve (Peneira): Filters pulp and seeds from the juice.
• Cone (Cone para frutas cítricas): The rotating part that extracts juice from citrus fruits.
• Lid (Tampa com aba ajustada à jarra): Protects the juicing mechanism and helps guide the fruit.

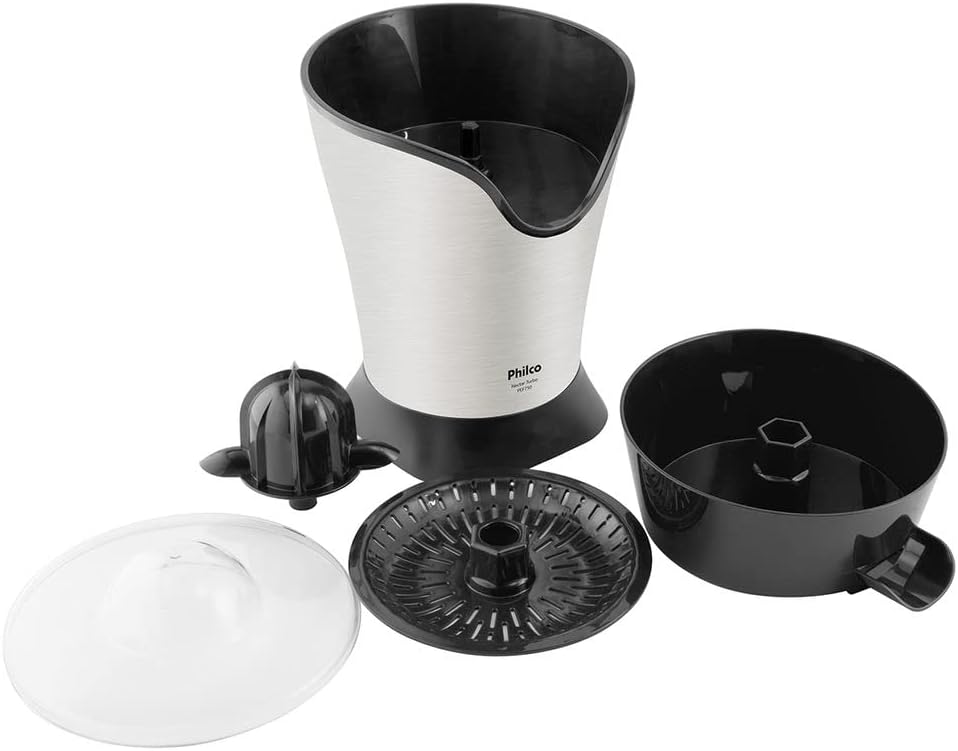

Foto nke 2.1: All components of the Philco PEF750P Automatic Citrus Juicer, including the main motor unit, the juice collection container, the sieve, the juicing cone, and the transparent lid.

3. Nhazi

Before first use, and after each cleaning, follow these steps to set up your juicer:

1. Ịkwapu: Jiri nlezianya wepụ ihe niile dị na nkwakọ ngwaahịa.
2. Ọcha: Wash the detachable parts (sieve, cone, lid) with warm, soapy water. Rinse thoroughly and dry completely. Do not wash the motor unit.
3. Mkpọkọta:
   • Place the sieve onto the motor unit, ensuring it is securely seated.
   • Position the juicing cone onto the spindle of the sieve.
   • Place the lid on top, aligning it with the juicer's body.
4. Nkwanye: Place the assembled juicer on a stable, flat, and dry surface. The anti-slip feet will help keep it secure.
5. Njikọ Ike: Tinye eriri ọkụ n'ime oghere eletrik 127V kwesịrị ekwesị.

4. Ntuziaka ọrụ

Follow these steps to extract juice from citrus fruits:

1. Kwadebe mkpụrụ osisi: Bee mkpụrụ osisi citrus (oroma, lemon, lime, mkpụrụ vaịn) n'ime ọkara.
2. Position Fruit: Place one half of the fruit, cut-side down, onto the juicing cone.
3. Malite Ịṅụ Mmiri: Gently press the fruit down onto the cone. The juicer will automatically activate due to pressure.
4. Extract Juice: Continue pressing and rotating the fruit slightly until all juice is extracted. The juice will flow through the sieve into the collection area.
5. Kwụsị ịṅụ mmanya: Release pressure from the fruit, and the motor will automatically stop.
6. Tinyegharịa: Repeat the process with remaining fruit halves.
7. jee ozi: Once juicing is complete, unplug the appliance and pour the fresh juice.

Foto nke 4.1: Demonstrating the automatic pressure activation of the Philco PEF750P juicer, with a hand pressing an orange half onto the cone for juice extraction.

5. Nhicha na mmezi

Ịsacha ihe mgbe niile na-eme ka arụmọrụ ya dịkwuo mma ma na-eme ka ihe na-esi ísì ụtọ gị dịgide ogologo oge.

1. Kwụpụ: Always unplug the juicer from the power outlet before cleaning.
2. Kwụsa: Remove the lid, juicing cone, and sieve from the motor unit.
3. Sachaa akụkụ ndị a na-ewepụ: Wash the lid, cone, and sieve in warm, soapy water. Use a brush if necessary to remove pulp from the sieve. Rinse thoroughly under running water.
4. Akọrọ: Ensure all detachable parts are completely dry before reassembling or storing.
5. Ngalaba moto dị ọcha: Jiri nwayọ hichaa mpụta nke moto ahụ, damp cloth. Do not use abrasive cleaners or scourers, as they may damage the surface.
6. DO NOT Dishwash: The detachable parts are NOT dishwasher safe. Hand wash only.
7. Nchekwa: Store the clean and dry juicer in a cool, dry place.

6. Nchọpụta nsogbu

If you encounter any issues with your Philco PEF750P juicer, refer to the following common problems and solutions:

• Juicer anaghị agbanye:
  • Gbaa mbọ hụ na etinyere eriri ọkụ n'ime oghere eletrik na-arụ ọrụ.
  • Verify that the electrical outlet is supplying power.
  • Check if the juicer components (sieve, cone) are correctly assembled and seated. The automatic activation requires proper assembly.
• Motor stops during use or slows down significantly:
  • You might be applying too much pressure on the fruit. The juicer is designed for automatic activation with moderate pressure. Reduce pressure.
  • The motor may be overheating. Unplug the juicer and allow it to cool down for at least 15-20 minutes before resuming use.
• Poor juice extraction or excessive pulp:
  • Ensure the fruit is cut cleanly in half.
  • Check if the sieve is clogged with pulp. Clean the sieve thoroughly.
  • Ensure the cone is properly seated and rotating freely.

Ọ bụrụ na nsogbu ahụ dịgidere mgbe ịnwale azịza ndị a, biko kpọtụrụ nkwado ndị ahịa.

7. Nkọwapụta

8. Akwụkwọ ikike na nkwado

Your Philco PEF750P Automatic Citrus Juicer comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration.

For technical assistance, spare parts, or warranty claims, please contact Philco customer support. Contact information can typically be found on the Philco official websaịtị ma ọ bụ na nkwakọ ngwaahịa gị.

When contacting support, please have your product model (PEF750P) and proof of purchase readily available.
