iVANKY 12-in-1 USB C Laptop Docking Station (Model VCC03) Instruction Manual

1. Okwu mmalite

The iVANKY 12-in-1 USB C Laptop Docking Station (Model VCC03) is designed to expand the connectivity of your USB-C enabled laptop. This versatile dock provides multiple ports for display, data transfer, network connectivity, and power delivery, transforming your laptop into a powerful workstation. Please read this manual carefully to ensure proper setup and operation.

2. Akụrụngwa Ngwaahịa

• Dual 4K@60Hz Displays: Connect two external monitors for extended workspace with 4K resolution at 60Hz. No driver download required.
• 85W Laptop Charging: Equipped with a 100W power adapter, the dock supports up to 85W power delivery to your laptop. An additional 18W PD port is available for charging mobile devices.
• Nyefee data Ọsọ Ọsọ: Features 2 USB 3.0 ports and 2 USB 2.0 ports, supporting data transfer speeds up to 5Gbps.
• Fast Media Card Access: SD/TF card slots support speeds up to 104MB/s, ideal for photographers and content creators.
• gigabit Ethernet: An RJ45 Gigabit Ethernet port ensures stable and fast 1000Mbps wired network connectivity.
• Ndakọrịta sara mbara: Compatible with Windows laptops featuring USB-C 4.0, Thunderbolt 3/4, or full-functional USB-C ports. Also supports USB-C gaming devices.

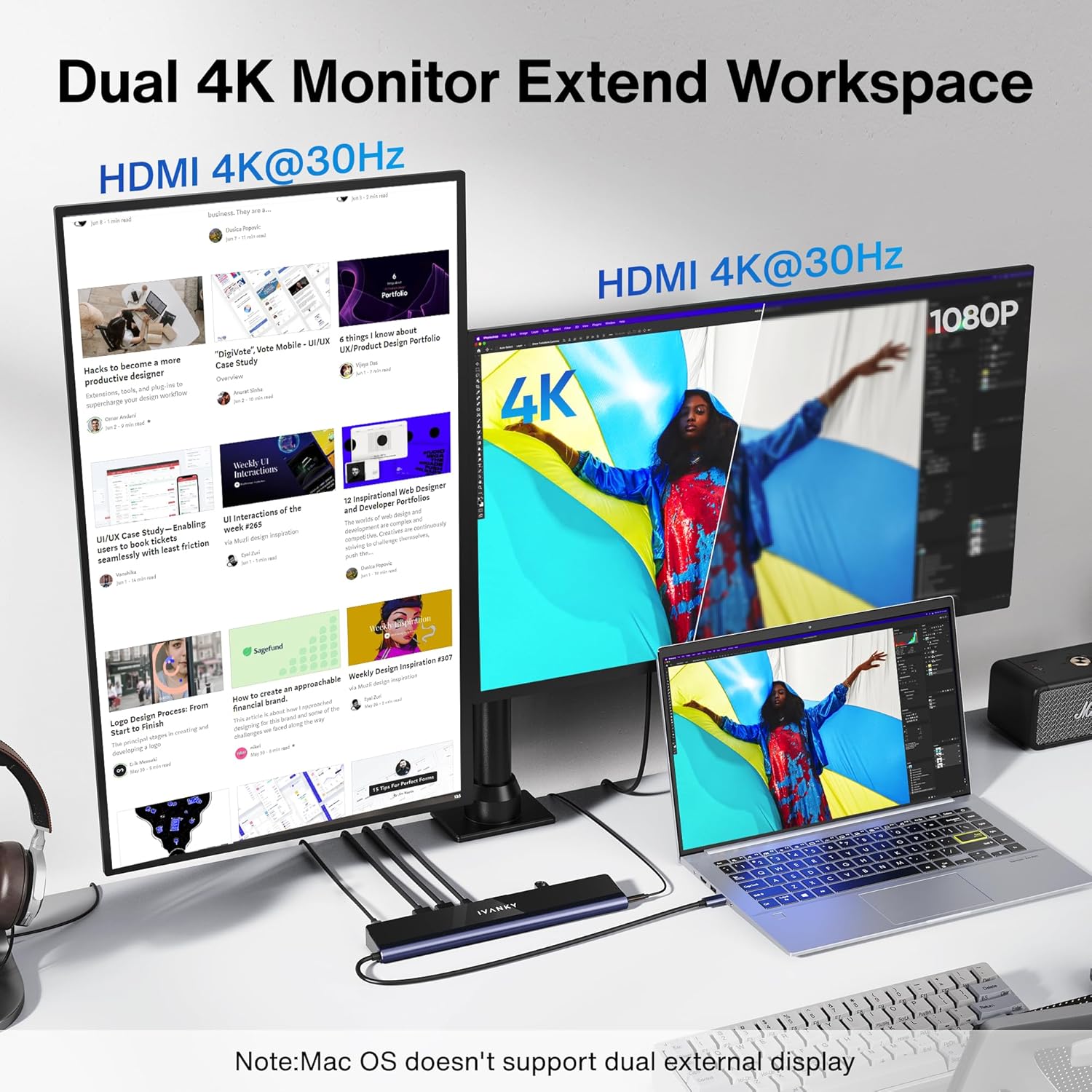

Image: iVANKY Docking Station enabling dual 4K external displays from a laptop.

Image: The docking station providing 85W power delivery to a laptop and 18W to a mobile phone.

3. Ihe ngwugwu

• 1 x iVANKY 12-in-1 EdgeDock 1 Docking Station
• Ihe nkwụnye ọkụ 1 x 100W
• 1 x USB-C na eriri USB-C
• 1 x Akwụkwọ ntuziaka onye ọrụ

4. Ntuziaka Nhazi

Follow these steps to set up your iVANKY docking station:

1. Njikọ Ike: Plug the 100W power adapter into the DC-IN port on the docking station and then into a power outlet.
2. Jikọọ na laptọọpụ: Use the provided USB-C to USB-C cable to connect the docking station's host port to a compatible USB-C port on your laptop.
3. Ngosipụta Njikọ: Connect your external monitors to the HDMI ports on the docking station. Ensure your monitors support 4K@60Hz for optimal performance.
4. Ngwa njikọ: Plug in your USB devices (keyboard, mouse, external drives) into the available USB 3.0 or USB 2.0 ports. Insert SD or TF cards as needed.
5. Njikọ netwọk: For a stable wired network, connect an Ethernet cable to the RJ45 Gigabit Ethernet port.

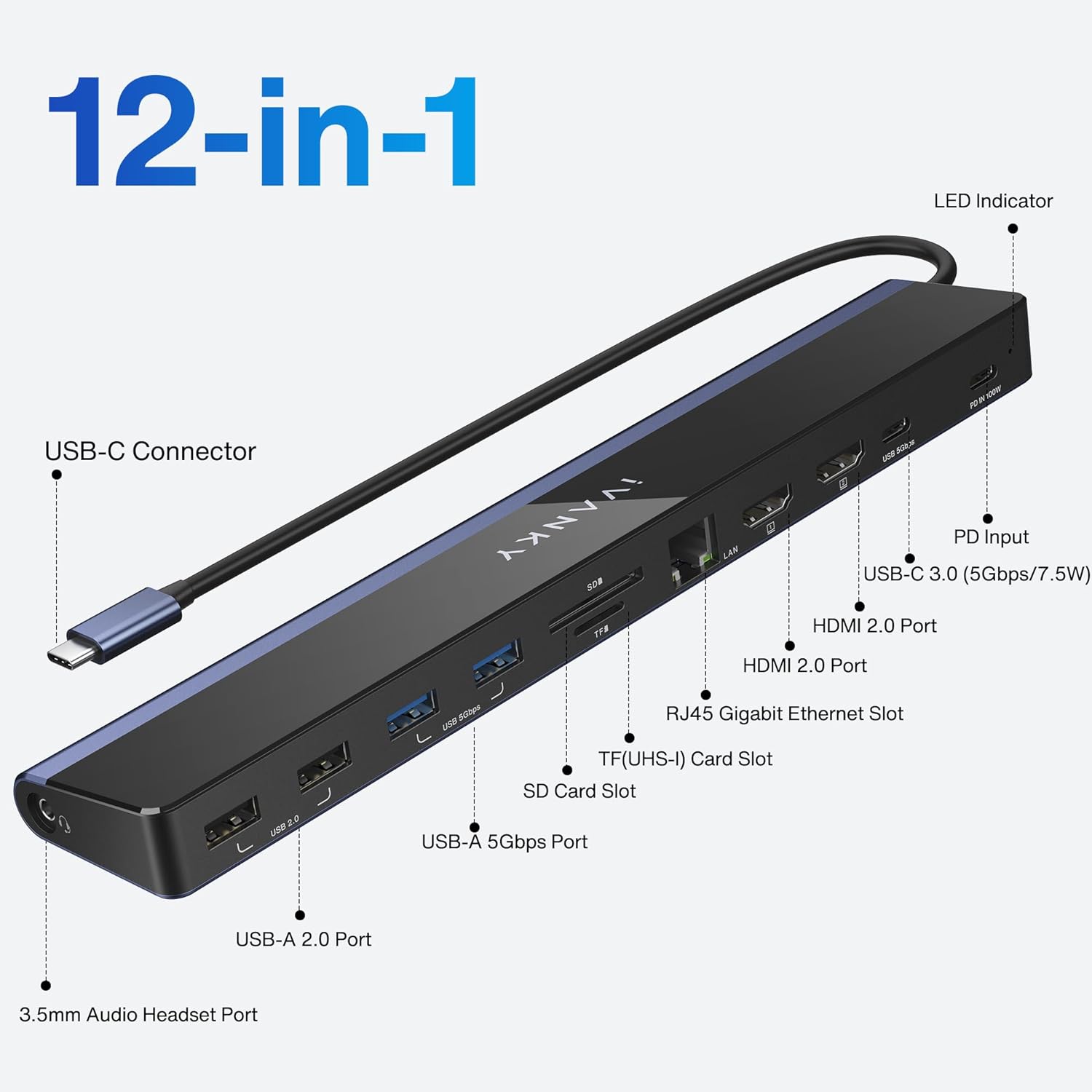

Image: Labeled ports on the iVANKY 12-in-1 Docking Station.

5. Ntuziaka ọrụ

5.1 Nhazi Ngosipụta

Connect up to two HDMI monitors to the docking station. Your laptop's display can be extended or mirrored across these external displays. The dock supports dual 4K@60Hz output without additional drivers.

5.2 Charging Functionality

The 100W power adapter provides up to 85W of power to your connected laptop via the USB-C host cable. An additional 18W USB-C PD port is available for charging smartphones or tablets.

5.3 Nyefee data

Utilize the USB 3.0 ports for high-speed data transfer up to 5Gbps for external hard drives or flash drives. USB 2.0 ports are suitable for connecting peripherals like keyboards and mice.

5.4 Njikọ netwọkụ

The RJ45 Gigabit Ethernet port provides a reliable and fast wired internet connection, which is often more stable than Wi-Fi, especially for large downloads or online gaming.

6. Ndakọrịta

The iVANKY VCC03 docking station is designed for broad compatibility with various USB-C enabled devices:

• Windows Laptops: Compatible with Windows laptops featuring a USB-C 4.0 port, Thunderbolt 3/4 port, or a full-functional USB-C port. This includes models from Dell (XPS/Inspiron/G/Alienware series), HP (Spectre/ENVY/Pavilion/OMEN/ZBook/Elite series), Lenovo (ThinkBook/Yoga/ThinkPad/Legion series), Microsoft Surface Pro 7/8, Microsoft Surface Go, and Asus.
• USB-C Gaming Devices: Supports devices like Steam Deck.
• Mara: This dock does not support Thunderbolt protocol input accessories.

Foto: Examples of compatible Windows laptops for the iVANKY Docking Station.

7. Important Notes & Troubleshooting

• If your laptop's original adapter is over 100W, it is recommended to use the original charger to charge your laptop and use another 100W PD charger to power the docking station.
• Avoid using adapters for extended displays, as this can cause malfunctions.
• This dock only supports laptops with a USB-C 4.0 port, Thunderbolt 3/4 port, or full-functional USB-C port.

8. Nkọwapụta

9. Akwụkwọ ikike & Nkwado

The iVANKY 12-in-1 EdgeDock 1 comes with a 24-month warranty. For any problems or questions, please contact customer service. You can expect a response within 24 hours during weekdays. If issues arise, a replacement will be provided.
