1. Okwu mmalite
Thank you for choosing the OMED G80/G25 Half Black E26 Dimmable LED Globe Light Bulb. This product is designed to provide comfortable, anti-glare illumination with energy efficiency and a long lifespan. This manual provides essential information for the safe and effective use of your new LED light bulbs.
2. Ozi nchekwa
- Always turn off power to the fixture before installing or removing the bulb.
- Do not use with incompatible dimmers. Use only with LED-compatible dimmers.
- Do not disassemble the bulb. There are no user-serviceable parts inside.
- Avoid direct contact with water or excessive moisture. This bulb is rated for indoor use.
- Ensure the bulb is securely screwed into the E26 base to prevent electrical hazards.
- Agafela oke wattage rating of your light fixture.
3. Ngwaahịa gafereview
The OMED G80/G25 Half Black E26 Dimmable LED Globe Light Bulb features a unique half-black design that reflects light upwards, reducing direct glare and creating a softer lighting effect. It is an energy-efficient LED alternative to traditional 60-watt incandescent bulbs.
Akụkụ ndị bụ isi:
- Nhazi mgbochi ọkụ: Half-black coating reduces direct light exposure and glare.
- Enwere ike ibelata: Smooth dimming from 10% to 100% with compatible LED dimmers.
- Ike dị irè: 6-watt LED equivalent to 60-watt incandescent, saving energy.
- Ogologo ndụ: Ruo awa 25,000 nke ọrụ.
- Ìhè Ọcha dị nro: 2700K color temperature for a warm and inviting ambiance.
- Ntọala ọkọlọtọ: E26 medium screw base for wide compatibility.
Image 3.1: Two OMED G80 Half Black LED Globe Light Bulbs, one upright and one on its side, showcasing the half-black and clear glass design with visible LED filaments.
Image 3.2: Visual representation of the benefits of the half-chrome design, highlighting no harsh glare, eye protection, flicker-free, and buzzing-free operation.
4. Ntọala na nwụnye
- Gbanyụọ: Tupu e tinye ya, hụ na agbanyụrụ ọkụ eletrik na ihe nkwụnye sekit ma ọ bụ ihe mgba ọkụ mgbidi.
- Wepụ bọlbụ ochie: Carefully unscrew and remove the existing light bulb from the fixture. Allow it to cool if it was recently in use.
- Wụnye bọlbụ ọhụrụ: Gently screw the OMED LED Globe Light Bulb into the E26 base of your fixture. Turn clockwise until it is snug, but do not overtighten.
- Weghachi ike: Gbanyụọ ọkụ azụ na mgbanaka sekit ma ọ bụ mgba ọkụ mgbidi.
- Nwalee: Turn on the light switch to confirm the bulb is working.
Image 4.1: A person installing an OMED G80 Half Black LED Globe Light Bulb into a pendant light fixture, demonstrating the ease of installation.
5. Ntuziaka ọrụ
Ọrụ ọkọlọtọ:
Once installed, the OMED LED Globe Light Bulb operates like any standard light bulb. Simply use your wall switch to turn the light on or off.
Ọrụ na-ebelata:
This bulb is fully dimmable from 10% to 100% when used with a compatible LED dimmer switch. For optimal performance and to avoid flickering or buzzing, ensure your dimmer is specifically designed for LED lighting. Refer to your dimmer's instructions for proper operation.
Image 5.1: Four panels illustrating the dimming capability of the OMED LED Globe Light Bulb, showing light output at 25%, 55%, 75%, and 100% brightness within a caged fixture.
Dimmers dakọtara:
The OMED G80/G25 LED bulb is designed for broad compatibility with most mainstream LED dimmers. Examples of compatible dimmer models include (but are not limited to): 6684, 6631-LA, NO.6672, 603-6631-A, 6631-A, NO.IPL06, NO.6674, NO.6681, 6683-10Z, IPI06-1LZ, S-600, LGCL-153CL, CTCL-153P-WH, TGCL-153PH-WH, TGCL-153PLH-WH, DV-603PR, S-600PR-WH, DVWCL-153PH-WH, DVW-600PH-WH, DV-603PH-WH, DV-600PH-WH, S-603PGH-WH, S-600H-WH, D-600RH-DK, TG-600PH-WH, CT-600PR-WH, SCL-153P-WH, D-600R-WH, DVCL-153PH, S-600-IV, S-600-AL, D-600R-IV, DV-603PH-WH, S-603PH-WH, DVWCL-153PH-WHC, MACL-153M-WH, AYCL-153P-WH, S-600P-WH, MACL-153MR-WH, AY-600PH-WH, AYCL-153PH, DV-600P-WH, MACL-153MH-WH, DVCL-253PH, MSCL-OP153MH-WH, TGCL-153PH-WH, MACL-153MLH-WH, TG-603PGH-WH, DVCL-153P-WH, TG-600PNLH-WH, LECL-153PH-WH, SCL-153PH-WH, MACL-153MLRHW-WH, DVCL-153P-WH-3, DVELV-303P-WH, MAELV-600-WH, PD-6WCL-WH-P.
6. Nlekọta
- Nhicha: Hụ na bọlbụ ahụ dị jụụ ma gbanyụọ ọkụ tupu ị sachaa ya. Jiri ákwà dị nro ma kpọọ nkụ hichaa bọlbụ ahụ. Ejila ihe nhicha mmiri ma ọ bụ ihe ndị na-eme ka ọ dị nro.
- Ndochi: Due to the long lifespan of LED bulbs, frequent replacement is not expected. If replacement is necessary, follow the installation steps in Section 4.
7. Nchọpụta nsogbu
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Igwe ọkụ anaghị agba ọkụ. | No power to the fixture; loose connection; faulty bulb. | Check circuit breaker and wall switch. Ensure bulb is screwed in securely. Test bulb in another working fixture. |
| Bulb flickers or buzzes. | Incompatible dimmer switch; loose connection. | Ensure you are using an LED-compatible dimmer. Tighten the bulb in the socket. |
| Dimming range is poor or inconsistent. | Mgbanwe dimmer na-ekwekọghị ekwekọ. | Verify your dimmer is specifically designed for LED bulbs and is compatible with the listed models if possible. |
| Bulb lifespan is shorter than expected. | Operating in extreme conditions; faulty product. | Ensure the bulb is used within recommended indoor environments. Contact customer support if issues persist. |
8. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Ụdị | OMED |
| Aha Nlereanya | G80 |
| Ụdị ọkụ | Ikanam |
| Nha Ụdị Bọlbụ | G25 / G80 |
| Isi Bulb | E26 |
| Wattage | 6 Watt |
| Incandescent Dị | 60 Watt |
| Icha ọkụ | 600 Lumen |
| Okpomọkụ agba | 2700 Kelvin (Ọcha dị nro) |
| Njirimara Pụrụ Iche | Dimmable, Anti-Glare, Long Lifespan |
| Nkezi Ndụ | Awa 25,000 |
| Voltage | 120 volts (AC) |
| Ihe onwunwe | Glass |
| Agba | Half Black |
| Akụkụ ngwaahịa | 3.15"W x 3.15"H (8cm x 8cm) |
| Ojiji ime ime/n'èzí | Ime ụlọ |

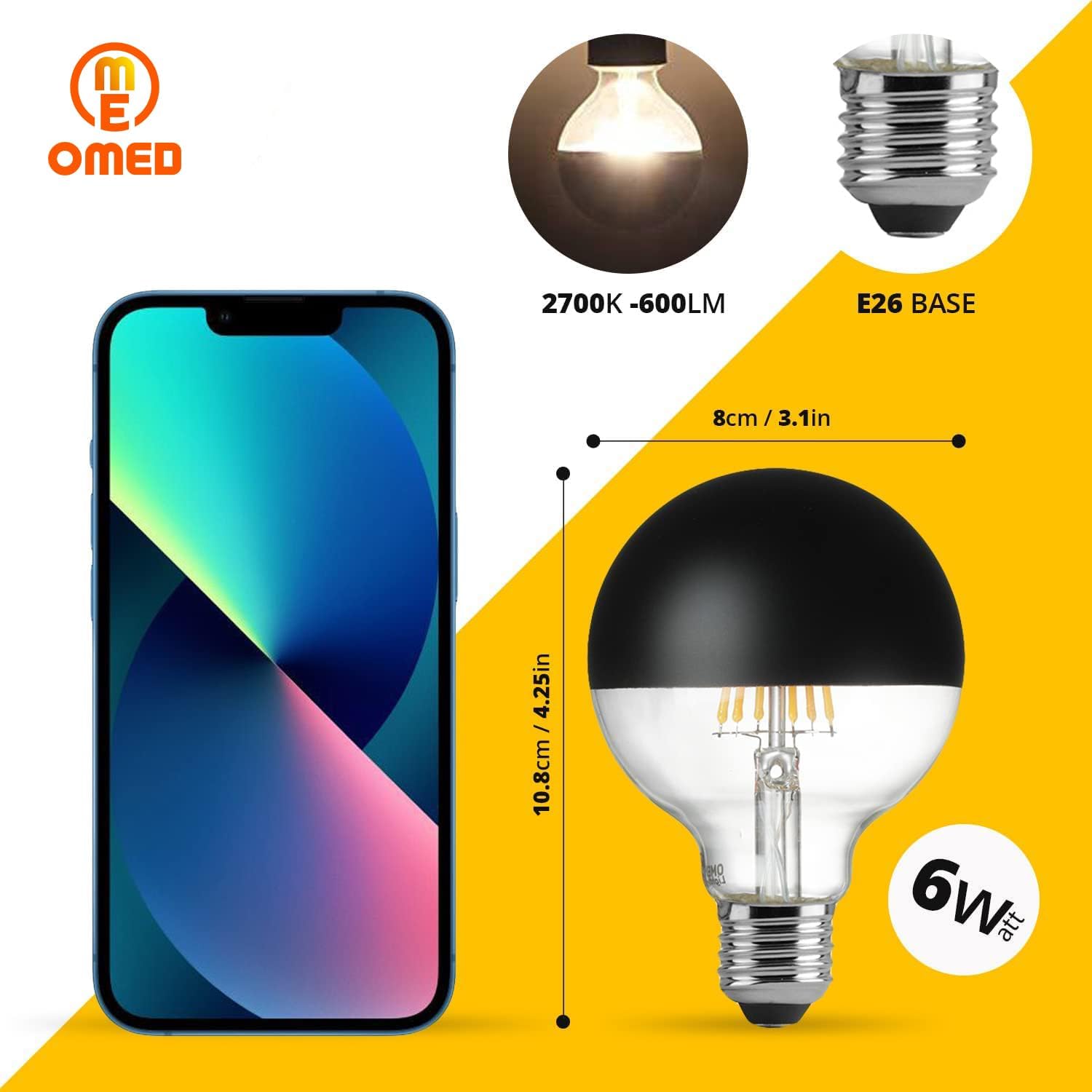

Image 8.1: Diagram showing the dimensions of the OMED G80 Half Black LED Globe Light Bulb (10.8cm / 4.25in height, 8cm / 3.1in width) and its E26 base, alongside a smartphone for scale.
9. Akwụkwọ ikike na nkwado
OMED is committed to providing high-quality products and customer satisfaction. If you encounter any issues or have questions regarding your OMED G80/G25 Half Black E26 Dimmable LED Globe Light Bulb, please contact our customer support team. Refer to your purchase documentation for specific warranty details.
For support, please visit the OMED Store on Amazon: OMED Store
