1. Okwu mmalite
The ThinkScan SR6 is a professional OBD2 diagnostic scanner designed for comprehensive vehicle system analysis and maintenance. It supports diagnostics for six major vehicle systems: Anti-lock Braking System (ABS), Supplemental Restraint System (SRS), Body Control Module (BCM), Tire Pressure Monitoring System (TPMS), Engine Control Module (ECM), and Transmission Control Module (TCM). Additionally, it offers five essential reset functions: Electronic Parking Brake (EPB) Reset, Tire Pressure Monitoring System (TPMS) Reset, Oil Light Reset, Steering Angle Sensor (SAS) Reset, and Throttle Body Adjustment (TBA).
This manual provides detailed instructions on how to set up, operate, and maintain your ThinkScan SR6 device to ensure accurate and efficient vehicle diagnostics.
Kedu ihe dị na Igbe ahụ
- ThinkScan SR6 Diagnostic Tool (with integrated OBD2 cable)
- USB Nchaji/Data USB
- Akwụkwọ ntuziaka onye ọrụ

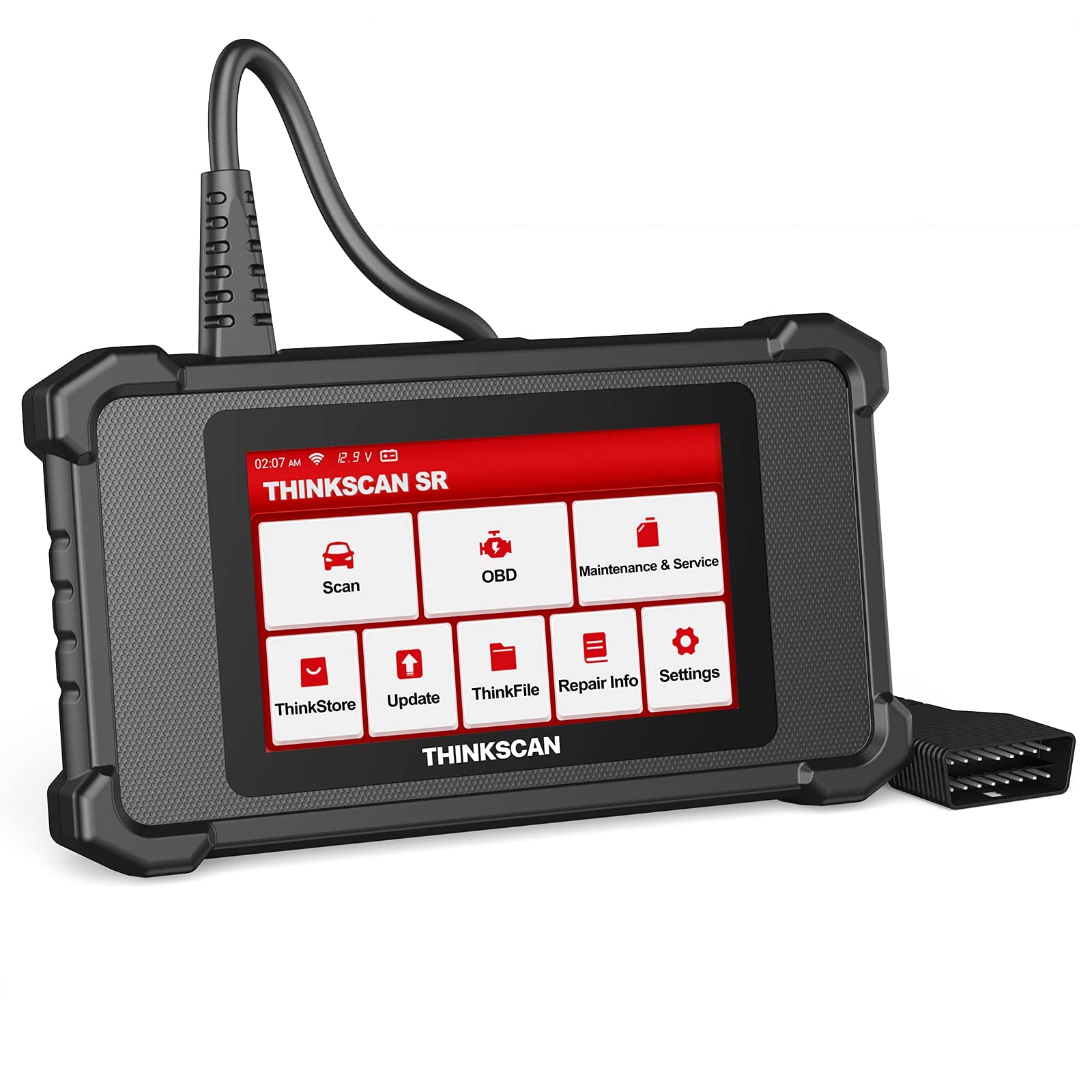

Image: ThinkScan SR6 OBD2 Scanner device and its packaging.
Vidiyo: Efereview of the ThinkScan SR6 Scan Tool, demonstrating its unboxing and initial features. This video highlights the device's physical components and basic interface.
2. Nhazi
2.1 Ijikọ na ụgbọ ala gị
- Chọta njikọ njikọ data nke pin 16 (DLC) nke ụgbọala ahụ. A na-ahụkarị nke a n'okpuru dashboard dị n'akụkụ onye ọkwọ ụgbọala.
- Hụ na ọkụ ụgbọala ahụ dị n'ọnọdụ OFF.
- Plug the ThinkScan SR6's integrated OBD2 cable into the vehicle's DLC. Ensure a secure connection.
- Turn the vehicle's ignition to the ON position (engine can be off or running, depending on the diagnostic task). The device will power on automatically.
Image: The ThinkScan SR6 device connected to a vehicle's OBD2 port, ready for operation.
2.2 Initial Device Configuration
- Upon first use, the device may prompt you to select a language. Follow the on-screen instructions.
- Connect the device to a Wi-Fi network for software updates. Navigate to Ntọala > Wi-Fi wee họrọ netwọk gị.
- Perform a software update to ensure you have the latest vehicle coverage and diagnostic functions. Go to Mmelite na isi menu.
3. Ọrụ
3.1 Nchọpụta Sistemu
The ThinkScan SR6 supports comprehensive diagnostics for six key vehicle systems. From the main menu, select Nyochaa ibido.
- Sistemụ ABS: Diagnoses issues related to the anti-lock braking system.
- Sistemụ SRS: Checks the supplemental restraint system (airbags).
- BCM System: Analyzes the body control module for electrical and body-related faults.
- TPMS System: Monitors tire pressure and related sensor issues.
- ECM System: Diagnoses engine control module faults.
- TCM System: Checks the transmission control module for transmission-related problems.
Image: Visual representation of the six major vehicle systems supported for diagnostics by the ThinkScan SR6.
3.2 Ọrụ OBD2 zuru ezu
Access standard OBD2 functions by selecting OBD from the main menu. These functions are crucial for emissions-related diagnostics and general engine health checks.
- Gụọ Koodu: Na-eweghachite Koodu Nsogbu Nchọpụta (DTCs) na kọmputa nke ụgbọala ahụ.
- Kpochapụ Koodu: Erases DTCs and turns off the Check Engine Light (MIL).
- Frame ifriizi: Na-egosi foto ọnọdụ ọrụ ụgbọala n'oge nsogbu metụtara mwepụta ihe mberede mere.
- Data dị ndụ: Shows real-time data streams from various sensors and components.
- Njikere M/M: Na-enyocha njikere nke sistemụ nlekota mwepụta.
- Nnwale sensọ O2: Na-eweghachite nsonaazụ ule nlekota sensọ O2.
- Ozi ụgbọ ala: Displays vehicle identification information (VIN, CID, CVN).
- Nnwale Sistemụ EVAP: Initiates a test of the Evaporative Emission Control System.
- Nleba anya na bọọdụ: Retrieves results for on-board diagnostic monitoring tests.
- Nnwale akụrụngwa: Allows testing of specific vehicle components.
Image: A visual guide to the comprehensive OBD2 functions available on the ThinkScan SR6, including code reading, live data, and vehicle information retrieval.
3.3 DTC Lookup Function
When a Diagnostic Trouble Code (DTC) is retrieved, the ThinkScan SR6 can help you understand its meaning. Navigate to Mmezi ozi > Ọbá akwụkwọ koodu mmejọ OBD to input the code and receive a detailed description.
Image: The DTC Lookup function displaying fault codes and their corresponding meanings, aiding in quick diagnosis.

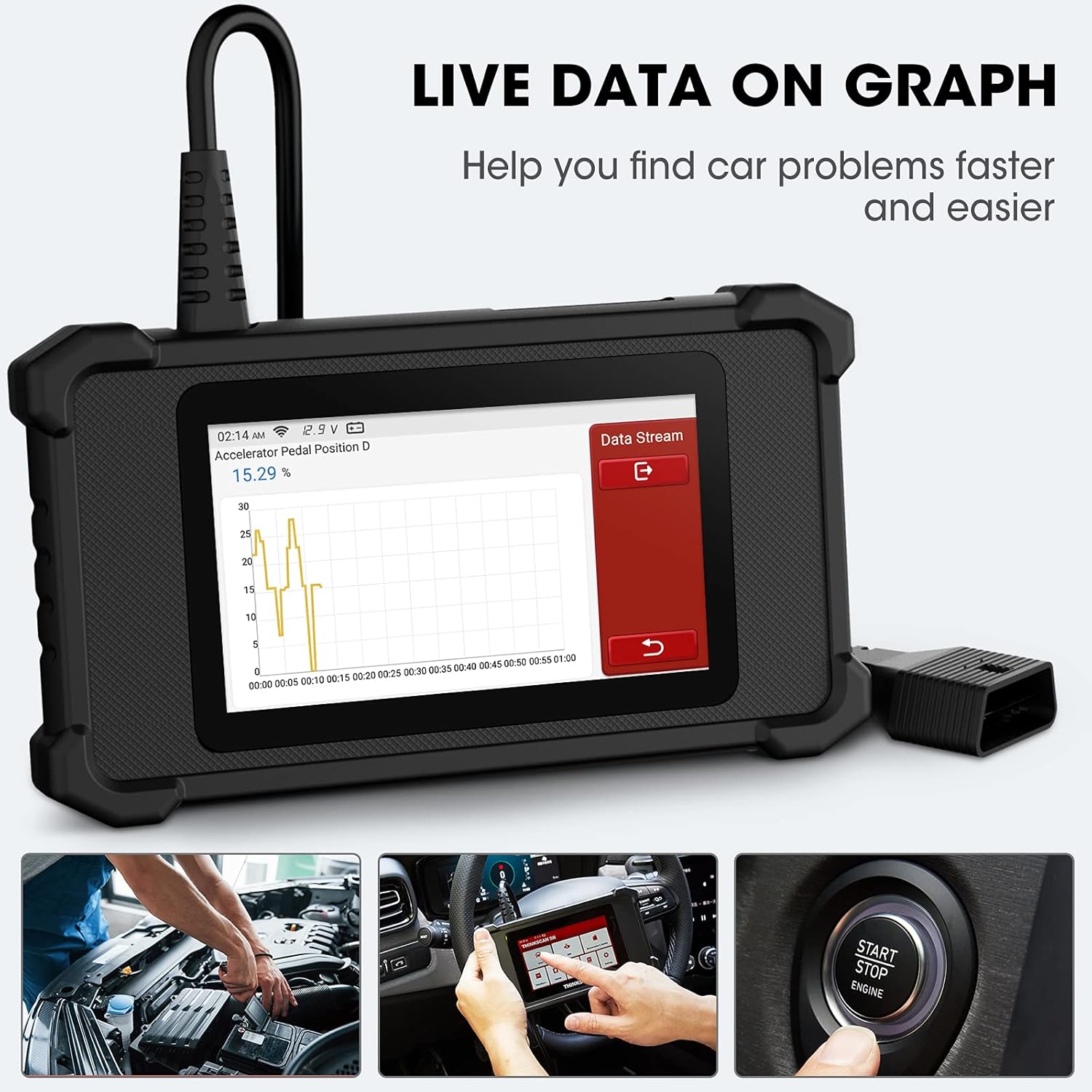

3.4 Live Data Graph
The Live Data function allows you to view real-time sensor data in a graphical format, making it easier to identify anomalies and diagnose intermittent problems. Select OBD > Data dị ndụ iji nweta njirimara a.
Image: The ThinkScan SR6 displaying live vehicle data in a graphical format, illustrating real-time sensor readings for diagnostic purposes.
4. Maintenance & Service Functions
The ThinkScan SR6 provides five commonly used reset functions to assist with vehicle maintenance. Access these by selecting Nlekọta & Ọrụ site na isi menu.
- Tọgharịa Ọkụ Mmanụ: Na-emegharị ọkụ ọrụ mmanụ mgbe agbanwechara mmanụ.
- EPB Service: Na-atọgharịa sistemu breeki ebe a na-adọba ụgbọala mgbe ejiri dochie breeki.
- Tọgharịa SAS: Calibrates the steering angle sensor after steering system repairs.
- Tọgharia TPMS: Resets the tire pressure monitoring system after tire rotation or sensor replacement.
- TBA (Throttle Body Adjustment): Na-amụgharị ọnọdụ trotul ahụ.
Image: An illustration of the five free reset functions offered by the ThinkScan SR6, including throttle adjustment and various system resets.
4.1 Mmelite ngwanrọ
Regular software updates are essential to ensure your ThinkScan SR6 has the latest vehicle models, diagnostic functions, and bug fixes. The device supports Wi-Fi updates for convenience.
- Gbaa mbọ hụ na ejikọrọ ngwaọrụ ahụ na netwọk Wi-Fi kwụsiri ike.
- Site na isi menu, họrọ Mmelite.
- Soro mkpali na ihuenyo ka ibudata na wụnye mmelite dị.
Image: A comparison highlighting the ThinkScan SR6's features, including its 5-inch touch screen, Android 7.0 OS, and one-click Wi-Fi update capability.
5. Nchọpụta nsogbu
If you encounter issues with your ThinkScan SR6, consider the following common solutions:
- Ngwaọrụ anaghị agbanye: Ensure the OBD2 cable is securely connected to the vehicle's DLC and the vehicle's ignition is ON. Check the vehicle's battery voltage.
- Connection errors: Verify the OBD2 cable connection. Try connecting to a different vehicle (if available) to rule out vehicle-specific issues. Ensure Wi-Fi is stable for updates.
- Diagnostic function not working: Ensure the vehicle model and year are supported for the specific function. Perform a software update.
- Understanding fault codes: Jiri ihe Ọbá akwụkwọ koodu mmejọ OBD n'okpuru Mmezi ozi to look up DTC meanings.
For more detailed troubleshooting or specific repair information, the device includes a Mmezi ozi section with a fault code library, coverage list, and video tutorials. You can also connect the device to Wi-Fi and use the Vidiyo option to search for relevant repair guides.
6. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Ụdị | echiche |
| Nọmba nlereanya | TKSR6 |
| Nha ihuenyo | 5 sentimita asatọ |
| Sistemụ nrụọrụ | Android 7.0 |
| Isi Iyi Ike | Akwanyere batrị |
| Ibu Ibu | 1 pound |
| Akụkụ ngwaahịa | 4.13 x 8.07 x 1.18 sentimita asatọ |
| Batrị | 1 batrị lithium polymer chọrọ (gụnyere) |
| Mkpuchi ụgbọ ala | US-based vehicles after 1996, EU-based vehicles after 2000, Asia-based vehicles after 2008 |
7. Akwụkwọ ikike na nkwado
For technical assistance, warranty information, or any inquiries regarding your ThinkScan SR6 device, please contact thinkcar customer support. The manufacturer provides 7*24 hours support.
Email: jushi@thinkcar.com
Please refer to the official thinkcar website or the included warranty card for detailed warranty terms and conditions.
