1. Okwu mmalite
This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your EENOUR S32 32L Car Refrigerator. Please read this manual thoroughly before using the product and retain it for future reference.
Image: The EENOUR S32 32L Car Refrigerator, a portable compressor-type cooler.
2. Ozi nchekwa
Iji hụ na arụ ọrụ dị mma ma gbochie mmebi, lezie anya na ihe ndị a:
- Ejila ngwa ahụ rụọ ọrụ ma ọ bụrụ na eriri ọkụ mebiri emebi.
- Hụ na ikuku dị mma gburugburu ebe ahụ. Ekpuchila oghere ikuku.
- Zere itinye ngwaọrụ ahụ n'ebe anwụ na-acha kpọmkwem ma ọ bụ n'ebe okpomọkụ dị nso.
- Do not immerse the unit in water or expose it to heavy rain.
- Mee ka ụmụaka pụọ na ngwa ahụ.
- Gbanyụọ ike tupu ị sachaa ma ọ bụ rụzie ya.
- The power interface direction has been updated. Please be aware of this change.
3. Akụrụngwa Ngwaahịa
- Sistemụ jụrụ oyi: Achieves rapid cooling and freezing, reaching -20°C from 25°C in approximately 65 minutes. Offers HH (High Speed) and ECO (Energy Saving) modes.
- Nnukwu ike: 32-liter capacity, capable of holding approximately 40x 350ml cans, 25x 500ml PET bottles, or 23x 1L milk cartons. Features a divided interior for simultaneous freezing and cooling.
- Ogwe njikwa enyi na enyi: Equipped with a clear LCD touch panel for real-time temperature display and precise 1°C temperature adjustments. Includes a memory function to retain previous settings and an interior light for visibility in low-light conditions.
- Nhazi dị mfe ibugharị ma sie ike: Weighs 12.5 kg, designed for compact storage in vehicle trunks. Features a 180° rotating handle for easy transport by one or two people. The flat top surface supports up to 100 kg, allowing it to be used as a temporary table or seat.
- Nhọrọ ike dị iche iche: Supports both DC (12V/24V) for vehicle use and AC (100V) for home use. Can be powered by an EENOUR portable power station for outdoor activities or emergency situations.
Image: Graph illustrating rapid cooling performance, reaching -20°C in 65 minutes.
Image: The refrigerator's interior showing separate compartments for freezing and cooling.
Image: Visual representation of the 32L capacity, showing how many cans and bottles it can hold.
Image: Illustration highlighting the quiet operation of the refrigerator, rated at 49dB.
4. Nhazi
4.1 Nwepu
Carefully remove the refrigerator from its packaging. Inspect the unit for any signs of damage. Retain packaging materials for future transport or storage.
4.2 njirimara akụrụngwa
Familiarize yourself with the components of your refrigerator:
Image: Diagram showing the main parts of the EENOUR S32 Car Refrigerator, including the lid, fixing chain, lock, interior light, control panel, handle, ventilation, and power input terminal. Also shown are the AC adapter, AC power cord, DC power cord, warranty card, and instruction manual.
- Ihe mkpuchi: Top cover of the refrigerator.
- Fixing Chain: Prevents the lid from opening too far.
- Mkpọchi: Na-echekwa mkpuchi ahụ.
- Ìhè ime ime: Illuminates the interior compartment.
- Ogwe njikwa: For temperature adjustment and mode selection.
- Jikwaa: Maka iburu unit ahụ.
- Igwe ikuku: Ensures proper airflow for the compressor.
- Ọnụ ntinye ike: Connects to AC or DC power.
4.3 Njikọ ike
The refrigerator supports both AC and DC power sources.
Image: Demonstrates various power connection methods: household AC (100-120V), vehicle DC (12V/24V), and outdoor portable power station.
- Maka Ojiji Ụlọ (AC 100V): Connect the AC adapter and AC power cord to the refrigerator and a standard wall outlet.
- For Vehicle Use (DC 12V/24V): Connect the DC power cord to the refrigerator and your vehicle's cigarette lighter socket.
- For Outdoor Use: Connect to an EENOUR portable power station using the appropriate power cord.
Mara: The power interface direction has been updated. Ensure correct orientation when connecting the power cords.
5. Ntuziaka ọrụ
5.1 Gbanyụọ ma ọ bụ gbanyụọ
Pịa IKE bọtịnụ dị na njikwa njikwa ka ịgbanwuo ma ọ bụ gbanyụọ unit ahụ.
5.2 Mgbanwe okpomọkụ
Jiri ihe + na - buttons on the LCD touch panel to set the desired temperature. The temperature can be adjusted in 1°C increments, ranging from -20°C to 10°C.
5.3 Nhọrọ ọnọdụ
Pịa SET bọtịnụ iji okirikiri site na ụdị ọrụ:
- HH Mode (High Speed): Provides faster cooling performance.
- ECO Mode (Energy Saving): Optimizes power consumption for extended operation.
5.4 Ọrụ ebe nchekwa
The refrigerator retains the last temperature setting even after being powered off, eliminating the need to reset it each time.
5.5 Interior Light
The interior light automatically illuminates when the lid is opened, providing visibility in dark environments.
Image: Close-up of the EENOUR S32 control panel with LCD display and buttons for power, temperature adjustment, and mode selection.
6. Nlekọta
6.1 Nhicha
- Kwupu ike mgbe niile tupu ihicha.
- Jiri mgbasa ozi hichaa elu ime na mputaamp akwa na ncha dị nro.
- Ejila ihe nchacha abrasive ma ọ bụ kemịkalụ siri ike.
- Hụ na ngwaọrụ ahụ kpọrọ nkụ kpamkpam tupu ị jikọọ ike ọzọ.
6.2 Na-ekpochapụ
If ice accumulates inside the unit, turn off the refrigerator and allow the ice to melt naturally. Drain any water and wipe the interior dry.
6.3 Nchekwa
When storing the refrigerator for an extended period, ensure it is clean and dry. Store it in a cool, dry place away from direct sunlight.
7. Nchọpụta nsogbu
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Unit anaghị agbanye ọkụ. | No power supply; loose connection; damaged power cord. | Check power connection; ensure outlet is functional; inspect power cord for damage. |
| Ezughi oke jụrụ oyi. | Lid not closed properly; ventilation blocked; ambient temperature too high; too much content. | Ensure lid is sealed; clear ventilation openings; move to a cooler area; reduce contents. |
| Mkpọtụ na -adịghị ahụkebe. | Unit not level; objects touching the compressor. | Place unit on a flat, stable surface; ensure nothing is obstructing the compressor. |
| Egosiri koodu mperi. | Nrụ ọrụ dị n'ime. | Rụtụ aka na koodu njehie akọwapụtara na akwụkwọ ntuziaka zuru ezu ma ọ bụ kpọtụrụ nkwado ndị ahịa. |
If the problem persists after attempting these solutions, please contact EENOUR customer support.
8. Nkọwapụta
| Njirimara | Nkọwapụta |
|---|---|
| Nọmba nlereanya | S32-JP |
| Ike | 32 lita |
| Oke okpomọkụ | -20°C ruo 10°C |
| Ntinye ike | AC 100V, DC 12V/24V |
| Akụkụ ngwaahịa (D x W x H) | 63.5 cm x 37.5 cm x 37.6 cm |
| Ibu ngwaahịa | 14.7 kilogram |
| Ọrụ Ntugharị | Automatic / Semi-automatic |
| Shelves | 2 |
| Atụmatụ pụrụ iche | Portable, LCD Temperature Display, Interior Light, Low Voltage Protection, Memory Function |

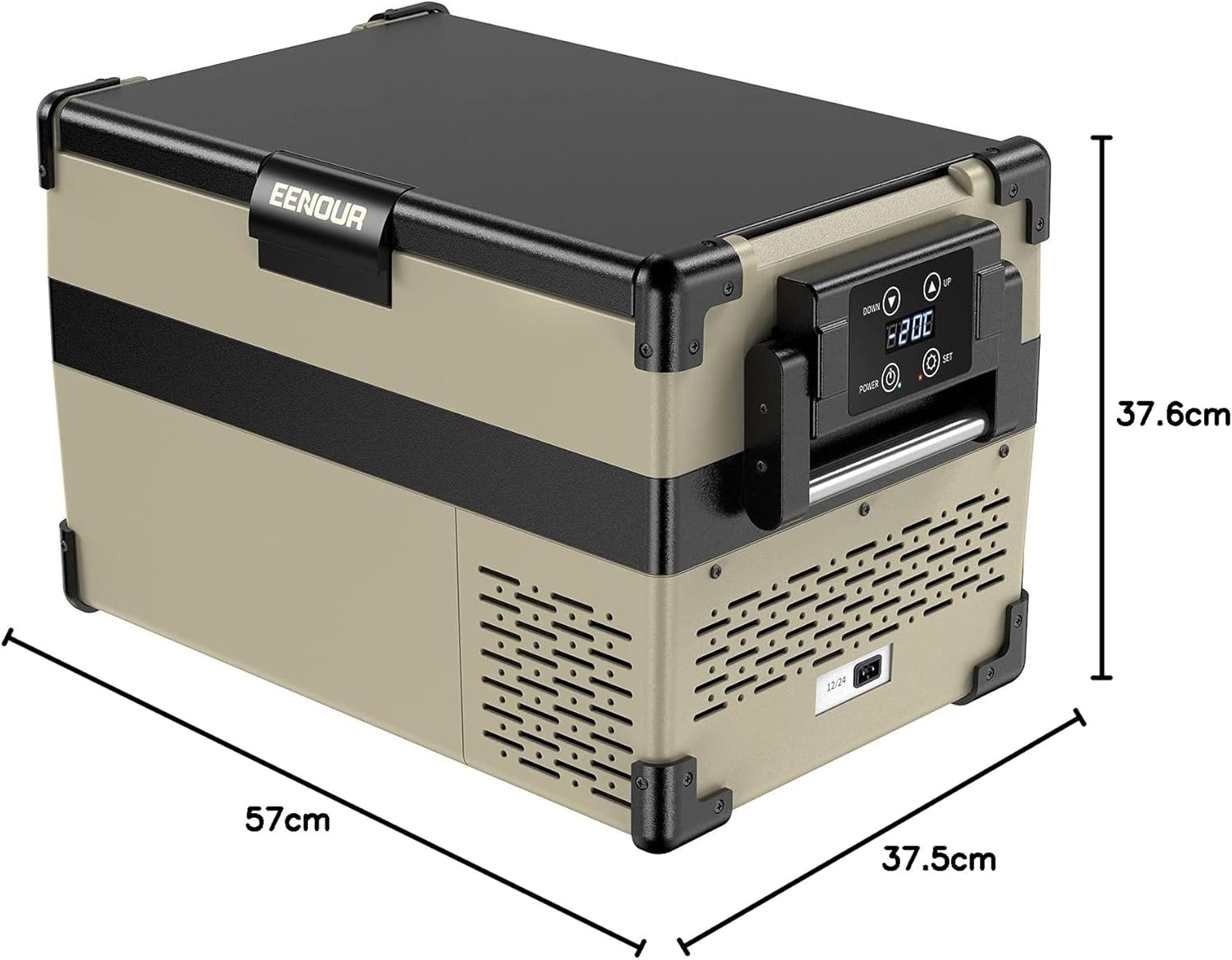

Image: Diagram showing the dimensions of the EENOUR S32 Car Refrigerator.
9. Akwụkwọ ikike na nkwado
This product comes with a 12-month warranty from the date of purchase, extendable by an additional 12 months upon product registration. This warranty covers malfunctions occurring under normal use as described in this instruction manual.
For initial defects or any other issues, please contact EENOUR customer support with your order number. You can also download the full instruction manual from the product page under "Product Guides and Documents."
For product registration and further support, please visit the official EENOUR websaịtị.
