Okwu mmalite
The ZÜNDAPP ZF20 Speed Folder 20-inch folding bike is designed for urban living, offering an environmentally conscious and flexible alternative for transportation. Unlike traditional bicycles, folding bikes provide the significant advantage of being compact for storage and often allowing free transport on public transportation. This enables you to easily cover distances that are not suitable for cycling or to shorten long walks. Storing the bike in a city apartment is also considerably simpler when it can be folded into a small size.
This image shows the ZÜNDAPP ZF20 Speed Folder folding bike in its fully assembled, ready-to-ride state. The bike features a vibrant green frame, 20-inch wheels, and includes a rear rack, mudguards, and front and rear lighting.
Ntọala na Mgbakọ Mbụ
Your ZÜNDAPP ZF20 Speed Folder comes largely pre-assembled. Follow these steps to prepare your bike for its first ride.
Unfolding the Bicycle
- Mepee Frame ahụ: Locate the main hinge on the frame. Release the safety latch and unfold the frame until it locks into place. Ensure the quick-release lever is securely fastened.
- Adjust Handlebars: Raise the handlebar stem to the desired height. Secure the quick-release lever firmly. Ensure the handlebars are straight and aligned with the front wheel.
- Adjust Saddle: Insert the seat post into the frame and adjust the saddle height to ensure a comfortable and efficient pedaling position. The recommended height range for riders is between 150 cm and 185 cm. Secure the quick-release lever.
- Unfold Pedals: If your pedals are foldable, unfold them until they click into their riding position.
This image demonstrates the ZÜNDAPP ZF20 Speed Folder in its compact, folded configuration. It highlights the quick-release mechanisms on the frame and handlebars that allow for rapid folding, achieving compact dimensions of 82.5 cm (length) x 46 cm (width) x 74.5 cm (height).

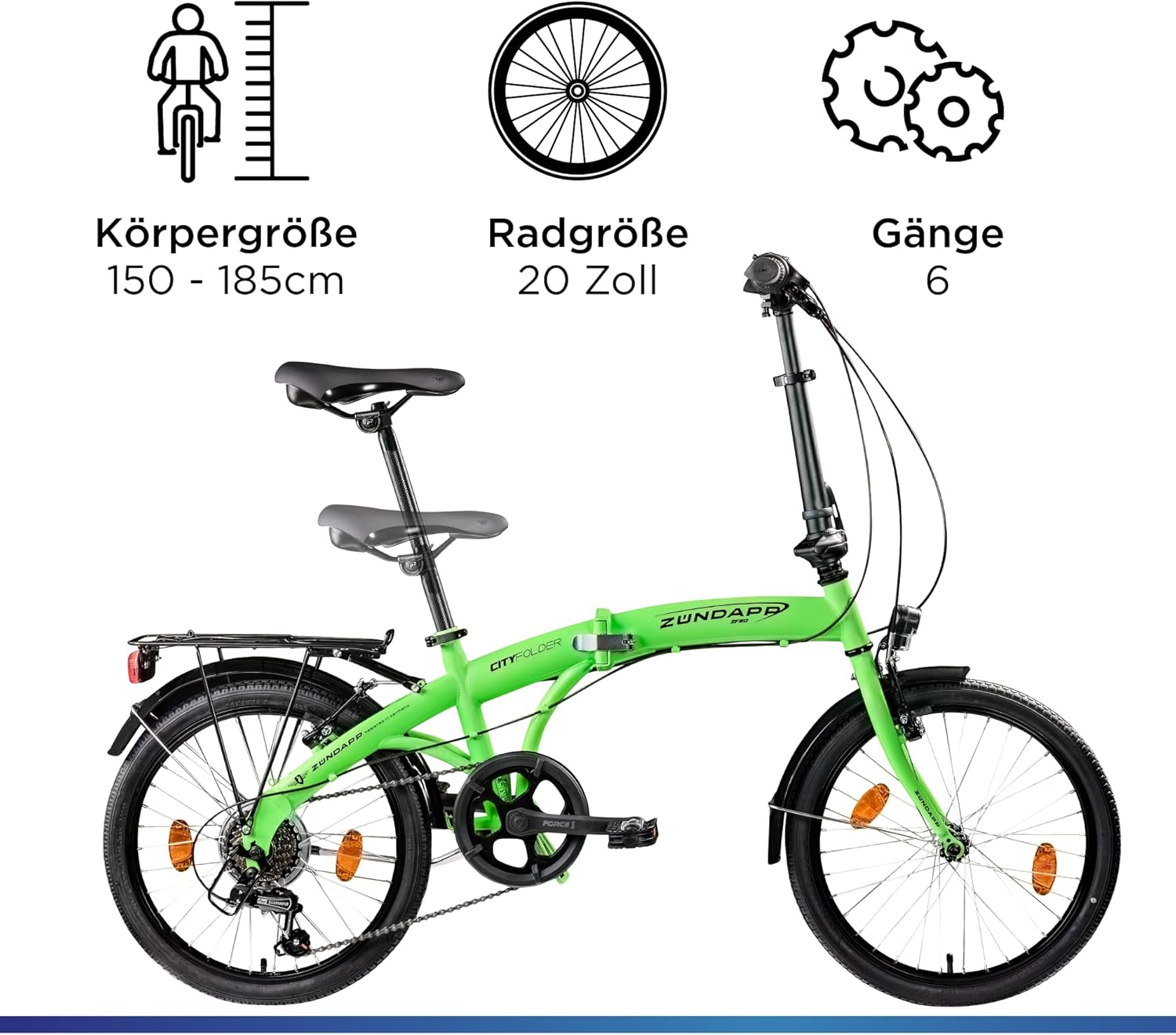

This image provides essential specifications for the ZÜNDAPP ZF20 Speed Folder, including the recommended rider height range of 150 to 185 cm, the 20-inch wheel size, and the 6-gear system.
Nyochaa tupu ịnya igwe
- breeki: Nwalee ma brek n'ihu ma n'azụ iji hụ na ha na-arụ ọrụ nke ọma ma dịkwa irè.
- Taya: Check tire pressure. The 20 x 1.75 inch road profile tires should be inflated to the recommended pressure indicated on the tire sidewall.
- Mwepụta Ngwa Ngwa: Verify all quick-release levers (frame, handlebars, saddle) are securely tightened before riding.
- Ọkụ: Ensure the StVZO-compliant front and rear lights are functional.
Operating Your ZÜNDAPP ZF20 Speed Folder
Mpịakọta na mkpughe
The ZF20 Speed Folder is designed for quick and easy folding. To fold, release the quick-release levers on the frame and handlebar stem, then carefully fold the bike. To unfold, reverse the process, ensuring all quick-release mechanisms are securely locked before riding.
This image illustrates the ZÜNDAPP ZF20 Speed Folder in its compact, folded state, showcasing ya imewe-azọpụta ohere.
Ntugharị Gear
Your bike is equipped with a 6-speed gear system operated by a twist grip shifter on the handlebars. To shift gears, simply twist the grip forward or backward. Shift to a lower gear for climbing hills and a higher gear for flat terrain or downhill riding. Always pedal lightly while shifting for smooth transitions.
This image highlights the ZÜNDAPP ZF20 Speed Folder's gear system, featuring an easy-to-use twist grip shifter and a straight chain line for reliable performance across various terrains.
Ịgba breeki
The ZF20 Speed Folder uses well-dosed V-brakes for reliable stopping power. The right lever controls the rear brake, and the left lever controls the front brake. Apply both brakes simultaneously for effective and controlled stopping. Avoid sudden, hard braking, especially with the front brake, to prevent skidding.
Riding Posture and Features
The bike is designed for an upright seating position, providing comfort during city rides and excursions. The adjustable handlebar and saddle height allow you to customize your riding position for optimal comfort and efficiency. The integrated mudguards protect you from splashes, and the StVZO-compliant lighting ensures visibility and safety.
This image illustrates the ZÜNDAPP ZF20 Speed Folder's features, including its upright seating position, protective mudguards, adjustable handlebar and saddle, and StVZO-compliant lighting for enhanced safety.
This image highlights the ZÜNDAPP ZF20 Speed Folder's versatility for various terrains, featuring road profile tires suitable for asphalt, gravel, and dirt, and a precise shifting mechanism for an optimized riding experience.
Nlekọta
Regular maintenance will ensure the longevity and safe operation of your ZÜNDAPP ZF20 Speed Folder.
Nlekọta izugbe
- Nhicha: Clean your bike regularly with mild soap and water. Avoid high-pressure washers, which can damage bearings and seals.
- mmanu mmanu: Lubricate the chain regularly, especially after riding in wet conditions. Apply a suitable bicycle chain lubricant and wipe off any excess.
- Nchekwa: Store your bike in a dry place, away from direct sunlight and extreme temperatures. The folding feature makes it easy to store in small spaces.
Nyocha akụrụngwa
- breeki: Check brake pads for wear and replace them if necessary. Ensure brake cables are not frayed and are properly tensioned.
- Ngwa ngwa: If shifting becomes rough or imprecise, the gear cables may need adjustment. Consult a bicycle mechanic if you are unsure.
- Taya: Inspect tires for cuts, punctures, or excessive wear. Maintain correct tire pressure.
- Bọltị na ihe njide: Periodically check all bolts and fasteners for tightness, especially on the folding mechanisms, handlebars, and saddle.
This image highlights the low-maintenance rim brakes and the maintenance-free rigid fork, contributing to the bike's ease of care. It also shows the luggage rack with a spring flap.
Nchọpụta nsogbu
This section addresses common issues you might encounter with your ZÜNDAPP ZF20 Speed Folder.
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Brakes feel spongy or weak. | Loose brake cable, worn brake pads, contaminated rim. | Tighten brake cable, replace brake pads, clean rim surface. |
| Gears are not shifting smoothly or skipping. | Derailleur out of adjustment, stretched cable, dirty chain. | Adjust derailleur limits, replace cable, clean and lubricate chain. |
| Tire loses air quickly. | Puncture, leaky valve stem, improper tire seating. | Inspect tire for punctures and repair/replace tube, check valve, re-seat tire. |
| Ịnyịnya ígwè na-adị ka ihe na-adịghị mma ma ọ bụ na-ama jijiji. | Loose quick releases, loose headset, damaged wheel. | Ensure all quick releases are tight, check headset for play, inspect wheels for damage. |
For issues not listed here or if you are unsure about a repair, it is recommended to consult a qualified bicycle mechanic.
Nkọwapụta
Key technical specifications for the ZÜNDAPP ZF20 Speed Folder:
| Njirimara | Nkọwa |
|---|---|
| Nlereanya | ZF20 Speed Folder |
| Bicycle Type | igwe kwụ otu ebe |
| Nha Wheel | 20 inches (20 x 1.75 inch road profile tires) |
| Ngwa ngwa | 6-speed (twist grip shifter) |
| Frame Ihe | Alloy Steel |
| Nha etiti | 28.5 cm (step-through height) |
| Ụdị breeki | Rim Brake (V-Brakes) |
| Nkwusioru | None (Rigid Fork) |
| Akwadoro onye na-agba ya elu | 150 - 185 cm |
| Akụkụ agbakọtara (L x W x H) | 82.5 cm x 46 cm x 74.5 cm |
| Ibu | 15 n'arọ |
| Agba | Akwụkwọ ndụ akwụkwọ ndụ |
| Ojiji | City, Everyday, Excursion |
This infographic highlights the ZÜNDAPP ZF20 Speed Folder's lightweight design and its versatility for various uses, including camping, daily commutes, and public transport.
Included Components and Features
The ZÜNDAPP ZF20 Speed Folder comes equipped with several accessories and features for a complete riding experience:
- Mgbịrịgba: For signaling other road users.
- Ngosiputa: Front, rear, and wheel reflectors for enhanced visibility.
- Agba mgba: For convenient parking.
- Ndị nche: Front and rear mudguards to protect against dirt and splashes.
- Luggage Rack: A rear rack with a spring flap for carrying small items.
- Ọkụ: StVZO-compliant front and rear lighting for safe riding in low light conditions.
This image shows the bike equipped with mudguards and StVZO-compliant lighting.
This image displays the luggage rack with a spring flap, along with the rim brakes and rigid fork.
Ozi akwụkwọ ikike
Specific warranty details for your ZÜNDAPP ZF20 Speed Folder are typically provided with your purchase documentation. Please refer to the warranty card or contact the retailer for information regarding warranty coverage, terms, and conditions. Keep your proof of purchase for any warranty claims.
Nkwado ndị ahịa
For technical assistance, spare parts, or any questions not covered in this manual, please contact ZÜNDAPP customer support or your authorized dealer. You can often find contact information on the ZÜNDAPP official websaịtị ma ọ bụ site na ikpo okwu ịzụrụ ihe.
