1. Okwu mmalite
Thank you for choosing the Symcode 2-in-1 Wireless CCD Barcode Scanner. This device offers both 2.4GHz wireless and USB wired connectivity, providing flexibility for various applications. It is designed for efficient and accurate scanning of 1D barcodes from both printed materials and digital screens. This manual provides detailed instructions on setting up, operating, maintaining, and troubleshooting your barcode scanner.
2. Ngwaahịa gafereview
Ihe ngwugwu 2.1
Mgbe ị na-ewepụ ihe ndị a, biko hụ na ihe niile edepụtara n'okpuru dị ma dịkwa mma:
- 1 x Symcode CCD Barcode Scanner
- 1 x eriri USB
- 1 x 2.4GHz Wireless Dongle
- 1 x Akwụkwọ ntuziaka onye ọrụ Bekee
Figure 2.1: Package Contents of the Symcode Barcode Scanner.
2.2 Ngwa nyocha

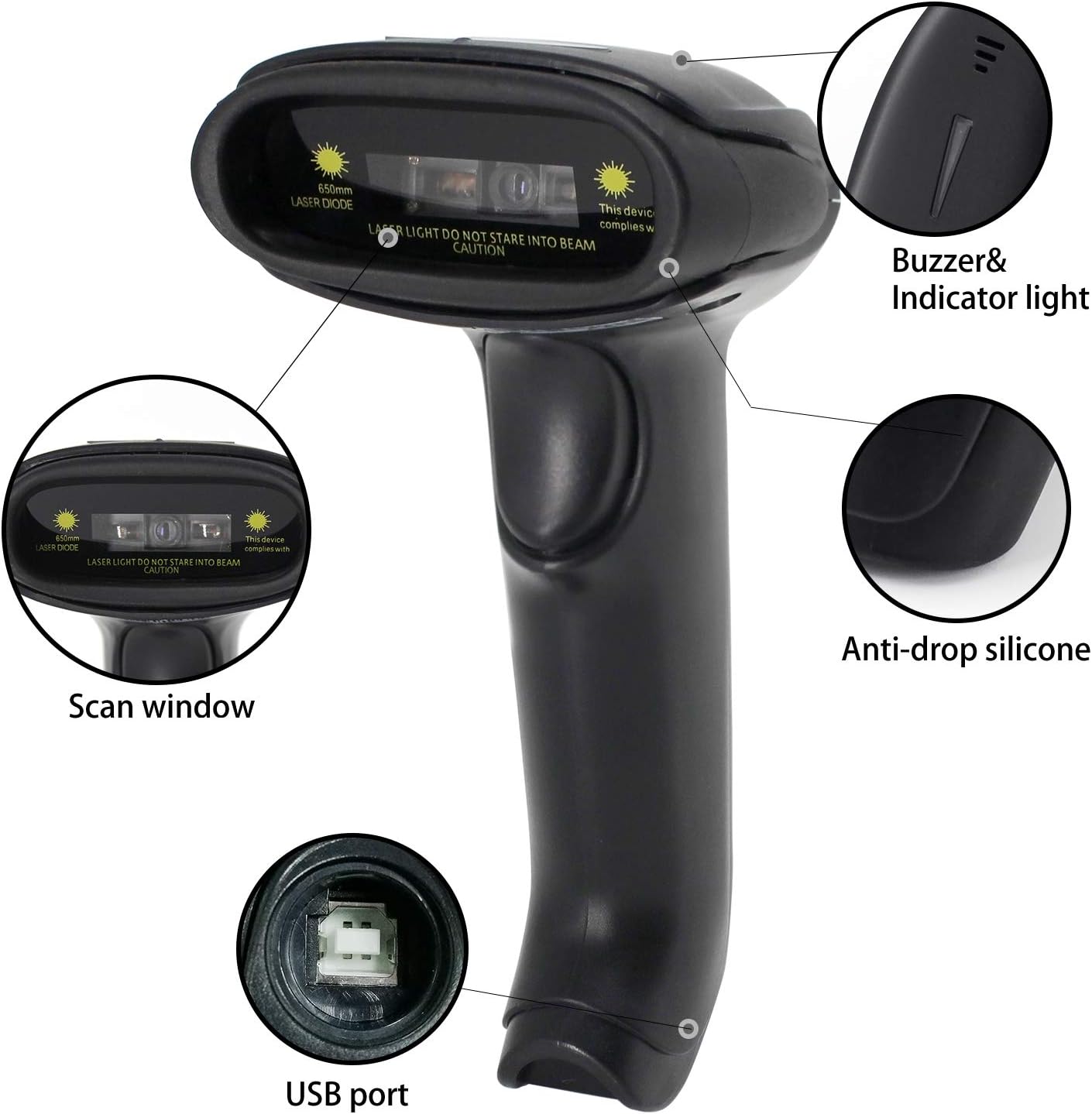

Figure 2.2: Key Components of the Symcode Barcode Scanner.
- Nyochaa windo: Area through which the barcode is read.
- Buzzer & Indicator Light: Provides audio and visual feedback for successful scans and status.
- Ọdụ ụgbọ mmiri USB: Maka njikọ wired na ịchaji.
- Anti-drop Silicone: Provides protection against accidental drops.
2.3 Akụkụ ngwaahịa
Figure 2.3: Dimensions of the Symcode Barcode Scanner.
3. Nhazi
3.1 Njikọ Waya (USB)
- Connect the USB cable to the scanner's USB port.
- Plug the other end of the USB cable into an available USB port on your computer, laptop, or POS machine.
- The scanner is plug-and-play; no additional drivers are required. It will be recognized automatically by Windows, Mac, Android, and Linux systems.
3.2 Wireless Connection (2.4GHz Dongle)
- Insert the 2.4GHz wireless dongle into an available USB port on your computer, laptop, or POS machine.
- Turn on the barcode scanner. It will automatically pair with the dongle.
- The scanner is plug-and-play; no additional drivers are required. It will be recognized automatically by Windows, Mac, Android, and Linux systems.
4. Ntuziaka ọrụ
4.1 Usoro nyocha isi
- Ensure the scanner is powered on and connected (wired or wireless).
- Tụtụ aka na windo nyocha na barcode ịchọrọ iṅomi.
- Press the trigger button (if in trigger mode) or position the scanner over the barcode (if in auto-sense or continuous mode).
- A successful scan will be indicated by a beep and a flash of the indicator light. The barcode data will be transmitted to your connected device.
4.2 Ụdị nyocha
The scanner supports three scanning modes:
- Trigger Scan: Press the trigger button to activate the scan beam.
- Auto-sense Scan: The scanner automatically detects a barcode in its field of view and activates the scan beam.
- Nyocha na-aga n'ihu: The scan beam remains continuously active, allowing for rapid scanning without pressing the trigger.
Refer to the included user manual (physical copy) for instructions on how to switch between these scanning modes. If you encounter difficulties, please contact Symcode customer support.
4.3 Ụdị koodu barcode akwadoro
This CCD barcode scanner is designed to read Koodu barcode 1D, whether printed on paper or displayed on digital screens. It does not support 2D barcodes (e.g., QR codes).
Supported 1D barcode symbologies include: EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, 2 of 5, MSI, Plessey, ITF14.

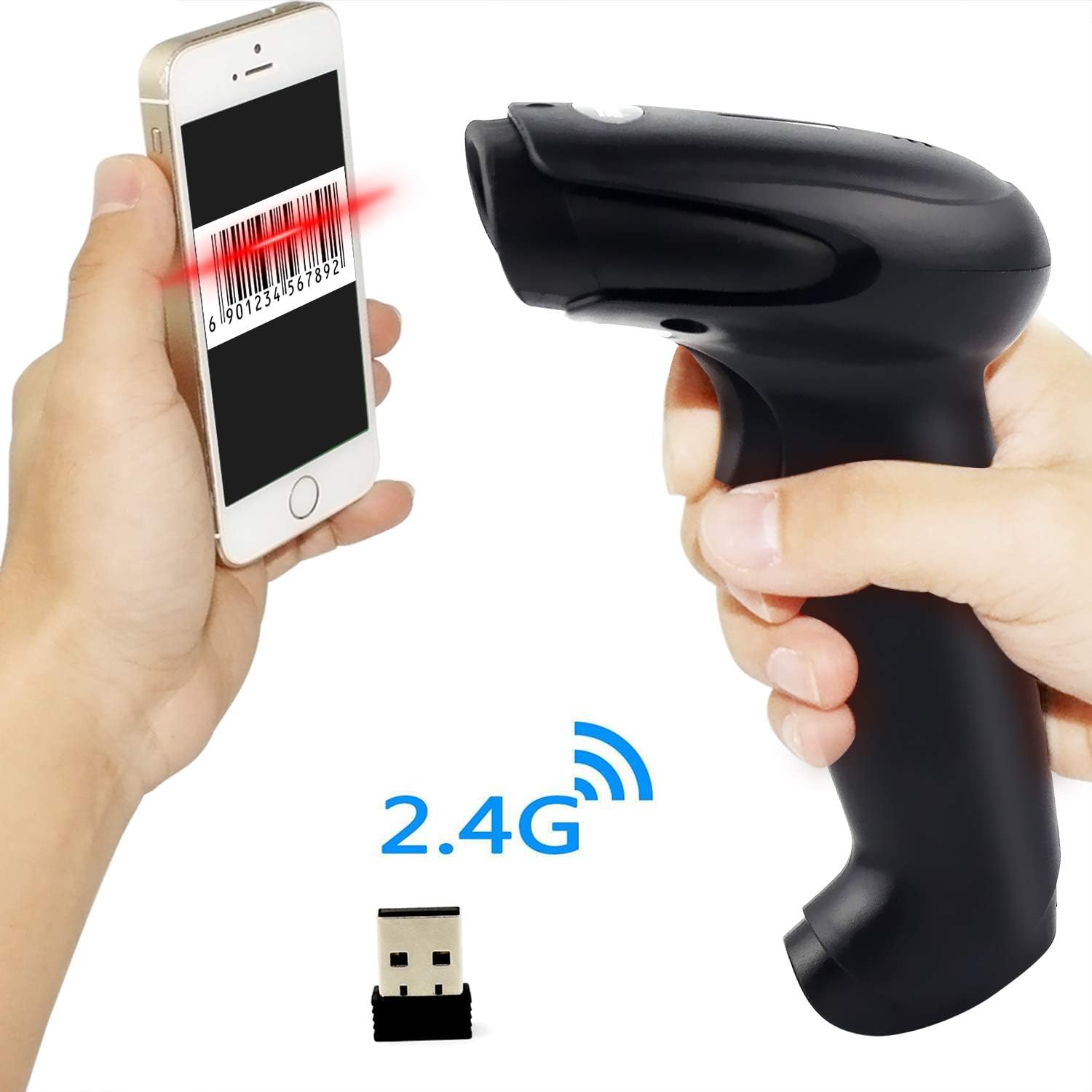

Figure 4.1: Scanning a barcode from a digital screen.
5. Ozi batrị
The Symcode barcode scanner is equipped with a high-capacity rechargeable battery for extended operation.
Figure 5.1: Battery Specifications.
- Ike: 1800 mAh
- Oge ọrụ na-aga n'ihu: 8 ruo 10 awa
- Oge njikere: 15 ụbọchị
- Oge ịkwụ ụgwọ: 3.5 ruo 4 awa
To charge the scanner, connect it to a USB power source using the provided USB cable. The indicator light will show charging status.
6. Njikọ ikuku
The 2.4GHz wireless connection provides reliable data transmission over a significant range.
- Transmission Distance (Indoor): 15-30 meters (in crowded indoor environments)
- Transmission Distance (Outdoor): 30-100 meters (in open outdoor environments)
Figure 6.1: Wireless Transmission Range.
6.1 Ụdị arụ ọrụ
The scanner supports two primary operating modes for data handling:
- Ụdị nkịtị: Data is transferred immediately after each scan.
- Ụdị Nchekwa: Barcode data is stored internally in the scanner's 16MB memory (capable of storing over 50,000 barcode entries). Data can then be uploaded to the connected device by scanning a specific setting code. This mode is useful for inventory taking or when out of wireless range.
7. Barcode Programming
The Symcode barcode scanner is programmable, allowing customization of its output and behavior. These settings are typically configured by scanning specific programming barcodes found in the full user manual.
Figure 7.1: Barcode Programming Capabilities.
Programmable features include:
- Ngbanwe ikpe: Adjusting output to uppercase or lowercase.
- Ndozi olu: Changing the sound level of the buzzer.
- Terminator Setting: Adding a specific character (e.g., Enter, Tab) after each scanned barcode.
- Prefix or Suffix Setting: Adding custom characters before or after the scanned data.
- Character Manipulation: Adding or masking specific characters within the barcode data.
For detailed programming instructions, please refer to the comprehensive programming guide included with your scanner or contact Symcode support.
8. Nlekọta
Nlekọta kwesịrị ekwesị na-eme ka ọ dị ogologo ndụ yana ịrụ ọrụ kacha mma nke nyocha gị.
- Nhicha: Use a soft, dry cloth to clean the scanner's exterior. For the scan window, use a lint-free cloth lightly dampened with a non-abrasive cleaner. Avoid harsh chemicals or abrasive materials.
- Nchekwa: Store the scanner in a cool, dry place, away from direct sunlight and extreme temperatures.
- Nlekọta batrị: Avoid fully discharging the battery frequently. If storing for a long period, charge the battery to about 50% and recharge every few months.
9. Nchọpụta nsogbu
If you encounter issues with your scanner, please refer to the following common problems and solutions:
| Nsogbu | Ihe kpatara/ Ngwọta nwere ike ime |
|---|---|
| Scanner anaghị agbanye ọkụ. | Battery is low or depleted. Charge the scanner for 3.5-4 hours. |
| Scanner does not scan barcodes. |
|
| No data transmitted to computer. |
|
| Scanner beeps continuously or behaves erratically. | The scanner might be in an incorrect setting mode. Refer to the full user manual for factory reset instructions or contact support. |
If the problem persists after trying these solutions, please contact Symcode customer support for further assistance.
10. Nkọwapụta
| Oke | Uru |
|---|---|
| Isi Iyi Ìhè | 632nm Visible LED Light |
| Ọnọdụ nyocha | Trigger / Auto-sense / Continuous |
| Mkpebi | ≥ 4 mil / 0.1mm @ PCS90% |
| Nhazi | ARM32-bit |
| Nyochaa ọsọ | 200 nyocha / sk |
| Omimi nke Ubi | 40-500 mm |
| Ihe ngosi | LED na Buzzer |
| Mbipụta ọdịiche | ≥ 30% |
| Nrụ ọrụ Voltage | DC 3.3V-5V |
| Ike batrị | 1800 mAh |
| Ọrụ na-aga n'ihu | 8-10 awa |
| Oge Njikere | 15 ụbọchị |
| Oge ịkwụ ụgwọ | 3.5-4 awa |
| Wireless Transmission (Indoor) | 15-30 mita |
| Wireless Transmission (Outdoor) | 30-100 mita |
| Ike nchekwa | 16MB (over 50,000 barcode entries) |
| Okpomọkụ na-arụ ọrụ | -20 ℃ to 50 ℃ (-4 ℉ to 122 ℉) |
| Okpomọkụ nchekwa | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| iru mmiri | 5% ruo 95% (na-abụghị condensing) |
| Icha ọkụ gburugburu | Oke 100,000 lux |
| OS akwadoro | Windows, Mac, Android, Linux |
11. Akwụkwọ ikike na nkwado
The Symcode barcode scanner comes with a Akwụkwọ ikike nke ụbọchị 180 site na ụbọchị nzụta, na-ekpuchi n'ichepụta ntụpọ na malfunctions n'okpuru nkịtị ojiji. Biko dowe ihe akaebe nke ịzụrụ ihe maka akwụkwọ ikike.
For technical support, warranty service, or any questions regarding your product, please contact Symcode customer service through the platform where you purchased the product or refer to the contact information provided in the physical user manual.
