1. Ngwaahịa gafereview
The iFlight Albatross 5.8GHz FPV Antenna is designed for use with FPV goggles and drones, providing reliable signal transmission and reception. This package includes two Albatross 5.8GHz 150mm antennas, available in various connector types and polarizations to suit different FPV setups.
Figure 1.1: Two iFlight Albatross 5.8GHz FPV Antennas. These antennas are designed for optimal performance in the 5.8GHz frequency band, commonly used in FPV systems.
Akụkụ ndị bụ isi:
- Oke ugboro: 5000-6000MHz
- uru: 3dBi
- Axial Ratio: 0.7
- Cable Type: RG141
- Akụkụ: 16*150mm
- Interface Options: RHCP SMA, RHCP RP-SMA, LHCP RP-SMA
- Polarization: RHCP/LHCP
- SWR: ≤1.5 (ON 5.8GHz)
2. Ntọala na nwụnye
Proper installation of your iFlight Albatross antenna is crucial for optimal performance. Ensure that the antenna's connector type matches the port on your FPV goggles or drone's video transmitter (VTX).
2.1 Identifying Connector Types
The Albatross antenna is available with RHCP SMA, RHCP RP-SMA, or LHCP RP-SMA interfaces. Verify the connector type of your antenna and device before attempting to connect.

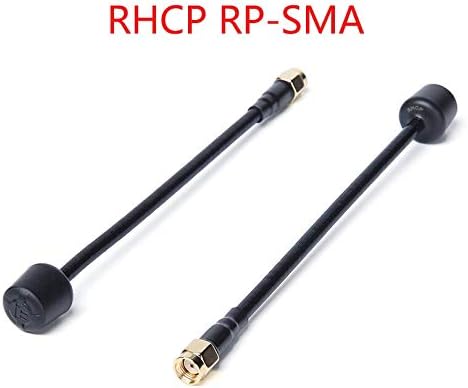

Figure 2.1: Albatross Antennas with RHCP RP-SMA and SMA Male Connectors. It is important to match the antenna's connector to the corresponding port on your FPV equipment.
2.2 Ijikọ antenna
- Carefully align the antenna's connector with the corresponding port on your FPV goggles (e.g., Fatshark EV200D) or drone's VTX.
- Gently screw the antenna onto the port. Do not overtighten, as this can damage the connector. Hand-tightening is usually sufficient.
- Ensure the connection is secure to prevent signal loss during operation.
Figure 2.2: Antenna Connected to FPV Goggles. The antenna should be securely attached to the video receiver (VRX) port on your goggles for clear video reception.
2.3 Polarization Matching
For best signal quality, ensure that the polarization of your transmitting antenna (on the drone) matches the polarization of your receiving antenna (on the goggles). Both should be either Right-Hand Circularly Polarized (RHCP) or Left-Hand Circularly Polarized (LHCP).
3. Ntuziaka ọrụ
The iFlight Albatross antenna is designed for 5.8GHz FPV systems. Adhere to the following guidelines for optimal performance:
- Oke ugboro: Operate within the 5000-6000MHz frequency range for which the antenna is optimized.
- Ahịrị nke anya: Maintain a clear line of sight between your drone's transmitting antenna and your FPV goggles' receiving antenna for the strongest signal.
- Usoro Antenna: While circular polarization reduces multipath interference, orienting your antennas generally towards each other can improve signal strength, especially at longer distances.
- Zenarị ihe mgbochi: Physical obstructions like trees, buildings, or dense foliage can significantly degrade signal quality.
4. Nlekọta na nlekọta
To ensure the longevity and consistent performance of your iFlight Albatross antennas, follow these maintenance tips:
- Njikọ ndị dị ọcha: Periodically inspect and clean the gold-plated connectors to remove any dirt, dust, or corrosion. Use a soft, dry cloth or a cotton swab with isopropyl alcohol if necessary.
- Zere ịgbagọ: While the antenna cable is flexible (RG141), avoid sharp bends or excessive force that could damage the internal wiring or the connector joint.
- Nchekwa: Store antennas in a clean, dry environment away from extreme temperatures and direct sunlight when not in use.
- Nyocha anụ ahụ: Regularly check the antenna for any signs of physical damage, such as frayed cables, bent connectors, or cracks in the housing.
Figure 4.1: Flexible Design of Albatross Antennas. While flexible, avoid extreme bending to prevent internal damage.
5. Nchọpụta nsogbu
If you experience issues with your iFlight Albatross antenna, consider the following troubleshooting steps:
- Poor Signal/Video Breakup:
- Ensure both transmitting and receiving antennas have matching polarization (RHCP to RHCP, LHCP to LHCP).
- Check all connections for tightness and cleanliness. A loose or dirty connection can significantly degrade signal.
- Verify that your FPV system is operating on the correct frequency channel.
- Reduce distance to the drone or move to an area with fewer obstructions.
- Inspect antennas for physical damage. Even minor damage can affect performance.
- Antenna Not Fitting:
- Confirm that you have the correct connector type (SMA vs. RP-SMA) for your device. SMA and RP-SMA connectors are similar but not interchangeable.
6. Nkọwapụta
Detailed technical specifications for the iFlight Albatross 5.8GHz FPV Antenna:

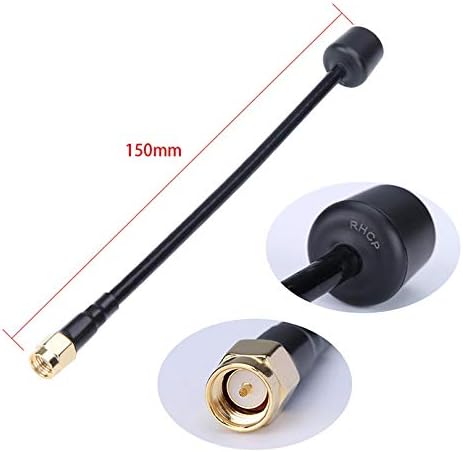

Figure 6.1: Antenna Dimensions and Connector Detail. The 150mm length provides flexibility in mounting, and the robust connector ensures a reliable link.
| Njirimara | Uru |
|---|---|
| Nlereanya | Albatross 5.8GHz FPV Antenna |
| Oke ugboro ugboro | 5000-6000MHz |
| Nweta | 3dBi |
| Ọnụego axial | 0.7 |
| Ụdị USB | RG141 |
| Ibu | 10.9g (per antenna) |
| Akụkụ | 16*150mm |
| Nhọrọ interface | RHCP SMA, RHCP RP-SMA, LHCP RP-SMA |
| Mkpochapu | RHCP/LHCP |
| SWR | ≤1.5 (ON 5.8GHz) |
| Akụkụ ngwugwu | 6.2 x 1.1 x 0.39 sentimita asatọ |
| Ibu Ihe (Ngwugwu) | 1.12 ounces |
| Onye nrụpụta | iFlight |
| Nọmba nlereanya | MC36557-9-2 |
| Ụbọchị mbụ dị | Ọgọst 7, 2020 |
| Ọnụọgụ nke ihe | 2 (Antennas) |
7. Akwụkwọ ikike na nkwado
Specific warranty information for the iFlight Albatross 5.8GHz FPV Antenna is not provided in this manual. For details regarding warranty coverage, terms, and conditions, please refer to the official iFlight websaịtị ma ọ bụ kpọtụrụ nkwado ndị ahịa ha ozugbo.
For technical support, product inquiries, or assistance with troubleshooting beyond the scope of this manual, please visit the iFlight Store on Amazon or the official iFlight support channels.
