Jimmy JV85 Pro Cordless Vacuum Cleaner User Manual

Ozi nchekwa dị mkpa

Biko gụọ ntuziaka niile nke ọma tupu i jiri ngwa ahụ. Debe akwụkwọ ntuziaka a maka ntụaka n'ọdịnihu.

• Ezubere ngwa a maka iji naanị ụlọ. Ejila ya maka ebumnuche azụmahịa ma ọ bụ ụlọ ọrụ mmepụta ihe.
• Do not use the vacuum cleaner to pick up water, liquids, or wet substances.
• Do not pick up burning or smoking materials, such as cigarettes, matches, or hot ashes.
• Debe ntutu isi, uwe na-adịghị mma, mkpịsị aka na akụkụ ahụ niile pụọ na oghere na akụkụ ndị na-akpụ akpụ.
• Ensure the appliance is switched off before connecting or disconnecting accessories.
• Use only the original charger and battery pack provided by the manufacturer.
• Ejila igwe nhicha ahụ ma ọ bụrụ na a tụfuru ya, mebie ya, hapụ ya n'èzí, ma ọ bụ tụba ya n'ime mmiri.
• Regularly check the filters and brush rolls for blockages or damage.
• Enwere ike iji ngwa a ụmụaka ndị gbara afọ 8 na karịa yana ndị nwere ike anụ ahụ, mmetụta uche ma ọ bụ nke uche ma ọ bụ enweghị ahụmahụ na ihe ọmụma ma ọ bụrụ na enyerela ha nlekọta ma ọ bụ ntụziaka gbasara iji ngwa ahụ n'ụzọ dị nchebe ma ghọta ihe egwu dị na ya. .

Ngwa ngwaahịa

The Jimmy JV85 Pro Cordless Vacuum Cleaner comes with a comprehensive set of components designed for versatile cleaning. Familiarize yourself with each part before assembly and use.

Image: All components of the Jimmy JV85 Pro Cordless Vacuum Cleaner, including the main motor unit, battery, extension tube, flexible extension tube, floor brush, upholstery brush, crevice tool, charger, and wall mount.

• Main Motor Unit: Contains the 600W brushless digital motor, dust cup, and control panel.
• Removable Battery Pack: Provides up to 70 minutes of runtime.
• ahịhịa ala: Equipped with two interchangeable brush rolls: a soft velour roll for hard floors and a brush lamella roll for carpets. Features a swivel joint for enhanced maneuverability.
• Rigid Extension Tube: Connects the main unit to the floor brush or other attachments. Features a flexible joint allowing it to bend for cleaning under furniture.
• Flexible Extension Hose: A corrugated hose, approximately 50 cm long, that can stretch to over a meter, useful for cleaning tight spaces or inside vehicles.
• Upholstery Tool with Electric Brush: Designed for cleaning upholstered furniture and mattresses, effective against dust mites.
• Crevice Tool (Wide and Narrow): For cleaning narrow gaps and corners. Features extendable brush elements.
• chaja: Power adapter for charging the battery.
• Wall-Mount Charging Base: For convenient storage and charging of the vacuum cleaner.
• Ihe nkwụnye Swivel: Allows attachments to be angled for difficult-to-reach areas.

Melite

Follow these steps to set up your Jimmy JV85 Pro Cordless Vacuum Cleaner for first use.

1. Iwepu ngwongwo

Carefully remove all components from the packaging. Inspect for any damage. Keep packaging materials for future storage or transport if needed.

Foto: Elu view of the Jimmy JV85 Pro Cordless Vacuum Cleaner's retail packaging, displaying the product name and an illustration of the vacuum.

2. Mgbakọ

1. Tinye batrị: Slide the removable battery pack into the designated slot on the main motor unit until it clicks securely into place.
2. Connect Extension Tube: Insert the rigid extension tube into the main motor unit. Ensure it is firmly connected.
3. Attach Floor Brush: Connect the desired floor brush (soft velour or brush lamella) to the end of the extension tube.
4. Install Wall-Mount Charging Base: For convenient storage and charging, install the wall-mount base in a suitable location. It can be affixed using double-sided tape (included) or screws (not included) for a more secure installation. Ensure the base is high enough so the vacuum cleaner's brush does not touch the floor when docked. Connect the charger to the base.

3. Nchaji mbụ

Before first use, fully charge the battery. Place the assembled vacuum cleaner onto the wall-mount charging base, ensuring the contacts align. The LED display on the main unit will show the charging progress. A full charge typically takes approximately 4.5 hours.

Ntuziaka ọrụ

Learn how to effectively use your Jimmy JV85 Pro Cordless Vacuum Cleaner for various cleaning tasks.

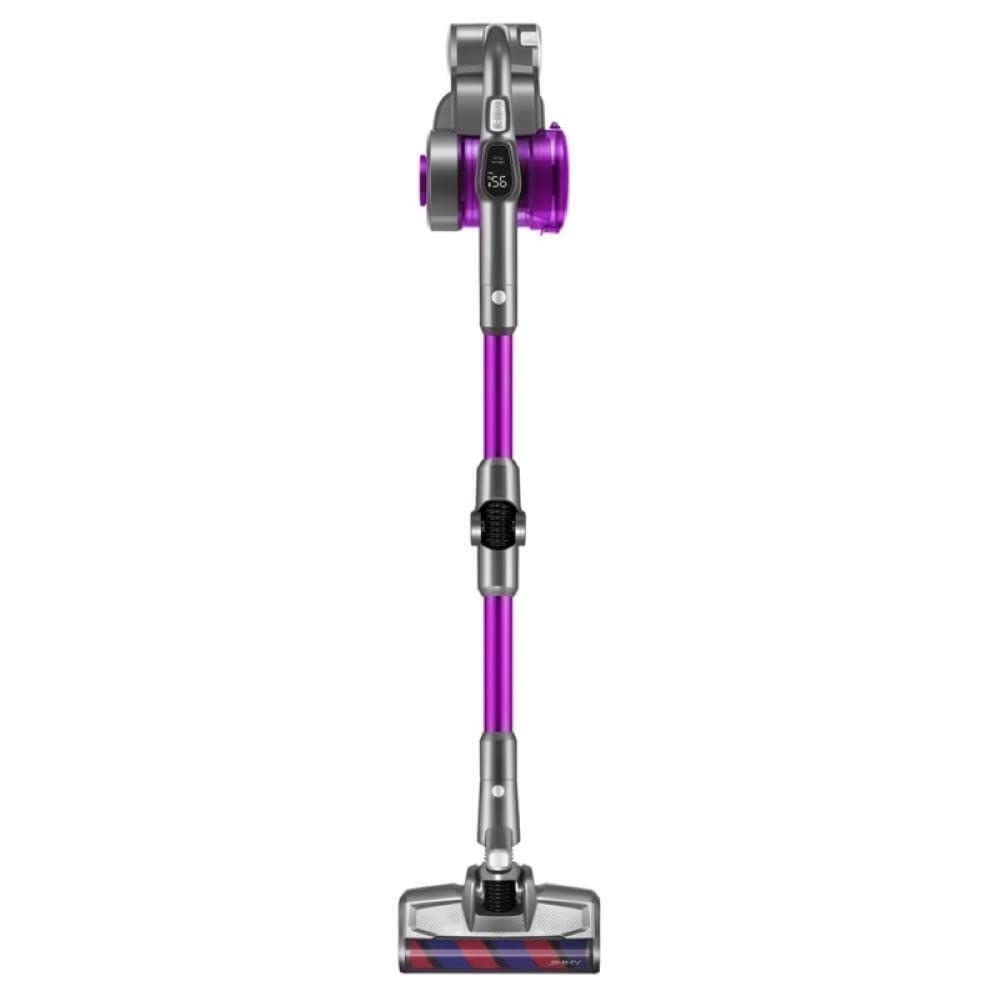

Image: The Jimmy JV85 Pro Cordless Vacuum Cleaner standing upright, showcasing its sleek design and purple accents.

1. Ịgbanyụ / gbanyụọ na nhọrọ ọnọdụ

• Ike Na: Press the power button located on the top of the handle to turn on the vacuum cleaner. It will typically start in the medium (Turbo) power mode.
• Gbanwee ụdịdị: Press the mode selection button (usually next to the power button) to cycle through the three suction modes: Eco (minimum), Turbo (medium), and Max (maximum power).
• Gbanyụọ: Pịa bọtịnụ ike ọzọ ka ịgbanyụọ ikuku.

2. Ikanam Ngosipụta

The intelligent LED display on the main unit provides real-time information:

• Ọkwa batrị: Na-egosi pasentị batrị fọdụrụnụtage.
• Ụdị ọrụ: Indicates the current suction mode (Eco, Turbo, Max).
• Akara batrị: Displays white during normal operation and turns red when the battery charge drops below 20%.

3. Using Different Attachments

Image: The Jimmy JV85 Pro's main floor brush demonstrating its effectiveness on both carpeted and hardwood surfaces, highlighting its multi-surface cleaning capability.

• ahịhịa ala: Use the appropriate brush roll for your floor type. The soft velour roll is ideal for delicate hard floors, while the brush lamella roll is designed for effective cleaning of carpets and rugs. The swivel joint allows for easy navigation around furniture.
• Flexible Extension Tube: Attach this hose for extended reach and flexibility, particularly useful for cleaning car interiors, high shelves, or tight corners.
• Upholstery Ngwá Ọrụ: Connect this tool for cleaning sofas, chairs, and mattresses. Its electric brush helps to agitate and remove embedded dirt and dust mites.
• Crevice Tools: Use the narrow crevice tool for extremely tight spaces and the wider one for slightly larger gaps. The extendable brush elements can be deployed for dusting.
• Flexible Extension Tube with Swivel Adapter: For reaching under low furniture without bending, press the locking button on the rigid extension tube to fold it. This allows the floor brush to slide easily into spaces as low as 70mm and up to 60cm deep.

Nlekọta

Regular maintenance ensures the optimal performance and longevity of your Jimmy JV85 Pro Cordless Vacuum Cleaner.

1. Ịwụpụ ihe n'ime iko uzuzu

It is recommended to empty the dust cup after each use, especially when cleaning large amounts of debris. The dust cup is designed for easy, one-click emptying. While the dark purple body looks stylish, monitor the fill level by observing the debris at the bottom of the container.

2. Nzacha nhicha

The Jimmy JV85 Pro features a multi-stage filtration system, including a cyclone filter and a HEPA filter. Clean these regularly to maintain suction power.

• Cyclone Filter and Pre-foam Filter: After emptying the dust cup, remove the cyclone filter and pre-foam filter. Rinse these components under running water. Ensure they are completely dry before reassembling them into the vacuum cleaner.
• HEPA Myọcha: The HEPA filter can also be washed according to the manual. However, for extended filter life, it is generally recommended to tap out dust and debris rather than washing, unless heavily soiled. If washed, ensure it is completely dry before reinstallation.

3. Cleaning Brush Rolls

Hair and threads can accumulate on the brush rolls, reducing their effectiveness. Regularly remove the brush rolls from the floor brush and upholstery tool to clean them. If excessive hair is wrapped around them, the brush rolls may stop rotating automatically as a safety feature.

4. Nchacha izugbe

Jiri nwayọ hichaa mpụta nke ihe na-ehicha agụụ, damp cloth as needed. Do not use harsh detergents or abrasive cleaners. Ensure all components are thoroughly dry before reassembly and storage.

Nchọpụta nsogbu

If you encounter issues with your Jimmy JV85 Pro, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact Jimmy customer support for further assistance.

Nkọwapụta

Key technical specifications for the Jimmy JV85 Pro Cordless Vacuum Cleaner:

• Aha nlereanya: Jimmy JV85 Pro
• Akara: Jimmy
• moto: 600W Brushless Digital Motor
• Ike imi: 200 AW (Air Watts)
• Oge ịgba ọsọ: Ruo nkeji iri anọ na ise (na ọnọdụ Eco)
• Ndụ batrị: Approximately 60 minutes (general usage)
• Oge nchaji: Ihe dị ka awa 4 nkeji iri atọ
• Ikike Uzuzu: 600 milliliters
• Ụdị nzacha: EGO HEPA
• Ụdị ọrụ: Two-speed (Eco, Turbo, Max)
• Ọkwa mkpọtụ: 82 dB
• Ibu ihe: 5 n'arọ
• Akụkụ ihe (LxWxH): 29.3 x 21 x 67 centimita
• Agba: Purple
• Atụmatụ pụrụ iche: Cordless, HEPA, Lightweight, Portable, LED Display, Flexible Extension Tube

Akwụkwọ ikike na nkwado

Your Jimmy JV85 Pro Cordless Vacuum Cleaner is backed by a manufacturer's warranty and dedicated customer support.

Ozi akwụkwọ ikike

Ngwaahịa a na-abịa na a Akwụkwọ ikike nke afọ 1 from the date of purchase. The warranty covers manufacturing defects and malfunctions under normal household use. Please retain your proof of purchase for warranty claims.

Nkwado ndị ahịa

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please visit the official Jimmy websaịtị ma ọ bụ kpọtụrụ ngalaba ọrụ ndị ahịa ha.

Ndị ọchịchị Websaịtị: www.jimmyglobal.com

Please have your model number (JV85Pro) and purchase details ready when contacting support.
