1. Okwu mmalite
Thank you for choosing the DollaTek 2204 1400KV Brushless Motor. This high-performance motor is designed for various RC fixed-wing aircraft applications, offering reliability and efficiency. This manual provides essential information for the safe and effective setup, operation, and maintenance of your motor. Please read it thoroughly before use.
2. Ntuziaka nchekwa
Always observe the following safety precautions to prevent injury or damage to the motor and other equipment:
- Gụọ akwụkwọ ntuziaka niile: Understand all instructions before operating the motor.
- Proper power supply: Ensure your power source (battery, ESC) matches the motor's voltage na ihe achọrọ ugbu a. Vol na-ezighi ezitage nwere ike imebi ihe nke ukwuu.
- Nchekwa igwe igwe: Always remove the propeller before performing any maintenance or testing to prevent accidental injury. Keep hands and loose clothing clear of rotating parts.
- Okpomọkụ: Brushless motors can become hot during operation. Allow the motor to cool before handling.
- Wiring: Hụ na njikọ eletriki niile dị nchebe ma nwee mkpuchi kwesịrị ekwesị iji gbochie sekit dị mkpụmkpụ.
- gburugburu: Operate the motor in a well-ventilated area, away from flammable materials.
- Ụmụaka: Keep the motor and all RC components out of reach of children.
3. Ngwaahịa gafereview
The DollaTek 2204 1400KV brushless motor features a robust design for high performance in RC aircraft. Its 14-pole, 12-slot high-torque motor design, coupled with high-purity copper windings, maximizes efficiency. The CNC machined 6061 T6 aluminum heat sink casing ensures effective heat dissipation, while high-RPM ABEC5 oversized bearings provide reliability and smooth operation.
4. Nkọwapụta
Below are the detailed specifications for the DollaTek 2204 1400KV Brushless Motor:
| Njirimara | Nkọwapụta |
|---|---|
| KV (RPM/Volt) | 1400KV |
| Wattage | 160W |
| Voltage Oke | 7-15 V |
| Oke Amps | 13A |
| IO (No-load current) | 0.5 A |
| Nguzogide | 0.307 Ohm |
| Nha moto | Ø28 * 22mm |
| Nha Stator | 2204 |
| Propeller akwadoro | 7.5*3.5 / 8*4 / 9*5 |

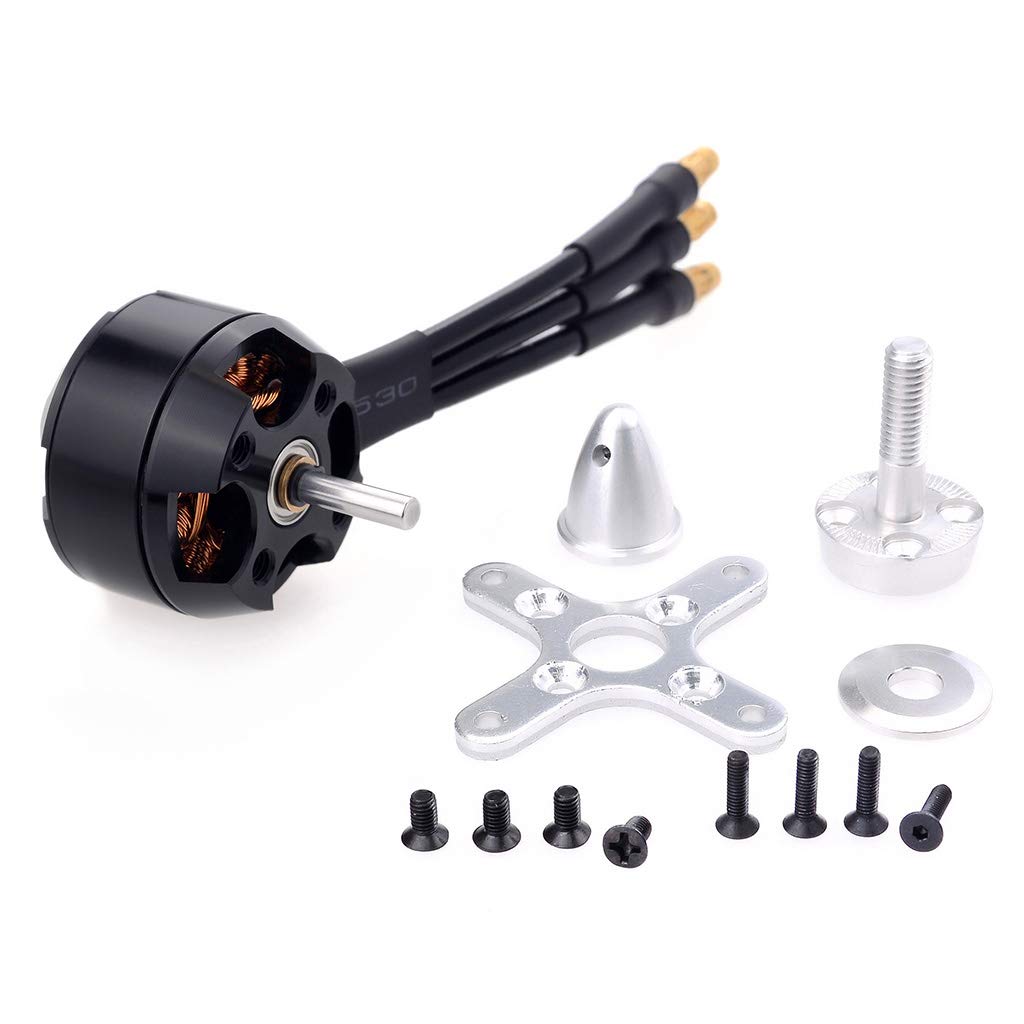

| Ụdị njikọ | 3.5mm Gold Banana Connector |
| Ibu | 28.7 g |
| Ihe onwunwe | Ọla |
5. Nhazi
Follow these steps to properly set up your brushless motor:
- Ịwụnye moto ahụ: Secure the motor to your aircraft's motor mount using appropriate screws. Ensure the motor is firmly attached and aligned correctly. The motor features standard mounting holes for compatibility.
- Connecting the ESC: Connect the three motor wires to the three output wires of your Electronic Speed Controller (ESC). The DollaTek 2204 motor uses 3.5mm gold banana connectors for a secure connection. The order of connection for the three wires determines the motor's rotation direction. If the motor spins in the wrong direction, swap any two of the three wires.
- Nwụnye propeller: Once the motor is securely mounted and connected to the ESC, install the propeller. Ensure the propeller is balanced and mounted correctly for optimal performance and safety. Refer to the recommended propeller sizes in the specifications.
- Nhazi ESC: Calibrate your ESC according to its manufacturer's instructions to ensure proper throttle response and motor synchronization.
6. .rụ ọrụ
Before operating your RC aircraft, perform a pre-flight check:
- Lelee batrị: Ensure your battery is fully charged and securely installed.
- Ebe njikwa: Verify all control surfaces move freely and in the correct direction.
- Motor Test: With the propeller removed, briefly test the motor at low throttle to confirm smooth operation and correct rotation direction.
- Nyochaa igwe ihe: After confirming motor function, install the propeller and ensure it is tight and free from damage.
During operation, monitor motor temperature. Excessive heat can indicate an overloaded motor, an undersized propeller, or insufficient cooling. Adjust your setup or flying style as needed.
7. Nlekọta
Regular maintenance will extend the life and performance of your motor:
- Nhicha: Keep the motor free from dirt, dust, and debris. Use compressed air or a soft brush to clean the motor, especially around the bearings and cooling fins.
- Nyocha: Periodically inspect the motor for any signs of wear, such as damaged wires, loose connections, or unusual bearing noise.
- Bearing Lubrication: While the ABEC5 bearings are designed for high performance, light lubrication with a specialized bearing oil can be applied if excessive noise or friction is detected. Consult with an RC hobby expert if unsure.
- Nchekwa: Store the motor in a dry, cool environment away from direct sunlight and corrosive materials.
8. Nchọpụta nsogbu
If you encounter issues with your DollaTek 2204 motor, consider the following common problems and solutions:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Moto anaghị agbagharị agbagharị | Loose connections, faulty ESC, dead battery, motor damage. | Check all wiring, test ESC with another motor, charge/replace battery, inspect motor for physical damage. |
| Motor spins in wrong direction | Incorrect ESC wire connection. | Swap any two of the three motor-to-ESC wires. |
| moto na-agba ọkụ | Over-propped, insufficient cooling, too high voltage, faulty bearings. | Use a smaller propeller, ensure adequate airflow, check battery voltage, inspect/replace bearings. |
| Reduced power/efficiency | Damaged windings, worn bearings, weak battery. | Inspect motor, replace bearings, use a fully charged battery. |
| Mkpọtụ/ama jijiji na-adịghị ahụkebe | Unbalanced propeller, worn bearings, loose motor mount. | Balance propeller, replace bearings, tighten motor mounting screws. |
9. Akwụkwọ ikike na nkwado
DollaTek products are manufactured to high standards. For any issues or support, please contact your retailer or DollaTek customer service. Keep your purchase receipt as proof of purchase. Specific warranty details may vary by region and retailer.
For further assistance, please visit the official DollaTek websaịtị ma ọ bụ kpọtụrụ ndị otu nkwado ha ozugbo.
