1. Okwu mmalite
This manual provides detailed instructions for the installation, operation, and maintenance of your DollaTek F540 V2 3300KV Waterproof Brushless Sensorless Motor. Designed for 1/10 scale RC vehicles, this motor offers high performance and durability. Please read this manual thoroughly before use to ensure proper function and safety.
2. Ntuziaka nchekwa
- Always disconnect the battery before performing any maintenance or installation.
- Gbaa mbọ hụ na njikọ niile echekwara na mkpuchi nke ọma iji gbochie sekit mkpụmkpụ.
- Operate the motor within its specified voltage and current limits to avoid damage.
- Debe aka na uwe ndị na-adịghị mma ka ha ghara ịgagharị n'ebe a na-arụ ọrụ.
- The motor can become hot during use. Allow it to cool before handling.
- Ngwaahịa a abụghị ihe egwuregwu ụmụaka. Debe ebe ụmụaka na-apụghị iru.
- Refer to your Electronic Speed Controller (ESC) manual for compatible settings and wiring.
3. Ihe ngwugwu
Mgbe ịmepechara ngwugwu ahụ, chọpụta na ihe niile dị na ọ dị mma:
- 1 x DollaTek F540 V2 3300KV Brushless Sensorless Motor

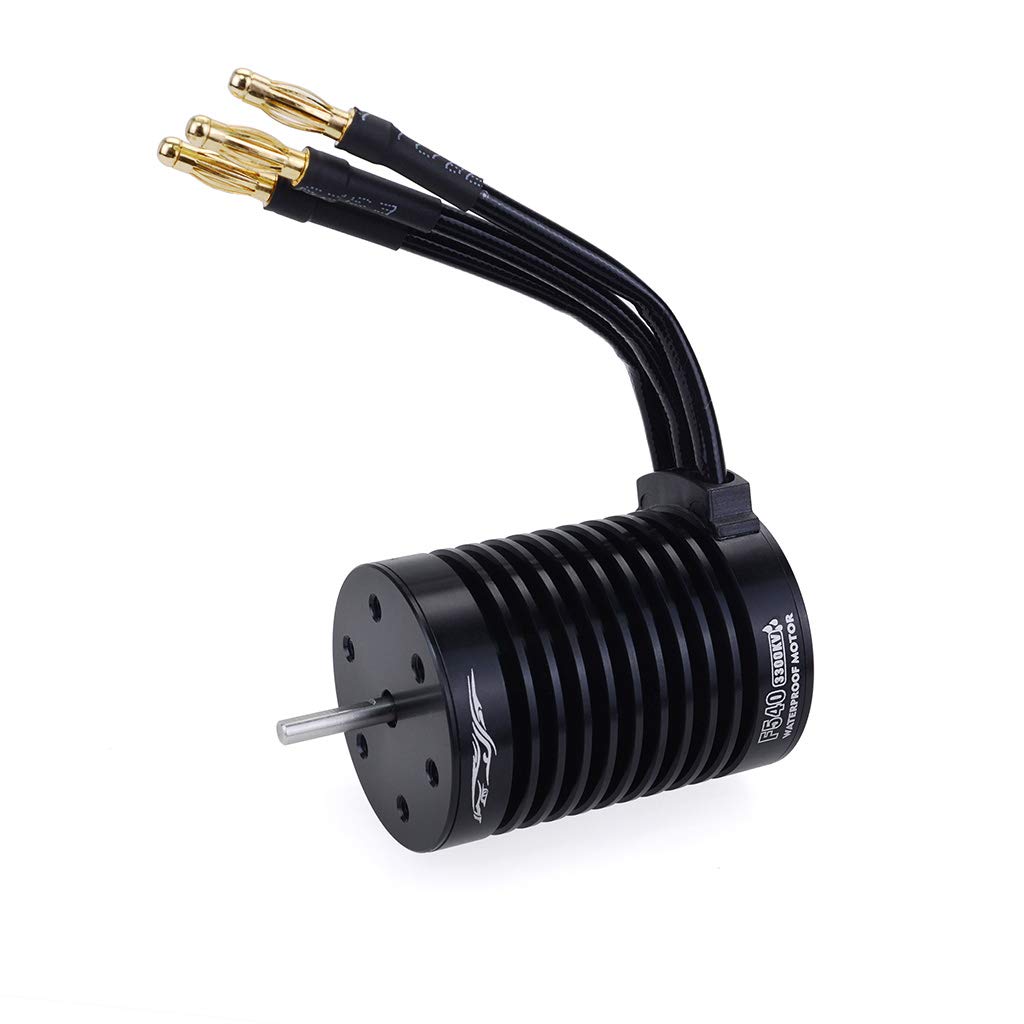

Image 1: DollaTek F540 V2 3300KV Brushless Sensorless Motor. This image shows the overall view of the motor with its three gold-plated connectors.
4. Ngwaahịa gafereview na Atụmatụ
The DollaTek F540 V2 motor is engineered for optimal performance in 1/10 scale RC applications. Key features include:
- High Torque Design: 4-pole, 12-slot high-torque motor design.
- C na-adịgide adịgideasing: CNC machined 6061 T6 aluminum heatsink can.
- Ịrụ ọrụ dị elu: High purity copper windings maximize efficiency.
- Precision Bearings: High RPM ABEC5 oversized bearings.
- Eluigwe na ụwa: Suitable for all 1/10 brushless RC cars with multiple mounting system for M3 screws.
- Balanced Rotor: Precision balanced rotor for smoothness, reliability, and maximum RPM.
- Optimized Stator: Super thin (0.35mm) stator laminations.
- Serviceable Design: Removable/replaceable rotor.
- Nhazi mgbochi mmiri: Enhanced protection against water and dust.
Foto 2: Akụkụ view of the DollaTek F540 V2 motor, highlighting the three gold-plated bullet connectors for ESC connection.
5. Nkọwapụta
| Oke | Uru |
|---|---|
| Nọmba ihe | F540 V2 12T |
| Ọkwa KV | 3300KV |
| Watts | 800W |
| Max Voltage | <17V |
| Oke Amps | 47A |
| Osisi rotor | 4 |
| IO (No-load Current) | 1.9A |
| Nguzogide | 0.0285 ohms |
| Oke RPM | 50000 RPM |
| Ụdị njikọ | 4.0mm Gold Bullet |
| Ogologo moto | 50 mm |
| Dayameta moto | 36 mm |
| Dayameta Shaft | 3.175 mm |
| Extended Shaft Length | 15 mm |
| Ibu | Ihe ruru. 125g |
| Ihe onwunwe | Metal na Plastic |
| Agba | Nwa |
| Ndakọrịta | 1/10 Scale Brushless RC Cars |
Foto 3: Elu view of the DollaTek F540 V2 motor, showing the output shaft and mounting screw holes.
6. Ntọala na nwụnye
- Ịwụnye moto ahụ: Securely mount the motor to your RC vehicle's motor mount using appropriate M3 screws. Ensure the motor is aligned correctly with the pinion gear.
- Pinion Gear Installation: Install the pinion gear onto the motor shaft. Ensure it is properly meshed with the spur gear, allowing for a small amount of play (backlash) to prevent binding.
- Njikọ ESC: Connect the three motor wires to your Electronic Speed Controller (ESC). For sensorless motors, the order of connection typically does not matter for initial setup, but if the motor spins in the wrong direction, swap any two of the three wires.
- Njikọ batrị: Connect your battery to the ESC. Ensure the battery's voltage is within the motor's specified maximum voltage (<17V).
- Nhazi Follow your ESC's instructions for calibration with the motor. This typically involves setting throttle endpoints.
Foto 4: Akụkụ view of the DollaTek F540 V2 motor, showing the ribbed heatsink design for efficient cooling.
7. Ntuziaka ọrụ
- Nnwale izizi: After installation, perform a low-speed test to ensure the motor spins smoothly and in the correct direction. Adjust wiring if necessary.
- Nyochaa okpomọkụ: Regularly monitor the motor's temperature during operation. Excessive heat can damage the motor and ESC. If the motor becomes too hot to touch (over 80°C or 176°F), reduce gearing or adjust ESC settings.
- Njirimara mgbochi mmiri: While the motor is waterproof, it is recommended to avoid prolonged submersion or exposure to corrosive liquids. Always dry the motor thoroughly after wet use.
- Ntọala ESC: Optimize your ESC settings (e.g., timing, punch, drag brake) for the best performance and efficiency with this motor. Refer to your ESC manual for guidance.
8. Nlekọta
- Nhicha: Periodically clean the motor exterior to remove dirt, dust, and debris. Use a soft brush or compressed air.
- Nyocha: Regularly inspect the motor wires and connectors for any signs of wear, fraying, or corrosion.
- Nyocha mbuli: Check the motor bearings for smooth operation. If they feel rough or noisy, they may need replacement. The rotor is removable/replaceable for servicing.
- Shaft Condition: Ensure the motor shaft is straight and free from bends or damage.
Foto 5: N'okpuru view of the DollaTek F540 V2 motor, showing the mounting screw pattern.
9. Nchọpụta nsogbu
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Motor not spinning or stuttering | Loose wire connections, incorrect ESC calibration, damaged ESC, damaged motor. | Check all wire connections. Recalibrate ESC. Test with a different ESC or motor if possible. |
| Motor spins in wrong direction | Incorrect motor wire connection to ESC. | Gbanwee waya moto abụọ ọ bụla ejikọtara na ESC. |
| Moto ekpo oke ọkụ | Overgeared, excessive load, incorrect ESC timing, insufficient cooling. | Reduce pinion gear size or increase spur gear size. Reduce vehicle load. Adjust ESC timing. Ensure adequate airflow. |
| Loss of power or inconsistent performance | Obere batrị voltage, damaged battery, loose connections, motor or ESC damage. | Charge or replace battery. Check all connections. Inspect motor and ESC for visible damage. |
10. Akwụkwọ ikike na nkwado
DollaTek products are manufactured to high-quality standards. This product comes with a limited warranty. Please refer to the product packaging or the retailer's websaịtị maka usoro na ọnọdụ akwụkwọ ikike akọwapụtara.
For technical support or inquiries, please contact your point of purchase or visit the official DollaTek websaịtị maka ozi kọntaktị.
