Alphacool HDX M.2 SSD Cooler M02-110mm Instruction Manual

1. Okwu mmalite

The Alphacool HDX M.2 SSD Cooler M02-110mm is designed to provide passive cooling for M.2 Solid State Drives. This cooler helps to dissipate heat generated by the SSD, which can contribute to maintaining optimal performance and longevity of the drive. Its compact design ensures compatibility with various system configurations.

2. Ozi nchekwa

• Jiri nlezianya na-ejikwa ihe eletrọniki eme ihe mgbe niile iji zere mmebi.
• Ensure your system is powered off and unplugged before installation.
• Discharge any static electricity from your body before handling the SSD or cooler components.
• Keep small parts, such as clips, away from children.
• Ọ bụrụ na ịmaghị maka usoro nrụnye ọ bụla, kpọtụrụ onye ọkachamara tozuru etozu.

3. Ihe ngwugwu

Biko hụ na ihe niile edepụtara n'okpuru dị na ngwugwu gị:

• Two (2) Cooling Plates (Aluminium, Black)
• Thermal Pads (various sizes for chips)
• Mpempe akwụkwọ agbakwunyere

Image 3.1: Contents of the Alphacool HDX M.2 SSD Cooler package.

4. Ntọala na nwụnye

Follow these steps to properly install the Alphacool HDX M.2 SSD Cooler onto your M.2 SSD:

1. Prepare the SSD: Gently remove your M.2 SSD from its slot or packaging. Ensure the SSD surface is clean and free of dust or debris.
2. Tinye paịlị thermal: Carefully peel the protective film from both sides of the thermal pads. Place the thermal pads directly onto the memory chips and controller chip of your M.2 SSD. Ensure good contact and coverage over the heat-generating components.
3. Position Cooling Plates: Place one cooling plate on top of the thermal pads on the upper side of the SSD. Place the second cooling plate on the underside of the SSD, aligning it with the top plate.
4. Chekwaa na Clips: Use the provided mounting clips to secure the two cooling plates together, sandwiching the M.2 SSD and thermal pads firmly in place. Ensure the clips are securely fastened but do not apply excessive force.
5. Wụnye SSD: Carefully re-insert the M.2 SSD with the installed cooler into its designated M.2 slot on your motherboard. Secure the SSD with the motherboard's retaining screw, if applicable.

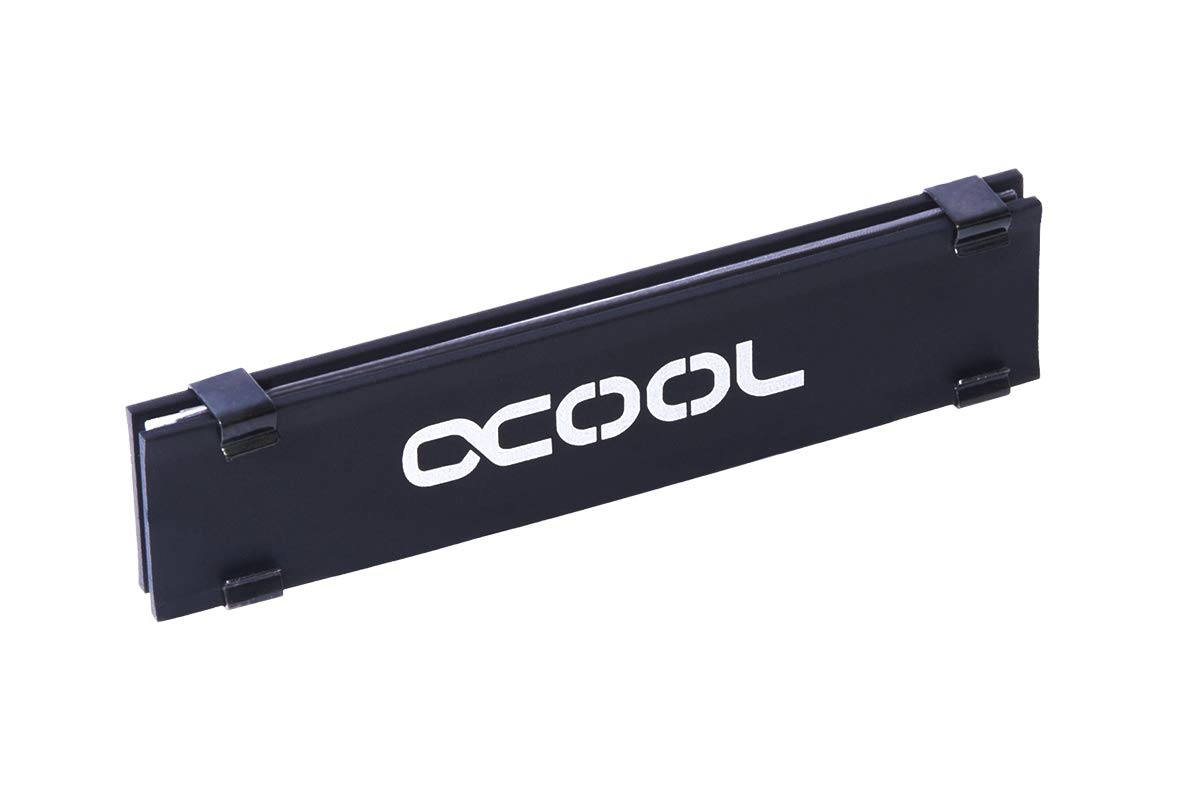

Image 4.1: Alphacool HDX M.2 SSD Cooler fully assembled on an M.2 SSD.

5. .rụ ọrụ

The Alphacool HDX M.2 SSD Cooler is a passive cooling solution. Once installed, it operates continuously without requiring any user intervention or power connection. It works by drawing heat away from the M.2 SSD components through the thermal pads and dissipating it into the surrounding air via the aluminum cooling plates. This passive heat exchange helps to maintain lower operating temperatures for your SSD.

6. Nlekọta

Minimal maintenance is required for the Alphacool HDX M.2 SSD Cooler:

• Mwepụ uzuzu: Periodically inspect the cooling plates for dust accumulation. Use a soft brush or compressed air to gently remove any dust, ensuring optimal airflow around the cooler.
• Nhicha: If necessary, wipe the exterior of the cooling plates with a soft, dry, lint-free cloth. Do not use harsh chemicals or abrasive materials.

7. Nchọpụta nsogbu

If you experience issues after installing the cooler, consider the following:

• SSD Overheating: Ensure the thermal pads are correctly placed and making full contact with the SSD chips and cooling plates. Verify that the clips are securely fastened to provide adequate pressure.
• Na-ekwesịghị ekwesị: Double-check that the cooler is correctly aligned with the M.2 SSD and that no components are obstructing its proper seating in the M.2 slot.
• Enweghị Nkwụsi Ike na Sistemụ: If system instability occurs after installation, re-verify all connections and ensure the SSD is properly recognized by the system BIOS/UEFI.

8. Nkọwapụta

9. Akwụkwọ ikike na nkwado

For warranty information and technical support, please refer to the official Alphacool websaịtị ma ọ bụ kpọtụrụ onye na-ere ahịa gị. Debe ihe akaebe nke ịzụrụ ihe maka akwụkwọ ikike.
