EDIAG 12V Car Battery Tester BM310 User Manual

Okwu mmalite

The EDIAG BM310 is a compact and easy-to-use 12V car battery and alternator tester designed to quickly assess the health of your vehicle's battery and charging system. This device provides clear indications of battery status and alternator performance through its intuitive LED display, helping you identify potential issues before they lead to vehicle breakdown.

Ozi nchekwa

Always prioritize safety when working with vehicle batteries. Please read and understand the following safety precautions:

• Ensure the vehicle engine is turned off before connecting or disconnecting the tester, unless performing an alternator test as instructed.
• Wear appropriate personal protective equipment, including safety glasses and gloves, to protect against battery acid and electrical hazards.
• Avoid contact with battery terminals and cables while the engine is running or the battery is connected.
• Keep the tester away from water, oil, and other liquids.
• The BM310 features a reverse protection function to prevent damage from incorrect polarity connection. However, always double-check connections to ensure proper operation and safety.
• Do not attempt to disassemble or modify the tester. Refer all servicing to qualified personnel.

Ngwaahịa gafereview

The EDIAG BM310 tester is designed for ease of use and durability. It features a clear LED indicator panel and robust construction.

Foto 1: N'ihu view of the EDIAG BM310 Battery Tester showing the LED indicators and connection clamps.

Isi ihe na atụmatụ gụnyere:

• Ogwe ngosi LED: Six distinct LED indicators provide clear status updates for both alternator and battery conditions.
• Pure Copper Wire and Clips: Ensures excellent conductivity and accurate voltage readings. The copper clips offer better conductivity and more precise measurements compared to standard iron clips.
• Nhazi Ergonomic: The device is designed for comfortable handling and ease of use.
• ABS Industrial Grade Material: Provides durability and protection for the internal components.

Ọgụgụ 2: Zuru ezu view highlighting the ergonomic design and durable ABS material of the tester.

Figure 3: Illustration of the tester's dimensions and the superior conductivity of the copper clips.

Melite

The EDIAG BM310 is designed for quick and simple setup. It is compatible with all 12V automotive and motorcycle batteries.

1. Ensure the vehicle is turned off before connecting the tester for a battery check. For an alternator check, the engine will need to be running later.
2. Jikọọ red alligator clip ka positive (+) terminal of the 12V battery.
3. Jikọọ black alligator clip ka adịghị mma (-) ọnụ of the 12V battery.
4. Once connected, the tester will automatically power on and begin its assessment.

Figure 4: Connection diagram for the EDIAG BM310 to a 12V battery.

Ntuziaka ọrụ

The BM310 provides two primary functions: Battery State Check and Alternator State Check.

1. Battery State Check

With the tester connected to the 12V battery and the engine off, observe the "Battery State" LEDs:

• Full (Green LED): Na-egosi chajịrị batrị zuru oke.
• Middle (Orange LED): Indicates the battery is moderately charged.
• Low (Red LED): Indicates the battery charge is low and may require charging.
• Check before Charge (Green LED): If this LED is lit, it suggests the battery could be charged. If the voltage drops to 10V, the battery may be damaged and cannot be charged.

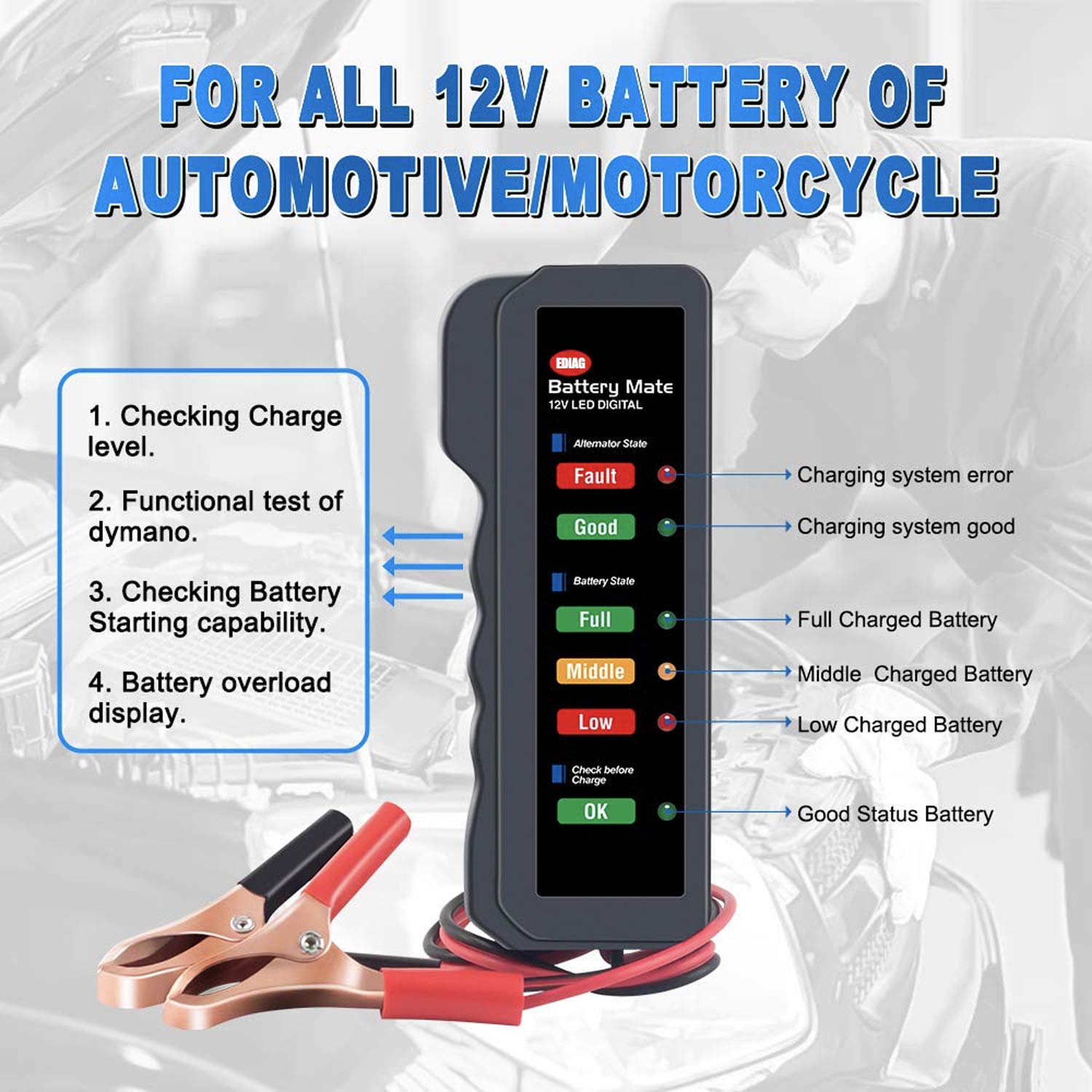

Nyocha 5: N'eluview of the tester's functions, including charge level, functional test of dynamo, battery starting capability, and battery overload display.

2. Alternator State Check

To check the alternator's performance:

1. Ensure the tester is correctly connected to the battery.
2. Bido injin ụgbọ ala.
3. Accelerate the engine to approximately 2000 RPM.
4. Observe the "Alternator State" LEDs:
   • Good (Green LED): Indicates the charging circuit is functioning correctly.
   • Fault (Red LED): Indicates a charging system error. If this light is lit, the alternator voltage may be too high, which could damage your battery.

Figure 6: The EDIAG BM310 in use, connected to a car battery for testing.

Nlekọta

To ensure the longevity and accurate performance of your EDIAG BM310 tester, follow these simple maintenance guidelines:

• Nhicha: Jiri ákwà dị nro ma kpọọ nkụ hichaa ngwaọrụ ahụ mgbe ejiri ya mee ihe ọ bụla. Ejila ihe nhicha ma ọ bụ ihe mgbaze.
• Nchekwa: Store the tester in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use.
• Nlekọta USB: Nyochaa eriri na clamps regularly for any signs of wear, fraying, or damage. Replace if necessary.
• Zere mbelata: While built with durable ABS material, avoid dropping the device to prevent internal damage.

Nchọpụta nsogbu

If you encounter issues with your EDIAG BM310, refer to the following common problems and solutions:

Nkọwapụta

Ozi akwụkwọ ikike

Specific warranty details for the EDIAG BM310 are not provided in this manual. Please refer to the product packaging or contact the manufacturer directly for warranty terms and conditions.

Nkwado ndị ahịa

For technical assistance, troubleshooting beyond this manual, or general inquiries, please contact EDIAG customer support through their official website or the retailer from whom you purchased the product. Please have your product model number (BM310) ready when contacting support.
