Mesko MS7719 Portable Electric Fan Heater User Manual

1. Ntuziaka nchekwa dị mkpa

Biko gụọ ntuziaka ndị a nke ọma tupu i jiri ngwa ahụ ma debe ha maka ntụaka n'ọdịnihu. Ọ bụrụ na i meghị ihe ndị a, ọ nwere ike ibute mgbawa ọkụ eletrik, ọkụ, ma ọ bụ mmerụ ahụ dị njọ.

• Ekpuchila: Never cover the heater. Covering the heater can lead to overheating and fire. The appliance has a warning label indicating this.
• Gbaa mbọ hụ na voltage gosiri na akara ọkwa dabara na isi voltage n'ụlọ gị.
• Ezubere ngwa a maka iji naanị ụlọ. Ejila ya maka ebumnuche azụmahịa ma ọ bụ ụlọ ọrụ mmepụta ihe.
• Do not use the heater in bathrooms, near water, or in damp gburugburu.
• Always place the heater on a stable, flat, and heat-resistant surface.
• Keep the heater at a safe distance from flammable materials such as furniture, curtains, and paper.
• Do not insert any objects into the heater's openings.
• Wepụ ihe na-ekpo ọkụ ahụ na ebe a na-ere ọkụ mgbe a naghị eji ya ma ọ bụ tupu e hichaa ya.
• Do not operate the heater with a damaged cord or plug. If the cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• This appliance is equipped with an overheat protection system. If the heater overheats, it will automatically shut off. Unplug the heater, allow it to cool down, and then check for any obstructions before restarting.
• Supervise children and pets when the heater is in operation.

2. Ngwaahịa gafereview

The Mesko MS7719 is a portable electric fan heater designed to provide quick heating or cooling for various indoor spaces. It features two power settings for heating, a cold air function, and a thermostat for temperature control. Its compact size and lightweight design make it easy to move and position where needed.

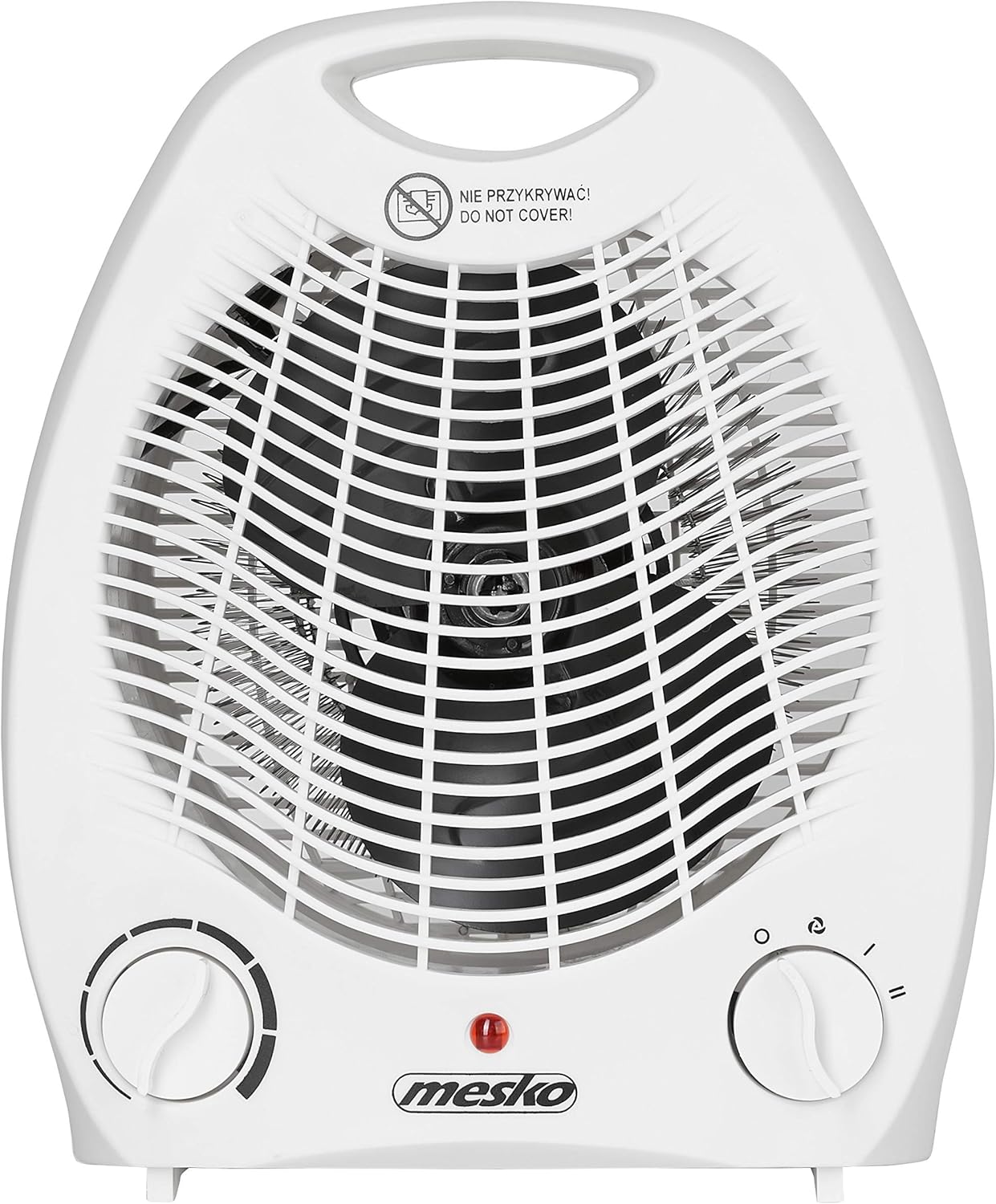

Foto 1: N'ihu view of the Mesko MS7719 Portable Electric Fan Heater, showing the fan grille, control knobs, and indicator light.

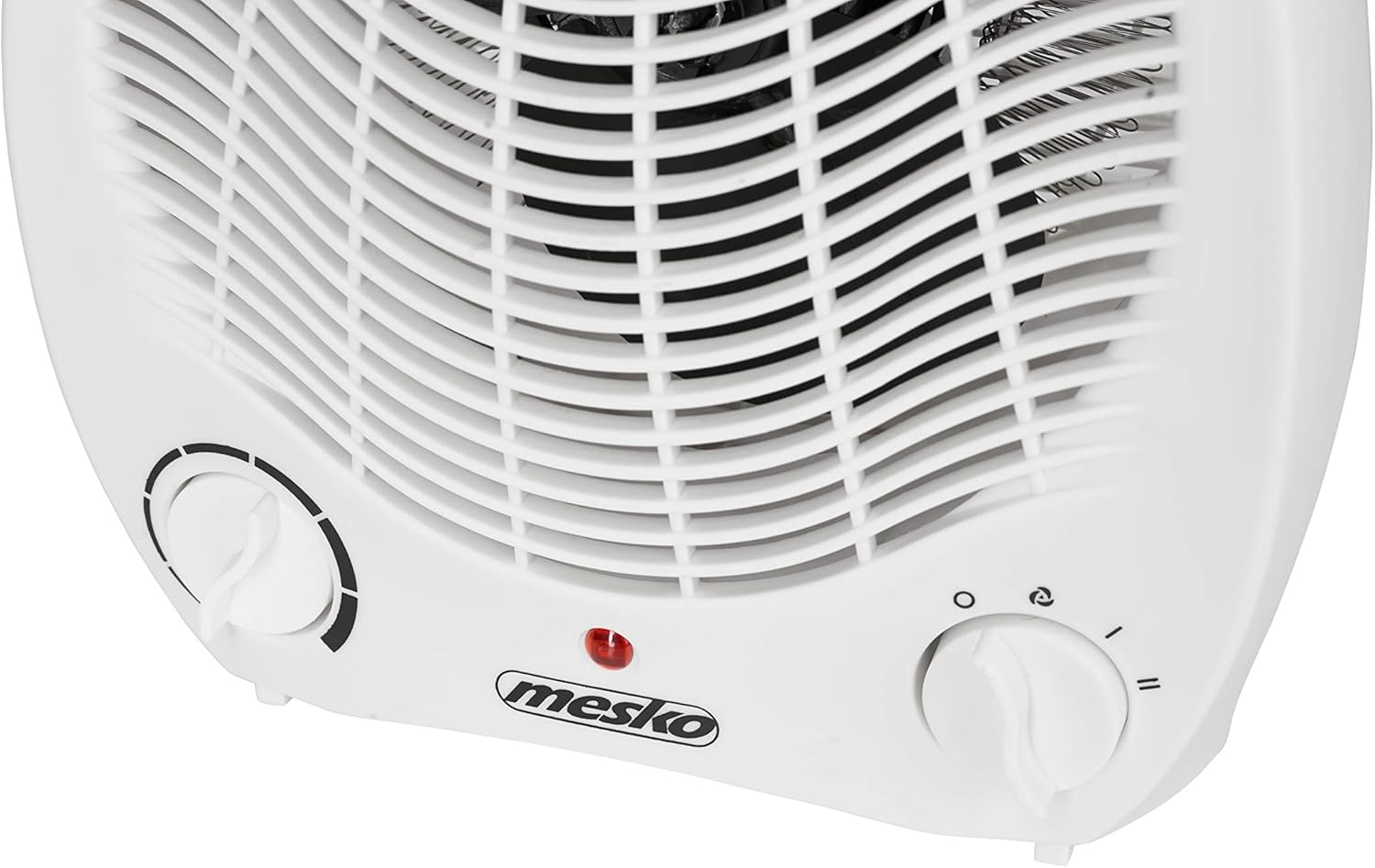

Figure 2: Close-up of the control panel, highlighting the thermostat knob (left) and mode selector knob (right).

3. Nhazi

1. Iwepu: Carefully remove the heater from its packaging. Retain the packaging for storage or disposal according to local regulations.
2. Nkwanye: Place the heater on a firm, level, and stable surface. Ensure there is at least 1 meter (3 feet) of clear space around the heater from walls, furniture, and other objects to allow for proper airflow and prevent fire hazards.
3. Njikọ ike: Ensure the heater is switched off (mode selector knob set to 'O' or 'OFF'). Plug the power cord into a suitable electrical outlet (220-240V, 50Hz).

4. Ntuziaka ọrụ

The Mesko MS7719 heater features two control knobs on its front panel:

• Aka ekpe: Thermostat njikwa.
• Aka nri: Mode selector (Power/Airflow).

4.1. Nhọrọ mode

Turn the right knob (mode selector) to choose the desired operating mode:

• O (OFF): Na-agbanyụ ihe na-ekpo ọkụ.
• Fan Only (Cold Air): Activates the fan without heating, providing a cool airflow. This mode is indicated by a fan icon.
• Heat Setting I (1000W): Provides low-level heating. This mode is indicated by a single wave icon.
• Heat Setting II (2000W): Provides high-level heating. This mode is indicated by a double wave icon.

4.2. Njikwa okpomọkụ (Thermostat)

Once a heating mode (Heat Setting I or II) is selected, use the left knob (thermostat) to set the desired room temperature:

• Turn the thermostat knob clockwise to increase the desired temperature.
• Turn the thermostat knob counter-clockwise to decrease the desired temperature.
• Igwe na-ekpo ọkụ ga-agbanye ma gbanyụọ okirikiri ka ọ nọgide na-enwe okpomọkụ setịpụrụ.

4.3. Ihe ngosi ọkụ

A red indicator light on the front panel illuminates when the heater is operating (fan or heating modes).

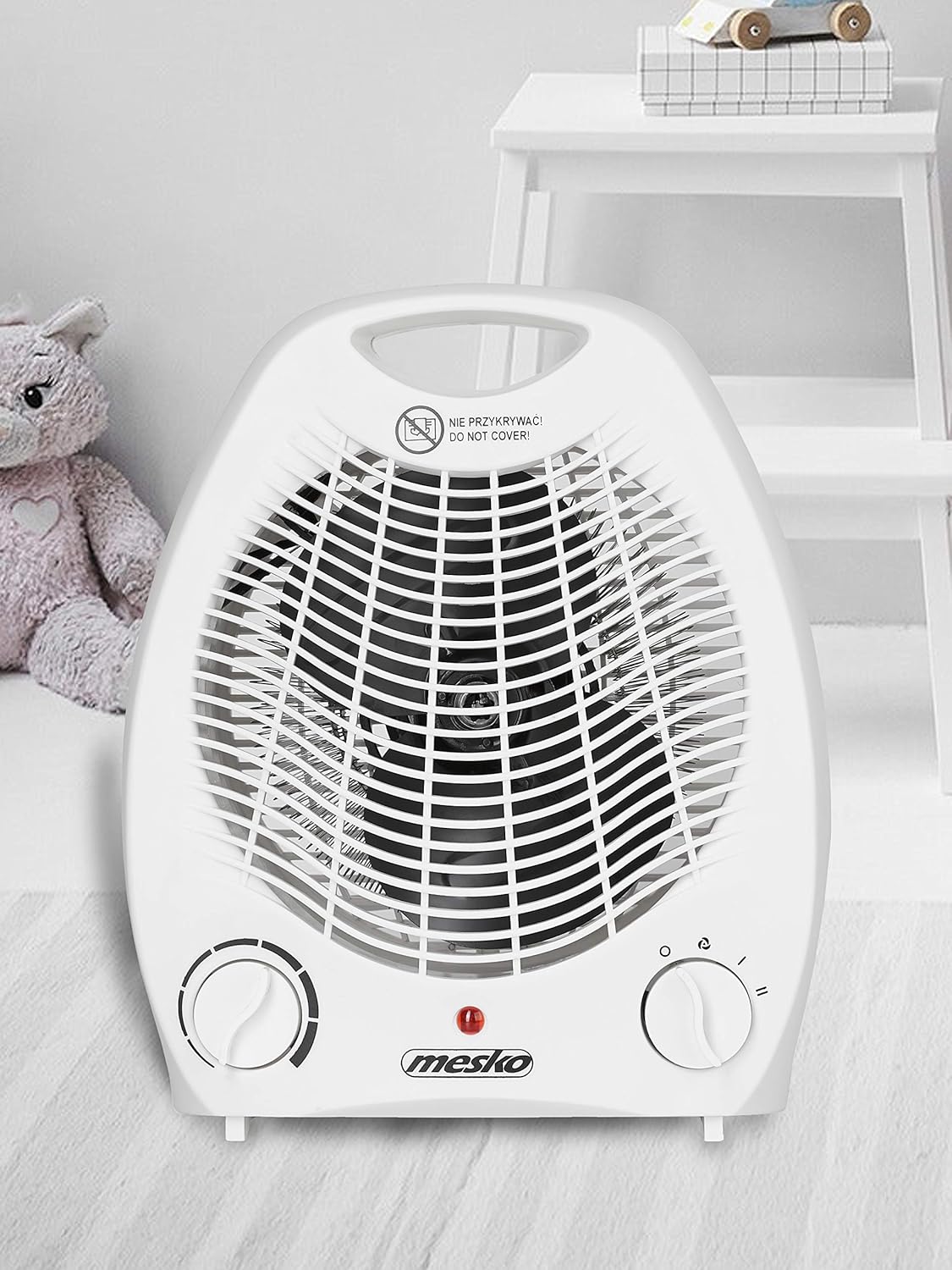

Figure 3: The fan heater positioned in a room, demonstrating its compact and portable nature.

5. Nlekọta

Regular cleaning and maintenance will help ensure the longevity and efficient operation of your heater.

1. Tupu ihicha: Na-ewepụ ihe na-ekpo ọkụ mgbe niile na ebe ọkụ ọkụ ma kwe ka ọ dị jụụ kpamkpam tupu ihicha ya.
2. Nchacha mpụta: Jiri ihe dị nro hichaa elu mpụta nke ihe na-ekpo ọkụ ahụ, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the plastic housing.
3. Ọnụba/ụzọ ikuku: Use a vacuum cleaner with a brush attachment to gently remove dust and debris from the air inlet and outlet grilles. Ensure these areas are clear of obstructions.
4. Nchekwa: When not in use for extended periods, store the heater in its original packaging or a clean, dry place.
5. Emikpula: Never immerse the heater or its power cord in water or any other liquid.

6. Nchọpụta nsogbu

If you encounter issues with your Mesko MS7719 heater, please refer to the following common troubleshooting steps:

• Ihe na-ekpo ọkụ anaghị agba ọkụ:
  • Lelee ma ọ bụrụ na etinyere eriri ọkụ n'ime oghere eletrik na-arụ ọrụ.
  • Ensure the mode selector knob is set to a heating or fan mode, not 'O' (OFF).
  • Hụ na e tinyere thermostat ahụ n'ọnọdụ okpomọkụ dị elu karịa okpomọkụ ụlọ dị ugbu a.
  • Check your household's circuit breaker or fuse box.
• Heater turns off unexpectedly (Overheat Protection):
  • The heater has an automatic overheat protection system. If it shuts off, unplug it immediately.
  • Allow the heater to cool down for at least 10-15 minutes.
  • Inspect the air inlet and outlet grilles for any obstructions (dust, lint, objects). Clear any blockages.
  • Ensure the heater is placed on a stable surface and has adequate clearance around it.
  • Plug the heater back in and restart. If the issue persists, contact customer support.
• No heat in heating mode:
  • Ensure the mode selector is set to Heat Setting I or II.
  • Gbanwee thermostat ka ọ bụrụ ntọala dị elu.

If these steps do not resolve the issue, please contact Mesko customer support or your retailer for assistance.

7. Nkọwapụta

Technical specifications for the Mesko MS7719 Portable Electric Fan Heater:

Figure 4: Dimensions of the Mesko MS7719 Portable Electric Fan Heater.

8. Akwụkwọ ikike na nkwado

For warranty information, please refer to the warranty card included with your purchase or consult the retailer where the product was purchased. Mesko provides a standard manufacturer's warranty against defects in materials and workmanship.

For technical support, spare parts, or service inquiries, please contact your local Mesko distributor or the retailer from whom you purchased the product. Please have your model number (MS7719) and proof of purchase ready when contacting support.
