DT321B Digital Multimeter Instruction Manual

1. Okwu mmalite

This manual provides essential instructions for the safe and effective use of your DT321B Digital Multimeter. This portable device is designed for measuring AC/DC voltage, DC current, resistance, and includes features for diode testing, continuity, battery testing, and transistor (hFE) measurements. Please read this manual thoroughly before operation and retain it for future reference.

2. Ozi nchekwa

Always observe basic safety precautions when using this multimeter to reduce the risk of fire, electric shock, or personal injury.

• Etinyekwala voltage or current that exceeds the maximum specified limits for the multimeter.
• Ensure the test leads are in good condition and properly connected before making any measurements.
• Ejila multimeter ahụ ma ọ bụrụ na o yiri ka ọ mebiri emebi ma ọ bụ ma ọ bụrụ na ihe nlele ahụ emebiela.
• Kpachara anya mgbe ị na-arụ ọrụ na voltages karịrị 30V AC RMS, 42V elu, ma ọ bụ 60V DC. Vol ndị atages na-ebute ihe egwu ujo.
• Always disconnect power to the circuit under test before measuring resistance or continuity.
• Do not operate the multimeter in explosive atmospheres.
• Dochie batrị mgbe ihe ngosi batrị dị ala pụtara iji hụ na agụpụtara nke ọma.

3. Ngwaahịa gafereview

The DT321B Digital Multimeter features a clear LCD display and a rotary switch for selecting various measurement functions. Input jacks are provided for connecting test leads.

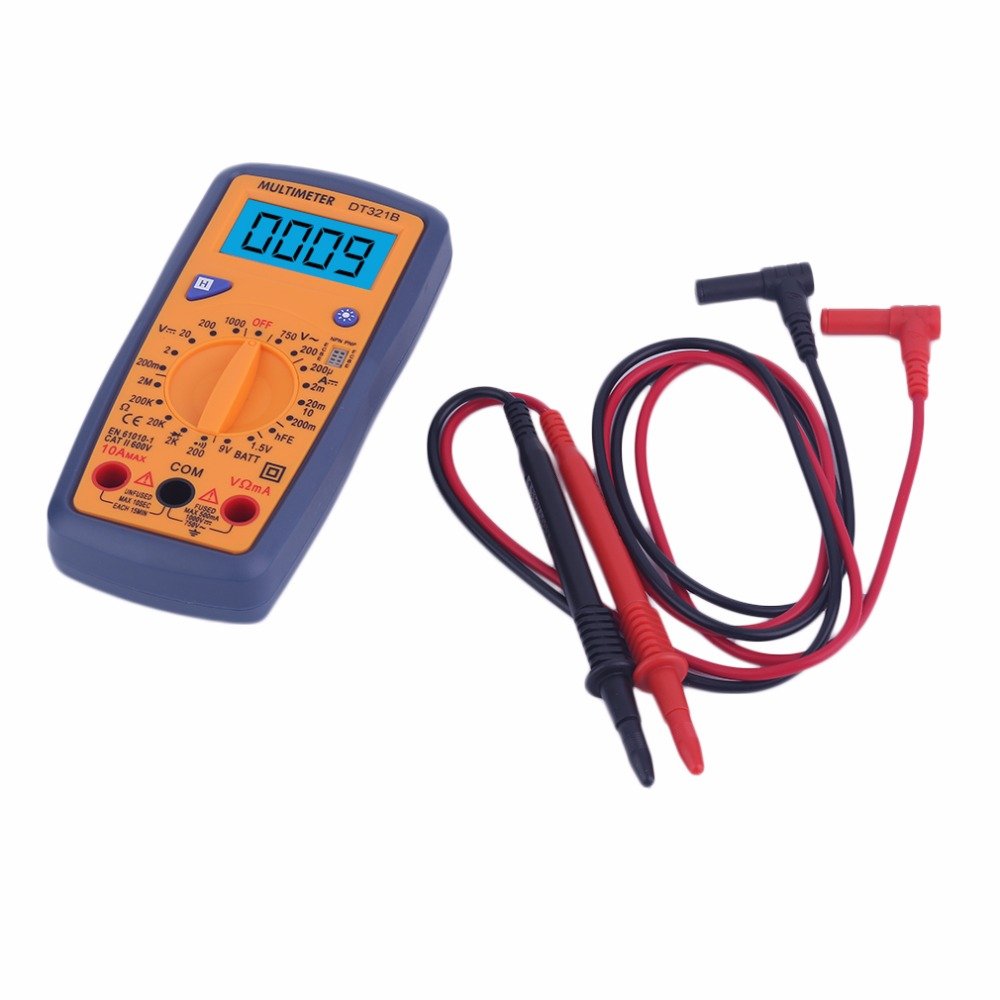

Foto 3.1: N'ihu view of the DT321B Digital Multimeter with key components labeled. The display shows numerical readings, the hold button freezes the current reading, and the rotary switch selects measurement functions. The '10A' jack is for high current measurements, 'COM' is the common ground, and 'VΩmA' is for voltage, resistance, and low current measurements.

The multimeter includes a blue backlight for improved visibility in low-light conditions and a data hold function to freeze the displayed reading.

4. Nhazi

4.1 Ntinye batrị

The DT321B Digital Multimeter requires two 1.5V batteries (Type 7, typically AAA) for operation. To install or replace batteries:

1. Hụ na agbanyụrụla multimeter ahụ.
2. Chọta ebe mkpuchi batrị n'azụ unit ahụ.
3. Mepee skru(s) ndị ahụ ma wepụ mkpuchi ahụ.
4. Insert the two 1.5V batteries, observing the correct polarity (+ and -) as indicated inside the compartment.
5. Replace the battery compartment cover and secure it with the screw(s).

5. Ntuziaka ọrụ

Before making any measurements, ensure the test leads are securely plugged into the correct input jacks.

Figure 5.1: The DT321B Multimeter with test probes connected. The black probe is connected to the 'COM' (common) jack, and the red probe is connected to the 'VΩmA' jack for most voltage, resistance, and low current measurements.

5.1 Na-atụ DC Voltage (V–)

1. Insert the red test lead into the 'VΩmA' jack and the black test lead into the 'COM' jack.
2. Tọọ mgba ọkụ rotary na DC Vol achọrọtage (V–) range (e.g., 200m, 2, 20, 200, 1000V). If the voltage is unknown, start with the highest range and work downwards.
3. Jikọọ ihe nyocha ule n'ofe akụkụ ma ọ bụ sekit a ga-atụ.
4. Gụọ voltage uru na LCD ngosi.

5.2 Na-atụ AC Voltage (V∼)

1. Insert the red test lead into the 'VΩmA' jack and the black test lead into the 'COM' jack.
2. Tọọ mgba ọkụ na-agbanwe agbanwe na AC Vol achọrọtage (V∼) range (e.g., 200, 750V).
3. Jikọọ ihe nyocha ule n'ofe akụkụ ma ọ bụ sekit a ga-atụ.
4. Gụọ voltage uru na LCD ngosi.

5.3 Measuring DC Current (A–)

kpachara anya: To avoid damage to the multimeter or the circuit, never connect the test leads in parallel across a voltage source when measuring current. Always connect in series.

1. For currents up to 200mA, insert the red test lead into the 'VΩmA' jack. For currents up to 10A, insert the red test lead into the '10A MAX' jack. The black test lead always goes into the 'COM' jack.
2. Set the rotary switch to the desired DC Current (A–) range (e.g., 200u, 2m, 20m, 200m, 10A).
3. Open the circuit where current is to be measured and connect the multimeter in series with the circuit.
4. Gụọ uru dị ugbu a na ngosipụta LCD.

5.4 Nguzogide Ntụle (Ω)

kpachara anya: Ensure the circuit under test is completely de-energized before measuring resistance.

1. Insert the red test lead into the 'VΩmA' jack and the black test lead into the 'COM' jack.
2. Set the rotary switch to the desired Resistance (Ω) range (e.g., 200, 2k, 20k, 200k, 2M).
3. Connect the test probes across the component to be measured.
4. Gụọ uru iguzogide na ngosipụta LCD.

5.5 Diode Ule

1. Insert the red test lead into the 'VΩmA' jack and the black test lead into the 'COM' jack.
2. Set the rotary switch to the diode symbol (→|).
3. Jikọọ ihe nyocha uhie na anode na ihe nyocha ojii na katode nke diode. Ngosipụta ahụ ga-egosi vol nke na-aga n'ihu.tage dobe.
4. Reverse the probes. The display should show 'OL' (open loop) for a good diode.

5.6 Nnwale na-aga n'ihu

1. Insert the red test lead into the 'VΩmA' jack and the black test lead into the 'COM' jack.
2. Set the rotary switch to the continuity symbol (♫).
3. Connect the test probes across the circuit or component. If continuity exists (resistance below a certain threshold), the buzzer will sound.

5.7 Battery Testing (1.5V / 9V)

1. Insert the red test lead into the 'VΩmA' jack and the black test lead into the 'COM' jack.
2. Set the rotary switch to the '1.5V BATT' or '9V BATT' position.
3. Connect the red probe to the positive terminal and the black probe to the negative terminal of the battery.
4. Gụọ batrị voltage na ngosi.

5.8 Transistor (hFE) Test

Figure 5.2: The DT321B Multimeter in use, with an inset showing a transistor being tested. The multimeter can measure the hFE (current gain) of NPN and PNP transistors.

1. Set the rotary switch to the 'hFE' position.
2. Identify the NPN or PNP type of the transistor.
3. Insert the transistor leads (Emitter, Base, Collector) into the corresponding sockets in the 'hFE' test socket on the multimeter.
4. Read the hFE value on the LCD display.

5.9 Data Jide Ọrụ

Press the 'Hold' button to freeze the current reading on the display. Press it again to release the hold function and resume live readings.

Ọrụ ọkụ azụ 5.10

The multimeter features a blue backlight. Press the backlight button (often integrated with the 'Hold' button or a separate button with a light symbol) to turn the backlight on or off for improved visibility.

6. Nlekọta

6.1 Nhicha

Jiri mgbasa ozi hichapụ ikpe ahụamp cloth and a mild detergent. Do not use abrasives or solvents. Ensure the multimeter is completely dry before use.

6.2 nnọchi batrị

When the low battery symbol appears on the display, replace the batteries as described in Section 4.1. Remove batteries if the multimeter is not used for extended periods to prevent leakage.

7. Nchọpụta nsogbu

• Enweghị ngosipụta ma ọ bụ ngosipụta dị nro: Lelee ntinye batrị ma chajịa ya. Dochie batrị ma ọ bụrụ na ọ dị mkpa.
• Ọgụgụ na-ezighi ezi: Ensure the rotary switch is set to the correct function and range. Check test lead connections. Verify the circuit under test is properly prepared (e.g., de-energized for resistance).
• 'OL' (Overload) egosiri: The measured value exceeds the selected range. Switch to a higher range or check for an open circuit.
• No continuity buzzer: Ensure the multimeter is in continuity mode and the circuit is closed.

8. Nkọwapụta

Nkọwa n'ozuzu:

• Nha ihuenyo LCD: 45x23mm
• Nha ngwaahịa: 160x76x32mm
• Ịnye ọkụ: 2 x 1.5V batteries (Type 7 / AAA)
• Vol dị alatage Symbol Display: Ee
• Nchekwa ibu ibu: Ee
• Diode Detection: Ee
• On-off Detection & Buzzer: Ee
• Nchọpụta ike batrị: 1.5V / 9V
• Transistor Detection (hFE): Ee
• Ndokwa data: Ee
• Ngosipụta ọkụ azụ: Ee

9. Akwụkwọ ikike na nkwado

Specific warranty and support information for the DT321B Digital Multimeter is not available in the provided product details. Please refer to the retailer or manufacturer's website for any applicable warranty terms or customer support contacts.
