1. Okwu mmalite
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Cata UC-10 Bathroom Fan. Please read this manual thoroughly before installation and use, and keep it for future reference.
The Cata UC-10 is a high-performance bathroom fan designed for efficient ventilation with very low energy consumption and quiet operation. Its silver-grey finish offers a discreet aesthetic suitable for various interiors, particularly bathrooms and WCs.
2. Ozi nchekwa
Ntuziaka nchekwa dị mkpa:
- Gbanyụọ ọkụ eletrik mgbe niile tupu ị rụọ ọrụ nrụnye, ndozi, ma ọ bụ ihicha ya.
- Ọ bụ ọkachamara ọkụ eletrik ruru eru ga-arụ ọrụ nrụnye ahụ dịka iwu waya mpaghara si dị.
- Ezubere ngwa a maka iji ndị mmadụ (gụnyere ụmụaka) nwere ike anụ ahụ, mmetụta uche ma ọ bụ nke uche, ma ọ bụ enweghị ahụmịhe na ihe ọmụma, ma ọ bụrụ na enyereghị ha nlekọta ma ọ bụ ntụziaka gbasara iji ngwa ahụ site n'aka onye na-ahụ maka nchekwa ha.
- Ekwesịrị ilekọta ụmụaka ka ha hụ na ha ejighi ngwa eji egwu egwu egwu.
- The device features double insulation and must not be earthed.
- Ensure the fan is installed in a location where it is protected from direct water spray. The fan has an IP44 protection rating, offering protection against water splashes from all sides.
- Do not block the air inlets or outlets of the fan.
- Okpomọkụ kachasị maka arụ ọrụ bụ 40 Celsius.
3. Ihe ngwugwu
Hụ na ihe niile dị na ya dị ma ghara imebi emebi:
- Cata UC-10 Bathroom Fan Unit
- Installation Screws and Wall Plugs (typically included)
- Akwụkwọ ntuziaka (akwụkwọ a)
Foto 3.1: N'ihu view of the Cata UC-10 Bathroom Fan, showing the silver-grey casing and the central fan grille.
4. Ntọala na nwụnye
The Cata UC-10 fan is designed for wall or ceiling mounting and can be installed in 100 mm (NW 100) diameter tubes or bays. It features a specially designed back valve to prevent backdraught.
4.1. Nlebanya mbụ etinyere
- Ensure the power supply is disconnected at the main circuit breaker.
- Confirm the mounting surface is flat and stable.
- Verify the ducting diameter is compatible (100 mm).
4.2. Ntuziaka Ntuziaka
- Kwadebe Ebe Nkwanye: Mark the drilling points on the wall or ceiling using the fan's mounting holes as a template. Ensure the location allows for proper air circulation and access for wiring.
- Oghere egwu egwu: Drill holes at the marked points suitable for the provided wall plugs and screws.
- Secure the Fan Casing: Attach the fan casing to the wall or ceiling using the screws. Ensure it is firmly secured.
- Jikọọ Wiring: Connect the electrical wiring to the fan's terminal block. Refer to the wiring diagram (if provided in physical manual) for correct connections. The fan operates on 240 Volts and features double insulation, meaning it does not require an earth connection.
- Wụnye Ọkpọkọ: Connect the 100 mm ducting to the fan's outlet. Ensure a tight seal to prevent air leakage.
- Mgbakọ ikpeazụ: Secure any covers or grilles.
Ọgụgụ 4.1: N'azụ view of the fan, illustrating the duct connection point for 100mm pipes.

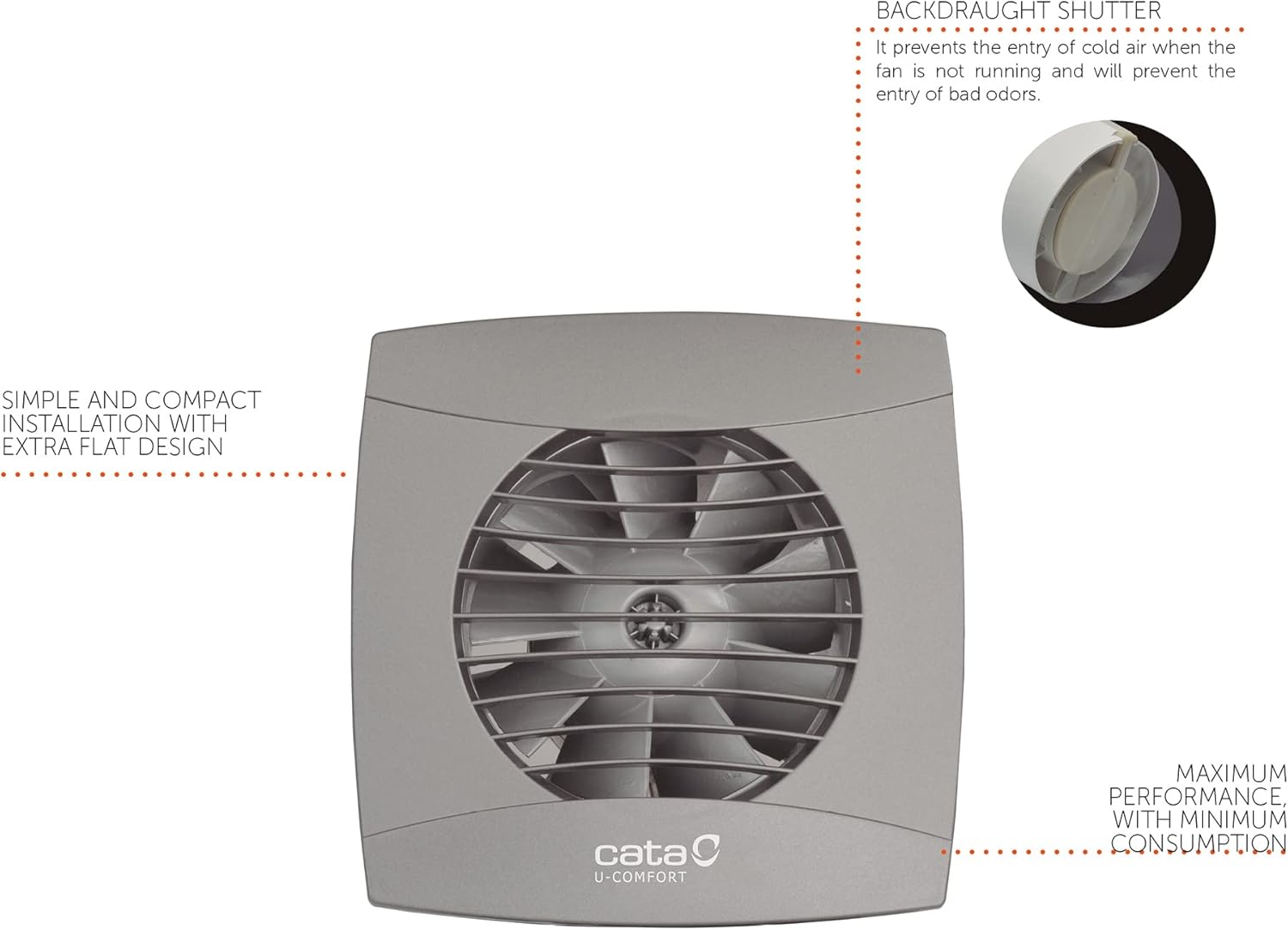

Figure 4.2: Diagram highlighting the backdraught shutter, which prevents cold air entry and odors when the fan is off, and the simple, compact installation design.
Ọgụgụ 4.3: Ọpụample of the Cata UC-10 fan installed on a wall in a bathroom setting, demonstrating its discreet appearance.
5. Ntuziaka ọrụ
The Cata UC-10 fan is controlled via a button (external switch, not part of the fan unit itself). Once installed and wired, its operation is straightforward.
5.1. Basic Ọrụ
- Na-agbanye: Activate the external switch connected to the fan. The fan will begin to operate, extracting air from the room.
- Na-agbanyụ: Deactivate the external switch. The fan will stop, and the integrated back valve will close to prevent backdraught.
5.2. Atụmatụ
- High Performance Turbine: Ensures efficient air extraction.
- Ọkwa mkpọtụ dị ala: Operates at a quiet 26 dB.
- Oriri ike dị ala: Only 8 Watts.
- Back Valve: Prevents cold air and odors from entering when the fan is not running.
- Nchekwa IP44: Protected against water splashes, suitable for bathroom environments.
Figure 5.1: Visual representation of key features: extra flat design, very quiet operation (26 dB), high energy efficiency (8 W), and included backflow dampee.
6. Nlekọta
Regular maintenance ensures the longevity and optimal performance of your Cata UC-10 fan.
6.1. Nhicha
- Ugboro: Clean the fan grille and exterior periodically, depending on usage and environmental conditions.
- Usoro:
- Kwụpụ ike: Always turn off the power supply to the fan at the main circuit breaker before cleaning.
- Mputa dị ọcha: Jiri nwayọọ, damp cloth with mild detergent to wipe down the exterior casing and grille. Do not use abrasive cleaners or solvents.
- Clean Interior (if accessible): If dust has accumulated inside the fan, carefully remove the front grille (if detachable) and gently clean the fan blades with a soft brush or vacuum cleaner. Do not use water directly on internal components.
- Gbakọtaghachi: Ensure all parts are dry before reassembling and restoring power.
6.2. Nlekọta n'ozuzu
- Do not attempt to lubricate the motor or bearings; they are designed for maintenance-free operation.
- Regularly check for any unusual noises or vibrations, which may indicate a problem.
7. Nchọpụta nsogbu
If you encounter issues with your Cata UC-10 fan, refer to the following table for common problems and solutions.
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Onye ofufe anaghị agbanwuo. | Enweghị ọkụ. Njikọ waya na-adịghị mma. External switch issue. | Check circuit breaker and power outlet. Verify wiring connections (consult a qualified electrician). Test the external switch. |
| Onye ofufe na-eme mkpọtụ. | Ihe mgbochi na agụba fan. Nkwalite rụrụ arụ. Damaged bearings. | Disconnect power and check for obstructions. Clean blades if necessary. Ensure fan is securely mounted. Contact customer support if bearings are suspected to be damaged. |
| Poor air extraction. | Blocked ducting. Agụba fan ruru unyi. Back valve stuck. | Check ducting for blockages. Mpekere fan dị ọcha. Inspect back valve for proper operation. |
| Fan vibrates excessively. | Ịkwado na-ekwesịghị ekwesị. Unbalanced fan blades. | Re-secure the fan to the mounting surface. Check for debris on blades; if blades are bent or damaged, contact support. |
If the problem persists after attempting these solutions, please contact CATA customer support.
8. Nkọwapụta
| Njirimara | Uru |
|---|---|
| Ụdị | CATA |
| Nọmba nlereanya | 1255000 (UC-10 STD Silver Standard) |
| Akụkụ (L x W x H) | 15 x 7.75 x 15 cm |
| Ibu | 650 grams |
| Agba | Ọlaọcha |
| Ihe onwunwe | Plastic (ABS) |
| Voltage | 240 volts |
| Oriri ike | 8 Watt |
| Ọkwa mkpọtụ | 26 dB |
| Ike ikuku | 110m³/h |
| Ogo nchekwa | IP44 (Protection against water splashes) |
| Ụdị nkwụnye | Mgbidi ma ọ bụ elu ụlọ |
| Dayameta oghere | 100 mm |
| Max. Okpomoku di egwu | 40 Celsius C |
| Mkpuchi | Double Insulation (No earthing required) |
Figure 8.1: Technical dimensions of the fan, showing a square face of 150mm x 150mm and a depth of 77.5mm for the duct, with an overall depth including the front grille of 18.5mm.
9. Akwụkwọ ikike na nkwado
CATA ELECTRODOMÉSTICOS, S.L. is committed to providing high-quality products. For warranty information and technical support, please refer to the official CATA websaịtị ma ọ bụ kpọtụrụ onye nkesa mpaghara gị.
Ozi mkpọtụrụ:
- For specific warranty terms, please consult the documentation provided at the time of purchase or visit the manufacturer's official websaịtị.
- For technical assistance or spare parts inquiries, contact CATA customer service. Information regarding spare parts availability is not provided in this document.
Note: Product specifications are subject to change without prior notice for product improvement.
