JBL S.tage 3627F 6.5-inch Two-Way Car Audio Speaker Instruction Manual

1. Okwu mmalite

Daalụ maka ịhọrọ JBL Stage 3627F 6.5-inch Two-Way Car Audio Speakers. These speakers are designed to deliver premium sound quality and enhanced performance for your vehicle's audio system. Featuring Plus One™ woofer cones and edge-driven dome tweeters, they provide superior output and a smooth, broad frequency response. This manual provides essential information for proper installation, operation, and maintenance of your new speakers.

2. Ozi nchekwa

Please read all safety instructions carefully before installing or using the speakers. Keep this manual for future reference.

• Akwadoro nwụnye ọkachamara: Ịwụnye ụda ụgbọala nwere ike ịdị mgbagwoju anya. Ọ bụrụ na ị maghị ihe ị ga-eme, gakwuru ọkachamara ruru eru maka nrụnye ya.
• Kwupu batrị: Kwapụ ihe niile dị n'ime batrị ụgbọala ahụ tupu ịmalite ọrụ eletriki ọ bụla iji gbochie obere sekit na mmebi.
• Wiring: Ensure all wiring is correctly connected, insulated, and secured to prevent shorts, electrical fires, or interference. Use appropriate gauge wiring.
• Ịkwanye: Securely mount speakers to prevent them from becoming loose during vehicle operation, which could cause injury or damage.
• Ọkwa olu: Prolonged exposure to high volume levels can cause hearing damage. Listen at moderate levels.
• Igwe ikuku: Ensure adequate ventilation around the speakers and any associated amplifiers iji gbochie ikpo oke ọkụ.
• Avoid Water/Moisture: These speakers are not waterproof. Avoid exposure to water or excessive moisture.

3. Ihe ngwugwu

Chọpụta na ihe niile dị na ngwugwu gị:

• 2 x JBL Stage 3627F 6.5-inch Two-Way Car Audio Speakers
• Ngwa mgbakwunye (skru, mkpachị) - Note: Some packages may not include foam gaskets or all hardware.
• Akwụkwọ ntuziaka (akwụkwọ a)

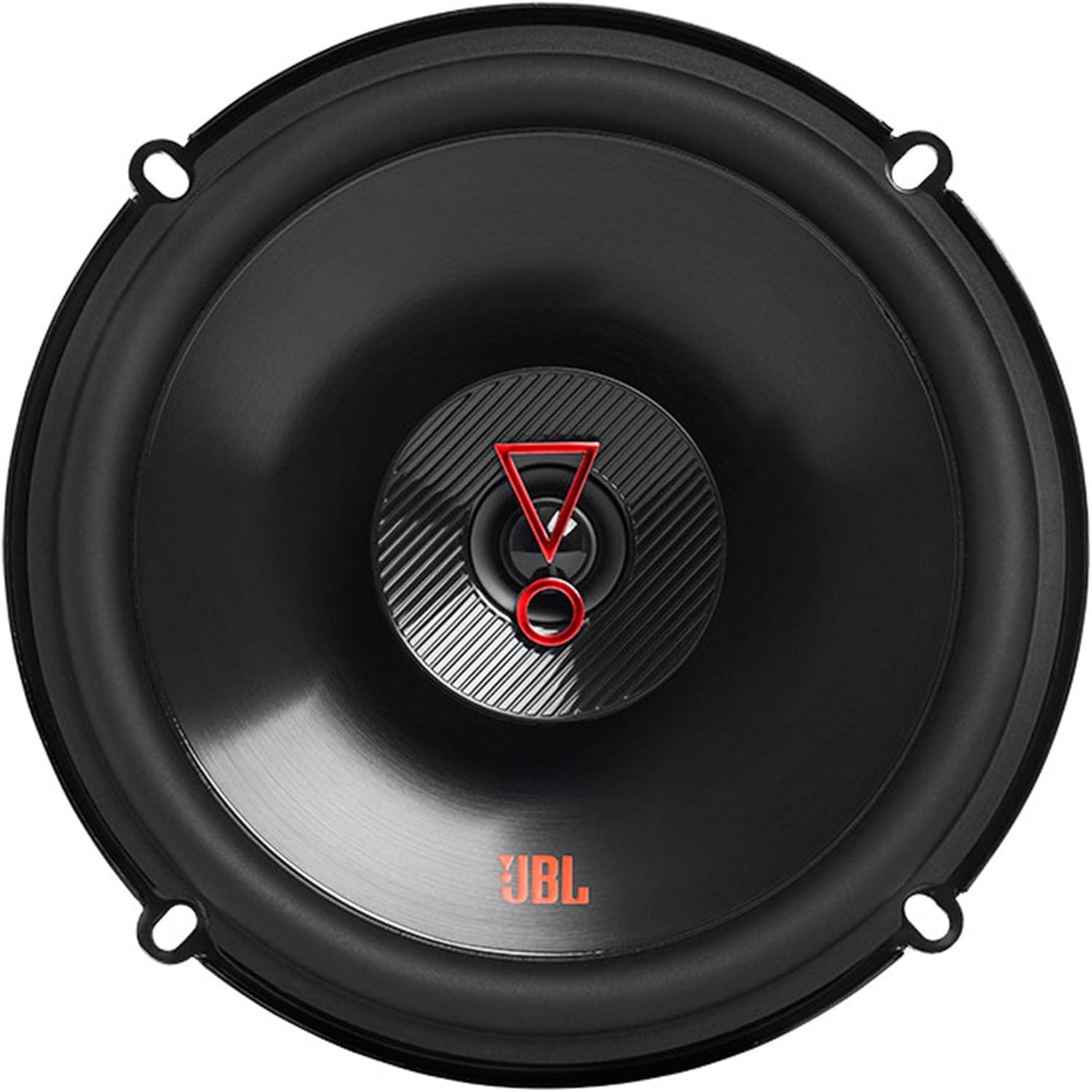

Foto 1: N'ihu view Ụlọ ọrụ JBL Stage 3627F 6.5-inch two-way car audio speaker. The speaker features a black cone with a red JBL logo and a red 'V' shaped tweeter in the center.

4. Nwụnye

Ụlọ ọrụ JBL Stage 3627F speakers are designed for easy integration into most vehicle audio systems. Follow these general steps for installation. Specific vehicle requirements may vary.

4.1 Ngwa achọrọ

• Screwdrivers (Phillips na flathead)
• Ndị na-ewepụ waya/crimpers
• Gwuo olulu (ọ bụrụ na ọ dị mkpa ka e tinye oghere ọhụrụ)
• Socket spana set
• Teepu eletriki ma ọ bụ tube na-ebelata okpomọkụ
• Multimeter (optional, for checking polarity)

4.2 Nzọụkwụ nwụnye n'ozuzu

1. Disconnect Vehicle Battery: Before beginning any work, disconnect the negative terminal of your vehicle's battery to prevent electrical shorts.
2. Wepu okwu ndị dị adị: Carefully remove the door panels or speaker grilles to access the factory speakers. Disconnect the wiring and unmount the old speakers.
3. Kwadebe Ebe Nkwanye: Ensure the mounting location is clean and free of obstructions. The JBL Stage 3627F speakers are 6.5 inches in diameter. Verify fitment and make any necessary modifications to the speaker opening or mounting holes.
4. Jikọọ Wiring: Connect the vehicle's speaker wires to the terminals on the JBL Stage 3627F speakers. Pay close attention to polarity (positive to positive, negative to negative). The speakers have a 2 Ohm impedance.


   Foto 2: N'azụ view Ụlọ ọrụ JBL Stage 3627F speaker, highlighting the wiring terminals for connection to the vehicle's audio system. The speaker label shows "STAGE3 627F" and "45Wrms 135W PEAK".
5. Mount Speakers: Place the new JBL speakers into the mounting location. Use the provided screws or appropriate hardware to secure them firmly. Do not overtighten.


   Foto 3: Akụkụ profile Ụlọ ọrụ JBL Stage 3627F speaker, illustrating its mounting depth and vented basket frame design. This view helps assess fitment in tight spaces.

6. Ndị ọkà okwu ule: Before reassembling the interior, reconnect the vehicle battery and test the speakers with your car's audio system to ensure they are functioning correctly and sound balanced.
7. Gbakọtaghachi: Ozugbo emere nkwenye gị, tinyeghachi panel ma ọ bụ grille ọ bụla ewepụrụ.

For optimal performance, consider pairing these speakers with a compatible amplifier that can handle their 2 Ohm impedance and power requirements (up to 225 Watts peak).

5. Ọrụ

Ụlọ ọrụ JBL Stage 3627F speakers are passive components of your car's audio system. Their operation is directly controlled by your vehicle's head unit (radio) and any connected ampndị na -enye ndụ.

• Isi mmalite ọdịyo: Select your desired audio source (radio, CD, Bluetooth, etc.) from your head unit.
• Njikwa olu: Adjust the volume to a comfortable listening level. Avoid excessively high volumes to prevent speaker damage and hearing loss.
• Njikwa ụda: Use your head unit's bass, treble, and balance controls to fine-tune the sound to your preference.
• Fader / itule: Adjust the fader (front-to-rear) and balance (left-to-right) to optimize the sound stage n'ime ụgbọala gị.

Image 4: A pair of JBL Stage 3627F speakers, showcasing their design and readiness for installation into a car audio system.

6. Nlekọta

Proper care will ensure the longevity and optimal performance of your JBL Stage 3627F speakers.

• Nhicha: Gently wipe the speaker cones and surrounds with a soft, dry cloth. Do not use harsh chemicals, solvents, or abrasive cleaners.
• Zere mmiri mmiri: Keep speakers dry. If they become wet, allow them to air dry completely before use.
• Nchekwa gburugburu: While designed for vehicle use, extreme temperatures or direct sunlight for extended periods can affect speaker materials.
• Nkwanye echekwabara: Periodically check that the speakers remain securely mounted and that all wiring connections are tight.

7. Nchọpụta nsogbu

Ọ bụrụ na ị na-enwe nsogbu na ndị na-ekwu okwu gị, lee nsogbu na ngwọta ndị a na-ahụkarị:

If the problem persists after trying these solutions, contact JBL customer support or a professional car audio technician.

8. Nkọwapụta

Here are the technical specifications for the JBL Stage 3627F speakers:

• Aha nlereanya: Stagna 3627F
• Ụdị ọkà okwu: Woofer (Two-way coaxial)
• Nha Ọkà Okwu: 6.5 sentimita asatọ
• Dayameta Woofer: 6.5 sentimita asatọ
• Dayameta Tweeter: 1 sentimita asatọ
• Ike Nwepụta Kachasịnụ: 225 Watts (Elu)
• Ike RMS: 45 Watt
• Mgbochi: 2 ohms
• Nzaghachi ugboro ugboro: 60 Hz - 20 kHz
• Ntinye Voltage: 2.83 volts
• Teknụzụ Njikọta: Ekwenyere
• Ụdị nkwụnye: Ugwu ụgbọ ala
• Ihe: Plastic
• Ibu ihe: 3.05 pound
• Ngwa gụnyere: 2 x Ndị na-ekwu okwu
• Agba: Nwa
• Ọkwa Nguzogide mmiri: Ọ bụghị mmiri na-eguzogide
• UPC: 050036353984

9. Akwụkwọ ikike na nkwado

JBL products are designed for reliability and performance. This product comes with a limited warranty.

• Ụdị akwụkwọ ikike: Oke
• Nkọwa akwụkwọ ikike: For specific terms and conditions of the limited warranty, please refer to the warranty card included with your product or visit the official JBL websaịtị. Akwụkwọ ikike a na-ekpuchikarị ntụpọ nrụpụta maka oge a kapịrị ọnụ site na ụbọchị azụrụ.
• Nkwado ndị ahịa: If you have questions about installation, operation, or troubleshooting that are not covered in this manual, please contact JBL customer support. You can find contact information on the official JBL websaịtị ma ọ bụ site na onye na-ere ahịa gị.
• Akụrụngwa dị n'ịntanetị: Gaa na JBL gọọmentị websaịtị (www.jbl.com) for product registration, FAQs, and additional support resources.
