LogiLink EO0009 Under-Desk PC Mount with CPU Strap

1. Okwu mmalite

The LogiLink EO0009 is an adjustable under-desk PC mount designed to securely hold your computer tower, freeing up valuable desk space. This mount utilizes a robust steel frame and adjustable fabric straps to accommodate various PC sizes, ensuring stability and protection from dust and accidental impacts.

2. Ozi nchekwa

• Ensure the mounting surface (desk underside) is sturdy enough to support the weight of the PC mount and your computer.
• Agafela ikike ibu kacha nke 10kg (22 lbs).
• Tighten all screws and straps securely during installation to prevent the PC from falling.
• Debe ụmụaka na anụ ụlọ n'ebe dị anya site na ebe a na-etinye ha.
• Periodically check the tightness of the straps and mounting screws.

3. Ihe ngwugwu

Nyochaa na akụrụngwa niile dị tupu ịmalite nrụnye.

• 1 x LogiLink Under-Desk PC Mount
• 1 x Nhazi nke skru na-arị elu
• 1 x Akwụkwọ ntuziaka onye ọrụ

Image 3.1: Packaging of the LogiLink EO0009 PC mount, illustrating the product and its key features.

4. Ntọala na nwụnye

Follow these steps to install the LogiLink EO0009 PC mount under your desk.

1. Kwadebe Ugwu: The mount consists of a steel frame and two adjustable fabric straps. Ensure the foam pads are correctly positioned on the frame to prevent scratching your PC.


Image 4.1: The LogiLink EO0009 PC mount, disassembled to show the metal frame and fabric straps.

2. Debe Ugwu ahụ: Determine the desired location under your desk. Ensure there is enough clearance for your PC and for airflow. The mount is adjustable in width/depth from approximately 340mm to 540mm.
3. Secure the Mount to the Desk: Use the provided mounting screws to attach the steel frame securely to the underside of your desk. Ensure the screws are tightened firmly.


Image 4.2: The PC mount installed under a desk, holding a computer tower.

4. Insert Your PC: Carefully place your computer tower into the mounted frame.
5. Adjust and Secure Straps: Wrap the fabric straps around your PC. Thread the straps through the buckles and pull them tight to secure the computer firmly within the mount. It may be helpful to hold the PC in place while adjusting and tightening the straps to ensure a snug fit. The straps are designed to prevent the PC from falling and keep it stable.

Image 4.3: A computer tower fully secured within the LogiLink EO0009 mount.
6. Nyocha ikpeazụ: Gently test the stability of the mounted PC. Ensure all connections are secure and the PC does not wobble.

5. Ọrụ

Once installed, the LogiLink EO0009 PC mount operates passively by holding your computer tower in a suspended position under your desk. No further operational steps are required beyond ensuring the PC is securely strapped in.

6. Nlekọta

• Nhicha: Jiri nwayọ hichaa etiti igwe ahụ, damp akwa . Zere ndị na-ehicha ihe na-ekpo ọkụ.
• Nyocha: Periodically inspect the mounting screws and fabric straps for any signs of wear, damage, or loosening. Re-tighten screws and adjust straps as necessary.
• Ike ibu: Do not place additional items on or in the mounted PC that would exceed the 10 kg load limit.

7. Nchọpụta nsogbu

• PC not held firmly: Ensure the fabric straps are pulled as tight as possible. It can be challenging to achieve maximum tension; try holding the PC in its desired position while simultaneously pulling and securing the straps.
• Ugwu ahụ adịghị mma: Check that all mounting screws attaching the frame to the desk are fully tightened. Ensure the desk material is solid and provides adequate support.
• Scratches on PC: Verify that the foam pads are correctly positioned between the PC and the metal frame.

8. Nkọwapụta

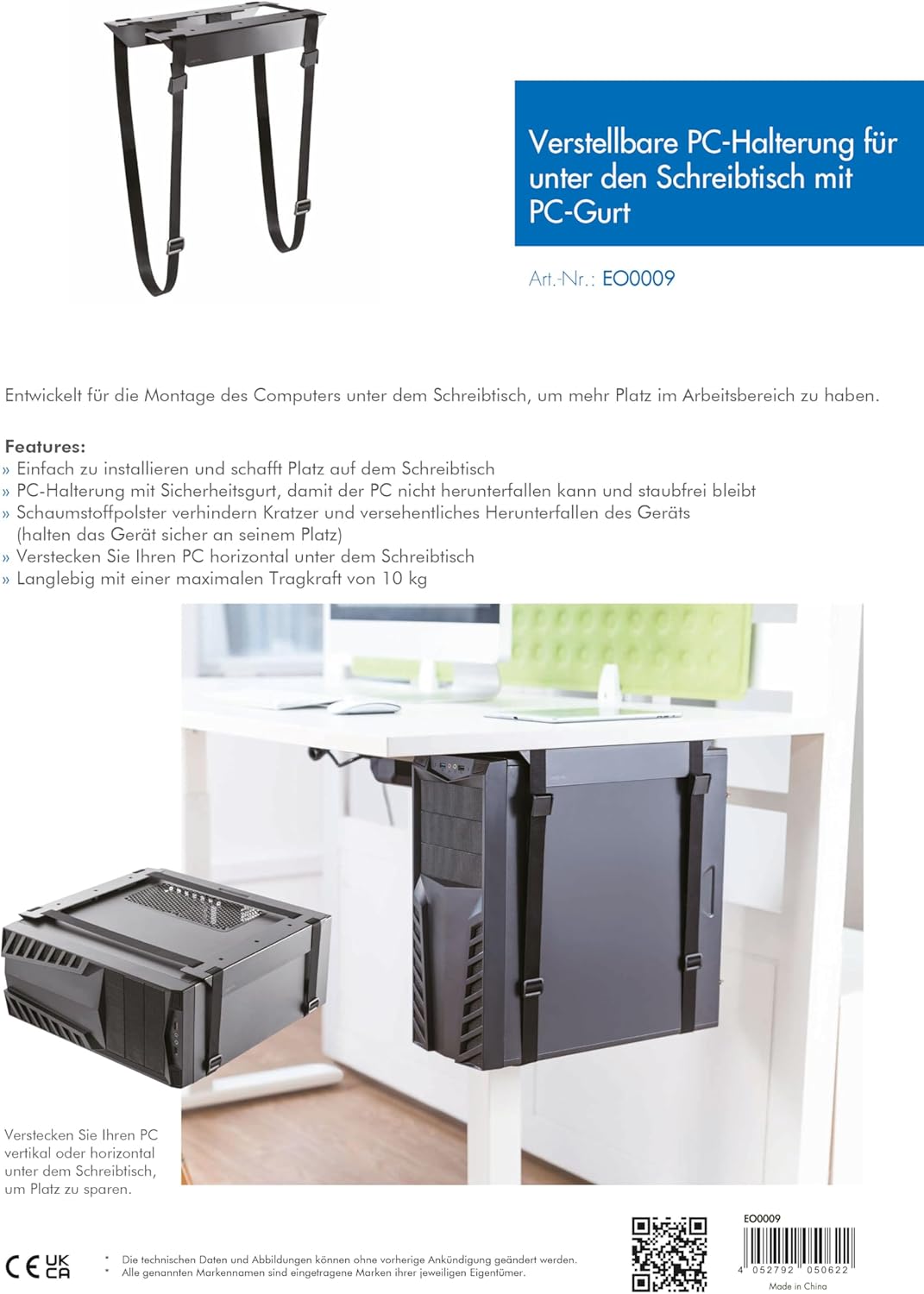

Image 8.1: Technical diagram illustrating the adjustable dimensions and features of the PC mount.

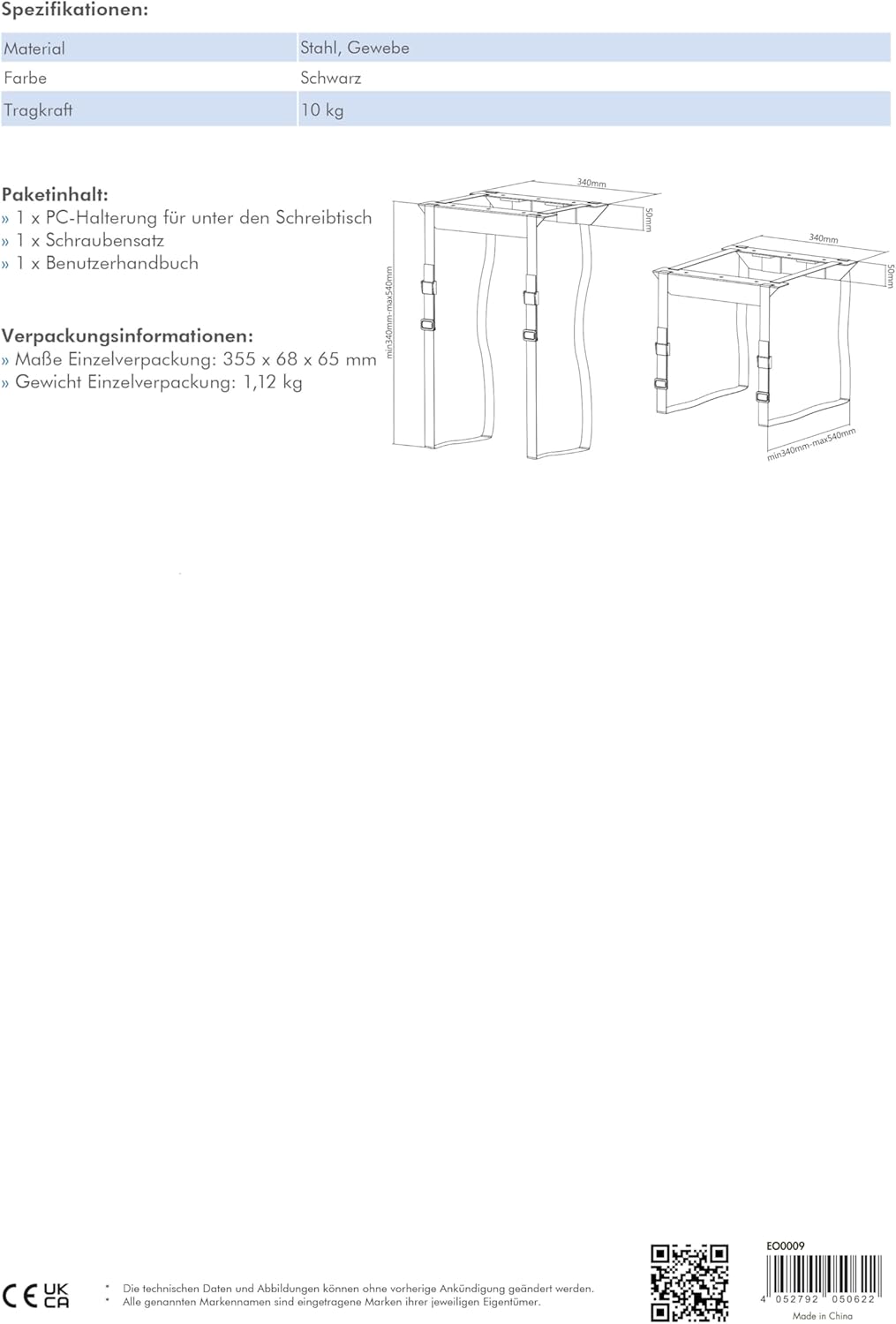

Image 8.2: Detailed diagram showing the minimum and maximum adjustable dimensions of the PC mount.

9. Akwụkwọ ikike na nkwado

For warranty information or technical support, please contact your retailer or visit the manufacturer's website. You can find more product details and support resources at www.2direct.de.
