Denon DCD-800NE Single Disk CD Player User Manual

1. Okwu mmalite

The Denon DCD-800NE is a single-disk CD player designed for high-resolution audio playback. It features an integrated USB port for playing various digital file formats. The player incorporates Advanced AL32 Processing Plus and an innovative circuitry structure to ensure accurate and interference-free sound reproduction, faithful to the original recording. It supports hi-res playback up to PCM192/24 and DSD 2.8 MHz/5.6 MHz via its USB port. The Pure Direct Mode allows for direct sound output to amplifiers, bypassing additional processing for clean and detailed audio. Its vibration-resistant design minimizes adverse audio effects, maintaining Denon's sound quality standards.

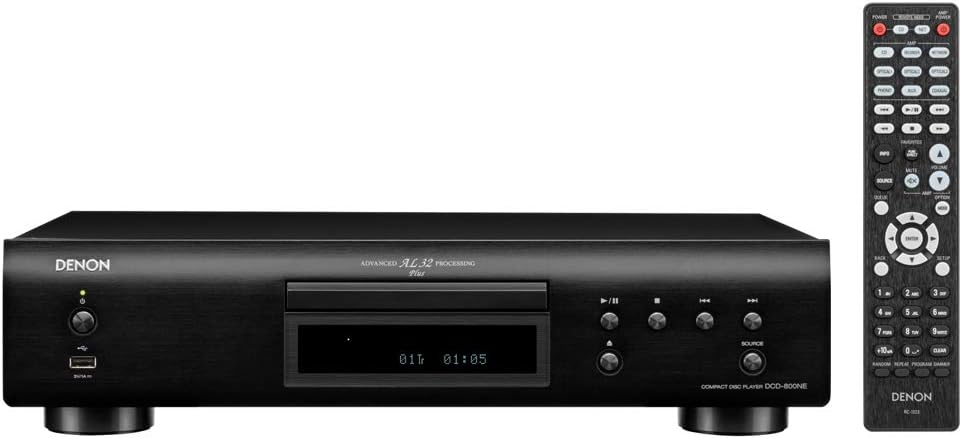

Foto 1: N'ihu view of the Denon DCD-800NE CD Player with its remote control. The display shows track information and playback status.

2. Nhazi

2.1 Nwepu

Jiri nlezianya wepụ ihe niile dị na nkwakọ ngwaahịa. Gbaa mbọ hụ na ihe ndị a dị:

• Denon DCD-800NE CD Player
• Njikwa anya (RC-1223)
• Two "AAA" batteries for the remote
• 47" Stereo RCA cable
• Owner's Manual on CD-ROM (for detailed instructions)
• Ntuziaka mmalite ngwa ngwa
• Ozi akwụkwọ ikike
• Ntuziaka nchekwa

2.2 Ntinye

Place the DCD-800NE on a stable, level surface away from direct sunlight, heat sources, and excessive vibration. Ensure adequate ventilation around the unit.

2.3 Njikọ

Connect the DCD-800NE to your amplifier or receiver using the provided RCA cable or a digital audio cable (optical or coaxial, not included). For optimal sound quality, ensure all connections are secure.

Foto 2: Rear panel connections of the DCD-800NE, including analog audio out (RCA), digital audio out (optical and coaxial), and IR control ports.

1. Mmepụta ọdịyo analog: Connect the RCA cables from the "AUDIO OUT" jacks on the DCD-800NE to the corresponding analog input jacks on your amplifier (e.g., "CD IN").
2. Mpụta ọdịyo dijitalụ: For digital connection, use an optical or coaxial digital cable (not supplied) to connect the "DIGITAL AUDIO OUT" (OPTICAL or COAXIAL) jack on the DCD-800NE to a digital input on your amplifier ma ọ bụ DAC.
3. Njikọ ike: Once all audio connections are made, connect the power cord to the DCD-800NE and then to an AC power outlet.

2.4 Nwụnye batrị dịpụrụ adịpụ

Open the battery compartment on the back of the remote control and insert the two "AAA" batteries, ensuring correct polarity (+/-). Close the compartment.

3. Ọrụ

3.1 Gbanyụọ ma ọ bụ gbanyụọ

Press the power button on the front panel or the remote control to turn the unit on or off.

3.2 CD ịkpọghachi

1. Pịa Mepee/mechie bọtịnụ imeghe tray diski.
2. Place a CD with the label side up into the disc tray.
3. Pịa Mepee/mechie button again to close the tray. The player will read the disc.
4. Pịa KWURU bọtịnụ ka ịmalite ịkpọghachi.
5. Jiri ihe MAKA buttons to navigate between tracks and the Kwụsịtụ or KWỤSỊ bọtịnụ iji jikwaa ịkpọghachi.

3.3 USB playback

The DCD-800NE features a front USB-A port for playing audio files from USB storage devices (e.g., USB flash drives, external hard drives).

1. Insert a USB storage device into the USB port on the front panel.
2. Pịa USB button on the front panel or remote to select the USB input.
3. Use the navigation buttons on the remote to browse folders and select desired audio files.
4. Pịa KWURU to begin playback. The player supports hi-res formats like PCM192/24 and DSD 2.8 MHz/5.6 MHz, as well as MP3, WMA, and FLAC.

3.4 Ọnọdụ Kpọmkwem Dị Ọcha

Activate Pure Direct Mode to bypass digital processing circuits that can color the audio signal. This provides a cleaner, more direct sound path, ideal for critical listening. Refer to the full Owner's Manual for instructions on enabling this mode.

3.5 Integration with Denon 800NE Series

The DCD-800NE is designed to integrate seamlessly with other Denon 800NE series components, such as the PMA-800NE Integrated Amplifier and DNP-800NE Network Audio Player, for a complete high-fidelity system. A single remote control can operate the entire 800NE series.

4. Nlekọta

4.1 Na-ehicha ngalaba ahụ

Jiri ákwà dị nro ma kpọọ nkụ hichaa mpụta nke ngwaọrụ ahụ. Ejila ihe nhicha, wax, ma ọ bụ ihe mgbaze n'ihi na ha nwere ike imebi ihe niile. Zere ịgbasa mmiri ozugbo na ngwaọrụ ahụ.

4.2 Diski nhicha

Handle CDs by their edges. If a disc is dirty, wipe it gently from the center outwards with a soft, lint-free cloth. Do not use harsh chemicals or abrasive materials, as these can scratch the disc surface and affect playback quality.

4.3 Mgba ikuku

Ensure that the ventilation openings on the unit are not blocked. Proper airflow is essential to prevent overheating and maintain optimal performance.

5. Nchọpụta nsogbu

If you experience issues with your DCD-800NE, consult the following common troubleshooting steps before seeking professional service.

• Enweghị ike:
  • Check if the power cord is securely plugged into the unit and the AC outlet.
  • Gbaa mbọ hụ na ntinye ọkụ na-arụ ọrụ.
• Enweghị ụda:
  • Verify that the audio cables are correctly connected between the DCD-800NE and your amponye na-anata ihe.
  • Ensure the correct input source is selected on your amponye na-anata ihe.
  • Check the volume level on both the DCD-800NE and your amponye na-anata ihe.
• Disc Does Not Play / Disc Error:
  • Hụ na diski ahụ dị ọcha ma ghara inwe ọkọ ma ọ bụ ihe ọ bụla na-emerụ ahụ.
  • Make sure the disc is inserted correctly with the label side up.
  • Try playing a different disc to determine if the issue is with the player or the disc.
  • Some discs may not be compatible (e.g., certain recordable CD-R/RW formats).
• USB Device Not Recognized / Files Not Playing:
  • Ensure the USB device is formatted correctly (FAT16/FAT32).
  • Lelee na ọdịyo ahụ files are in a supported format (MP3, WMA, FLAC, WAV, DSD).
  • The player supports up to 255 folders on a USB drive.
  • Some USB devices may require external power or may not be compatible.
• Njikwa anya anaghị arụ ọrụ:
  • Check if the batteries are inserted correctly and are not depleted.
  • Ensure there are no obstructions between the remote control and the unit's IR sensor.
  • Tụnye ebe dịpụrụ adịpụ ozugbo na unit ahụ.

For more detailed troubleshooting, refer to the Owner's Manual on CD-ROM.

6. Nkọwapụta

Mara: Nkọwapụta ga-agbanwe na-enweghị ọkwa.

7. Akwụkwọ ikike Ozi

Denon products are manufactured to the highest quality standards. This product is covered by a limited warranty. Please refer to the "Warranty Information" document included in your product packaging or on the Owner's Manual CD-ROM for specific terms, conditions, and duration of the warranty applicable to your region. Keep your proof of purchase for warranty service.

8. Nkwado ndị ahịa

For technical assistance, product inquiries, or service requests, please contact Denon customer support. You can find contact information on the official Denon website or in the "Quick Start Guide" included with your product.

Akụrụngwa dị n'ịntanetị: Visit the official Denon website for FAQs, software updates, and additional support materials.
