GameMax Expedition MATX PC Gaming Case

1. Okwu mmalite

The GameMax Expedition is a compact Micro ATX PC gaming case designed for efficient cooling and component compatibility. This manual provides instructions for the proper installation, operation, and maintenance of your PC case.

Figure 1.1: GameMax Expedition MATX PC Gaming Case, White.

2. Ozi nchekwa

• Kwụpụ ike na ihe niile dị na ya mgbe niile tupu etinye ma ọ bụ rụzie ya.
• Yiri eriri nkwojiaka mgbochi static iji gbochie mwepu electrostatic (ESD) mebiri ihe.
• Be cautious of sharp edges inside the chassis.
• Debe obere akụkụ na skru ka ụmụaka ghara ịhụ ya.
• Ensure proper ventilation around the case during operation.

3. Ihe ngwugwu

Chọpụta na ihe niile dị na ngwugwu:

• GameMax Expedition MATX PC Gaming Case
• Accessory box (screws, standoffs, cable ties)
• 1 x 120mm Blue LED Fan (pre-installed at rear)
• Akwụkwọ ntuziaka (akwụkwọ a)

4. Akụrụngwa Ngwaahịa

• Micro Gaming Chassis: Compact design optimized for gaming components.
• Ọdụ ụgbọ mmiri I/O: 1 x USB 3.0, 2 x USB 2.0, and HD Audio ports located on the top panel.
• Na-ajụ oyi: Includes 1 x 120mm Blue LED fan. Supports additional fans for enhanced airflow.
• Side Window: Full side window panel allows visibility of internal components.
• Magnetic Dust Filter: Removable dust filter on the top panel for easy cleaning and improved system longevity.
• GPU Bracket: Integrated bracket provides support for graphics cards, preventing sag and accommodating larger cards.

5. Akụkụ karịrịview

5.1 Mpụga Views

Figure 5.1: Front panel design with air intake and included 120mm fan illustration.

Figure 5.2: Top I/O panel featuring USB 3.0, USB 2.0, and audio ports.

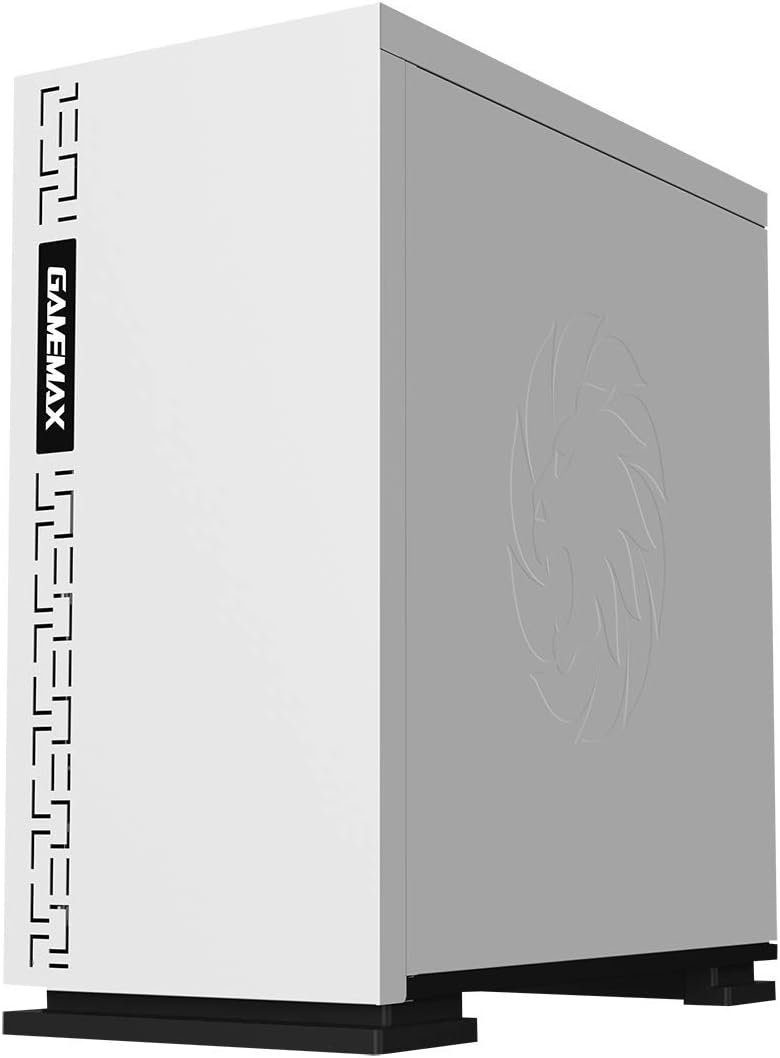

Foto 5.3: Top view showing the magnetic dust filter for fan ventilation.

Ọgụgụ 5.4: N'azụ view displaying expansion slots and the pre-installed 120mm fan.

5.2 Internal Layout

Ọgụgụ 5.5: Ime view with the side panel removed, showing the motherboard tray and cable routing options.

Figure 5.6: Illustration of fan and radiator mounting points within the chassis.

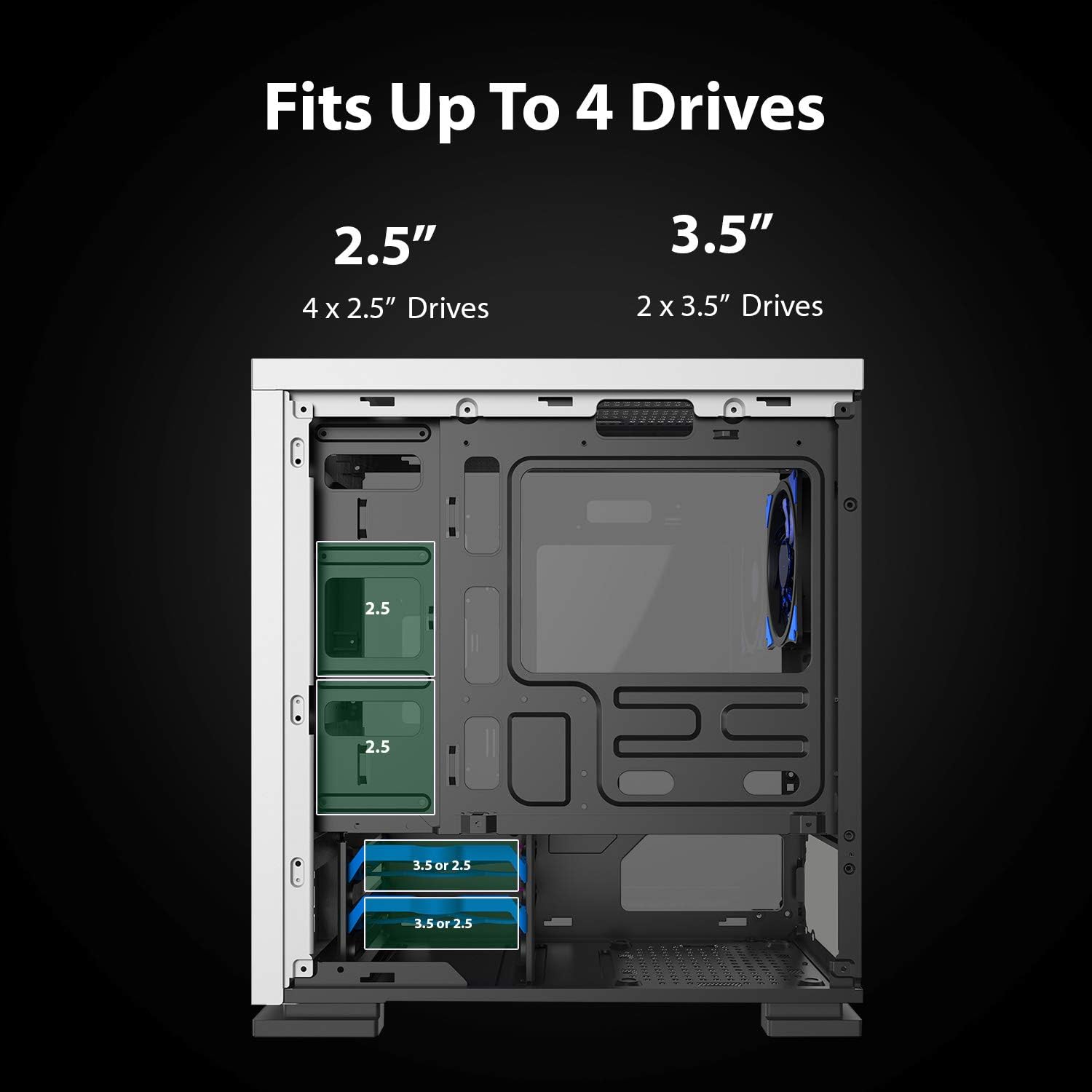

Figure 5.7: Drive bay locations supporting 2.5" and 3.5" storage devices.

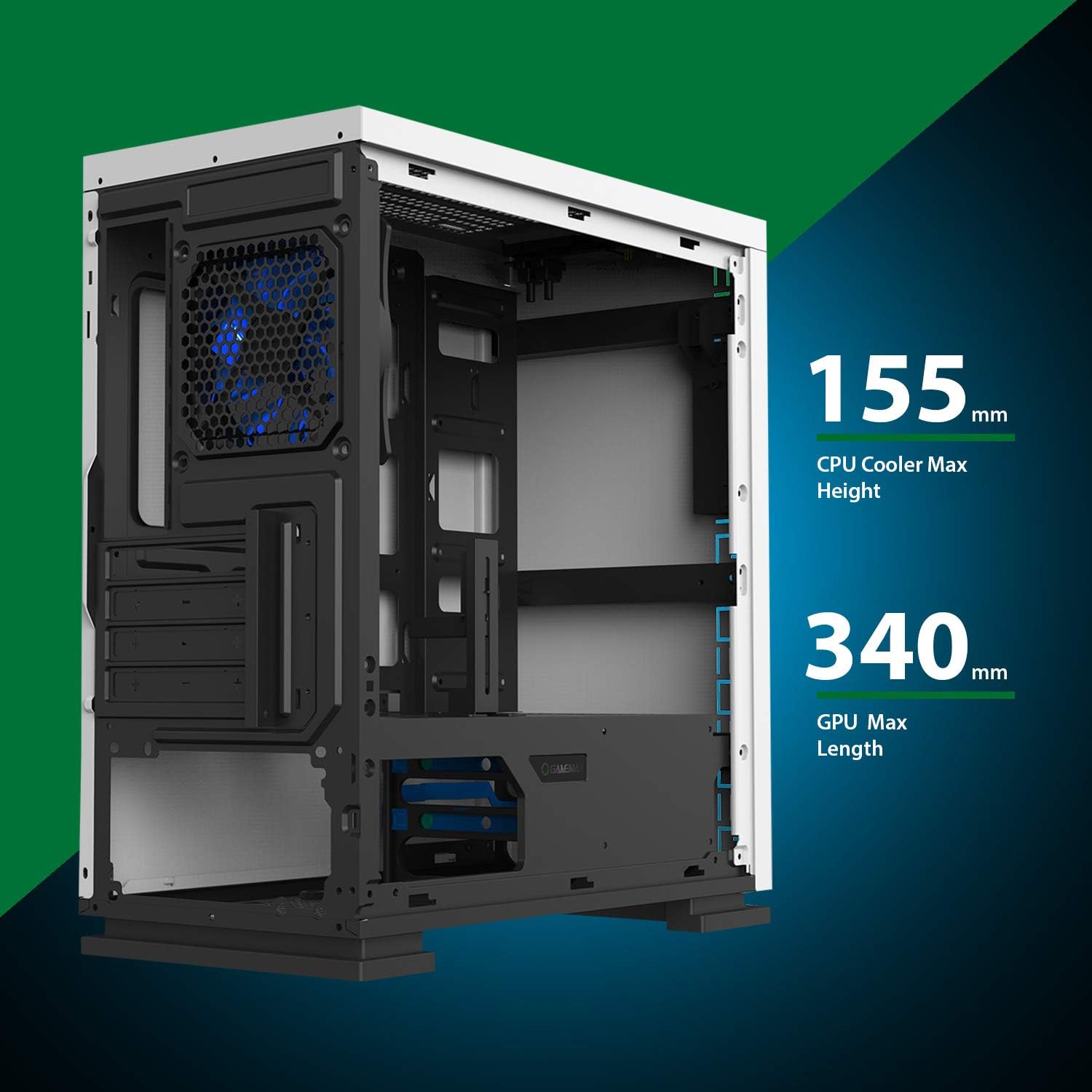

Figure 5.8: Maximum clearance for CPU coolers (155mm) and GPUs (340mm).

6. Ntọala na nwụnye

6.1 Nkwadebe

• Unpack the chassis and remove all packaging materials.
• Remove the side panels by unscrewing the thumbscrews at the rear.
• Gather necessary tools: Phillips head screwdriver, cable ties.

6.2 Nwụnye motherboard

1. Install the I/O shield into the rear opening of the chassis.
2. Align the motherboard with the pre-installed standoffs. Ensure the standoffs match your Micro ATX motherboard's mounting holes.
3. Chekwaa motherboard site na skru ndị enyere.

6.3 Ntinye ike

1. Place the power supply unit (PSU) into the dedicated compartment at the bottom rear of the case.
2. Align the PSU with the screw holes on the rear of the chassis.
3. Secure the PSU with the provided screws.

6.4 Ntinye draịva nchekwa

• 2.5" Drives: Mount 2.5" SSDs/HDDs to the dedicated mounting points on the motherboard tray or within the drive cage using the provided screws.
• 3.5" Drives: Install 3.5" HDDs into the drive cage located beneath the PSU shroud. Slide the drive into the tray and secure it.

6.5 Expansion Card (GPU) Installation

1. Remove the necessary expansion slot covers from the rear of the chassis.
2. Insert your graphics card or other expansion card into the appropriate PCIe slot on the motherboard.
3. Secure the card with a screw.
4. Utilize the adjustable GPU bracket to provide additional support for heavier graphics cards.

6.6 Fan and Cooling Installation

• The case comes with one 120mm Blue LED fan pre-installed at the rear.
• Additional 120mm fans can be installed at the top and front positions as needed.
• Ensure fans are oriented correctly for optimal airflow (intake or exhaust).

6.7 Front Panel Connector Installation

Connect the front panel cables (USB 3.0, USB 2.0, HD Audio, Power SW, Reset SW, Power LED, HDD LED) to their corresponding headers on your motherboard. Refer to your motherboard manual for exact pin layouts.

7. .rụ ọrụ

Once all components are installed and cables are connected, replace the side panels. Connect your monitor, keyboard, mouse, and power cable. Press the power button on the top panel to start your system. The pre-installed LED fan will illuminate upon power-on.

8. Nlekọta

• Nchacha uzuzu uzuzu: Regularly remove and clean the magnetic dust filter located on the top panel to maintain optimal airflow and prevent dust buildup inside the case.
• Nchacha izugbe: Jiri nwayọọ, damp cloth to clean the exterior surfaces of the case. Avoid abrasive cleaners.
• Mwepụ Uzuzu Ime: Periodically use compressed air to clear dust from internal components and fans. Ensure the system is powered off and unplugged before performing internal cleaning.

9. Nchọpụta nsogbu

• Sistemụ anaghị arụ ọrụ: Check all power connections, including the PSU to the wall outlet, PSU to motherboard, and front panel power switch cable to the motherboard.
• Ndị Fans anaghị agba ọsọ: Verify fan cables are securely connected to the motherboard or fan controller.
• Ọdụ ụgbọ mmiri USB anaghị arụ ọrụ: Ensure the front panel USB cables are correctly connected to the motherboard's USB headers.
• Enweghị mmepụta ihe ngosi: Confirm the graphics card is properly seated and connected to power, and the monitor cable is connected to the graphics card, not the motherboard's integrated graphics port (unless using integrated graphics).

10. Nkọwapụta

11. Akwụkwọ ikike na nkwado

For warranty information and technical support, please visit the official GameMax websaịtị ma ọ bụ kpọtụrụ onye na-ere ahịa mpaghara gị.

Ndị ọchịchị Websaịtị: gamemaxpc.com
