1. Ozi nchekwa dị mkpa
Please read all instructions carefully before operating your Kalamera KRC-24SS wine cooler. Retain this manual for future reference.
- Ezubere ngwa a maka iji naanị ụlọ.
- Ensure the unit is placed on a stable, level surface in an ambient setting.
- Proper ventilation is crucial for efficient operation and to prevent overheating. Do not block any ventilation openings.
- Echekwala ihe mgbawa dị ka ite aerosol nwere ihe na-ere ọkụ n'ime ngwa a.
- Tupu ị na-ehicha ma ọ bụ na-arụzi ya, na-ewepụ ihe nkwụnye ọkụ eletrik mgbe niile.
- Debe oghere ikuku na mkpuchi ngwa ma ọ bụ n'ime ụlọ arụnyere n'ime ya ka ọ ghara igbochi ya.
2. Ngwaahịa gafereview
The Kalamera KRC-24SS is a single zone wine cooler designed to store up to 24 standard 750mL wine bottles. It features a compressor cooling system, touch controls, and LED interior lighting.
Akụkụ ndị bụ isi:
- Ike: 24 standard 750mL wine bottles.
- Oke okpomọkụ: 41°F ruo 66°F (5°C ruo 18°C).
- Njikwa: Sensitive touch button control panel.
- nkwakọba: Removable wire shelves for flexible storage.

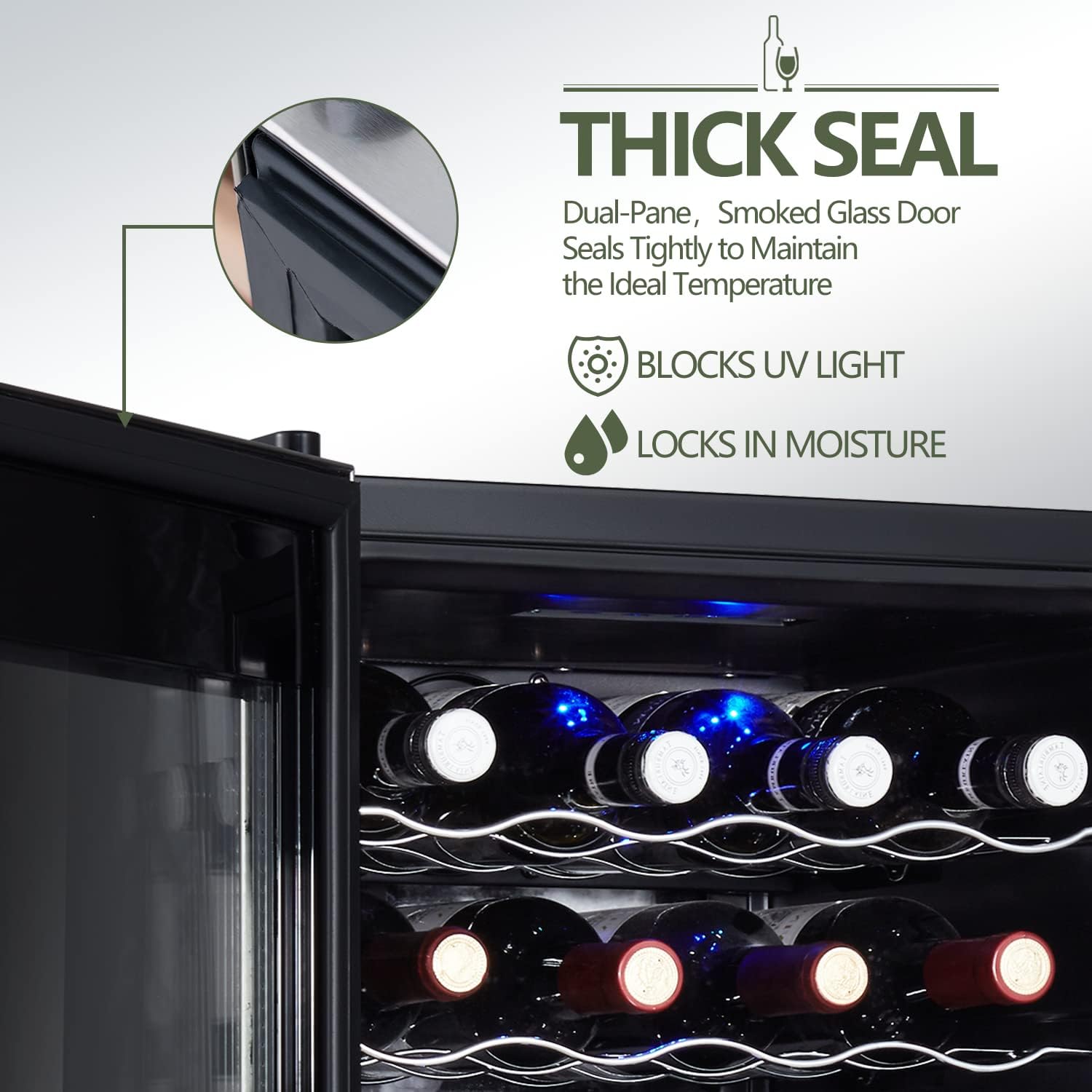

- Ọnụ ụzọ: Double-pane glass door with thick seal for insulation and UV light blocking.

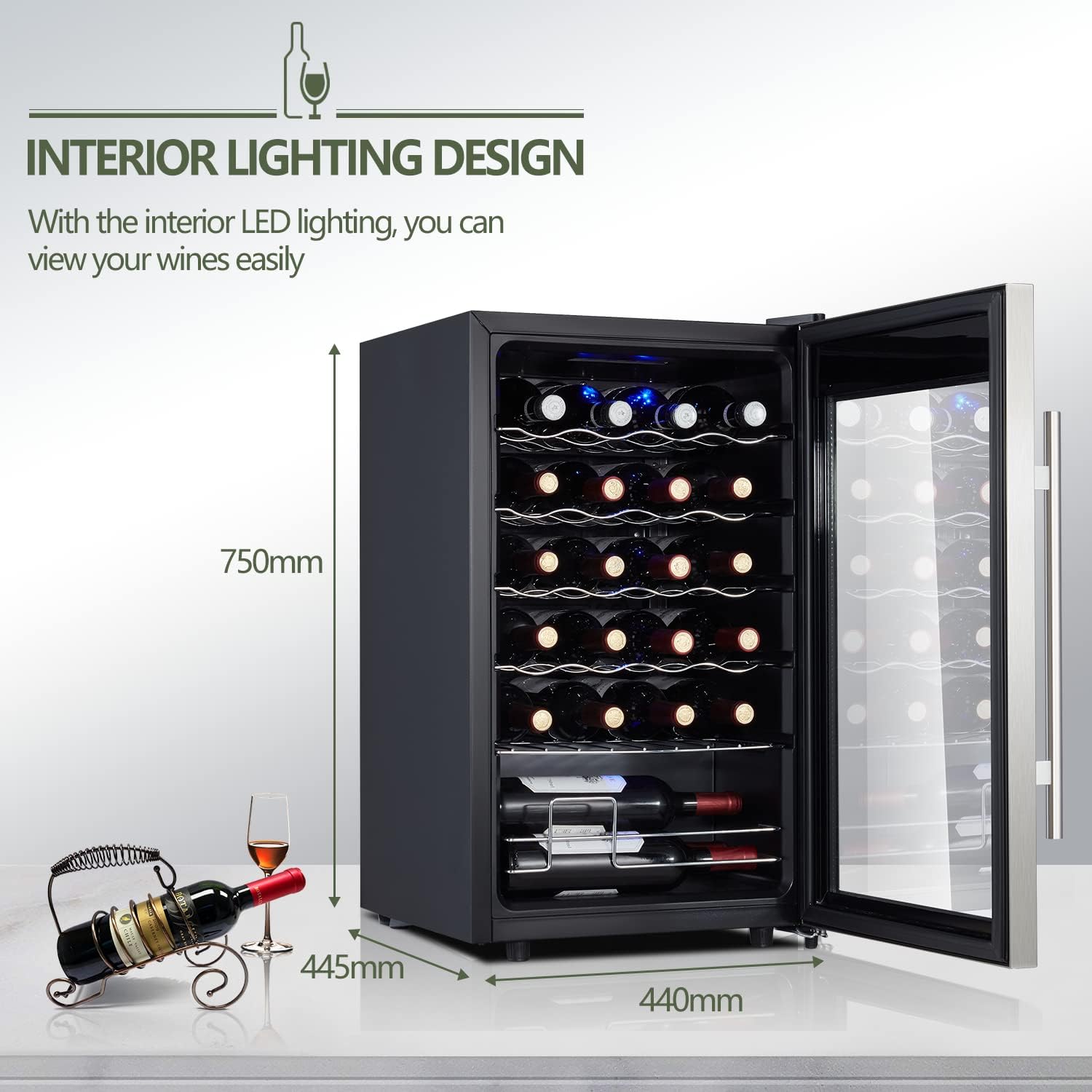

- Ọkụ: Soft blue LED interior lighting.
- Nwụnye: Freestanding design.
3. Ntọala na nwụnye
3.1 Nwepu
- Carefully remove all packaging materials. Keep the original packaging for future transport if needed.
- Inspect the unit for any shipping damage. If damage is found, contact your retailer immediately.
- Allow the appliance to stand upright for at least 3 hours before plugging it into a power source. This allows the refrigerant fluids to settle.
3.2 Ntinye
- Place the wine cooler on a firm, level floor that is strong enough to support the unit when fully loaded.
- Ensure adequate space around the unit for proper air circulation. Maintain at least 2-3 inches of clearance on the sides and back, and sufficient space above for heat dissipation.
- Avoid placing the unit in direct sunlight or near heat sources (e.g., oven, radiator).
- The working ambient temperature range for this unit is 41°F-95°F (5°C-35°C).
3.3 Jikwaa nwụnye
The door handle may require assembly. To install:
- Locate the screws and the handle.
- Gently pull back the door gasket to expose the screw holes on the door frame. It is not necessary to fully remove the gasket.
- Align the handle with the screw holes and secure it using the provided screws. Ensure the screws are tightened firmly but do not overtighten.
3.4 Njikọ ike
- Plug the power cord into a dedicated, grounded 100-120V/60Hz electrical outlet.
- Ejila eriri ndọtị ma ọ bụ nkwụnye nkwụnye.
4. Ntuziaka ọrụ

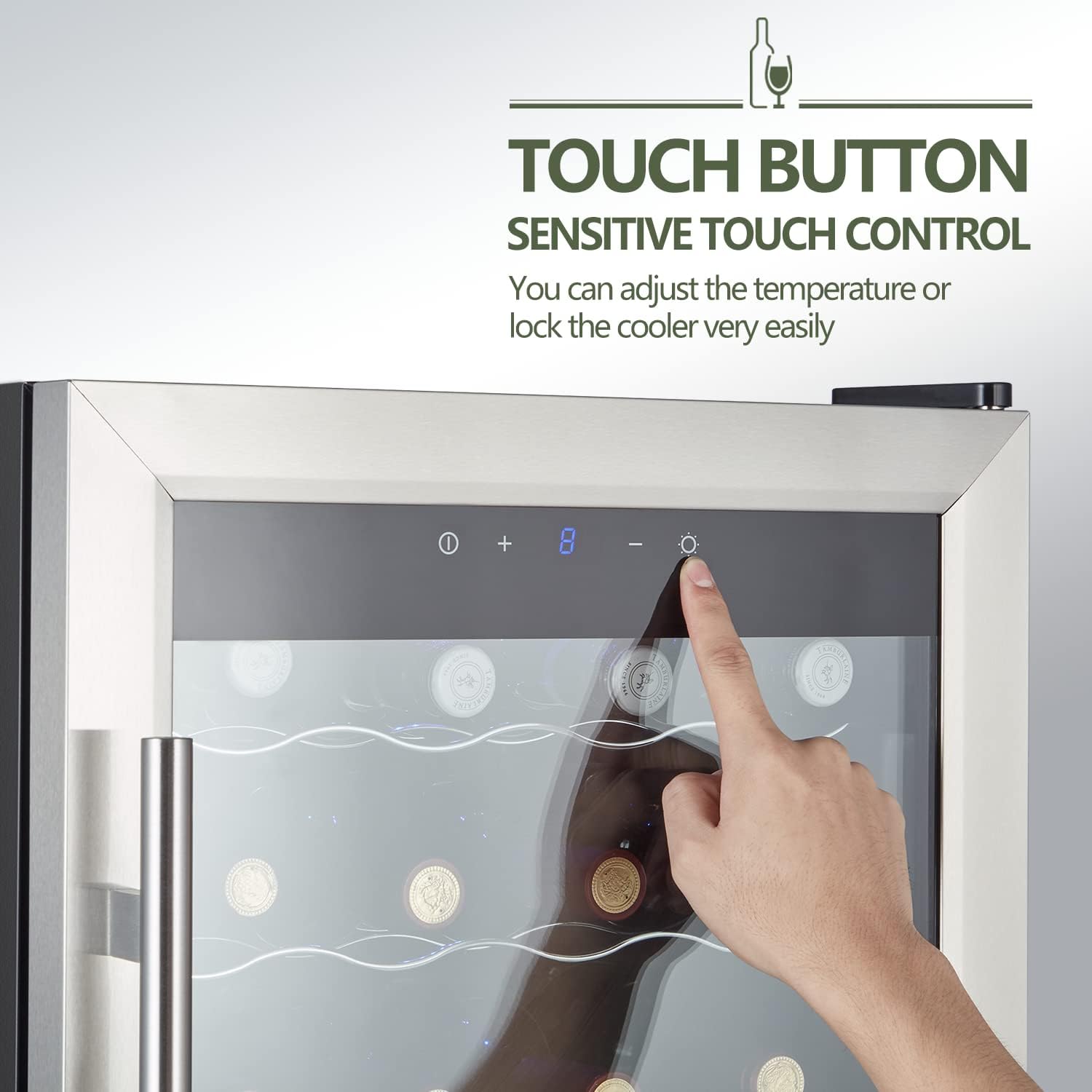

4.1 Ogwe njikwa
The control panel is located on the top frame of the door and features touch-sensitive buttons:
- bọtịnụ ike ( ① ): Gbanyụọ ma ọ bụ gbanyụọ unit ahụ.
- Bọtịnụ Elu Okpomọkụ ( + ): Na-abawanye okpomọkụ atọrọ.
- Bọtịnụ Ọnọdụ Okpomọkụ ( - ): Na-ebelata okpomọkụ atọrọ.
- Bọtịnụ ọkụ ( ☀ ): Na-agbanyụ ma ọ bụ gbanyụọ ọkụ LED dị n'ime.
- Lock/Unlock Button ( 🔒 ): Locks or unlocks the control panel to prevent accidental changes. Press and hold for a few seconds to activate. A beep may indicate successful locking/unlocking.
4.2 Ịtọ ntọala okpomọkụ
- Ensure the control panel is unlocked. If locked, press and hold the lock button until it beeps.
- Use the 'Temperature Up' or 'Temperature Down' buttons to set your desired temperature between 41°F and 66°F.
- The display will flash the set temperature and then return to showing the current internal temperature.
Karama 4.3 Na-ebu ibu
- The unit is designed for 24 standard 750mL Bordeaux-style bottles.
- The wire shelves are removable to accommodate larger or irregularly shaped bottles. Gently slide out a shelf to remove it.
- Arrange bottles to allow for proper air circulation within the cooler. Avoid overcrowding.
5. Nlekọta
5.1 Na-ehicha ime ime
- Wepụ ihe nju oyi mmanya tupu ihicha ya.
- Remove all bottles and shelves.
- Jiri mmiri ọkụ na soda sachaa elu ime ụlọ ahụ (nri abụọ nke soda baking na otu lita mmiri).
- Rinse thoroughly and wipe dry with a clean, soft cloth.
- Clean the removable shelves with a mild detergent and water, then dry completely before returning them to the unit.
5.2 Na-ehicha Mpụga
- Jiri akwa dị nro na ncha dị nro hichaa mpụta.
- For stainless steel surfaces, use a non-abrasive stainless steel cleaner.
- Wipe the door gasket regularly to ensure a tight seal.
5.3 Evaporator Tray
Periodically check the evaporator tray located at the back of the unit (near the compressor) for any debris or blockages. Ensure it is clean and properly positioned to collect and evaporate condensation.
6. Ntuziaka nchọpụta nsogbu
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Igwe nju oyi anaghị arụ ọrụ. | Enweghị ike na unit. | Lelee ma ọ bụrụ na etinyere eriri ọkụ ahụ nke ọma. Chọpụta ihe nkesa sekit ma ọ bụ fuse. |
| Ngwaọrụ ahụ anaghị ajụ oyi nke ọma. | Temperature setting is too high; Door is not closed properly; Poor ventilation; Ambient temperature is too high. | Adjust temperature to a lower setting. Ensure door is fully closed and sealed. Check for obstructions around the unit. Move unit to a cooler location if ambient temperature exceeds 95°F (35°C). |
| Oke mkpọtụ. | Unit is not level; Compressor cycling; Objects vibrating against the unit. | Adjust leveling legs to ensure the unit is stable. Compressor noise is normal during operation. Ensure no bottles or shelves are vibrating. |
| Ogwe njikwa anaghị anabata. | Control panel is locked; Temporary electronic glitch. | Press and hold the lock button to unlock the panel. If still unresponsive, unplug the unit for 5 minutes, then plug it back in to reset. |
| Door handle screws are too short. | Mgbanwe mmepụta. | If the provided screws are too short, longer screws of the same thread type may be required. Contact customer support if unable to resolve. |
7. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Nlereanya | KRC-24SS |
| Ụdị | Kalamera |
| Ike | 24 Bottles (750mL standard) |
| Mpaghara okpomọkụ | Mpaghara Otu |
| Oke okpomọkụ | 41°F - 66°F (5°C - 18°C) |
| Akụkụ Mpụga (D x W x H) | 17.7" x 16.9" x 29.13" |
| Ibu | 47 pound |
| Voltage | 100-120V/60Hz |
| Wattage | 95 Watt |
| Ọkwa mkpọtụ | 38 decibel |
| Ụdị nwụnye | Ntighari |
| Ụdị ọnụ ụzọ | Double-pane Glass |
| Ihe eji eme ihe | Waya (Chrome) |
| Agba | Nwa |
8. Akwụkwọ ikike na nkwado
8.1 Akwụkwọ ikike nwere oke
This Kalamera KRC-24SS wine cooler comes with a Akwụkwọ ikike akụkụ otu afọ from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, alteration, neglect, or unauthorized repair.
8.2 Nkwado ndị ahịa
For technical assistance, warranty claims, or to inquire about replacement parts, please contact Kalamera customer support. You can find contact information on the official Kalamera Store Page ma ọ bụ site na onye na-ere ahịa gị.
